UV-IPC98344ER-GX42-E8-W-VH3
UV-IPC98344ER-GX42-E8-W-VH3

Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

UNIVIEW

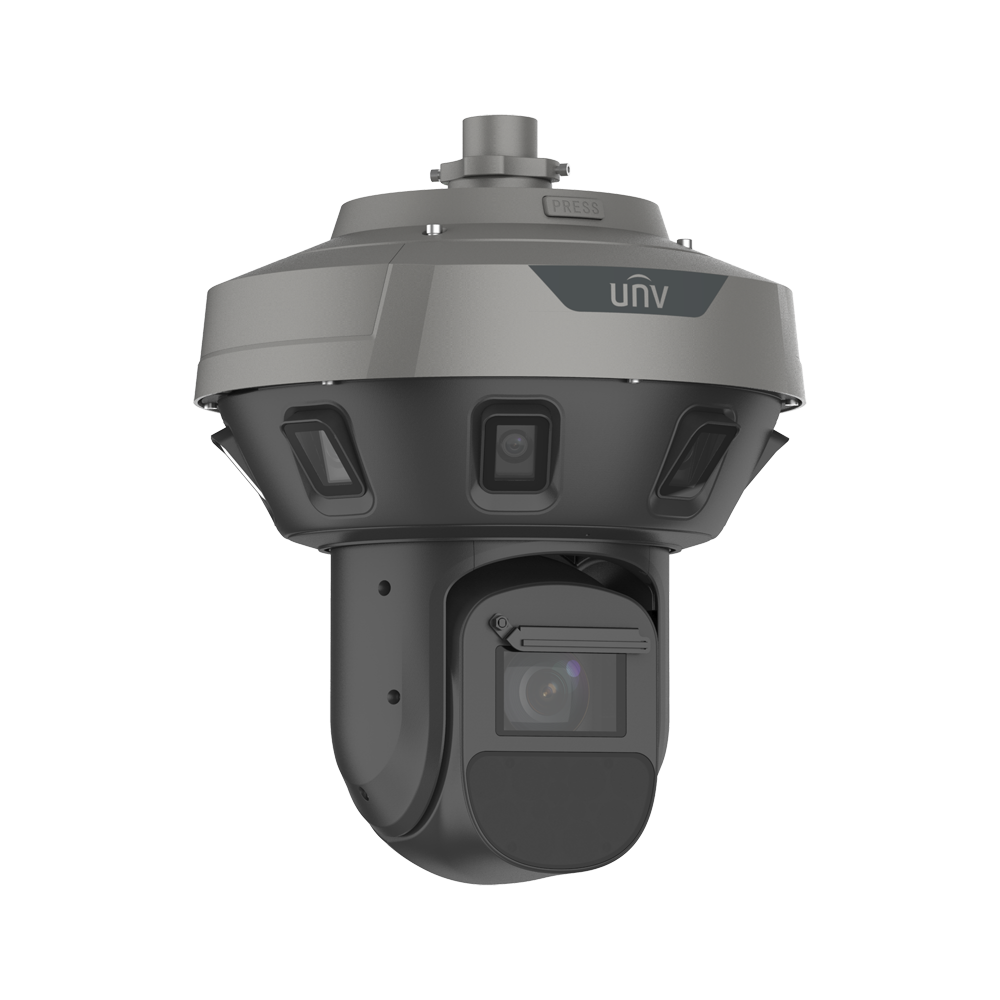

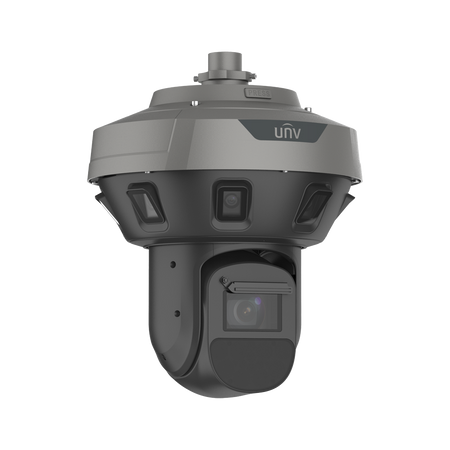

Uniview 8-Lens Panoramic + PTZ IP Camera

SKU: UV-IPC98344ER-GX42-E8-W-VH3
(0)
Out of stock
€6.951,07 Final price
-8% €7.536,50 €6.951,07 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Panoramic IP Camera 8 Lenses + PTZ - Detail: 4 MP | Lens 6~252mm | IR 500m - Panoramic: 32 MP | Lens 2 mm - Wise-ISP | Auto-Tracking | Metadata | Counting - SIP | UMD | IP67 | IK10 - Alarms | Audio | microSD 512 GB

📋 SPECIFICATIONS:
• Brand: UNIVIEW
• Optical sensor: 1/1.8" CMOS
• Maximum resolution: 32 Megapixel (11520x2700)
• Lens: Fixed: 2mm (Panoramic); Varifocal PTZ 6~252 mm (Detail)
• FOV: Panoramic:; Horizontal: 360º; Vertical: 110º; Detail:; Horizontal: 59.47-2.20º; Vertical: 35.62-1.24º
• DORI: Panoramic:; D: 31 m; O: 12.4 m; R: 6.2 m; I: 3.1 m; Detail:; D: 93.1 ~ 3724.1 m; O: 37.2 ~ 1489.7 m; R: 18.6 ~ 774.8 m; I: 9.3 ~ 372.4 m
• Frame rate Main Stream: Panoramic:; 32 MP (11520x2700)@30 fps; 16 MP (8192x1800)@30 fps; 6144x1200@30 fps; 4096x900@30 fps; Detail:; 4 MP(2688x1520)@60 fps; 4 MP(2560x1440)@60fps; 1080P(1920x1080)@60fps; 720P(1280x720)@60fps; D1 (720x576)@60fps; 640x360@30fps
• Frame rate Sub Stream: Panoramic:; 3072x676@30 fps; Detail:; 1080P (1920x1080)@60fps; 720P (1280x720)@60fps; D1 (720x576)@60 fps; 640x360@60fps
• Compression: Ultra 265, H.265, H.264, MJPEG
• WDR: 120 dB
• Minimum illumination: 0.0003 Lux in Color; 0 Lux with IR
• Infrared range: 500m
• PT range: Detail:; Pan: 360º; Tilt: -15º~90º
• Internal memory: MicroSD card, Max 512 GB
• Intelligent functions: Multi-object detection, People counting, Intelligent intrusion prevention, Linkage function, Metadata analysis
• Alarms: 7 Inputs / 3 Outputs
• Audio: 2 Inputs / 2 Outputs
• Network interface: 1000 M Base-TX Ethernet
• Remote access: Web browser, Smartphone App and PC software EZStation
• Autotracking: Supported
• Audio compression: G.711U, G.711A compression
• Operating temp.: -40º~70º
• Power supply: DC24 V; DC 36V
• Protection rating: Waterproof IP67; Vandal-proof IK10
• Weight: 13.5 kg
• Dimensions: 475.9 mm (H) × Φ380 mm

📦 INCLUDED:
• Uniview motorized IP Dome camera• Installation material• CD with software and instructions
Image Sensor 1/1.8" CMOS
Maximum Resolution 32 Megapixel (11520x2700)
Lens Fixed: 2mm (Panoramic) Varifocal PTZ 5~252 mm (Detail)
FOV Panoramic: Horizontal: 360º Vertical: 110º Detail: Horizontal: 59.47-2.20º Vertical: 35.62-1.24º
DORI Panoramic: D: 31 m O: 12.4 m R: 6.2 m I: 3.1 m Detail: D: 93.1 ~ 3724.1 m O: 37.2 ~ 1489.7 m R: 18.6 ~ 774.8 m I: 9.3 ~ 372.4 m
Main Stream Frame Rate Panoramic: 32 MP (11520x2700)@30 fps 16 MP (8192x1800)@30 fps 6144x1200@30 fps 4096x900@30 fps Detail: 4 MP(2688x1520)@60 fps 4 MP(2560x1440)@60fps 1080P(1920x1080)@60fps 720P(1280x720)@60fps D1 (720x576)@60fps 640x360@30fps
Sub Stream Frame Rate Panoramic: 3072x676@30 fps Detail: 1080P (1920x1080)@60fps 720P (1280x720)@60fps D1 (720x576)@60 fps 640x360@60fps
Compression Ultra 265, H.265, H.264, MJPEG
WDR 120 dB
Minimum Illumination 0.0003 Lux in Color 0 Lux with IR
Infrared Range 500m
PT Range Detail: Pan: 360º Tilt:-15º~90º
Internal Memory MicroSD card, Max 512 GB
Smart Functions Multi-object detection, People counting, Smart intrusion prevention, Linkage function, Metadata analysis
Alarms 7 Inputs / 3 Outputs
Audio 2 Inputs / 2 Outputs
Network Interface 1000 M Base-TX Ethernet
Remote Access Web Browser, Smartphone App and PC Software EZStation
Autotracking Supported
Audio Compression G.711U, G.711A Compression
Operating Temp -40º~70º
Power Supply DC24 V DC 36V
Protection Rating Waterproof IP67 Vandal-proof IK10
Weight 13.5 kg
Dimensions 475.9 mm (H) × Φ380 mm
