UV-IPC98246EFW-X42-W-VH1
UV-IPC98246EFW-X42-W-VH1

Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

UNIVIEW

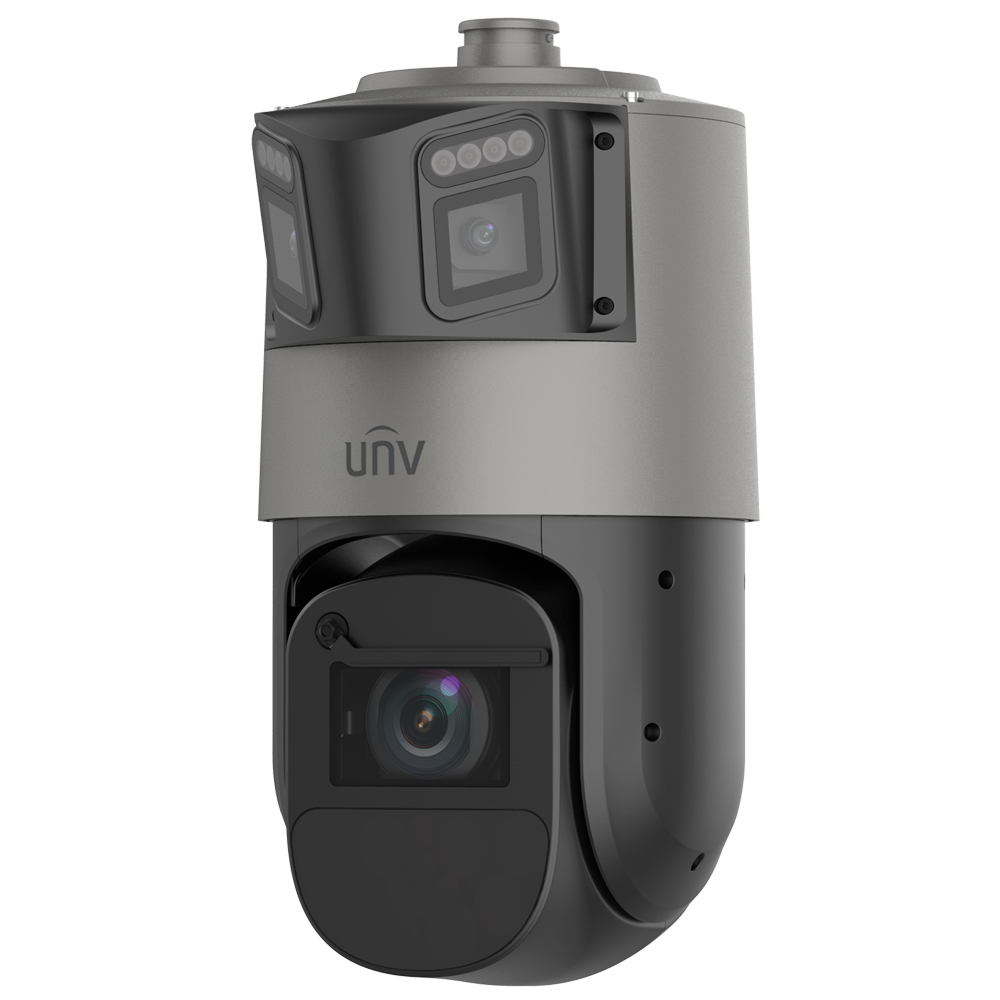

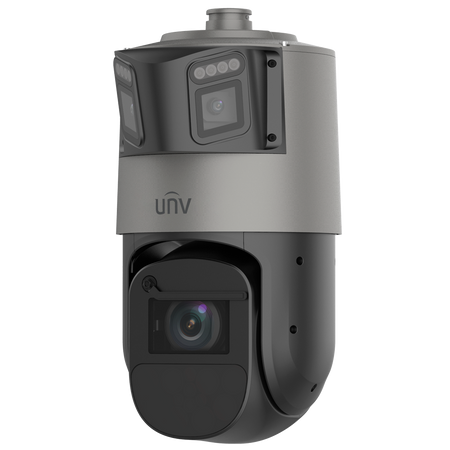

Uniview Dual Lens Panoramic + PTZ IP Camera

SKU: UV-IPC98246EFW-X42-W-VH1
(0)
In stock
Usually shipped within 24 hours
€4.241,75 Final price
-8% €4.599,00 €4.241,75 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Dual Lens Panoramic IP Camera + PTZ - Detail: 6 MP | 2.2mm Lens | 30m White light - Panoramic: 4 MP | 6~252mm Lens | 350m IR - AutoTracking | Metadata | People Counting - PoE++ | SIP | UMD | IP67 - Alarms | Audio | Speaker

📋 SPECIFICATIONS:
• Brand: UNIVIEW
• Optical sensor: 1/1.8" CMOS
• Maximum resolution: 6 Megapixel (3680×1656)
• Lens: Fixed: 2.2mm (Panoramic); Varifocal PTZ 6~252 mm (Detail)
• FOV: Panoramic: Horizontal: 200º; Vertical: 78º; Detail: Horizontal: 59.47-2.20º; Vertical: 35.62-1.24º
• DORI: Panoramic: D: 34.1 m; O: 13.7 m; R: 6.8 m; I: 3.4 m; Detail: D: 107.2-3330.6 m; O: 42.9-1332.2 m; R: 21.4-666.1 m; I: 10.7-33.1 m
• Main Stream frame rate: Panoramic: 6MP(3680×1656)@30fps; 6 MP(3632×1632)@30fps; 1200×536@30fps; 960×432@30fps; Detail: 4 MP(2688×1520)@30 fps; 4 MP(2560 × 1440)@30fps; 1080P(1920×1080)@30fps; 720P(1280×720)@30fps; D1 (720×576)@30fps; 640×360@30fps
• Sub Stream frame rate: Panoramic: 1200×536@30 fps; 960×432@30 fps; Detail: 1080P (1920×1080)@30fps; 720P (1280×720)@30fps; D1 (720×576)@30 fps; 640 × 360@30fps
• Compression: Ultra 265, H.265, H.264, MJPEG
• WDR: 120 dB
• Minimum illumination: 0.0005 Lux in Color; 0 Lux with IR
• Infrared range: 350m
• White light range: 30m
• PT range: Panoramic: Tilt: 0º~30º; Detail: Pan: 360º; Tilt: -15º~90º
• Internal memory: MicroSD card, Max 512 GB
• Smart functions: Multi-object detection, People counting, Smart intrusion prevention, Linkage function, Metadata analysis
• Alarms: 7 Input / 2 Output
• Audio: 1 input / 1 output
• Network interface: 1000 M Base-TX Ethernet
• Remote access: Web Browser, Smartphone App and PC Software EZStation
• Autotracking: Supported
• Audio compression: G.711U, G.711A compression
• Power supply: PoE+ (IEEE 802.3at) + DC 24 V + AC 24 V
• Operating temp: -40º~70º
• Protection rating: Waterproof IP67
• Weight: 8.4 Kg
• Dimensions: 456 mm (H) × 223 mm (W) × 266 mm (D)

📦 INCLUDED:
• Uniview motorized IP Dome camera • Installation material • CD with software and instructions
Optical sensor 1/1.8" CMOS
Maximum resolution 6 Megapixel (3680×1656)
Lens Fixed: 2.2mm (Panoramic) Varifocal PTZ 5~252 mm (Detail)
FOV Panoramic: Horizontal: 200º Vertical: 78º Detail: Horizontal: 59.47-2.20º Vertical: 35.62-1.24º
DORI Panoramic: D: 34.1 m O: 13.7 m R: 6.8 m I: 3.4 m Detail: D: 107.2-3330.6 m O: 42.9-1332.2 m R: 21.4-666.1 m I: 10.7-333.1 m
Main Stream frame rate Panoramic: 6MP(3680×1656)@30fps 6 MP(3632×1632)@30fps 1200×536@30fps 960×432@30fps Detail: 4 MP(2688×1520)@30 fps 4 MP(2560 × 1440)@30fps 1080P(1920×1080)@30fps 720P(1280×720)@30fps D1 (720×576)@30fps 640×360@30fps
Sub Stream frame rate Panoramic: 1200×536@30 fps 960×432@30 fps Detail: 1080P (1920×1080)@30fps 720P (1280×720)@30fps D1 (720×576)@30 fps 640 × 360@30fps
Compression Ultra 265, H.265, H.264, MJPEG
WDR 120 dB
Minimum illumination 0.0005 Lux Color, 0 Lux with IR
Infrared range 350m
White light range 30m
PT range Panoramic: Tilt: 0º~30º Detail: Pan: 360º Tilt:-15º~90º
Internal memory MicroSD card, Max 512 GB
Smart features Multi-object detection, People counting, Smart intrusion prevention, Linkage function, Metadata analysis
Alarms 7 Input / 2 Output
Audio 1 input / 1 output
Network interface 1000 M Base-TX Ethernet
Remote access Web browser, Smartphone app, and EZStation PC software
Autotracking Supported
Audio compression G.711U, G.711A compression
Power supply PoE+ (IEEE 802.3at)+ DC 24 V + AC 24 V
Operating temp. -40º~70º
Protection rating Waterproof IP67
Weight 8.4 Kg
Dimensions 456 mm (H) × 223 mm (W) × 266 mm (D)
