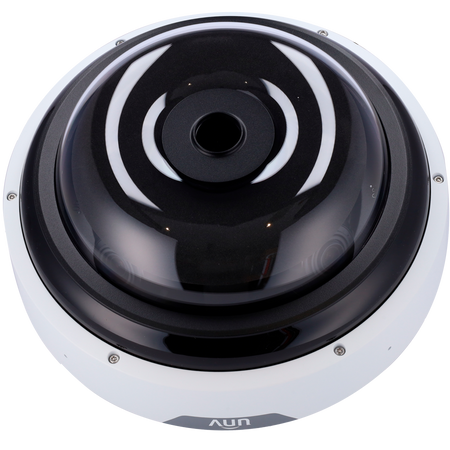

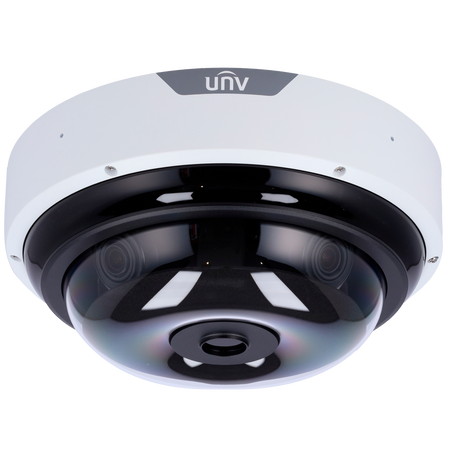

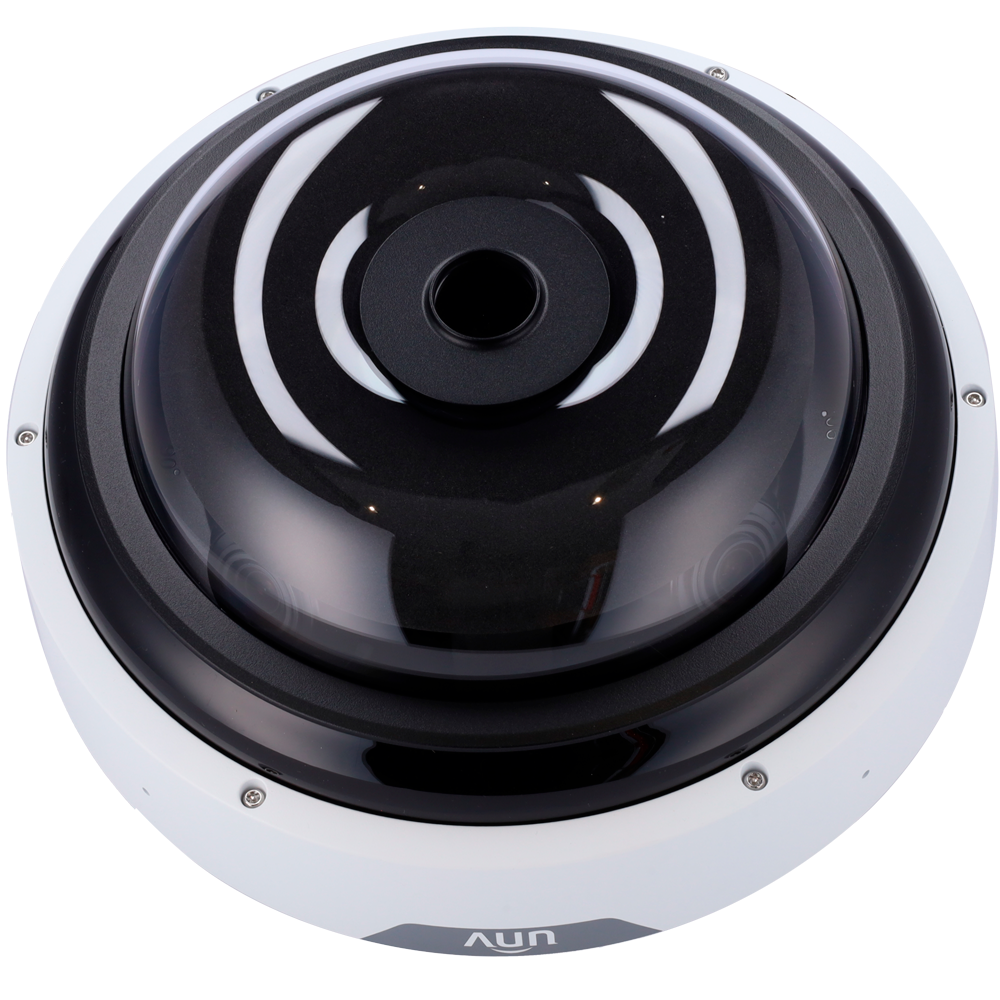

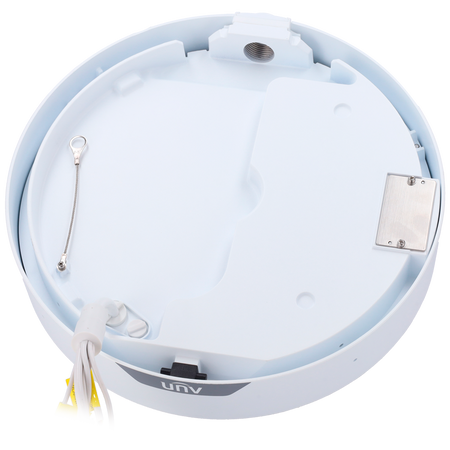

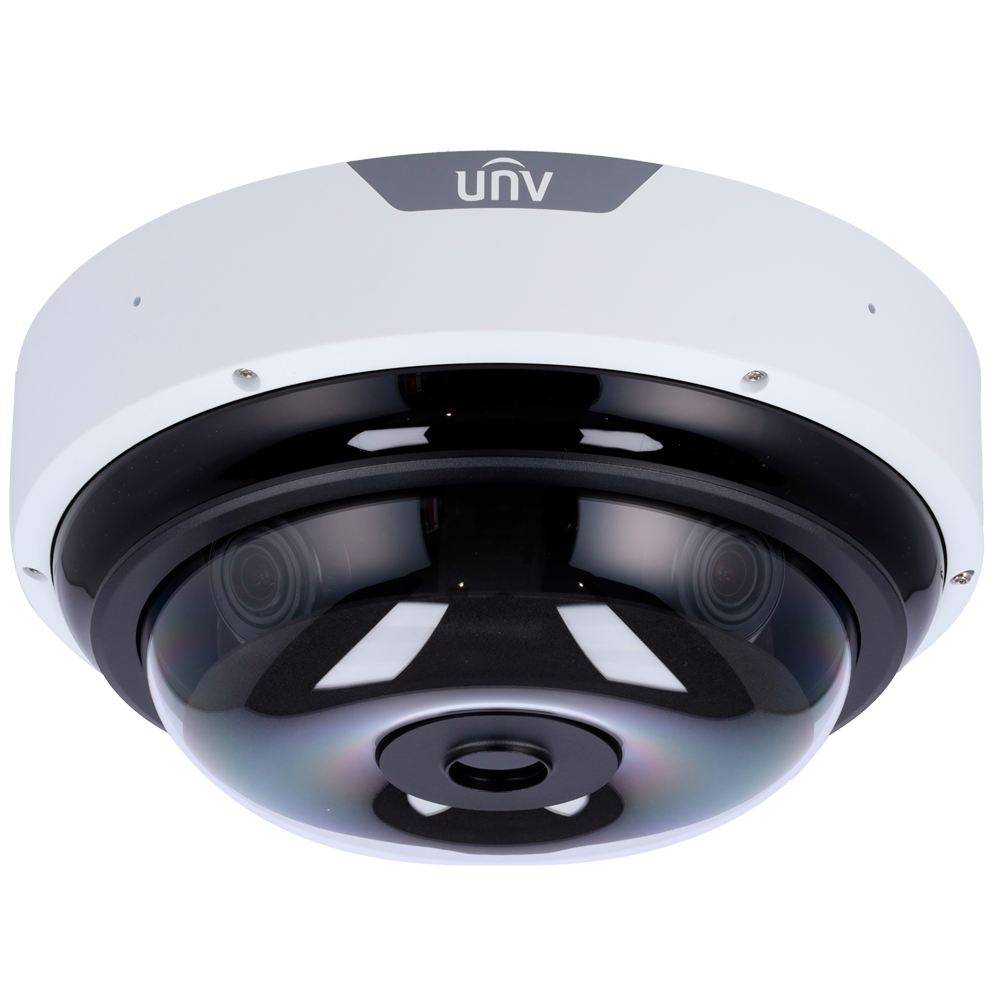

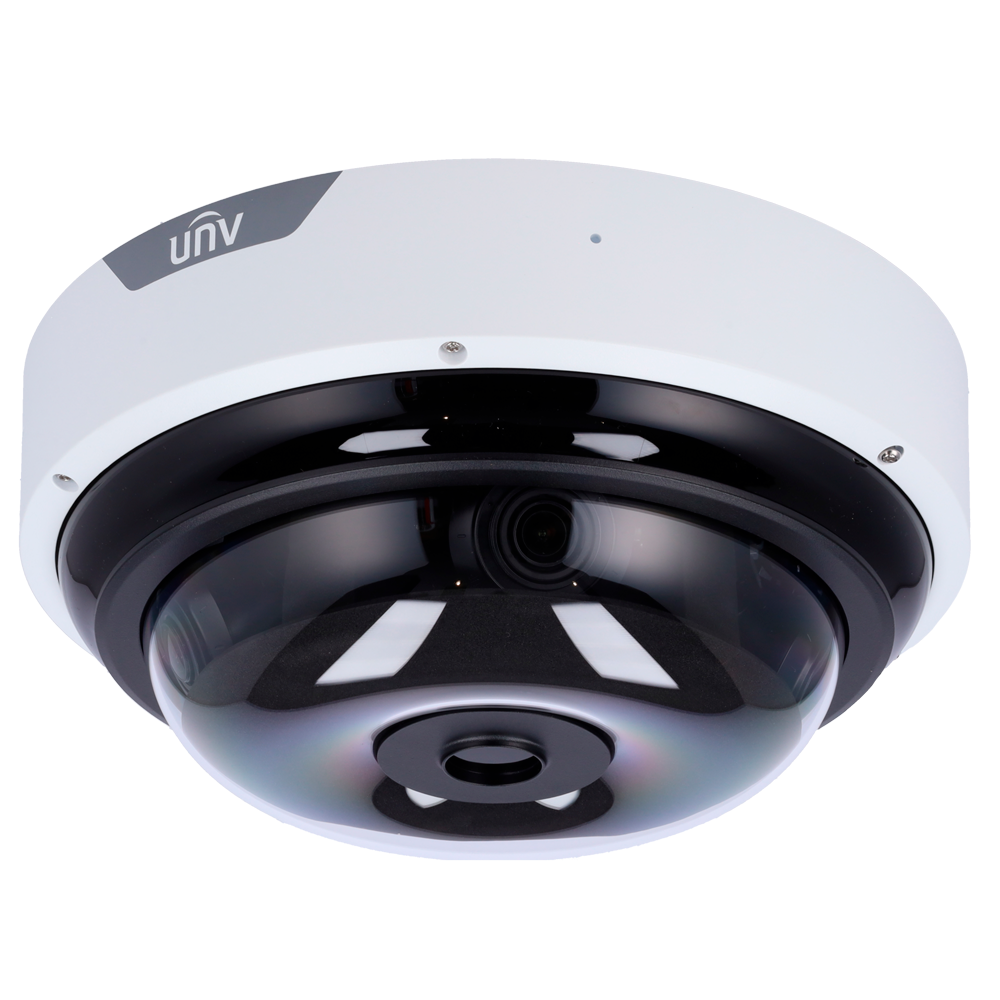

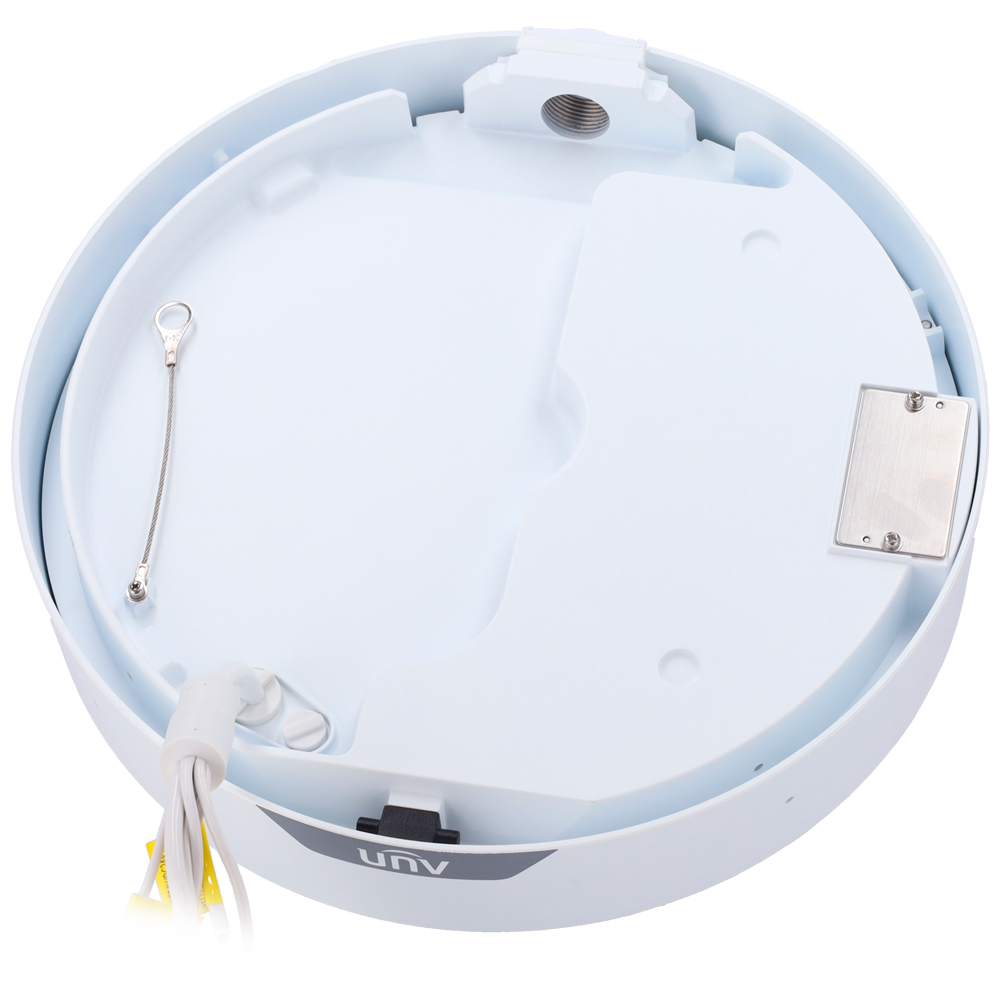

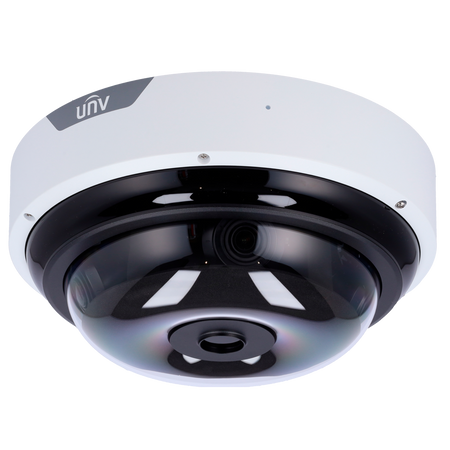

Uniview IP Dome Camera - Prime Series - 4 x 5 MP | Motorized lens 2.7~13.5 mm
Uniview IP Dome Camera - Prime Series - 4 x 5 MP | Motorized lens 2.7~13.5 mm
Regular price
€2.618,46
Final price
Regular price
-8%
€2.839,00
Sale price
€2.618,46
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Uniview IP Dome Camera - Prime Series - 4 x 5 MP | Motorized lens 2.7~13.5 mm - IR 50m | WDR 130 dB | microSD 512GB - LightHunter | Statistical analysis - PoE | SIP | UMD | IP67 | IK10 - Audio | Alarms | Microphone | DC12V Output
📋 SPECIFICATIONS:
• Brand: Uniview
• Series: Prime
• Optical sensor: 1/2.7” Progressive Scan CMOS
• Maximum resolution: 4 x 5 Megapixels (2880x1620)
• Main Stream frame rate: 4 Channels; 5MP (2880*1620), Max 30fps;; 4MP (2688*1520), Max 30fps;; 4MP (2560*1440), Max 30fps;; 3MP (2304*1296), Max 30fps;; 1080P (1920*1080), Max 30fps;; 720P (1280*720), Max 30fps;; D1 (720*576), Max 30fps;; 640*360, Max 30fps;; 2CIF(704*288), Max 30fps;; CIF(352*288), Max 30fps;
• Sub Stream frame rate: 4 Channels; 1080P (1920*1080), Max 30fps;; 720P (1280*720), Max 30fps;; D1 (720*576), Max 30fps;; 640*360, Max 30fps;; 2CIF(704*288), Max 30fps;; CIF(352*288), Max 30fps;
• Third Stream frame rate: 4 Channels; D1 (720*576), Max 30fps;; 640*360, Max 30fps;; 2CIF(704*288), Max 30fps;; CIF(352*288), Max 30fps;
• Compression: Ultra265/H.265/H.264
• Lens: Motorized varifocal; 2.7 ~ 13.5 mm
• Minimum illumination: 0.002Lux (F1.2, AGC ON)
• Infrared range: 50 m
• Image enhancements: 130 dB WDR 2D/3D DNR, BLC, HLC, AGC, 2D/3D-NR, ROI, Privacy Mask, Smart IR

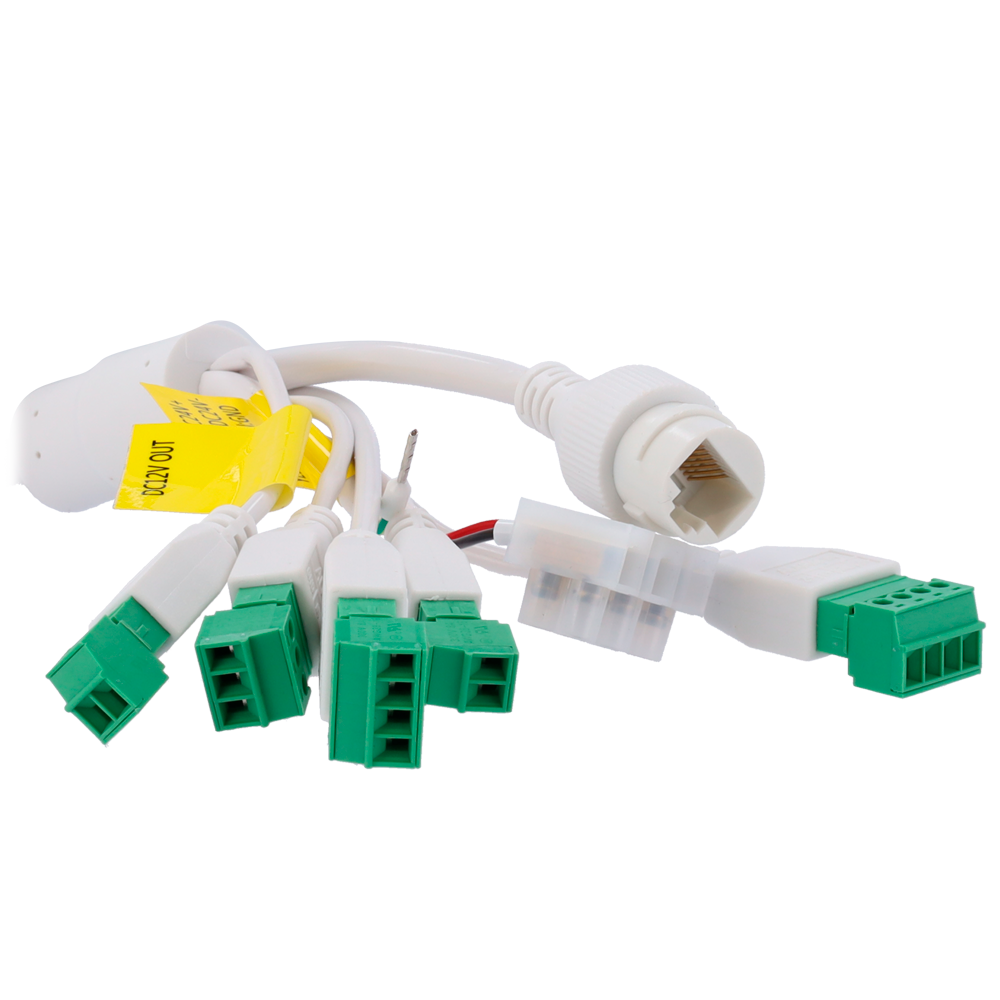

• Alarm: 3 Inputs / 2 Outputs
• Audio: 1 Input / 1 Output
• Microphone: Supported
• Corridor mode: Supported
• SIP (Smart Intrusion Prevention): Line crossing detection, intrusion detection, entering and leaving area (supports false alarm filtering and person/vehicle classification)
• Intelligent events: Motion detection, tampering detection, audio detection
• Ultra Motion Detection (UMD): Supported
• Analysis: Supports people flow counting and crowd density monitoring
• Day / Night: ICR mechanical filter
• Internal memory: MicroSD card, Max 512 GB
• Network interface: Ethernet 10/100 BaseTX
• Remote access: Web browser, CMS software (EZStation), Smartphone (EZView/EZLive)
• Interoperability: ONVIF
• Power supply: DC 24 V / AC 24 V / 31 W,; PoE IEEE802.3bt
• DC Output: Supported; DC12V
• Operating temp.: -30º C ~ 60º C
• Protection rating: Waterproof IP67, IK10, 6 KV surge protection
• Dimensions: Φ 318 x 136.6 mm
• Weight: 4770 g
📦 INCLUDED:
• UNIVIEW IP Camera• Installation material• User manual
| Range | Prime |
|---|---|
| Optical sensor | 1/2.7” Progressive Scan CMOS |
| Maximum resolution | 4 x 5 Megapixel (2880x1620) |
| Main Stream frame rate | 4 Channels 5MP (2880*1620), Max 30fps; 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Sub Stream frame rate | 4 Channels 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Third Stream frame rate | 4 Channels D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Compression | Ultra265/H.265/H.264 |
| Lens | Motorized varifocal 2.7 ~ 13.5 mm |
| Minimum illumination | 0.002Lux (F1.2, AGC ON) |
| Infrared range | 50 m |
| Image enhancement | 130 dB WDR 2D/3D DNR, BLC, HLC, AGC, 2D/3D-NR, ROI, Privacy Mask, Smart IR |
| Alarm | 3 Inputs / 2 Outputs |
| Audio | 1 Input / 1 Output |
| Microphone | Supported |
| Corridor mode | Supported |
| SIP (Smart Intrusion Prevention) | Line crossing detection, intrusion detection, area entry and exit (supports false alarm filtering and person/vehicle classification) |
| Smart events | Motion detection, tampering detection, audio detection |
| Ultra Motion Detection (UMD) | Supported |
| Analytics | Supports people flow counting and crowd density monitoring |
| Day / Night | Mechanical ICR filter |
| Internal memory | MicroSD card, Max 512 GB |
| Network interface | Ethernet 10/100 BaseTX |
| Remote access | Web browser, CMS software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF |
| Power supply | DC 24 V / AC 24 V / 31 W, PoE IEEE802.3bt |
| DC output | Supports DC12V |
| Operating temp. | -30º C ~ 60º C |
| Protection rating | Waterproof IP67, IK10, 6 KV surge protection |
| Dimensions | Φ 318 x 136.6 mm |
| Weight | 4770 g |
