Uniview pan-tilt-zoom IP camera
Uniview pan-tilt-zoom IP camera
Regular price
€5.717,47
Final price
Regular price
-8%
€6.199,00
Sale price
€5.717,47
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

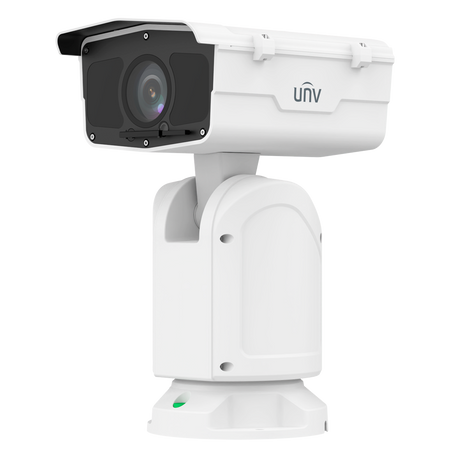

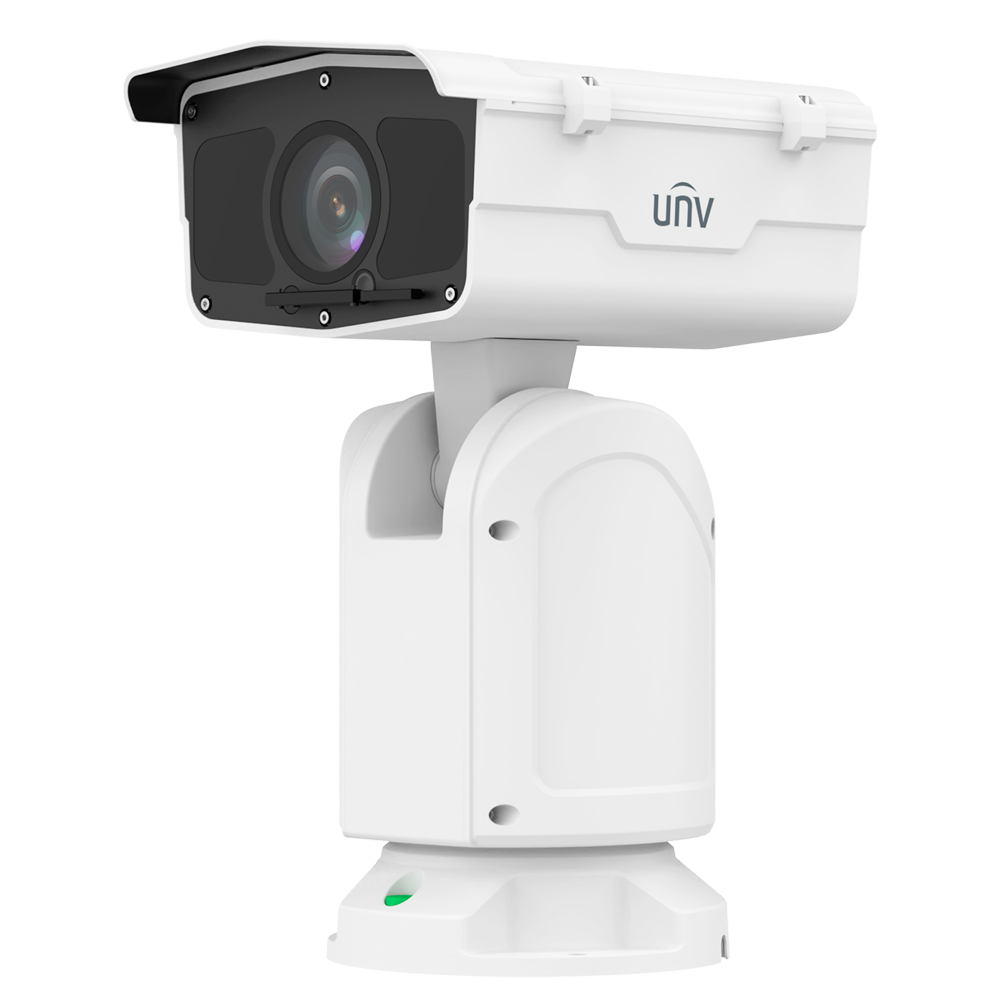

Uniview PTZ IP camera - Pro Series - 4 MP | Motorized lens 6~246 mm | 41X Zoom - IR 400 m | WDR 120 dB | microSD 512 GB - Light Hunter | People counting - BNC video output - PoE+ | SIP | UMD | IP66 | Alarm | Audio
📋 SPECIFICATIONS:
• Brand: UNIVIEW
• Optical sensor: 1/1.8" Progressive Scan CMOS
• Resolution: 4 Megapixel (2688*1520)
• Main Stream frame rate: 4MP (2688*1520)@ 60fps
• Sub Stream Rate: 2MP (1920*1080)@30fps
• Third Stream frame rate: D1 (720*576)@30fps
• Lens: Varifocal 6 ~ 246 mm (41X optical zoom)
• Compression: Ultra265 / H.265 / H.264
• Minimum illumination: Color: 0.0005Lux (F1.2, AGC ON)
• IR range: 400 m
• Day / Night: Mechanical ICR filter
• DORI: 107.2 m ~ 3330 m (D), 42 m ~ 1332 m (O), 21 m ~ 666 m (R), 10 m ~ 333 m (I)
• Image enhancements: BLC, HLC, WDR, 2D/3D-NR, AGC, AWB, MD, Privacy Masking, ROI, ANR
• Smart Intrusion Prevention: Intelligent intrusion prevention. Accurate detection of people and vehicles to avoid false alarms. Event triggered by line crossing, area intrusion, or entering/exiting a predefined area
• Intelligent functions: People counting, Face detection, Line crossing, Intrusion detection, Autotracking, Audio detection, Object removed, Object abandoned
• Pan/Tilt range: Horizontal: 0° ~ 360°, Vertical: -90° ~ 45°
• Manual speed: Horizontal: 0.1°/s ~ 140°/s, Vertical: 0.1°/s ~ 50°/s
• Preset speed: Horizontal: 140°/s, Vertical: 50°/s
• Preset positions: 1024
• Internal storage: MicroSD card, Max 512 GB
• Audio: 1 Input / 1 Output
• Alarms: 7 Inputs / 2 Outputs
• Network interface: Ethernet 10 / 100 BaseTX
• Extra ports: RS485 serial port and BNC
• Remote access: Web browser, Smartphone App (UNV-Link, UNV-Link Pro) and PC Software EZStation
• Interoperability: ONVIF
• Power supply: DC 48 V / AC 24 V / 103 W
• Operating temp.: -40º C ~ +70º C
• Protection rating: Waterproof IP67 / 6KV surge protection
• Dimensions (without bracket): 283 mm (H) x 366 mm (D) x 509 mm (W)
• Weight (without bracket): 14.76 kg
📦 INCLUDED:
• Uniview PTZ IP camera• Installation material• User instructions• Adapter
| Optical sensor | 1/1.8" Progressive Scan CMOS |
|---|---|
| Resolution | 4 Megapixel (2688*1520) |
| Main Stream Frame rate | 4MP (2688*1520)@ 60fps |
| Sub Stream Rate | 2MP (1920*1080)@30fps |
| Third Stream Frame Rate | D1 (720*576)@30fps |
| Lens | Varifocal 6 ~ 246 mm (41X Optical Zoom) |
| Compression | Ultra265 / H.265 / H.264 |
| Minimum illumination | Color: 0.0005Lux (F1.2, AGC ON) |
| IR Range | 400 m |
| Day/Night | ICR mechanical filter |
| DORI | 107.2 m ~ 3330 m (D), 42 m ~ 1332 m (O), 21 m ~ 666 m (R), 10 m ~ 333 m (I) |
| Image improvements | BLC, HLC, WDR, 2D/3D-NR, AGC, AWB, MD, Privacy Masking, ROI, ANR |
| Smart Intrusion Prevention | Intelligent intrusion prevention. Accurate human and vehicle detection to avoid false alarms. Events based on line crossing, area intrusion, or entering/exiting a previously defined area |
| Smart features | People counting, Face detection, Line crossing, Intrusion detection, Autotracking, Audio detection, Object removed, Object abandoned |
| Pan/Tilt range | Horizontal: 0° ~ 360°, Vertical: -90° ~ 45° |
| Manual speed | Horizontal: 0.1°/s ~ 140°/s, Vertical: 0.1°/s ~ 50°/s |
| Preset speed | Horizontal: 140°/s, Vertical: 50°/s |
| Presets | 1024 |
| Internal memory | MicroSD card, Max 512 GB |
| Audio | 1 Input / 1 Output |
| Alarms | 7 Inputs / 2 Outputs |
| Network interface | Ethernet 10 / 100 BaseTX |
| Extra ports | RS485 serial port and BNC |
| Remote access | Web browser, Smartphone App (UNV-Link, UNV-Link Pro), and PC software EZStation |
| Interoperability | ONVIF |
| Power supply | DC 48 V / AC 24 V / 103 W |
| Operating temp. | -40º C ~ +70º C |
| Protection rating | Waterproof IP67 / 6KV surge protection |
| Dimensions (without bracket) | 283 mm (H) x 366 mm (D) x 509 mm (W) |
| Weight (without bracket) | 14.76 kg |
