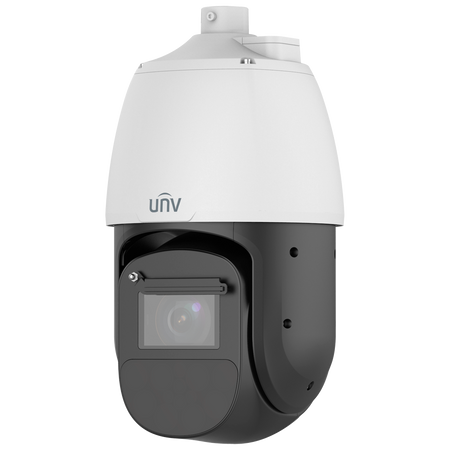

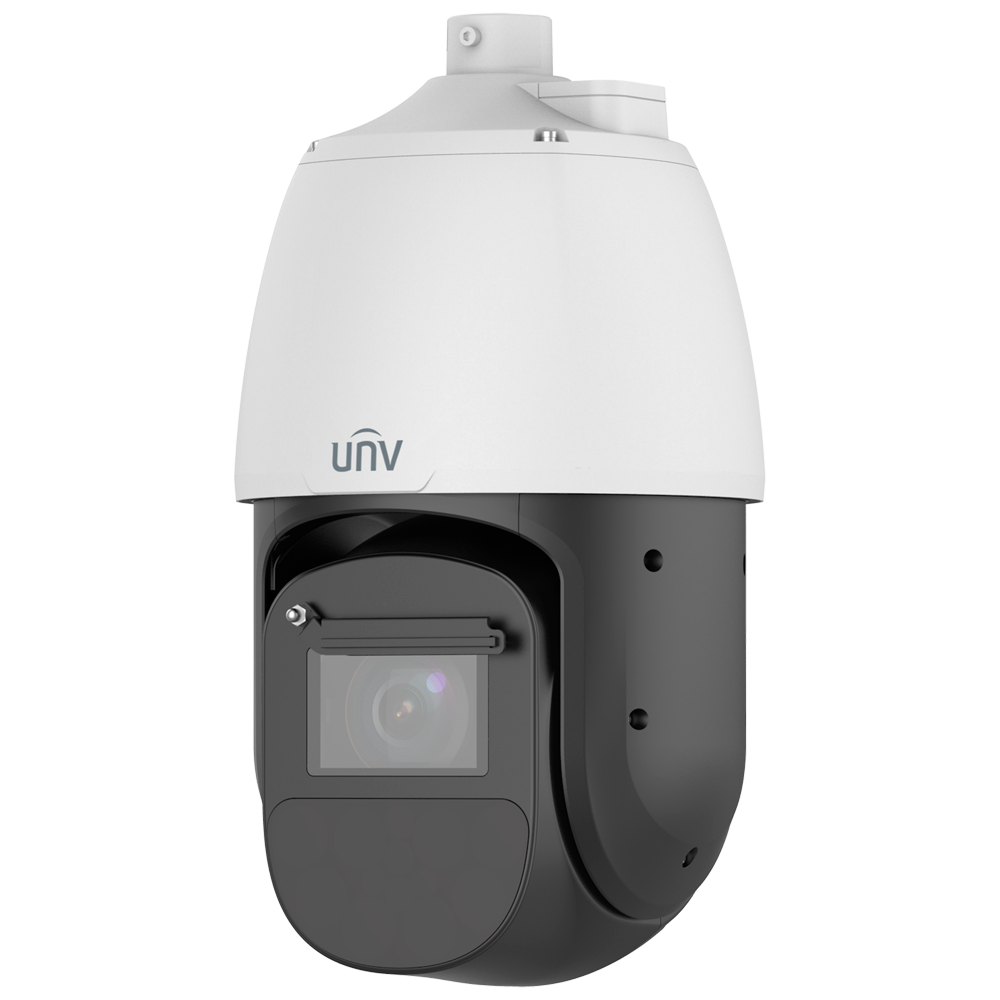

Uniview IP Motorized Dome - Pro Series - 4 MP | 6~252 mm Motorized Lens | 42X Zoom - 40º C ~ +70º C

SKU: UV-IPC6824EL-X42-W-VH1
(0)
In stock
Usually shipped within 24 hours
€3.134,97 Final price
-8% €3.399,00 €3.134,97 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Uniview IP Motorized Dome - Pro Series - 4 MP | Motorized lens 6~252 mm | 42X Zoom - IR 500 m | WDR 140 dB | microSD 256 GB - LightHunter | People counting - Gyroscope | Traffic detection | Metadata - PoE++ | SIP | Alarm | Audio | IP67 | IK10

📋 SPECIFICATIONS:
• Brand: Uniview
• Series: Pro
• Optical sensor: 1/1.8" Progressive Scan CMOS
• Maximum resolution: 4 Megapixel (2688x1520)
• Main Stream frame rate: 4MP (2688x1520)@60fps
• Substream frame rate: 2MP (1920x1080)@60fps
• Compression: Ultra265/H.265/H.264/MJPEG
• Lens: Varifocal 6 ~ 252 mm; 42X optical zoom
• FOV: Horizontal: 59.47º ~ 2.20º; Vertical: 35.62º ~ 1.24º; Diagonal: 73.15º ~ 2.60º
• DORI: Detect: 107.2 ~ 3330.6 m; Observe: 42.9 ~ 1133.2 m; Recognize: 21.4 ~ 666.1 m; Identify: 10.7 ~ 333.1 m
• Minimum illumination: 0.003 Lux (color); 0 Lux B/W
• Infrared illumination: IR Laser 500 m
• Day / Night: ICR mechanical filter
• Image enhancements: BLC, HLC, WDR, 2D/3D-NR, AGC, Privacy Masking, ROI, ANR
• WDR: 140 dB
• UMD: Supported; Advanced motion detection, triggered only by people and/or vehicle detection.
• SIP (Smart Intrusion Prevention): Smart Intrusion Prevention. Accurate detection of people and vehicles to avoid false alarms. Event triggered by line crossing, area intrusion, or entering/exiting a previously defined area
• Smart functions: People counting, face detection, mixed traffic detection, data collection related to human bodies, motor vehicles, and non-motorized vehicles for further analysis
• Pan/Tilt range: Horizontal: 0°~360°; Vertical: -15°~90° auto-flip
• Manual speed: Horizontal: 180° /s; Vertical: 180° /s
• Preset speed: Horizontal: 240° /s; Vertical: 180° /s
• Preset positions: 1024
• Internal memory: MicroSD card, Max 256 GB
• Audio: 1 Input / 1 Output
• Alarms: 7 Inputs / 2 Outputs
• Network interface: Ethernet 10M/100M BaseT
• Remote access: Web browser, Smartphone App, and EZStation PC software
• Interoperability: ONVIF
• Power supply: DC 24 V / 60 W; PoE++
• Operating temp.: -40º C ~ +70º C
• Protection rating: Waterproof IP67; Vandal-proof IK10; 6 KV surge protection
• Dimensions (without bracket): 414 mm (H) x 270 (Ø) mm

📦 INCLUDED:
• Uniview motorized IP Dome camera• Installation material• User instructions
Range Pro
Optical sensor 1/1.8" Progressive Scan CMOS
Maximum resolution 4 Megapixel (2688x1520)
Main Stream frame rate 4MP (2688x1520)@60fps
Substream frame rate 2MP (1920x1080)@60fps
Compression Ultra265/H.265/H.264/MJPEG
Lens Varifocal 6 ~ 252 mm 42X optical zoom
FOV Horizontal: 59.47º ~ 2.20º Vertical: 35.62º ~ 1.24º Diagonal: 73.15º ~ 2.60º
DORI Detect: 107.2 ~ 3330.6 m Observe: 42.9 ~ 1133.2 m Recognize: 21.4 ~ 666.1 m Identify: 10.7 ~ 333.1 m
Minimum illumination 0.003 Lux (color) 0 Lux with IR
Infrared illumination 500 m Laser IR
Day / Night ICR mechanical filter
Image enhancements BLC, HLC, WDR, 2D/3D-NR, AGC, Privacy Masking, ROI, ANR
WDR 140 dB
UMD Supports Advanced Motion Detection, triggered only by human and/or vehicle detection.
SIP (Smart Intrusion Prevention) Smart Intrusion Prevention. Accurate human and vehicle detection to avoid false alarms. Event triggered by line crossing, area intrusion, or entering/exiting a predefined area
Smart functions People counting, face detection, mixed traffic detection, data collection related to human bodies, motor and non-motor vehicles for further analysis
Pan/Tilt range Horizontal: 0°~360° Vertical: -15°~90° (auto flip)
Manual speed Horizontal: 180°/s Vertical: 180°/s
Preset speed Horizontal: 240°/s Vertical: 180°/s
Presets 1024
Internal memory MicroSD card, Max 256 GB
Audio 1 Input / 1 Output
Alarms 7 Inputs / 2 Outputs
Network interface Ethernet 10M/100M BaseT
Remote access Web Browser, Smartphone App and PC Software EZStation
Interoperability ONVIF
Power supply DC 24 V / 60 W PoE++
Operating temp. -40º C ~ +70º C
Protection rating Waterproof IP67, Vandal-resistant IK10, 6 KV surge protection
Dimensions (without bracket) 414 mm (L) x 270 (Ø) mm
