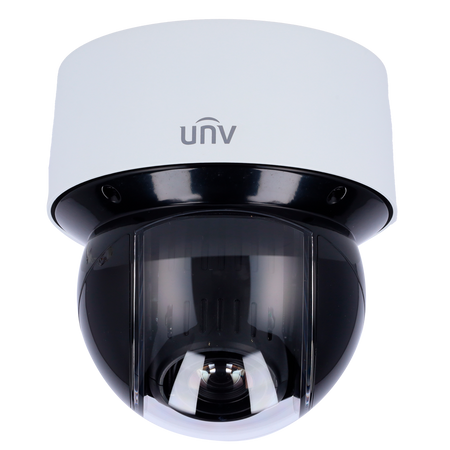

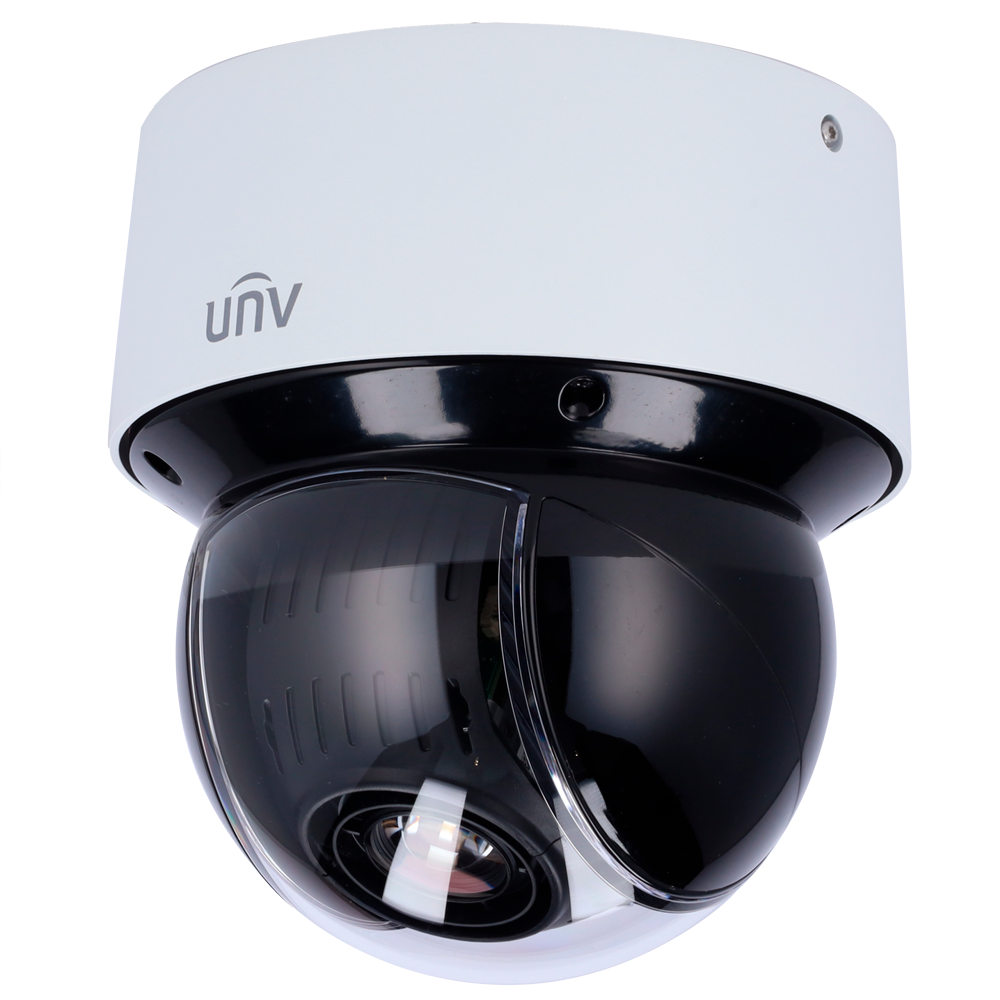

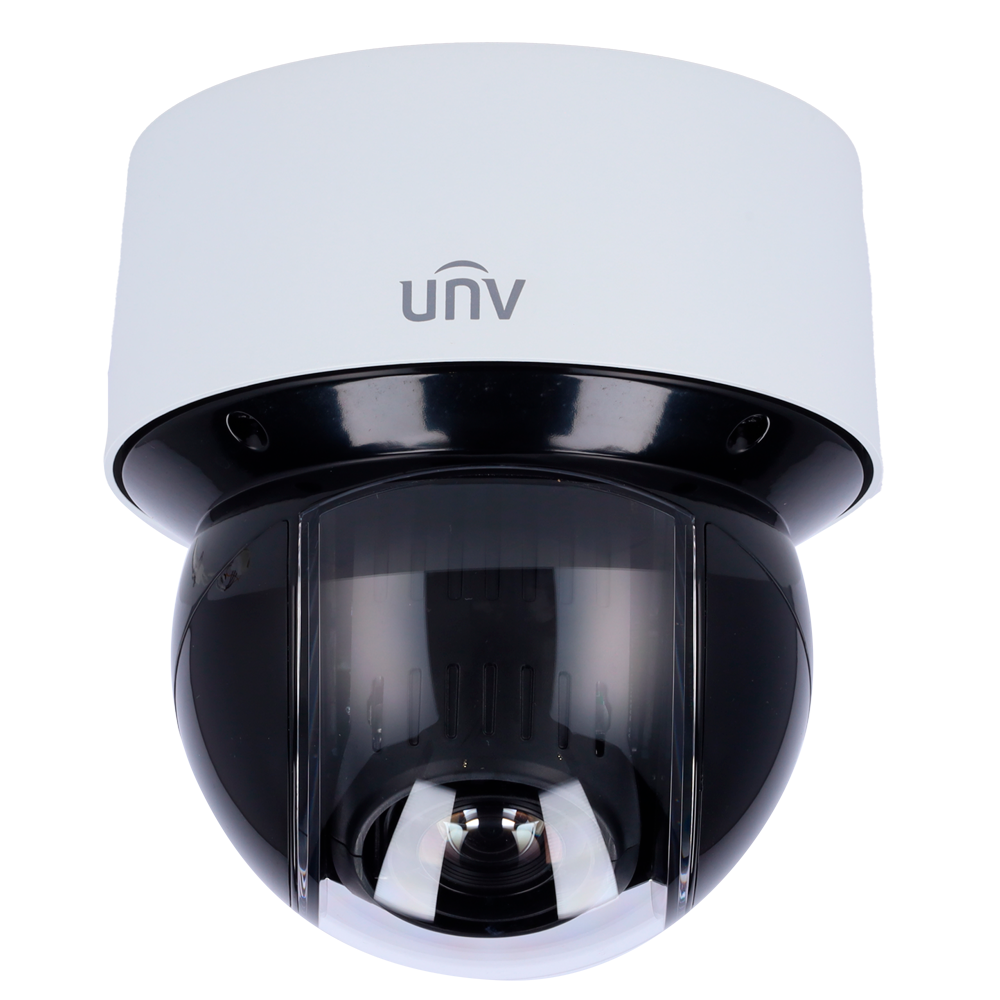

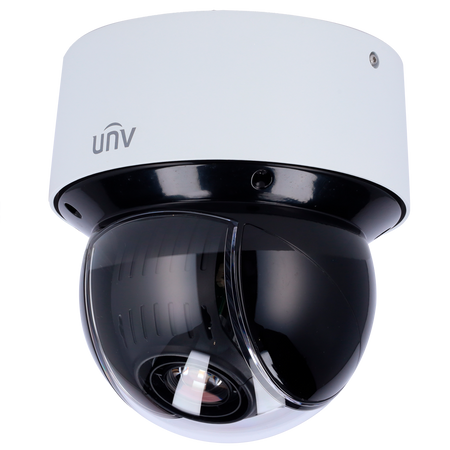

Uniview IP motorized dome camera - 4 Megapixel resolution (2688x1520)
Uniview IP motorized dome camera - 4 Megapixel resolution (2688x1520)
Regular price
€727,70
Final price
Regular price
-8%
€789,00
Sale price
€727,70
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
IP motorized dome camera - Easy Series - 4 Megapixel resolution (2688x1520) - 5.5~88mm lens (16X) | 120 dB WDR - 100m range IR LED | Alarms | Audio | MicroSD - SIP, Smart Intrusion Prevention | IP66 | IK10
📋 SPECIFICATIONS:
• Brand: UNIVIEW
• Optical sensor: 1/2.9" Progressive Scan CMOS
• Resolution: 4 Megapixel (2688x1520)
• Lens: Varifocal 5.5~88mm (16X optical zoom)
• Field of View (FOV): H: 50.85º~3.47º, V: 29.94º~1.95º, D: 62.55º~4.09º
• DORI: 127.6~2048.4 m (D), 51~819.4 m (O), 25.5~409.7 m (R), 12.8~204.8 m (I)
• Minimum illumination: LightHunter, high image quality in low light environments; 0.005 Lux @(F1.78, AGC ON); 0 Lux with IR
• Infrared illumination: 100 m range IR LED
• Day / Night: ICR mechanical filter
• Electronic shutter: 1 ~ 1/100000s
• Main Stream frame rate: 4MP (2688x1520), max 30 fps
• Sub Stream frame rate: 720p (1280x720), max 30 fps
• Compression: Ultra265 / H.265 / H.264
• Video bitrate: 128 Kbps~16 Mbps
• Image enhancements: BLC, HLC, WDR (120 dB), 2D/3D-NR, AGC, AWB, Privacy Masking, ROI, Flip
• ANR: Yes
• Pan/Tilt range: Horizontal: 360°, Vertical: -5°~90° automatic rotation
• Manual speed: Horizontal: 0.1~240°/s, Vertical: 0.1~120°/s
• Preset positions: 1024 presets, 16 patrols
• Autotracking: Yes, with human and vehicle target filtering
• Internal storage: MicroSD card slot up to 256 GB
• SIP: Smart Intrusion Prevention; Support for false alarm filtering: line crossing detection, intrusion detection, region entrance detection, region exiting detection.

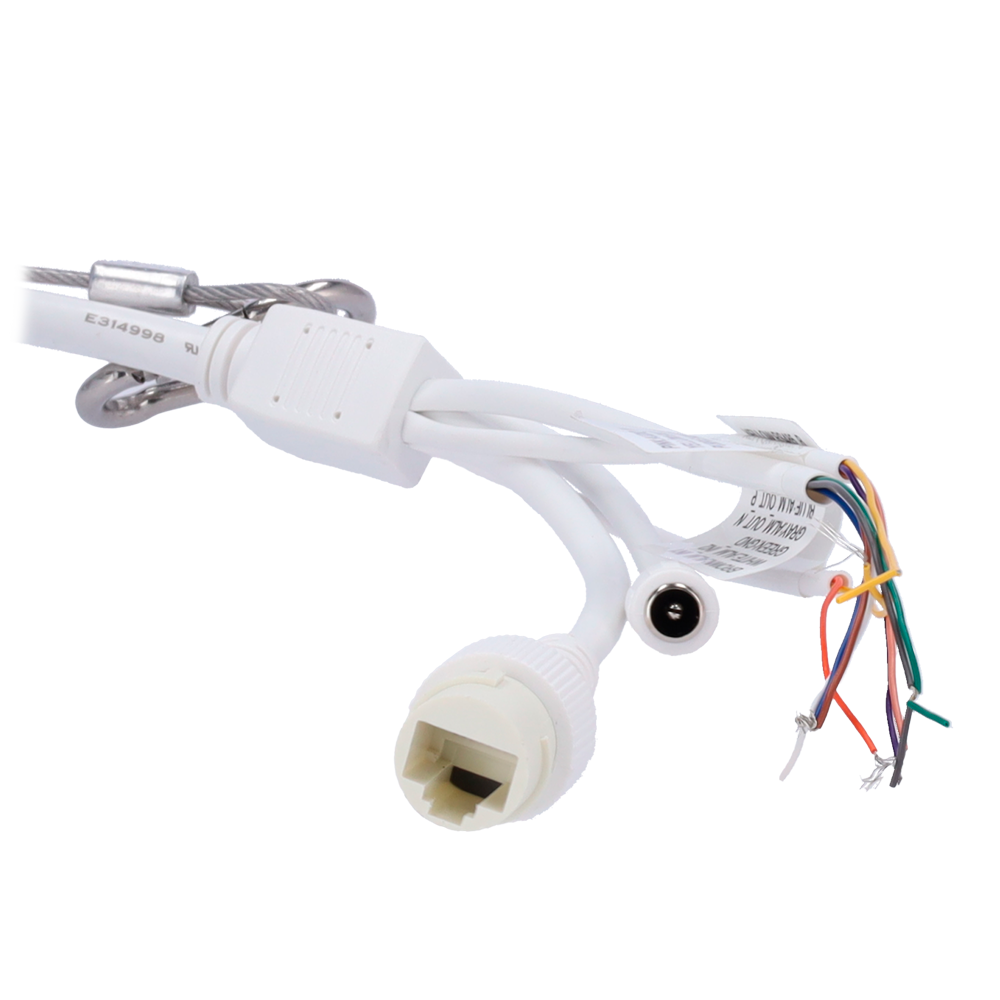

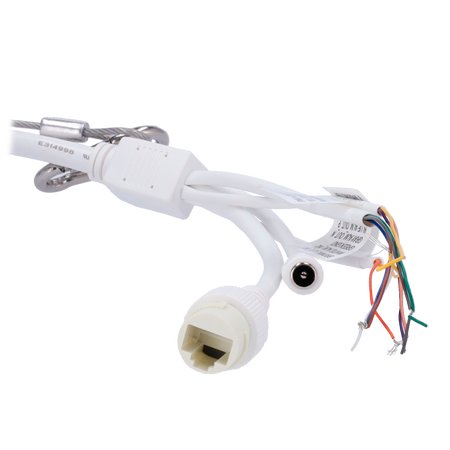

• Network interface: 1 x RJ45 10M/100M Base-TX Ethernet
• Alarms: 2 Inputs / 1 Output
• Audio: 1 Input / 1 Output
• Audio compression: G.711U; G.711A
• Audio bitrate: 128 Kbps
• Remote access: Web browser, Smartphone App, and EZStation PC software
• Interoperability: ONVIF (Profile S, Profile G, Profile T), API, SDK
• Power supply: DC12V (±10%, 3A), Max. 23W; PoE+ (IEEE 802.3at)
• Operating temp.: -40º C ~ +65º C
• Ingress protection: Waterproof IP66, Vandal-proof IK10, 6000 V surge protection
• Dimensions (without bracket): 181 (H) x 167 (Ø) mm
• Weight (without bracket): 2300 g
📦 INCLUDED:

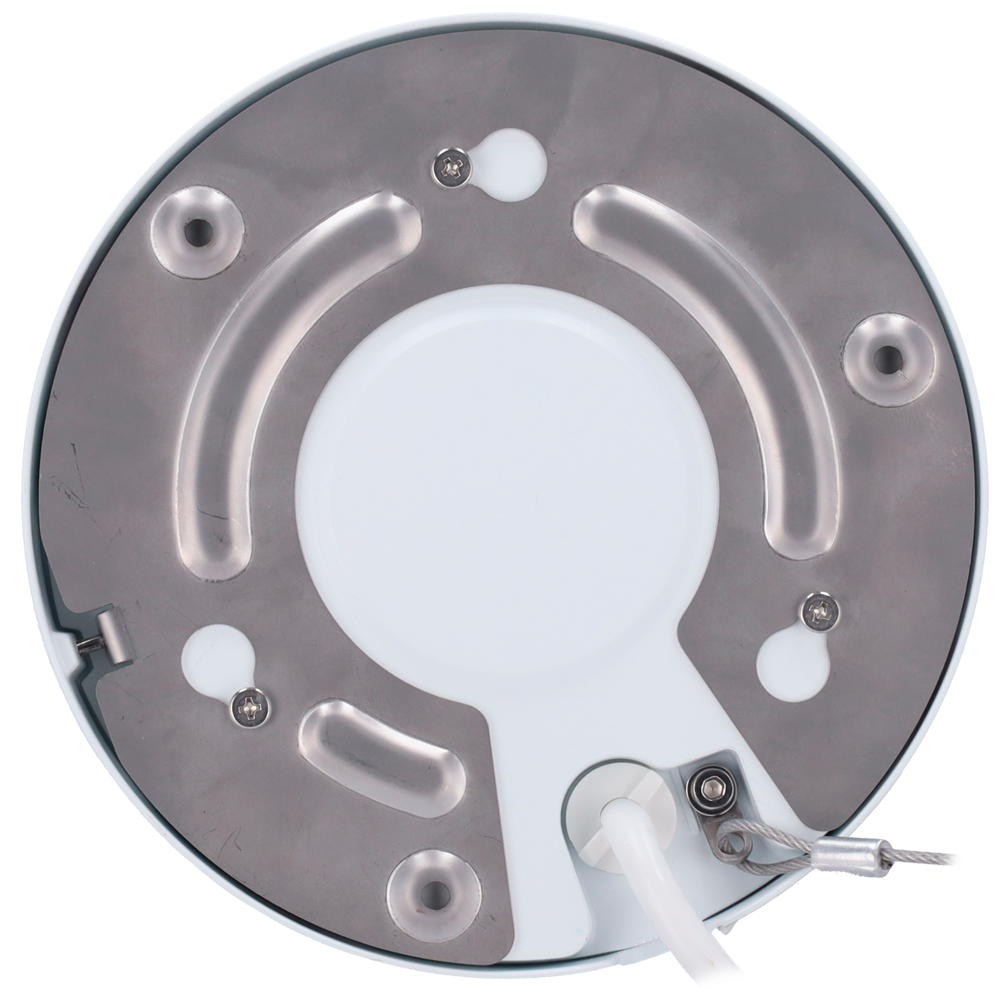

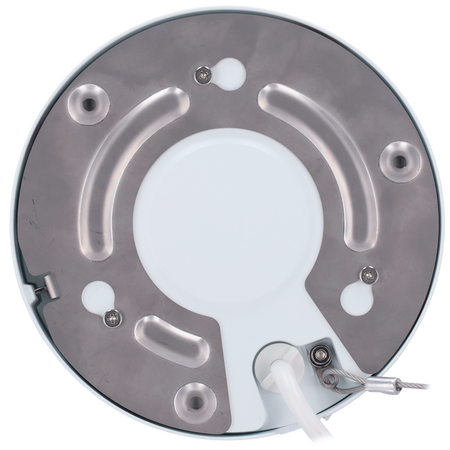

• Uniview motorized IP dome camera • Installation material • User manual • Ceiling mount plate included
| Image sensor | 1/2.9" Progressive Scan CMOS |
|---|---|
| Resolution | 4 Megapixel (2688x1520) |
| Lens | Varifocal 5.5~88mm (16X optical zoom) |
| Field of view (FOV) | H: 50.85º~3.47º, V: 29.94º~1.95º, D: 62.55º~4.09º |
| DORI | 127.6~2048.4 m (D), 51~819.4 m (O), 25.5~409.7 m (R), 12.8~204.8 m (I) |
| Minimum illumination | LightHunter, high image quality in low-light environments 0.005 Lux @(F1.78, AGC ON) 0 Lux with IR |
| Infrared illumination | IR LED range 100 m |
| Day / Night | IR cut filter (ICR) |
| Electronic shutter | 1 ~ 1/100000s |
| Main Stream frame rate | 4MP (2688x1520), max 30 fps |
| Sub Stream frame rate | 720p (1280x720), max 30 fps |
| Compression | Ultra265 / H.265 / H.264 |
| Video bitrate | 128 Kbps~16 Mbps |
| Image enhancement | BLC, HLC, WDR (120 dB), 2D/3D-NR, AGC, AWB, Privacy Masking, ROI, Flip |
| ANR | Yes |
| Pan/Tilt range | Horizontal: 360°, Vertical: -5°~90° auto-flip |
| Manual speed | Horizontal: 0.1~240° /s, Vertical: 0.1~120° /s |
| Presets | 1024 presets, 16 patrols |
| Autotracking | Yes, with human and vehicle target filtering |
| Internal memory | MicroSD card slot up to 256 GB |
| SIP | Smart Intrusion Prevention. False alarm filtering support: line crossing detection, intrusion detection, enter area detection, leave area detection. |
| Network interface | 1 x RJ45 10M/100M Base-TX Ethernet |
| Alarms | 2 Inputs / 1 Output |
| Audio | 1 Input / 1 Output |
| Audio compression | G.711U; G.711A |
| Audio bitrate | 128 Kbps |
| Remote access | Web browser, smartphone App, and EZStation PC software |
| Interoperability | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| Power supply | DC12V (±10%, 3A), Max. 23W PoE+ (IEEE 802.3at) |
| Operating temp. | -40º C ~ +65º C |
| Protection rating | Waterproof IP66, Vandal-proof IK10, 6000V surge protection |
| Dimensions (without bracket) | 181 (H) x 167 (Ø) mm |
| Weight (without bracket) | 2300 g |
