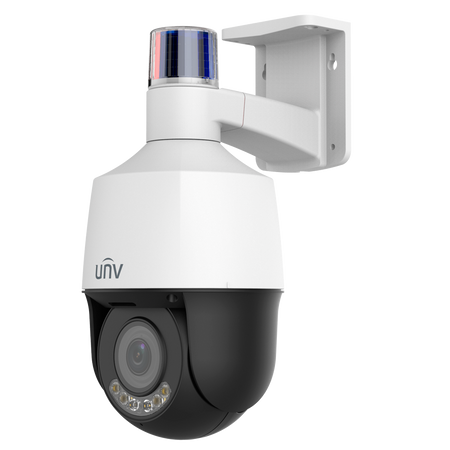

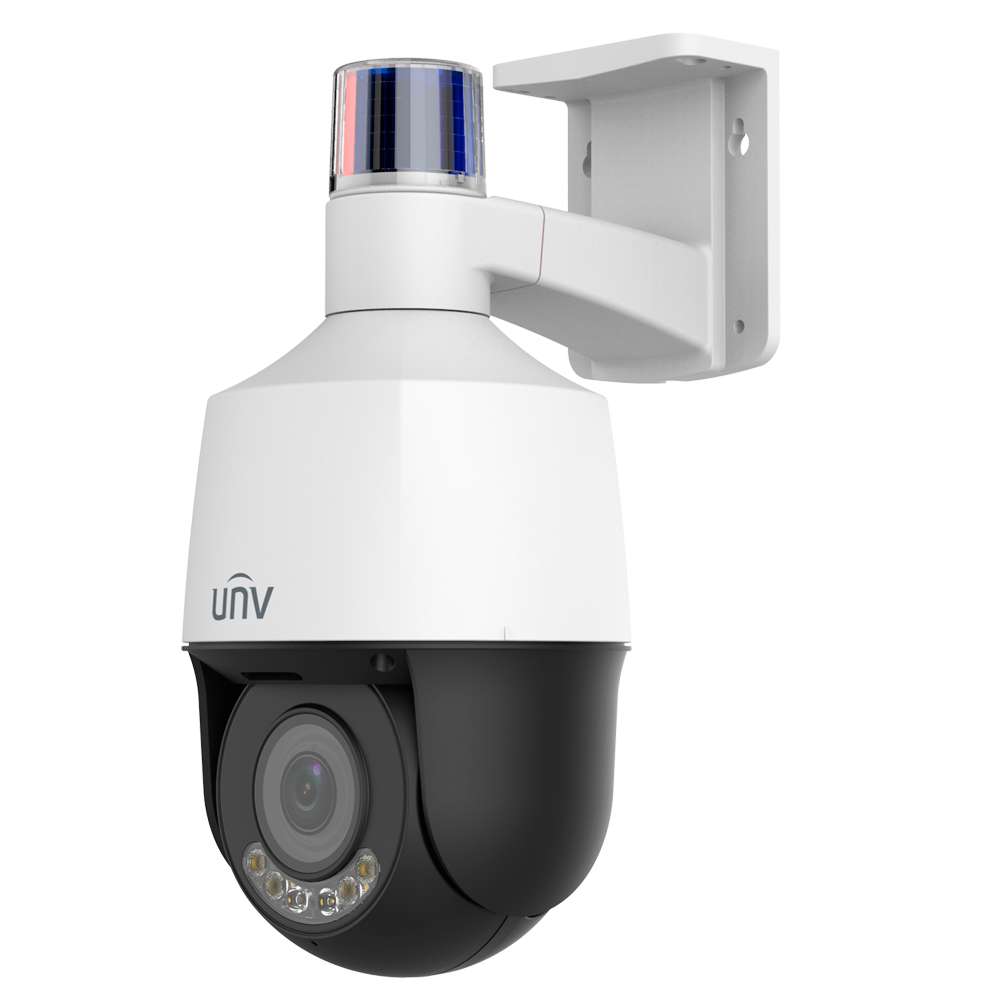

Uniview Easy Series 4Mpx PTZ IP Camera - UMD | Alarms | IP66
Uniview Easy Series 4Mpx PTZ IP Camera - UMD | Alarms | IP66
Regular price
€423,35
Final price
Regular price
-8%
€459,00
Sale price
€423,35
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
4MP PTZ IP Camera Easy Series - OwlView Series WISE-ISP Technology - 1/1.8” Progressive Scan CMOS F1.2 - 2.7~13.5mm (5X) lens | White light up to 40m - Microphone and Speaker | 512GB MicroSD | TriGuard - UMD | Alarms | IP66
📋 SPECIFICATIONS:
• Brand: UNIVIEW
• Optical sensor: 1/1.8" Progressive Scan CMOS
• Resolution: 4 Megapixels (2560x1440)
• Minimum illumination: 0.0005Lux (F1.2, AGC ON); 0Lux with White Light
• Illumination: White light; 40 m
• Compression: Ultra265/H.265/H.264/MJPEG
• Main Stream frame rate: 4MP(2560x1440)@30fps
• Lens: Varifocal 2.7~13.5mm (5X Optical zoom)
• DORI: D: 98.6 ~ 209.9 m; O: 39.4 ~ 84 m; R: 19.7 ~ 137.7 m; I: 9.9 ~ 21 m
• Field of view: H: 113.69 ~ 50.29º; V: 59.46 ~ 28.5º; D: 156.23 ~ 59.34º
• Optical zoom: 5X
• Day / Night: ICR mechanical filter
• Image enhancements: BLC, HLC, WDR 120 dB, 2D/3D DNR, Smart IR, Privacy Masking, ROI
• Video analysis: Motion detection, Audio detection, Tampering Alarm
• UMD: Yes (Advanced motion detection with people and vehicle classification)
• SIP: Yes; Line crossing, intrusion, area entry and exit triggered by people, vehicles, and/or two-wheeled vehicles
• Pan/Tilt Range: Pan: 0°~345°, Tilt: -10°~100°
• Manual speed: Pan: 1° ~ 50° /s; Tilt: 1° ~ 40° /s
• Presets: 1024 presets, preset patrol
• Internal storage: MicroSD card, Max 512 GB
• Audio: Built-in microphone and speaker; 1 Input / 1 Output
• Alarms: 1 Input / 1 Output
• Audio compression: G.711U, G.711A compression
• PTZ Control: Via network access, RS485
• Network interface: Ethernet 10 / 100 BaseT
• Remote access: Web Browser, Smartphone App, and PC Software EZStation
• Interoperability: ONVIF, PSIA, CGI
• Power supply: DC 12 V / 25.4W; PoE IEEE802.3at
• Operating temp: -20º C ~ +60º C
• Protection rating: Waterproof IP66 / Surge protection
• Dimensions (without bracket): Ø133 x 185 x 285 mm
📦 INCLUDED:
• Uniview motorized IP Dome camera• Installation material• CD with software and instructions
| Image sensor | 1/1.8" Progressive Scan CMOS |
|---|---|
| Resolution | 4 Megapixel (2560x1440) |
| Minimum illumination | 0.0005Lux (F1.2, AGC ON) 0Lux with White Light |
| Illumination | White Light 40 m |
| Compression | Ultra265/H.265/H.264/MJPEG |
| Main Stream frame rate | 4MP(2560x1440)@30fps |
| Lens | Varifocal 2.7~13.5mm (5X Optical zoom) |
| DORI | D: 98.6 ~ 209.9 m O: 39.4 ~ 84 m R: 19.7 ~ 137.7 m I: 9.9 ~ 21 m |
| Field of view | H: 113.69 ~ 50.29º V: 59.46 ~ 28.5º D: 156.23 ~ 59.34º |
| Optical zoom | 5X |
| Day / Night | ICR mechanical filter |
| Image enhancement | BLC, HLC, WDR 120 dB, 2D/3D DNR, Smart IR, Privacy Masking, ROI |
| Video analytics | Motion detection, Audio detection, Tampering Alarm |
| UMD | Yes (Advanced motion detection with human and vehicle classification) |
| SIP | Yes Line crossing, intrusion, area entrance and exit triggered by people, vehicles and/or two-wheeled vehicles |
| Pan/Tilt range | Horizontal: 0°~345°, Vertical: -10°~100° |
| Manual speed | Horizontal: 1° ~ 50° /s Vertical: 1° ~ 40° /s |
| Preset positions | 1024 presets, preset patrol |
| Internal memory | MicroSD card, Max 512 GB |
| Audio | Integrated microphone and speaker 1 Input / 1 Output |
| Alarms | 1 Input / 1 Output |
| Audio compression | G.711U, G.711A compression |
| PTZ control | Via network access, RS485 |
| Network interface | Ethernet 10 / 100 BaseT |
| Remote access | Web browser, Smartphone App and PC Software EZStation |
| Interoperability | ONVIF, PSIA, CGI |
| Power supply | DC 12 V / 25.4W PoE IEEE802.3at |
| Operating temp. | -20º C ~ +60º C |
| Protection rating | Waterproof IP66 / Surge protection |
| Dimensions (without bracket) | Ø133 x 185 x 285 mm |
- User manual Link
