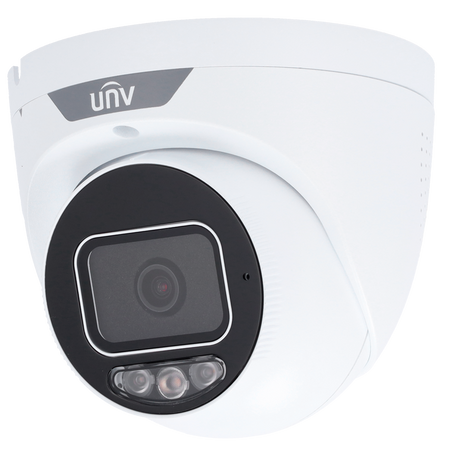

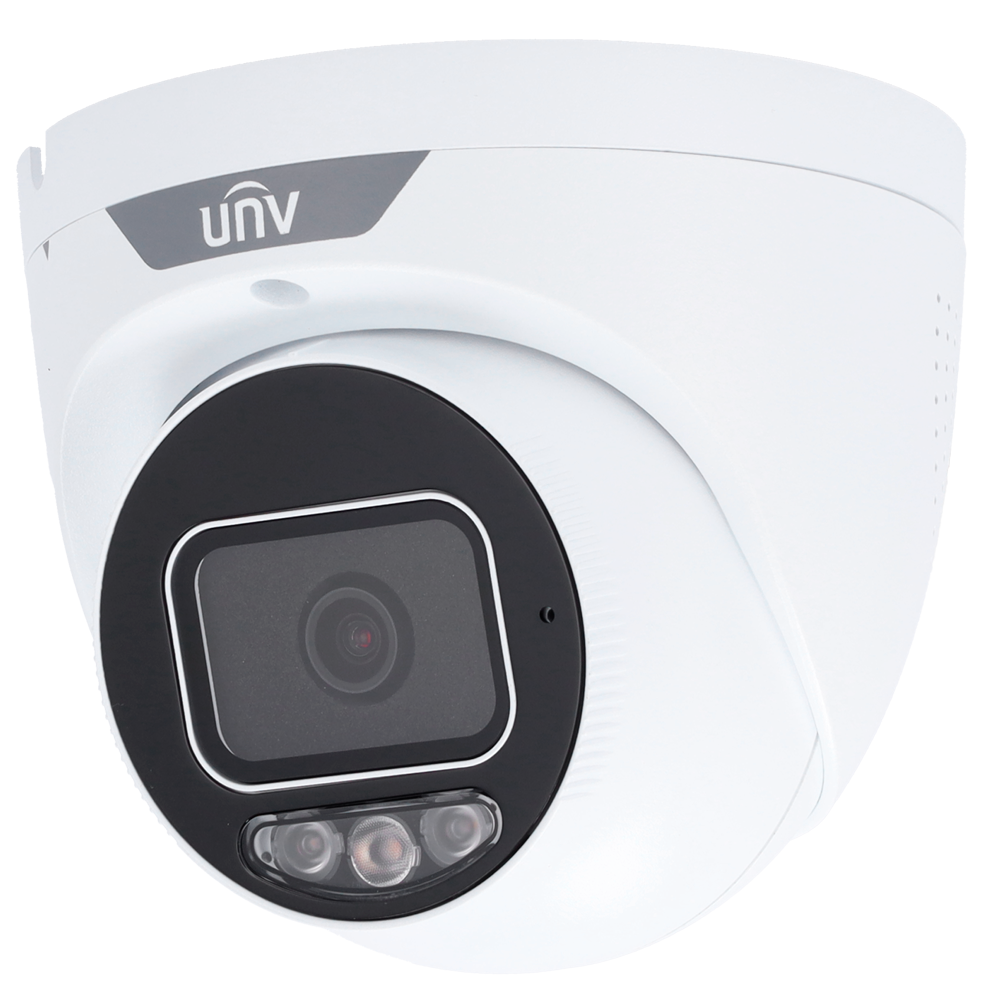

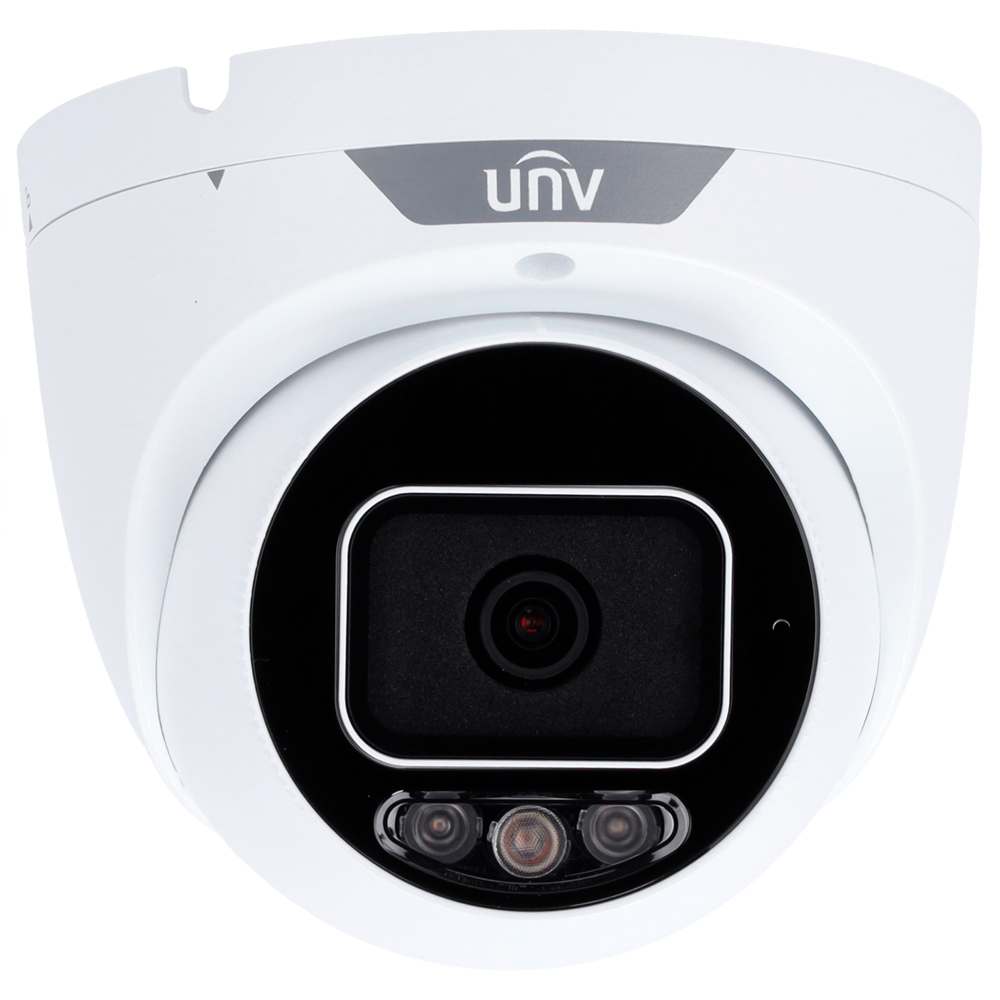

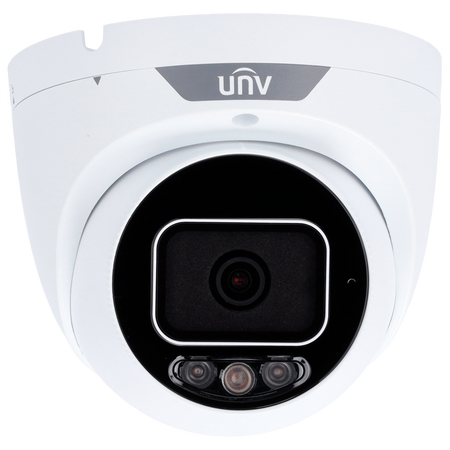

Uniview Prime Series IP Turret Camera - 5 MP Resolution (2880x1620)
Uniview Prime Series IP Turret Camera - 5 MP Resolution (2880x1620)
Regular price
€321,89
Final price
Regular price
-8%
€349,00
Sale price
€321,89
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Uniview Prime Series IP Turret Camera - 5 MP Resolution (2880x1620) - 2.8 mm Lens | 30 m IR LED - Tri-Guard 2.0 | SIP with color retrieval - Audio | Alarm | Microphone and speaker with deterrent effect - 130 dB WDR | PoE | IP67 | People counting
📋 SPECIFICATIONS:
• Brand: Uniview
• Series: Prime
• Optical sensor: 1/2.7” Progressive Scan CMOS
• Maximum resolution: 5 Megapixels (2880x1620)
• Lens: 2.8 mm
• Field of view (FOV): H: 112.8°, V: 59.4°, D: 116.3°
• DORI: 63 m (D), 25.2 m (O), 12.6 m (R), 6.3 m (I)
• Main Stream frame rate: 5MP (2880x1620), max 30 fps; 4MP (2560x1440), max 30 fps; 3MP (2304x1296), max 30 fps; 1080p (1920x1080), max 30 fps; 720p (1280x720), max 30 fps
• Sub Stream frame rate: 1080p (1920x1080), max 30 fps;; 720p (1280x720), max 30 fps;; D1 (720x576), max 30 fps;; 640x360, max 30 fps;; 2CIF (704x288), max 30 fps;; CIF (352x288), max 30 fps
• Third stream frame rate: D1 (720x576), max 30 fps;; 640x360, max 30 fps;; 2CIF (704x288), max 30 fps;; CIF (352x288), max 30 fps
• Compression: Ultra 265, H.265, H.264, MJPEG
• Video bitrate: 128 Kbps~16 Mbps
• Minimum illumination: Color: 0.001 lux (F1.0, AGC ON); 0 lux with IR on
• Infrared range: 30 m
• Day / Night: ICR mechanical filter
• Image enhancements: WDR (130 dB), BLC, HLC, AGC, AWB, 2D/3D-DNR, ROI, Privacy Mask, Smart IR, Flip
• Corridor mode: Yes
• SIP: Smart Intrusion Prevention; Support for false alarm filtering: line crossing detection, intrusion detection, enter area detection, exit area detection
• Color Retrieval: Metadata detection for clothing color, vehicle color, and two-wheeled vehicle color
• Analytics: People flow counting; Crowd density monitoring
• UMD: Integrates Ultra Motion Detection
• Auto Scene Match (ASM): Supported (WDR only)
• Internal storage: MicroSD card slot up to 512 GB
• Video backup: ANR video recovery technology by installing a Micro SD card
• Audio: 1 input / 1 output; Built-in microphone and speaker; Siren and light with deterrent effect (red and blue)
• Audio compression: G.711U, G.711A
• Audio bitrate: 64 Kbps

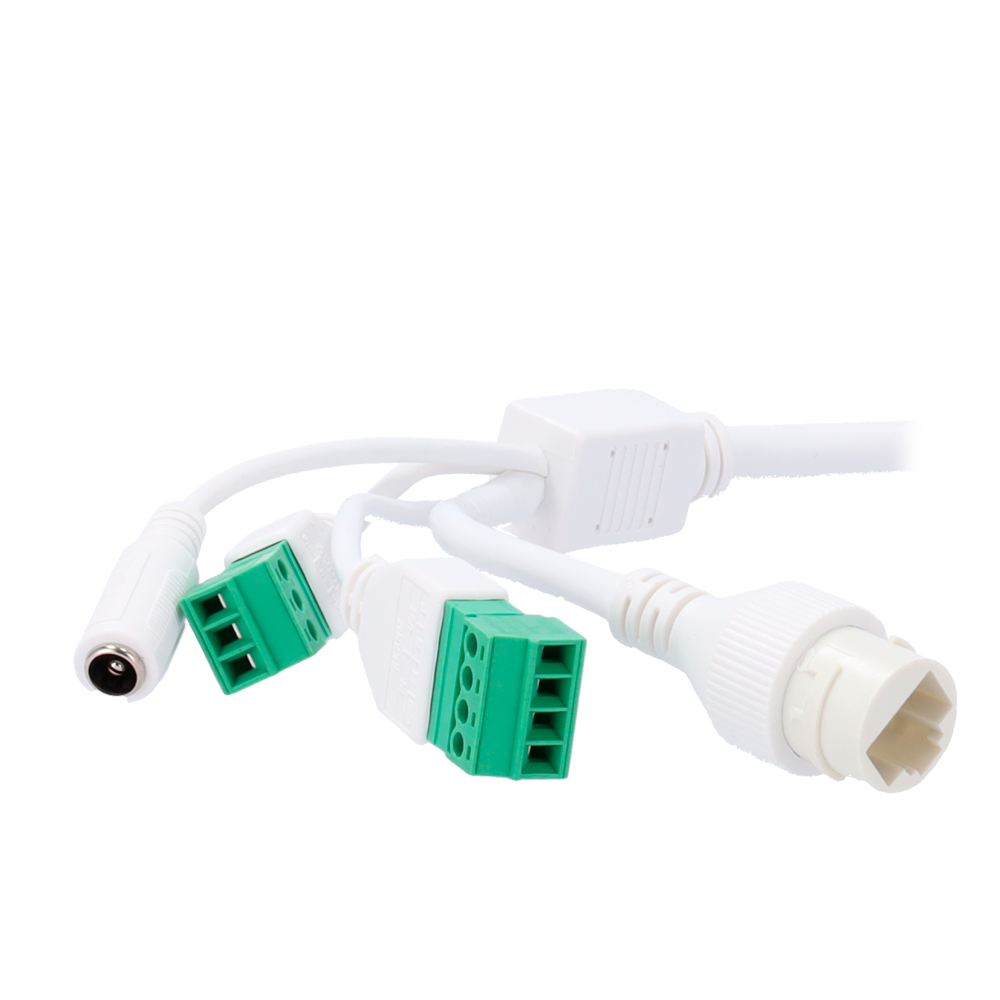

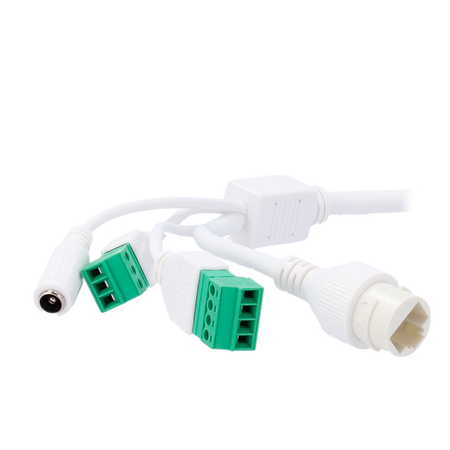

• Alarms: 1 input / 1 output
• Network interface: Ethernet 10/100 BaseT
• Remote access: Web browser, CMS Software (EZStation), Smartphone (EZView/EZLive)
• Interoperability: ONVIF (Profile S, Profile G, Profile T), API, SDK
• Power supply: DC 12 V / 10 W; PoE IEEE802.3af
• Operating temperature: -30º C ~ 60º C
• Material: Metal
• Protection rating: Waterproof IP67; 4000 V surge protection
• Dimensions: Ø 129 mm × 118 (H) mm

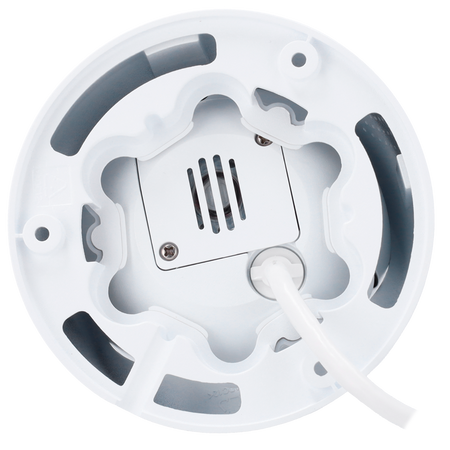

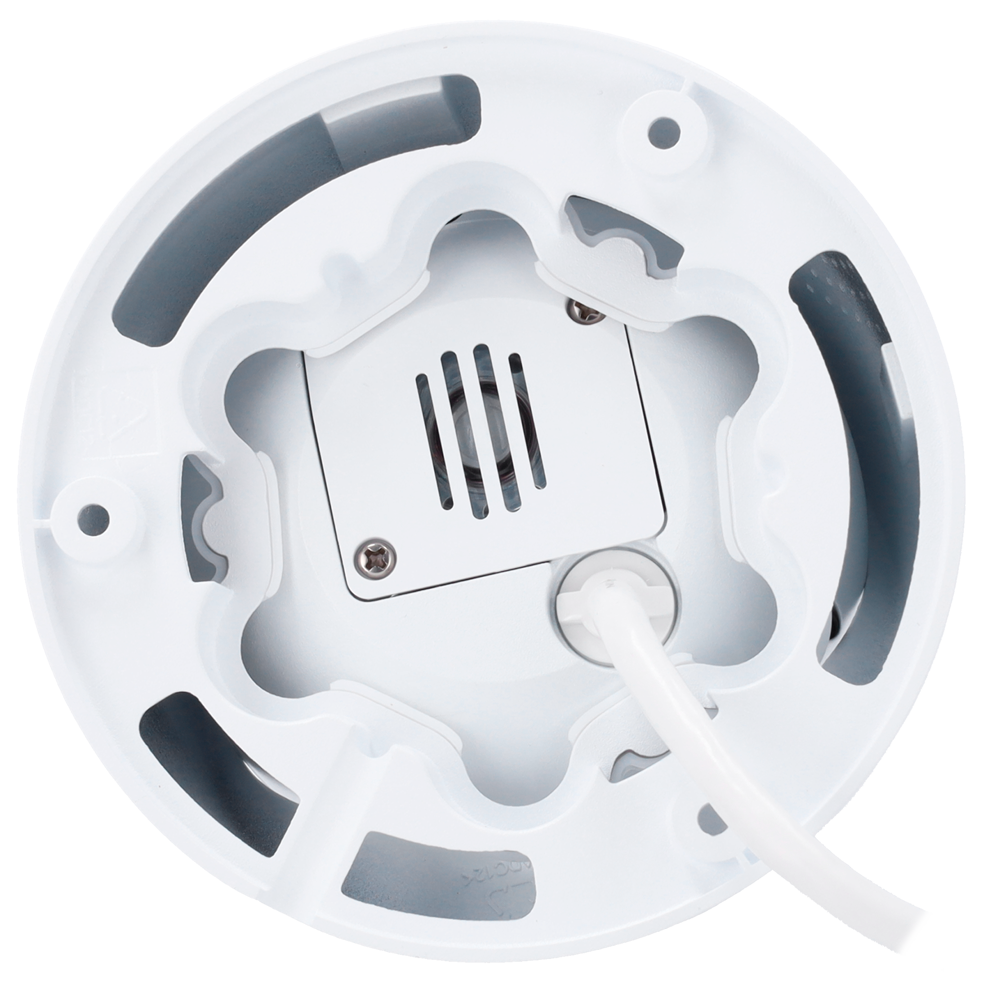

• Base dimensions: Base Ø 129 mm / hole spacing Ø 109 mm / 3 screws
• Weight: 690 g
📦 INCLUDED:
• UNIVIEW IP Camera• Installation hardware• User manual
| Series | Prime |
|---|---|
| Optical sensor | 1/2.7” Progressive Scan CMOS |
| Maximum resolution | 5 Megapixel (2880x1620) |
| Lens | 2.8 mm |
| Field of view (FOV) | H: 112.8°, V: 59.4°, D: 116.3° |
| DORI | 63 m (D), 25.2 m (O), 12.6 m (R), 6.3 m (I) |
| Main Stream frame rate | 5MP (2880x1620), max 30 fps; 4MP (2560x1440), max 30 fps; 3MP (2304x1296), max 30 fps; 1080p (1920x1080), max 30 fps; 720p (1280x720), max 30 fps |
| Sub Stream frame rate | 1080p (1920x1080), max 30 fps; 720p (1280x720), max 30 fps; D1 (720x576), max 30 fps; 640x360, max 30 fps; 2CIF (704x288), max 30 fps; CIF (352x288), max 30 fps |
| Third stream frame rate | D1 (720x576), max 30 fps; 640x360, max 30 fps; 2CIF (704x288), max 30 fps; CIF (352x288), max 30 fps |
| Compression | Ultra 265, H.265, H.264, MJPEG |
| Video bitrate | 128 Kbps~16 Mbps |
| Minimum illumination | Color: 0.001 lux (F1.0, AGC ON), 0 lux with IR on |
| Infrared range | 30 m |
| Day / Night | IR cut filter (ICR) |
| Image enhancement | WDR (130 dB), BLC, HLC, AGC, AWB, 2D/3D-DNR, ROI, Privacy Mask, Smart IR, Flip |
| Corridor mode | Yes |
| SIP | Smart Intrusion Prevention. Support for false alarm filtering: line crossing detection, intrusion detection, enter area detection, leave area detection. |
| Color Retrieval | Detection of metadata related to people's clothing color, vehicle color, and two-wheeler color. |
| Analysis | People counting. Crowd density monitoring. |
| UMD | Integrates Ultra Motion Detection. |
| Automatic Scene Matching (ASM) | Supported (WDR only) |
| Internal memory | MicroSD card slot up to 512 GB |
| Video Backup | ANR video recovery technology via Micro SD card installation |
| Audio | 1 input / 1 output, built-in microphone and speaker, Siren and light with deterrent effect (red and blue) |
| Audio compression | G.711U, G.711A |
| Audio bitrate | 64 Kbps |
| Alarms | 1 input / 1 output |
| Network interface | 10/100 BaseT Ethernet |
| Remote access | Web browser, CMS software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| Power supply | DC 12 V / 10 W, PoE IEEE802.3af |
| Operating temp. | -30º C ~ 60º C |
| Material | Metal |
| Protection rating | Waterproof IP67, 4000 V surge protection |
| Dimensions | Ø 129 mm × 118 (H) mm |
| Base dimensions | Base Ø 129 mm / Distance between screws 109 mm / 3 screws |
| Weight | 690 g |
