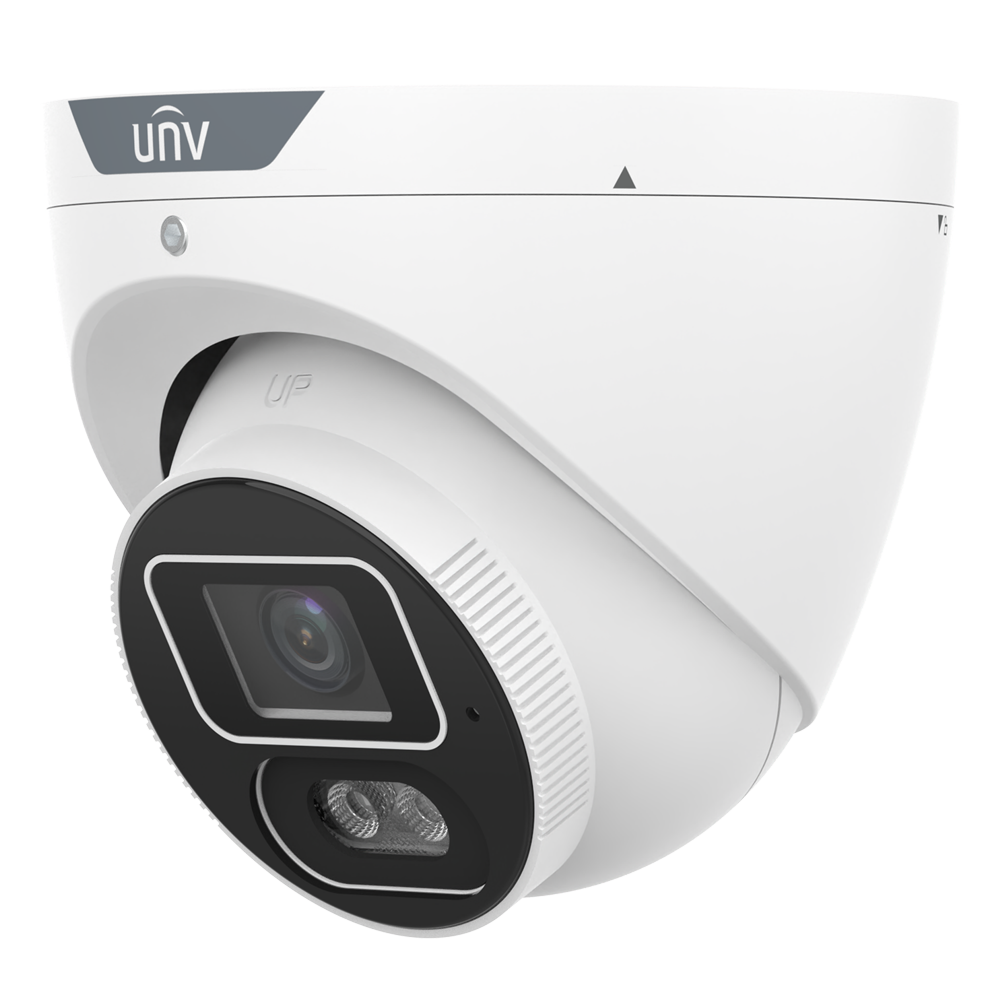

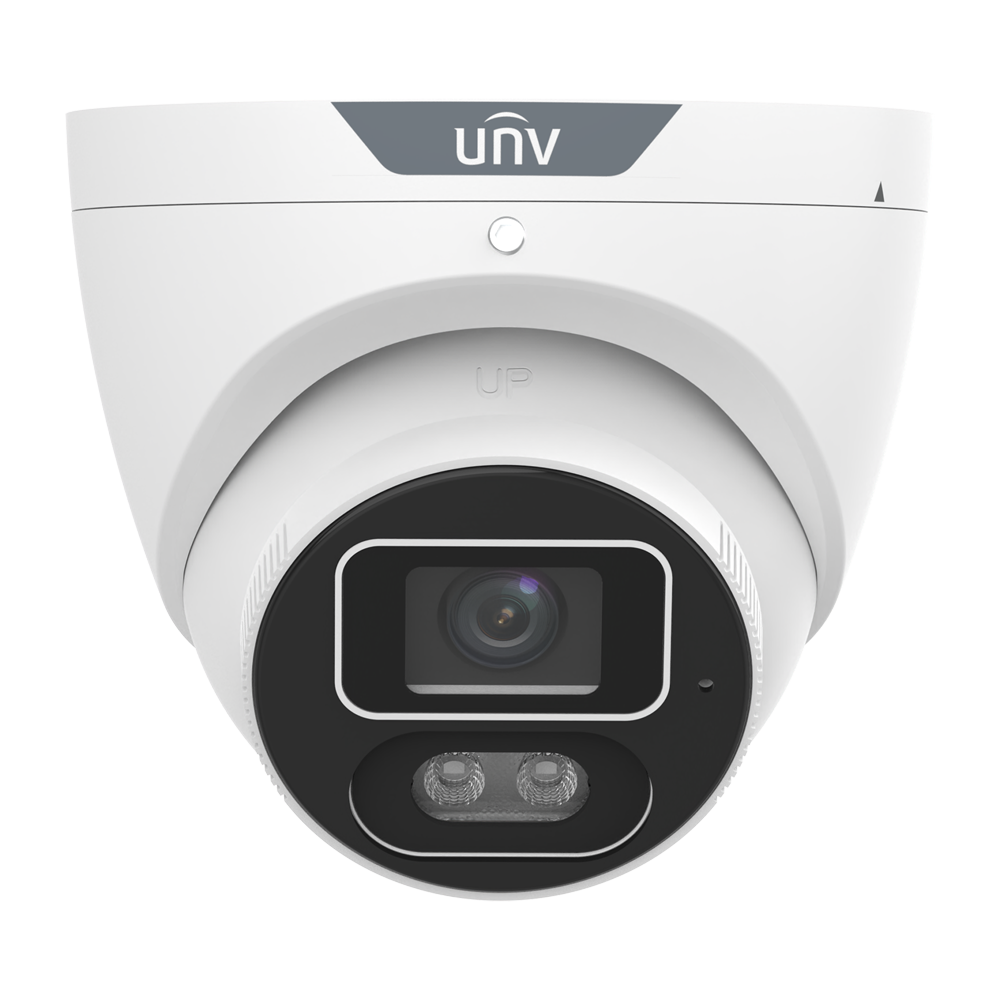

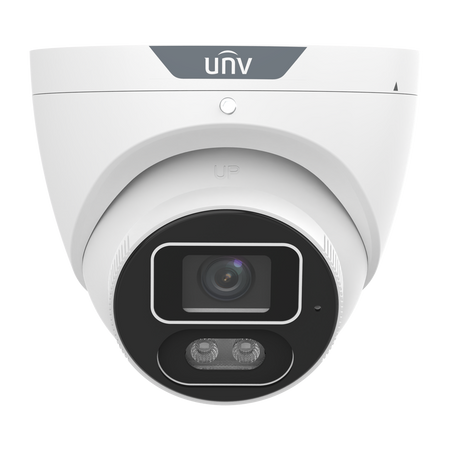

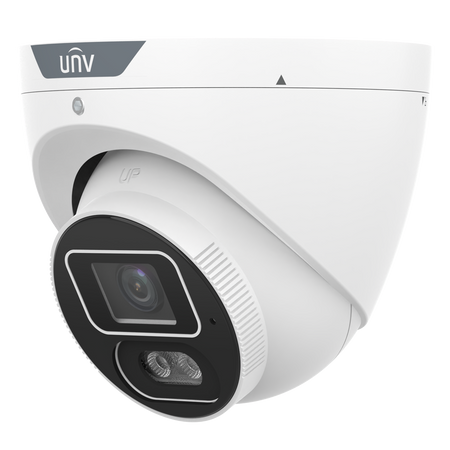

Uniview IP Turret Camera - Prime Series - 4 MP | 2.8 mm Lens | 512 GB microSD - People Counting

SKU: UV-IPC3614SB-ADF28KM-DL-I1
(0)
In stock
Usually shipped within 24 hours
€221,36 Final price
-8% €240,00 €221,36 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Uniview IP Turret Camera - Prime Series - 4 MP | 2.8 mm Lens | 512 GB microSD - 30m IR | 30m White Light | 120 dB WDR - People Counting - SIP | UMD - MIC | IP67 | PoE

📋 SPECIFICATIONS:
• Brand: Uniview
• Series: Prime
• Image sensor: 1/2.7” Progressive Scan CMOS
• Maximum resolution: 4 Megapixels (2688x1520)
• Main Stream resolution: 4MP (2688*1520)@30fps; 4MP (2560*1440)@30fps; 3MP (2304*1296)@30fps; 1080P (1920*1080)@30fps;
• Extra Stream bitrate: 720P (1280*720)@30fps; D1 (720*576)@30fps; 640*360@30fps; 2CIF(704*288), @30fps; CIF(352*288)@30fps;
• Compression: Ultra265/H.265/H.264
• Lens: 2.8 mm
• Minimum illumination: 0.002Lux (F2.0, AGC ON)
• Supplementary light range: IR: 30 m; White light: 30 m
• Image enhancements: WDR (120dB), BLC, HLC, AGC, 2D/3D-NR, ROI, Privacy Mask, Smart IR
• SIP (Smart Intrusion Prevention): Intelligent intrusion prevention. Accurate detection of people and vehicles to avoid false alarms. Events for line crossing, area intrusion, or entering/exiting a predefined area
• Intelligent functions: Motion detection, Audio detection, Tamper protection
• Day / Night: ICR mechanical filter
• Internal storage: MicroSD card, Max 256 GB
• Video backup: ANR video recovery technology by installing a Micro SD card
• Audio: Built-in microphone
• Network interface: 10/100 BaseT Ethernet
• Remote access: Web browser, CMS Software (EZStation), Smartphone (EZView/EZLive)
• Interoperability: ONVIF
• Power supply: DC 12 V / 5.1 W, PoE IEEE802.3af
• Operating temperature: -30º C ~ 60º C
• Protection rating: IP67 waterproof, Surge protection
• Dimensions: Φ110.5 x 97.5mm
• Weight: 460 g

📦 INCLUDED:
• UNIVIEW IP camera
• Installation material
• User instructions
Range Prime
Image sensor 1/2.7” Progressive Scan CMOS
Maximum resolution 4 Megapixel (2688x1520)
Main Stream rate 4MP (2688*1520)@30fps; 4MP (2560*1440)@30fps; 3MP (2304*1296)@30fps; 1080P (1920*1080)@30fps;
Extra Stream rate 720P (1280*720)@30fps; D1 (720*576)@30fps; 640*360@30fps; 2CIF(704*288), @30fps; CIF(352*288)@30fps;
Compression Ultra265/H.265/H.264
Lens 2.8 mm
Minimum illumination 0.002Lux (F2.0, AGC ON)
Supplementary light range IR: 30 m White light: 30 m
Image enhancement WDR (120dB), BLC, HLC, AGC, 2D/3D-NR, ROI, Privacy Mask, Smart IR
SIP (Smart Intrusion Prevention) Smart Intrusion Prevention. Accurate detection of humans and vehicles to prevent false alarms. Event by line crossing, area intrusion, or entry/exit from a previously defined area
Smart functions Motion detection, Audio detection, Tamper protection
Day / Night ICR mechanical filter
Internal storage MicroSD card, Max 256 GB
Video Backup ANR technology for video recovery by installing a Micro SD card
Audio Built-in microphone
Network interface Ethernet 10/100 BaseT
Remote access Web browser, CMS Software (EZStation), Smartphone (EZView/EZLive)
Interoperability ONVIF
Power supply DC 12 V / 5.1 W, PoE IEEE802.3af
Operating temp. -30º C ~ 60º C
Protection rating Waterproof IP67, Surge protection
Dimensions Φ110.5 x 97.5mm
Weight 460 g
