Uniview Prime Series IP Turret Camera
Uniview Prime Series IP Turret Camera
Regular price
€294,22
Final price
Regular price
-8%
€319,00
Sale price
€294,22
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

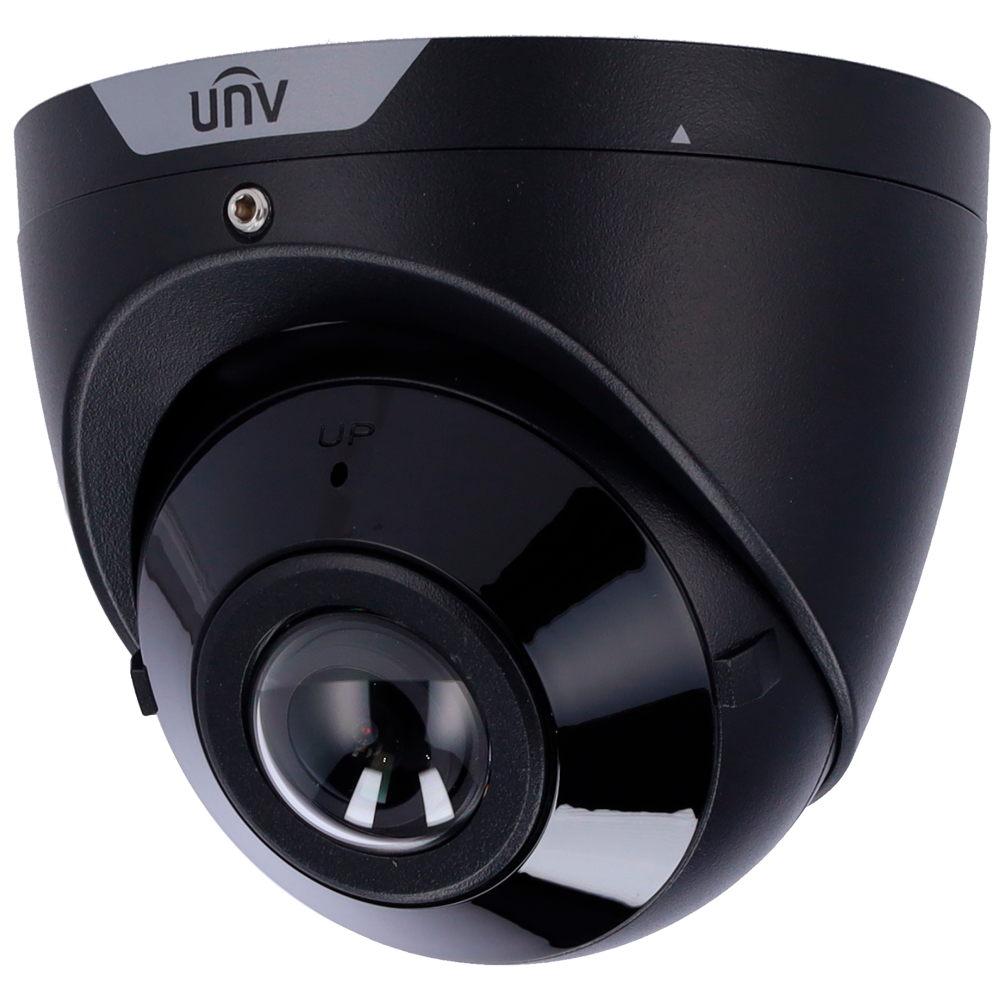

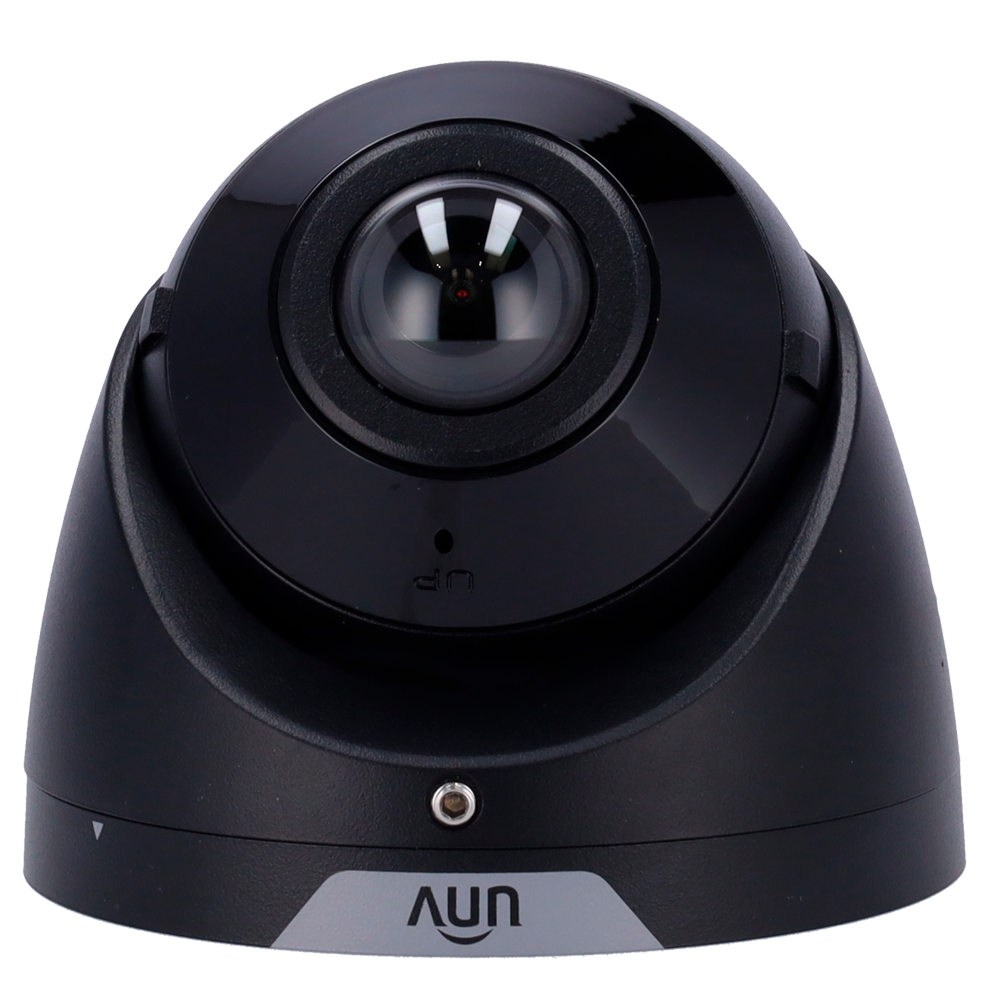

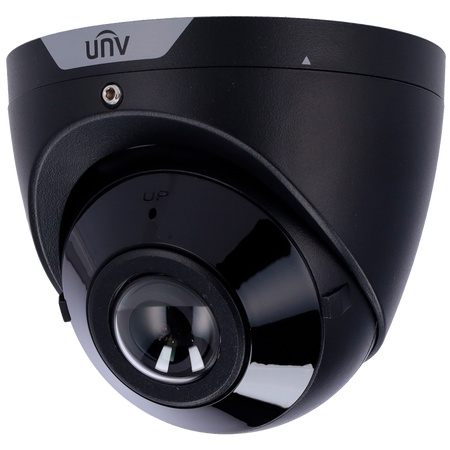

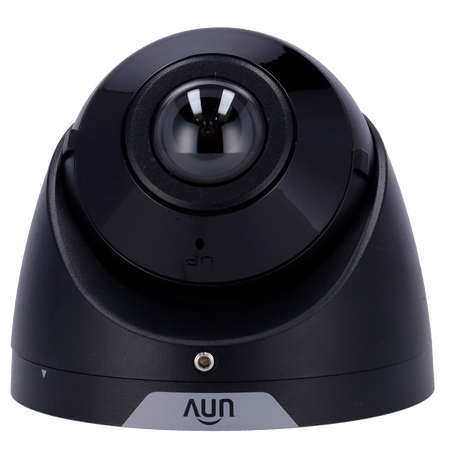

Prime Series IP Turret Camera - 5 MP Resolution (2880x1620) - 1.68 mm Lens | 180º Wide Angle - IR LED range 20 m | Built-in microphone - IP67 Waterproof | IK10 Vandal-proof - UMD | SIP | PoE IEEE802.3af | Black
📋 SPECIFICATIONS:
• Brand: Uniview
• Series: Prime
• Optical sensor: 1/2.7” Progressive Scan CMOS
• Maximum resolution: 5 Megapixel (2880X1620)
• Main Stream frame rate: 5MP (2880x1620), max 30 fps;; 4MP (2560x1440), max 30 fps;; 1080P (1920x1080), max 30fps
• Sub Stream Rate: 1080P (1920x1080), max 30fps;; 720p (1280x720), max 30fps;; D1 (720x576), max 30fps;; 640x360, max 30fps;; 2CIF (704x288), max 30fps;; CIF (352x288), max 30fps
• Third stream frame rate: D1 (720x576), max 30fps;; 640x360, max 30fps;; 2CIF (704x288), max 30fps;; CIF (352x288), max 30fps
• Compression: Ultra265/H.265/H.264/MJPEG
• Video bitrate: 128 Kbps~10 Mbps
• Lens: 1.68 mm
• Field of View (FOV): H: 180º, V: 100º, D: 180º
• DORI: 37.8 m (D), 15.1 m (O), 7.6 m (R), 3.8 m (I)
• Minimum illumination: 0.01 Lux @(F2.0, AGC ON); 0 lux with IR
• Infrared range: 20 m
• Shutter: 1 ~ 1/100000s
• Day / Night: Mechanical ICR filter
• Image enhancements: WDR (120 dB), BLC, HLC, AGC, AWB, 2D/3D-DNR, ROI, Privacy Mask, Smart IR, Flip
• Video Backup: ANR technology for video recovery by installing a Micro SD card
• SIP (Smart Intrusion Prevention): Smart Intrusion Prevention support for false alarm filtering: line crossing detection, intrusion detection, area entry detection, area exit detection.
• UMD: Integrated Ultra Motion Detection (Advanced motion detection).
• Dewarping: Supported (1-9)
• Audio: Built-in microphone
• Audio compression: G.711U, G.711A
• Audio bitrate: 64 Kbps

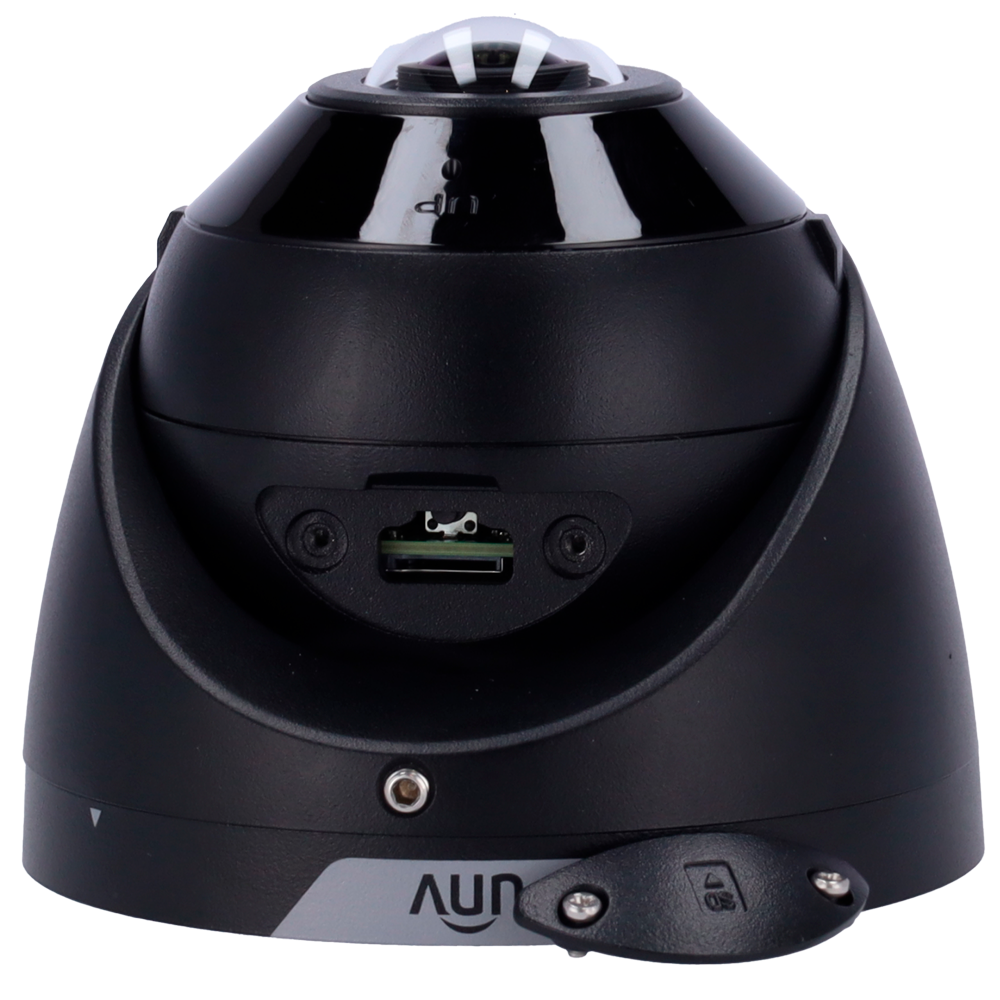

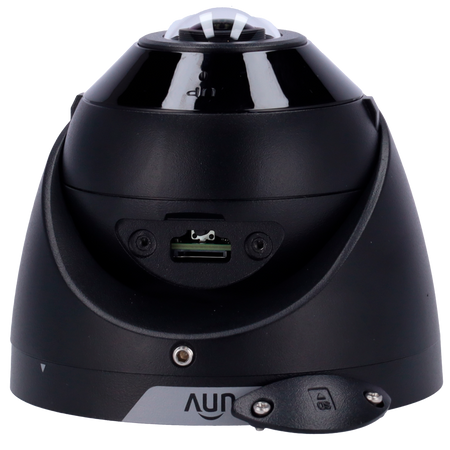

• Internal memory: MicroSD card slot up to 256 GB
• Network interface: Ethernet 10/100 BaseT
• Remote access: Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive)
• Interoperability: ONVIF (Profile S/Profile G/Profile T), API, SDK

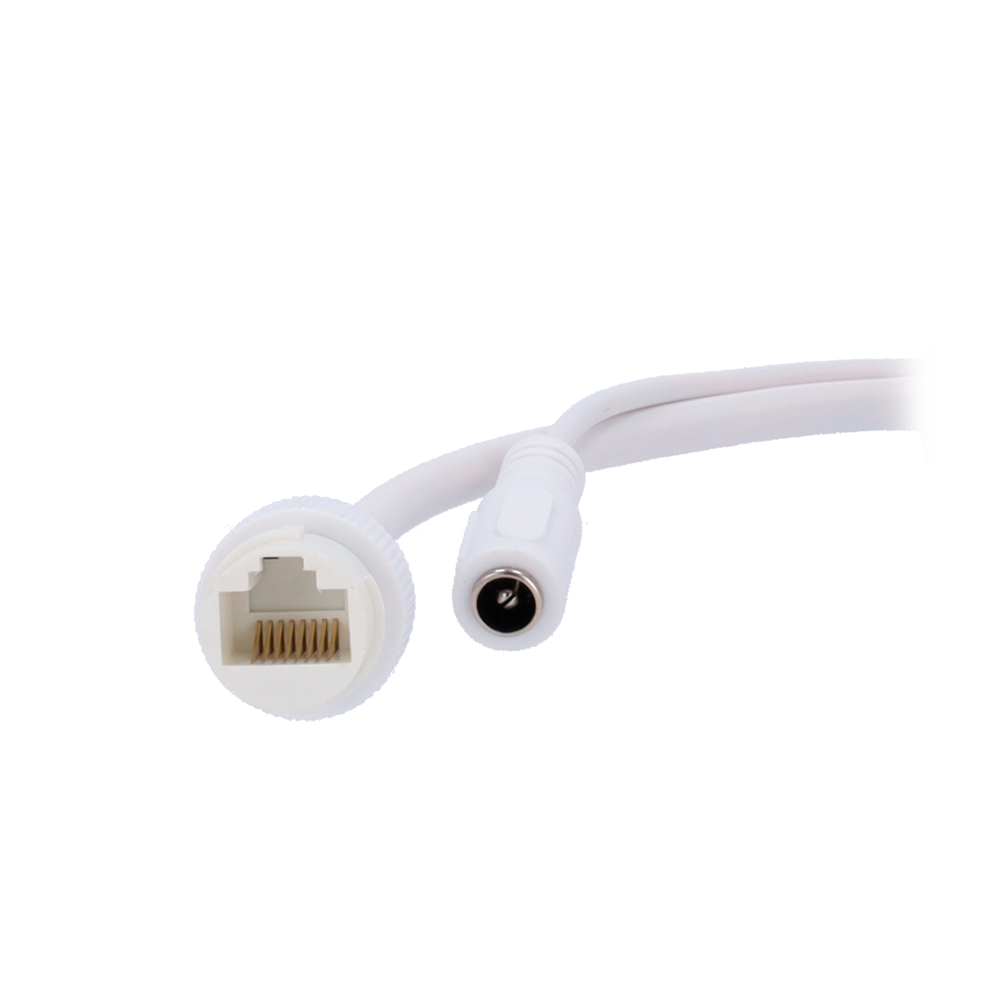

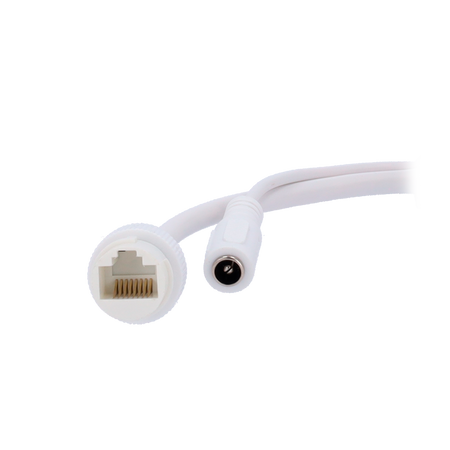

• Power supply: DC 12 V / 5.5 W; PoE IEEE802.3af
• Operating temperature: -30º C ~ 60º C
• Material: Metal
• Protection rating: Waterproof IP67, Vandal-proof IK10, Surge protection 4000 V
• Dimensions: Ø 111 mm x 93 (H) mm

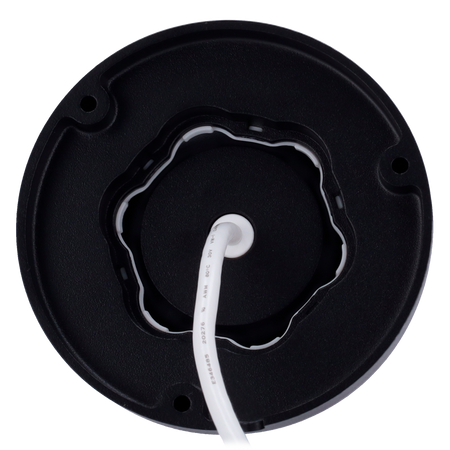

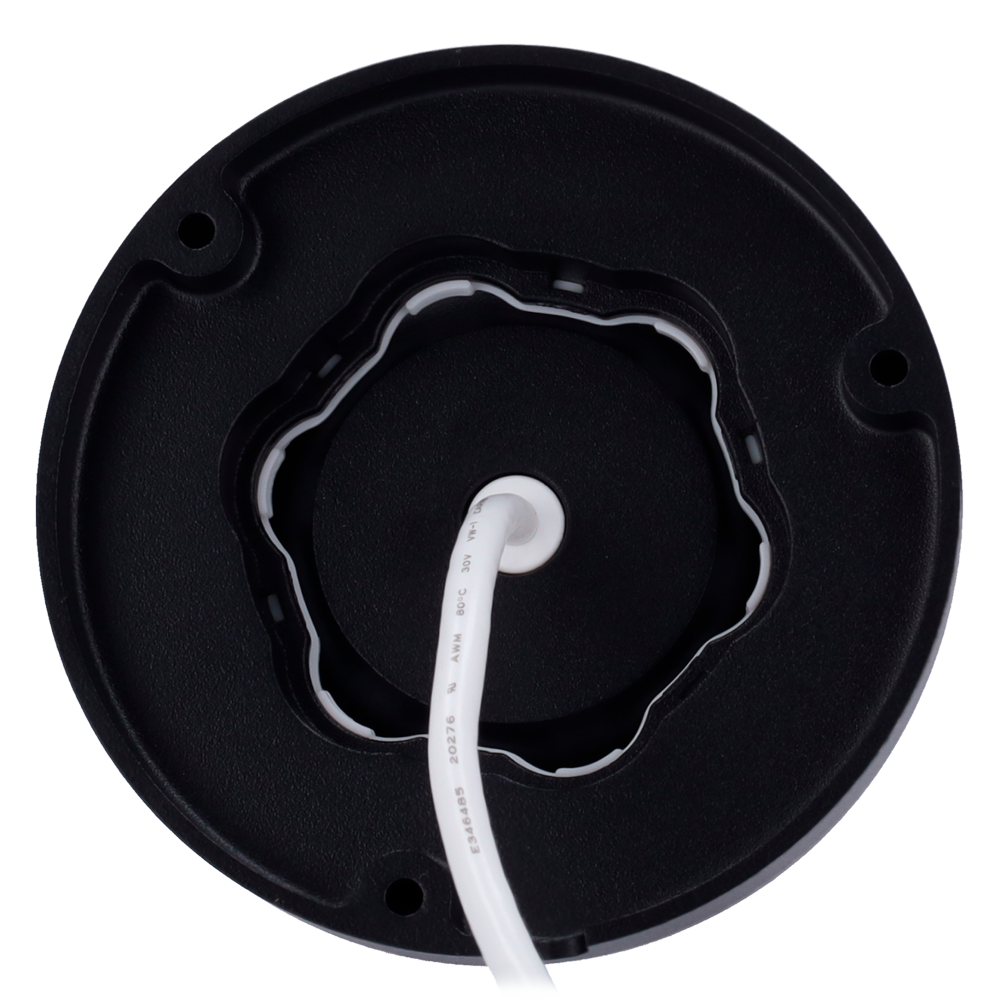

• Base dimensions: Ø base 111 mm / Ø between screws 98 mm / 3 screws
• Weight: 480 g
• Color: Black
📦 INCLUDED:
• UNIVIEW IP Camera• Installation hardware• User manual
| Range | Prime |
|---|---|
| Optical sensor | 1/2.7” Progressive Scan CMOS |
| Maximum resolution | 5 Megapixel (2880X1620) |
| Main Stream frame rate | 5MP (2880x1620), max 30 fps; 4MP (2560x1440), max 30 fps; 1080P (1920x1080), max 30fps |
| Sub Stream Rate | 1080P (1920x1080), max 30fps; 720p (1280x720), max 30fps; D1 (720x576), max 30fps; 640x360, max 30fps; 2CIF (704x288), max 30fps; CIF (352x288), max 30fps |
| Third stream frame rate | D1 (720x576), max 30fps; 640x360, max 30fps; 2CIF (704x288), max 30fps; CIF (352x288), max 30fps |
| Compression | Ultra265/H.265/H.264/MJPEG |
| Video bitrate | 128 Kbps~10 Mbps |
| Lens | 1.68 mm |
| Field of View (FOV) | H: 180º, V: 100º, D: 180º |
| DORI | 37.8 m (D), 15.1 m (O), 7.6 m (R), 3.8 m (I) |
| Minimum illumination | 0.01 Lux @(F2.0, AGC ON) 0 lux with IR |
| Infrared range | 20 m |
| Shutter | 1 ~ 1/100000s |
| Day / Night | ICR mechanical filter |
| Image enhancements | WDR (120 dB), BLC, HLC, AGC, AWB, 2D/3D-DNR, ROI, Privacy Mask, Smart IR, Flip |
| Video Backup | ANR video recovery technology by installing a Micro SD card |
| SIP (Smart Intrusion Prevention) | Smart Intrusion Prevention. Support for false alarm filtering: line crossing detection, intrusion detection, enter area detection, leave area detection. |
| UMD | Integrates Ultra Motion Detection (advanced motion detection). |
| Dewarping | Supported (1-9) |
| Audio | Integrated microphone |
| Audio compression | G.711U, G.711A |
| Audio bitrate | 64 Kbps |
| Internal memory | MicroSD card slot up to 256 GB |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web browser, CMS software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF (Profile S/Profile G/Profile T), API, SDK |
| Power supply | DC 12 V / 5.5 W PoE IEEE802.3af |
| Operating temp. | -30º C ~ 60º C |
| Material | Metal |
| Protection rating | Waterproof IP67, Vandal-proof IK10, 4000 V surge protection |
| Dimensions | Ø 111 mm x 93 (H) mm |
| Base dimensions | Ø base 111 mm / Ø between screws 98 mm / 3 screws |
| Weight | 480 g |
| Color | Black |
