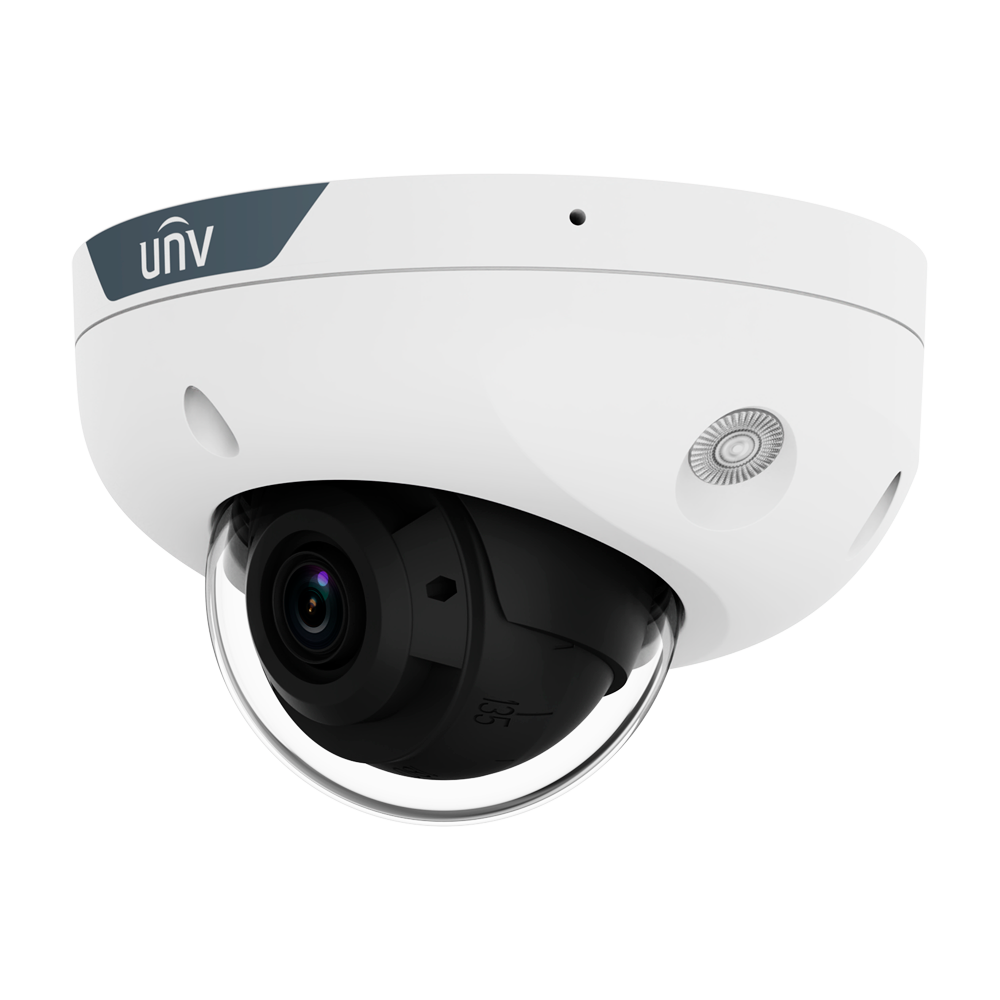

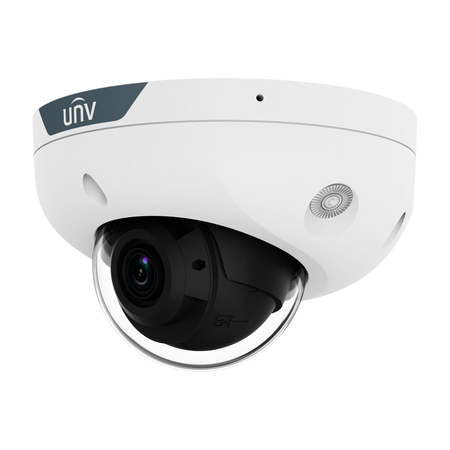

Uniview IP Dome Camera - Easy Series - 4 MP | 2.8 mm Lens | 512 GB microSD

SKU: UV-IPC314LE-ADF28K-DL
(0)
In stock
Usually shipped within 24 hours
€183,55 Final price
-8% €199,00 €183,55 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Uniview IP Dome Camera - Easy Series - 4 MP | 2.8 mm Lens | 512 GB microSD - 30m IR | 30m White Light | 120 dB WDR - ColorHunter - PoE | SIPLite | UMD | IP67 | IK10

📋 SPECIFICATIONS:
• Brand: Uniview
• Series: Easy
• Optical sensor: 1/3" Progressive Scan CMOS
• Maximum resolution: 4 MP (2688x1520)
• Main Stream frame rate: 4MP (2688x1520)@25 fps; 4MP (2560x1440)@25 fps; 3MP (2304x1296)@30 fps; 1080P (1920x1080)@30 fps; 720P (1280x720)@30 fps
• Sub Stream frame rate: 720P (1280x720)@30 fps; D1 (720x576)@30 fps; 640x360@30 fps; 2CIF (704x288)@30 fps; CIF (352x288)@30 fps
• Compression: Ultra265/H.265/H.264
• Lens: 2.8 mm
• FOV: Horizontal: 100.5º; Vertical: 58.4º; Diagonal: 123.1º
• DORI: Detect: 63 m; Observe: 25.2 m; Recognize: 12.6 m; Identify: 6.3 m
• Minimum illumination: 0.005 Lux (F1.6, AGC ON); 0 Lux with Infrared
• Supplemental light range: IR: 30 m; White light: 30 m
• Day / Night: ICR mechanical filter
• Image enhancements: BLC, HLC, AGC, 2D/3D-NR, Smart IR, ROI (Up to 8 areas), Privacy Mask
• WDR: 120 dB
• Corridor mode: Yes
• UMD (Advanced Motion Detection): Yes
• Intelligent functions: SIP, Smart Intrusion Prevention (classification of humans, vehicles, and two-wheeled vehicles for line crossing, intrusion, entry area, and exit area detection); People counting and flow monitoring in an area; *The two functions cannot be enabled simultaneously
• Internal storage: Micro SD card slot, up to 512 GB
• Audio: Built-in microphone
• Network interface: 10/100M BaseT Ethernet
• Remote access: Web browser, CMS Software (EZStation), Smartphone (EZView/EZLive)
• Interoperability: ONVIF
• Power supply: DC 12 V / 5.5 W; PoE IEEE802.3af
• Operating temperature: -30º C ~ 60º C
• Protection: IP67 Waterproof; IK10 Vandal-proof
• Dimensions: 72.6 (H) x 111.2 (Ø) mm
• Weight: 360 g
• Material: Metal + Plastic

📦 INCLUDED:
• UNIVIEW IP Camera• Installation tools• User manual
Series Easy
Optical sensor 1/3" Progressive Scan CMOS
Maximum resolution 4 MP (2688x1520)
Main Stream frame rate 4MP (2688x1520)@25 fps 4MP (2560x1440)@25 fps 3MP (2304x1296)@30 fps 1080P (1920x1080)@30 fps 720P (1280x720)@30 fps
Sub Stream frame rate 720P (1280x720)@30 fps D1 (720x576)@30 fps 640x360@30 fps 2CIF (704x288)@30 fps CIF (352x288)@30 fps
Compression Ultra265/H.265/H.264
Lens 2.8 mm
FOV Horizontal: 100.5º Vertical: 58.4º Diagonal: 123.1º
DORI Detect: 63 m Observe: 25.2 m Recognize: 12.6 m Identify: 6.3 m
Minimum illumination 0.005 Lux (F1.6, AGC ON) 0Lux with Infrared
Additional illumination range IR: 30 m White light: 30 m
Day / Night IR cut filter
Image enhancement BLC, HLC, AGC, 2D/3D-NR, Smart IR, ROI (Up to 8 areas), Privacy Mask
WDR 120 dB
Corridor mode Yes
UMD (Ultra Motion Detection) Yes
Smart functions SIP, Smart Intrusion Prevention (classification of humans, vehicles, and non-motor vehicles for line crossing, area intrusion, area entry, and area exit) People counting and flow monitoring *The two functions cannot be enabled simultaneously
Internal memory Micro SD slot, up to 512 GB
Audio Built-in microphone
Network interface Ethernet 10/100M BaseT
Remote access Web browser, CMS software (EZStation), Smartphone (EZView/EZLive)
Interoperability ONVIF
Power supply DC 12 V / 5.5 W PoE IEEE802.3af
Operating temp. -30º C ~ 60º C
Protection Waterproof IP67 Vandal-proof IK10
Dimensions 72.6 (H) x 111.2 (Ø) mm
Weight 360 g
Material Metal + Plastic
