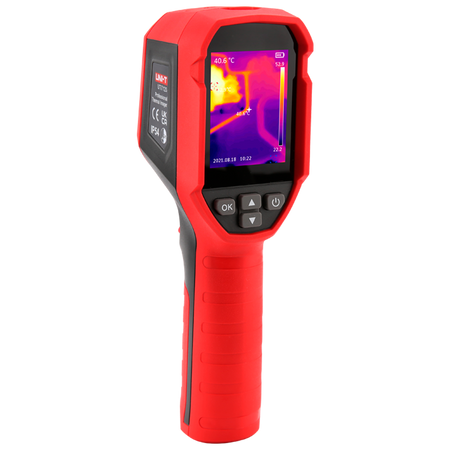

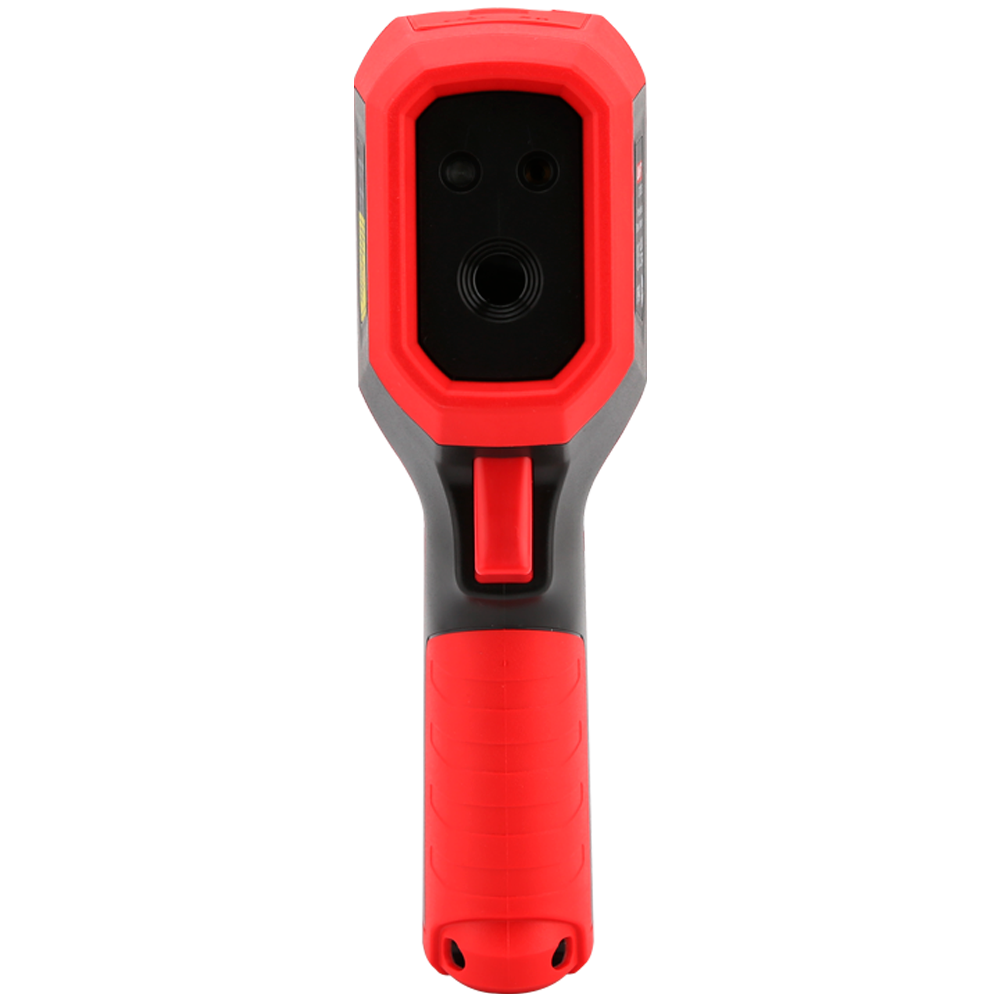

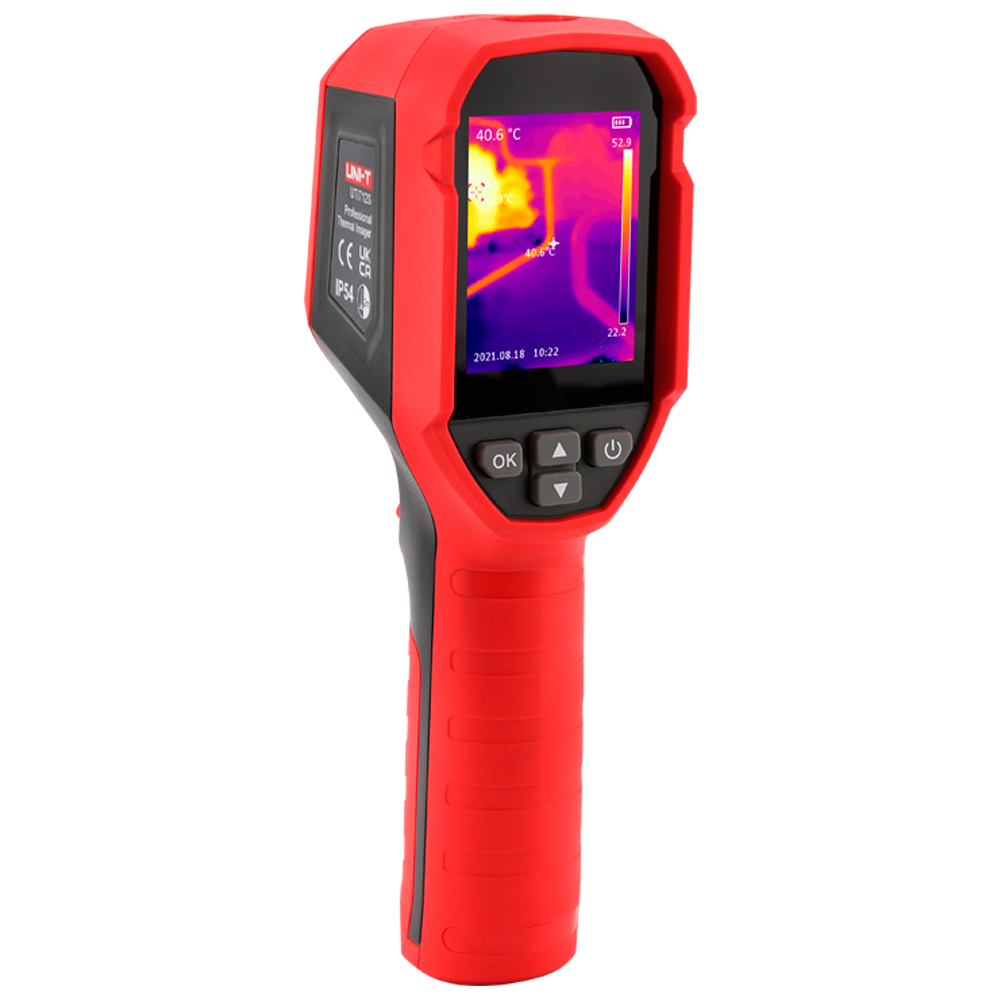

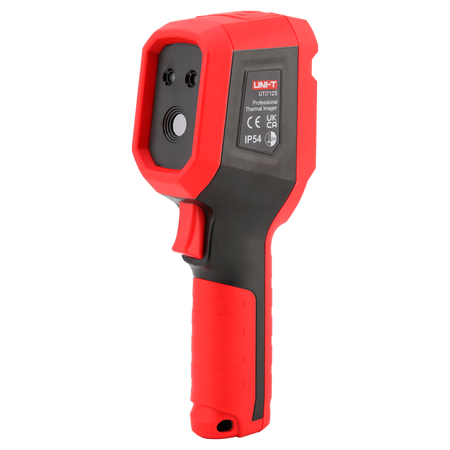

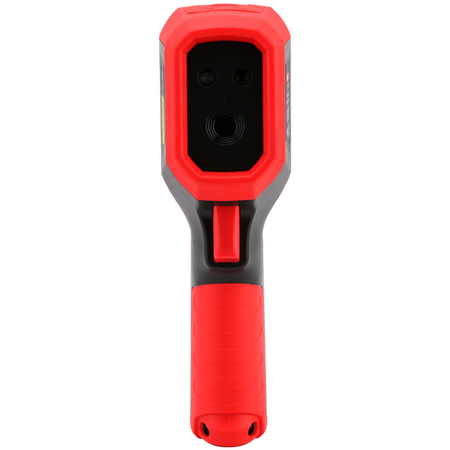

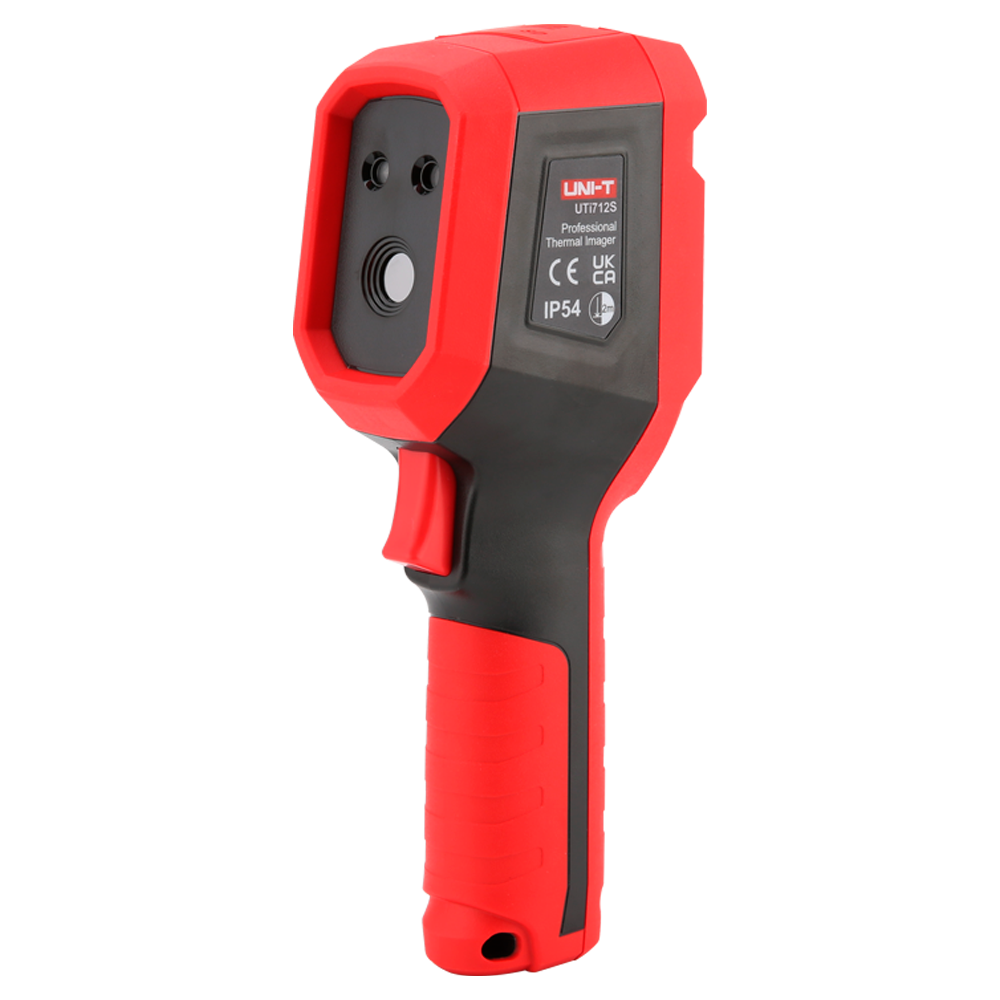

Uni-T 120x90 handheld thermal camera
Uni-T 120x90 handheld thermal camera
Regular price
€195,99
Final price
Regular price
-20%
€246,16
Sale price
€195,99
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
120x90 handheld thermal imaging camera - Real-time temperature measurement - Measuring range -20ºC ~ 400ºC (±2ºC or ±2%) - 2.4" TFT LCD display - Monitoring on an external monitor via PC
📋 SPECIFICATIONS:
• Thermal sensor: 120x90 Vox
• Field of view (thermal): 50º x 38º
• Accuracy: ± 2ºC or ±2%
• Thermal sensitivity (NETD): ≤ 60mK
• Spectral range: 8~14um
• Intelligent functions: Temperature measurement
• Measurement range: -20ºC ~ 400ºC
• Operating modes: Center point, maximum and minimum temperature measurement, ROI function
• Image mode: Thermal
• Image capture: Manual (trigger) / Automatic (in case of alarm)
• Internal memory: Micro SD card up to 16 GB (included)
• Light / Flashlight: Manual activation / Activation due to temperature increase or decrease
• Notification: Audible: Buzzer on the device itself or on PC software / Visual: On the camera display or in PC software
• Display: 2.4" TFT LCD (320x240) display
• PC software: Live image, event history, audible alarm notification
• Installation: Tripod (not included) or handheld

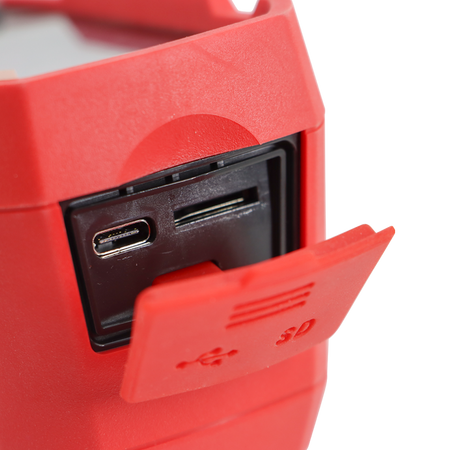

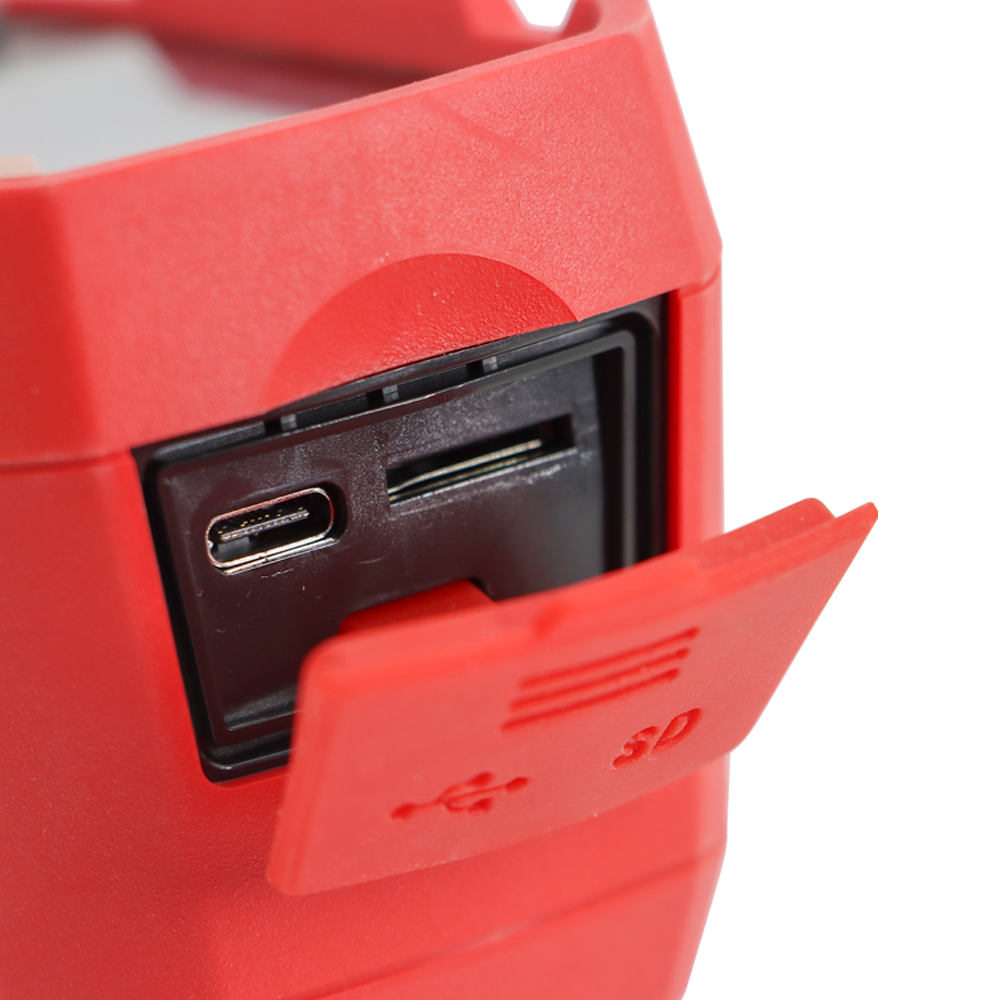

• Communication: USB Type-C (for battery charging)
• Languages: Spanish, English, Portuguese, Italian, German, French, Chinese
• Power supply: Rechargeable 3.6V / 5000mAh lithium battery
• Battery life: 8 hours
• Operating temp.: -20º C ~ + 60º C
• Protection rating: IP54
• Dimensions: 60 (D) x 197 (W) x 72 (H) mm
• Weight: 310 g
📦 INCLUDED:
• Handheld thermal imaging camera• User instructions• USB-Type C cable• 16GB MicroSD card
| Thermal sensor | 120x90 Vox |
|---|---|
| Field of view (thermal) | 50º x 38º |
| Accuracy | ± 2ºC or ±2% |
| Thermal sensitivity (NETD) | ≤ 60mK |
| Spectral range | 8~14um |
| Intelligent functions | Temperature measurement |
| Measurement range | -20ºC ~ 400ºC |
| Usage modes | Center point, maximum and minimum temperature measurement, ROI function |
| Image mode | Thermal |
| Image capture | Manual (trigger) / Automatic (in case of alarm) |
| Internal memory | Micro SD card up to 16 GB (included) |
| Light / Flashlight | Manual activation / Activation by temperature increase or decrease |
| Notification | Audible: Buzzer on the device itself or on PC software / Visual: On the camera display or in the PC software |
| Display | 2.4" TFT LCD display (320x240) |
| PC software | Live image, event history, audible alarm notification |
| Installation | Tripod (not included) or handheld |
| Communication | USB Type-C (for battery charging) |
| Languages | Spanish, English, Portuguese, Italian, German, French, Chinese |
| Power supply | Rechargeable 3.6V / 5000mAh lithium battery |
| Battery life | 8 hours |
| Operating temp. | -20º C ~ + 60º C |
| Protection rating | IP54 |
| Dimensions | 60 (D) x 197 (W) x 72 (H) mm |
| Weight | 310 g |
