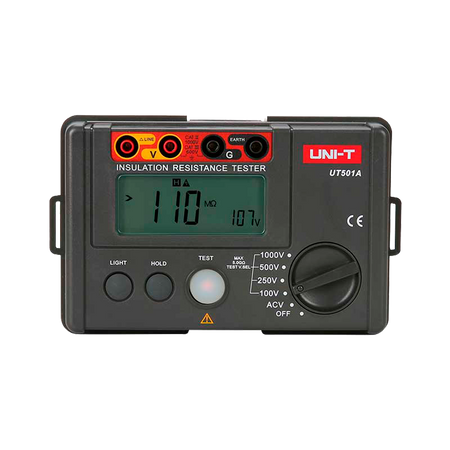

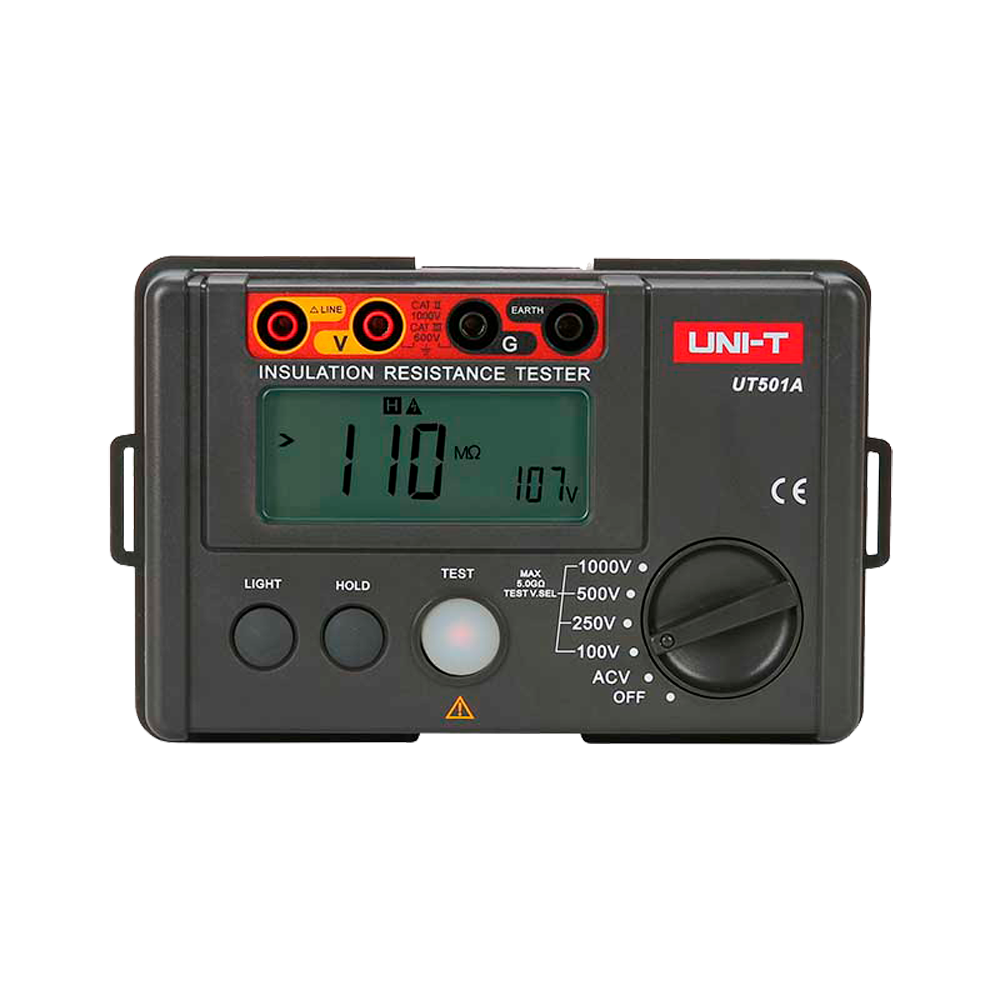

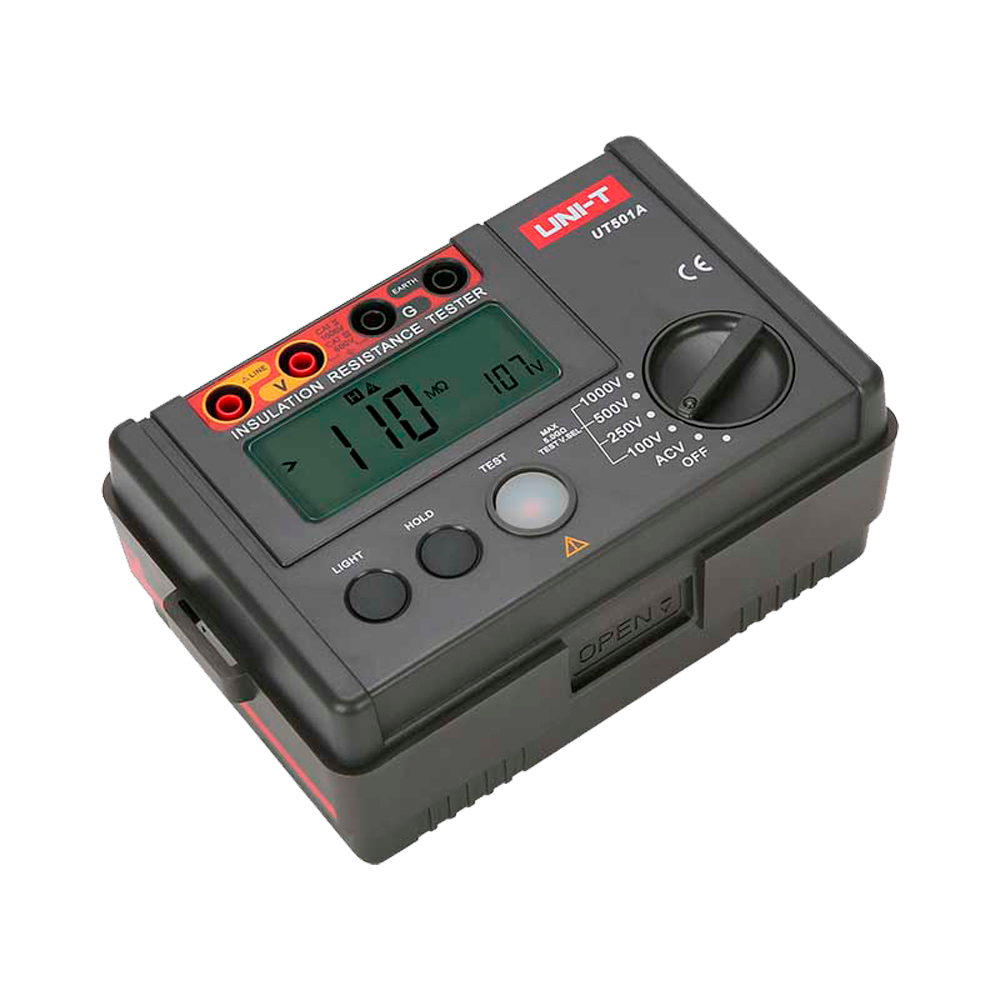

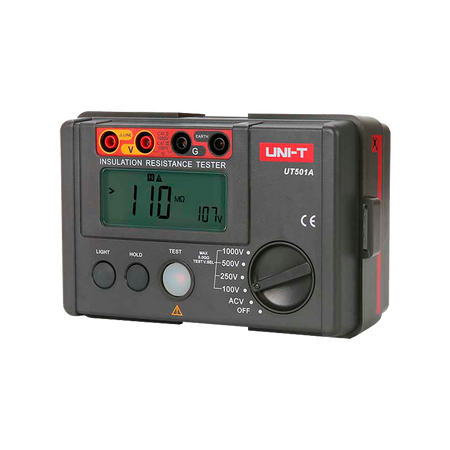

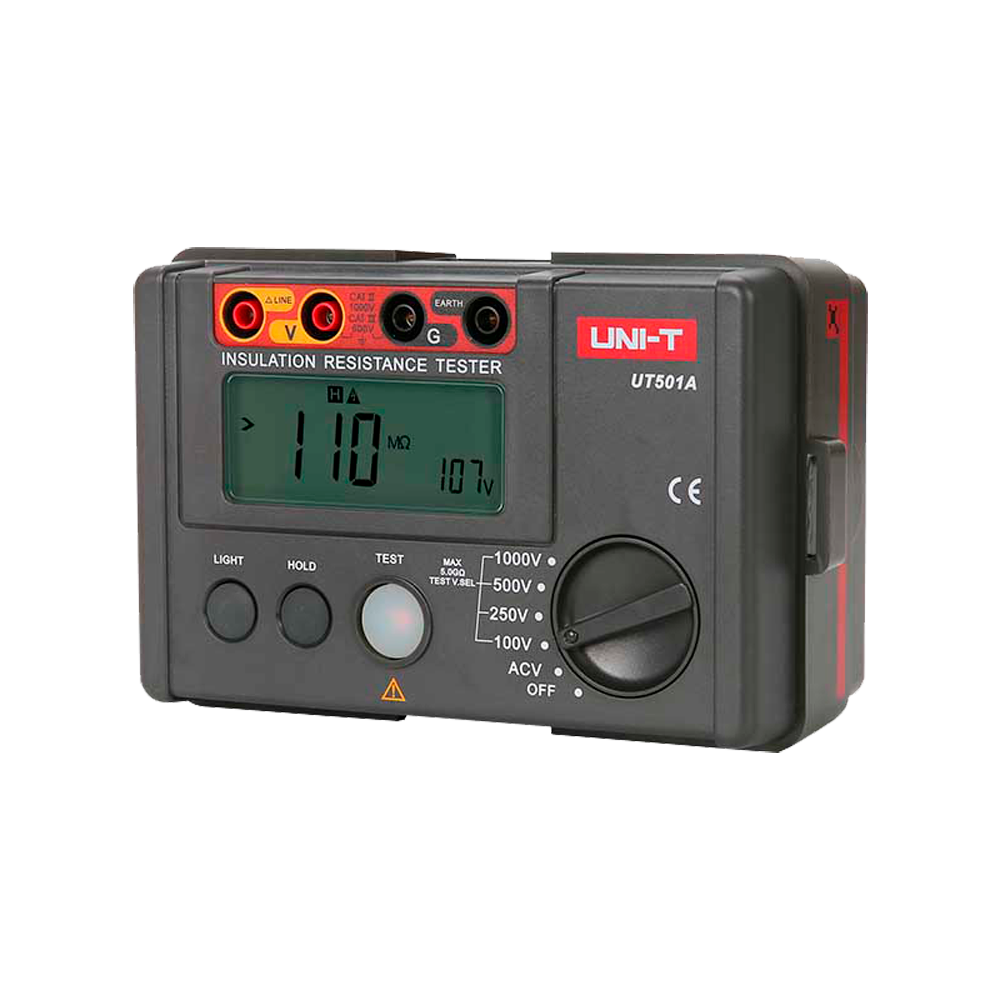

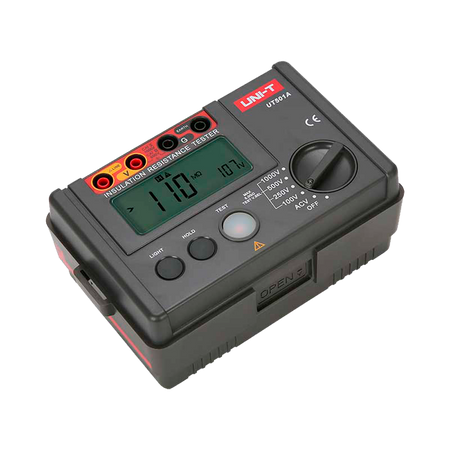

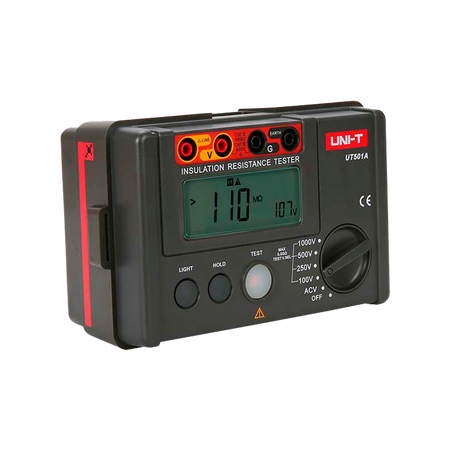

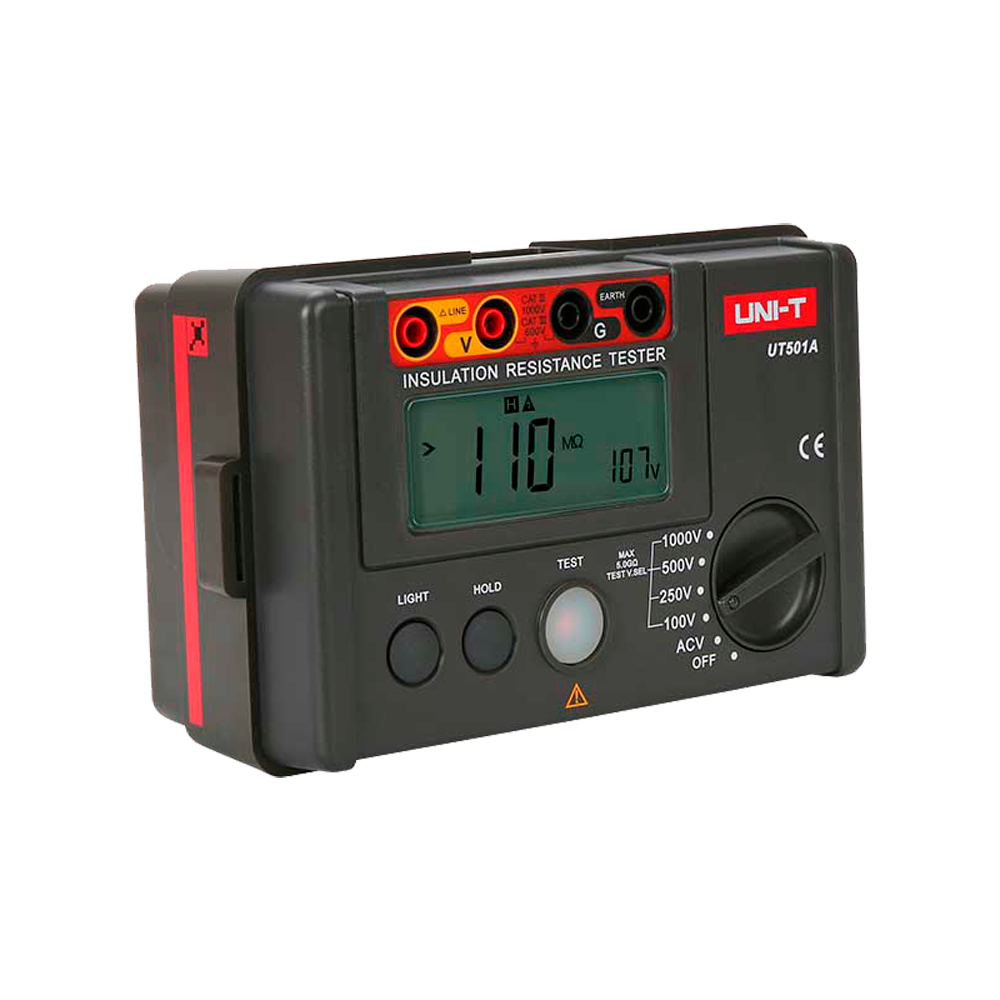

Uni-T electrical insulation resistance tester - AC voltage measurement up to 600V
Uni-T electrical insulation resistance tester - AC voltage measurement up to 600V
Regular price
€140,66
Final price
Regular price
-23%
€182,62
Sale price
€140,66
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Electrical insulation resistance tester - LCD display up to 2000 counts - AC voltage measurement up to 600V - Auto power off - 500V/1000V/2500V ranges
📋 SPECIFICATIONS:
• Brand: Uni-T
• Insulation resistance: 500V: 0MΩ~99.9MΩ ±(3%+5) / 100MΩ~5GΩ ±(5%+5); 1000V: 0MΩ~99.9MΩ ±(3%+5) / 100MΩ~5GΩ ±(5%+5); 2500V: 0MΩ~99.9MΩ ±(3%+5) / 100MΩ~9.9GΩ ±(5%+5) / 10GΩ~20GΩ ±(10%+5)
• Load current: 50V (R=50kΩ) 1mA; 0%~10%; 100V (R=100kΩ) 1mA; 0%~10%; 250V (R=250kΩ) 1mA; 0%~10%; 500V (R=500kΩ) 1mA; 0%~10%; 1000V (R=1MΩ) 1mA; 0%~10%; 2500V (R=1MΩ) 1mA; 0%~10%
• Low resistance: 0.01Ω~200Ω (5.0V/>200mA ±(2%+3)
• Short-circuit current: <2mA
• AC voltage measurement range: 30V~600V ±(2%+3)
• Display size: 70.6mm x 34mm
• Display counts: Up to 2000
• Dielectric Absorption Ratio (DAR): Available
• Polarization Index (PI): Available
• High voltage buzzer: Available
• Overload indicator: Available
• 10 MΩ internal resistance test: Available
• Dimensions: 100 (H) x 150 (W) x 71 (D) mm
• Power supply: 6 x 1.5V batteries (LR6)
• Weight: 500 g
• Safety: CAT II 1000V/ CAT III 600V

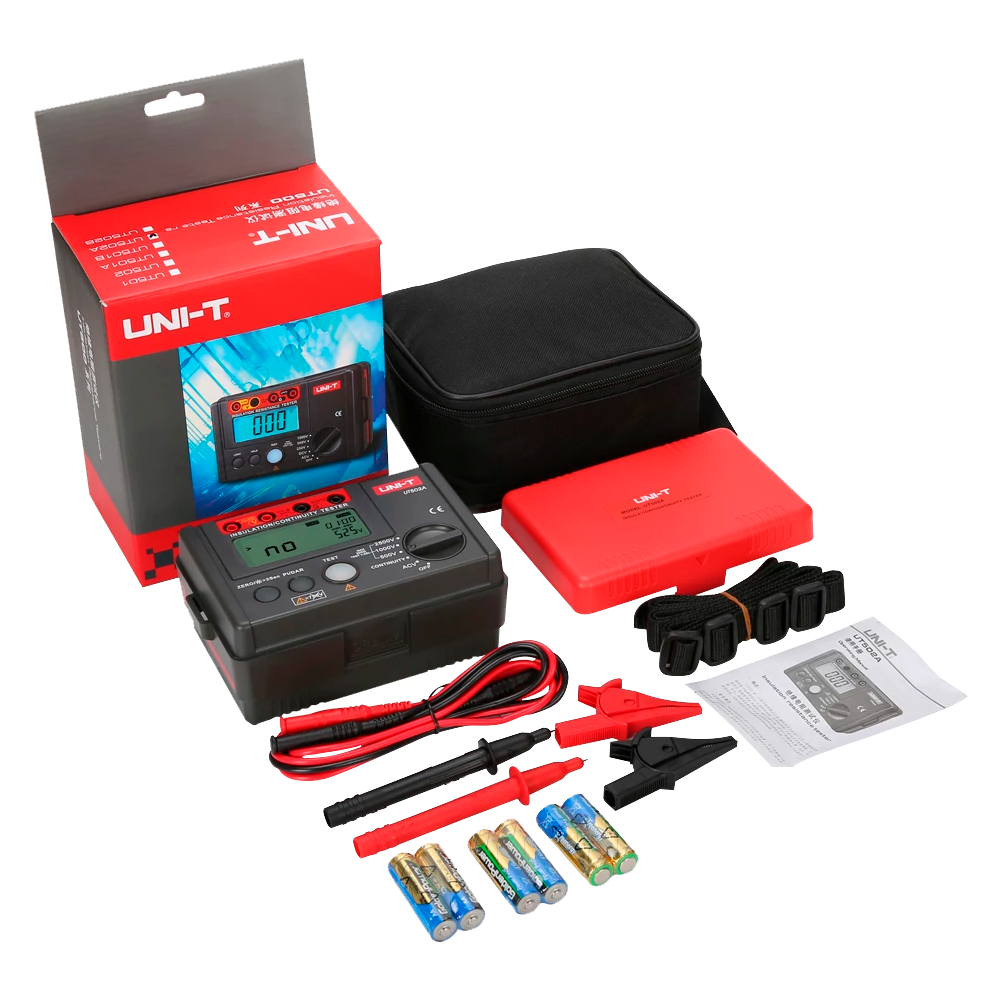

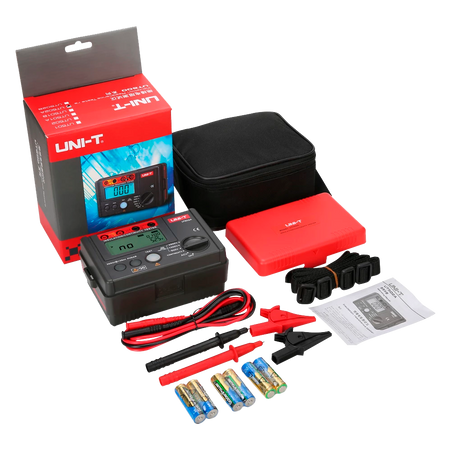

📦 INCLUDED:
• Electrical insulation resistance tester• Test probes• Alligator clips• User manual
| Insulation resistance | 500V: 0MΩ~99.9MΩ ±(3%+5) / 100MΩ~5GΩ ±(5%+5) 1000V: 0MΩ~99.9MΩ ±(3%+5) / 100MΩ~5GΩ ±(5%+5) 2500V: 0MΩ~99.9MΩ ±(3%+5) / 100MΩ~9.9GΩ ±(5%+5) / 10GΩ~20GΩ ±(10%+5) |
|---|---|
| Charging current | 50V (R=50kΩ) 1mA; 0%~10% 100V (R=100kΩ) 1mA; 0%~10% 250V (R=250kΩ) 1mA; 0%~10% 500V (R=500kΩ) 1mA; 0%~10% 1000V (R=1MΩ) 1mA; 0%~10% 2500V (R=1MΩ) 1mA; 0%~10% |
| Low resistance | 0.01Ω~200Ω (5.0V/>200mA ±(2%+3) |
| Short-circuit current | <2mA |
| AC voltage measurement range | 30V~6000V ±(2%+3) |
| Display dimensions | 70.6mm x 34mm |
| Display count | Up to 2000 |
| Dielectric Absorption Ratio (DAR) | Available |
| Polarization Index (PI) | Available |
| High voltage buzzer | Available |
| Overload indicator | Available |
| 10 MΩ internal resistance test | Available |
| Dimensions | 100 (H) x 150 (W) x 71 (D) mm |
| Power supply | 6 x 1.5V batteries (LR6) |
| Weight | 500 g |
| Safety | CAT II 1000V / CAT III 600V |
- User manual Link
