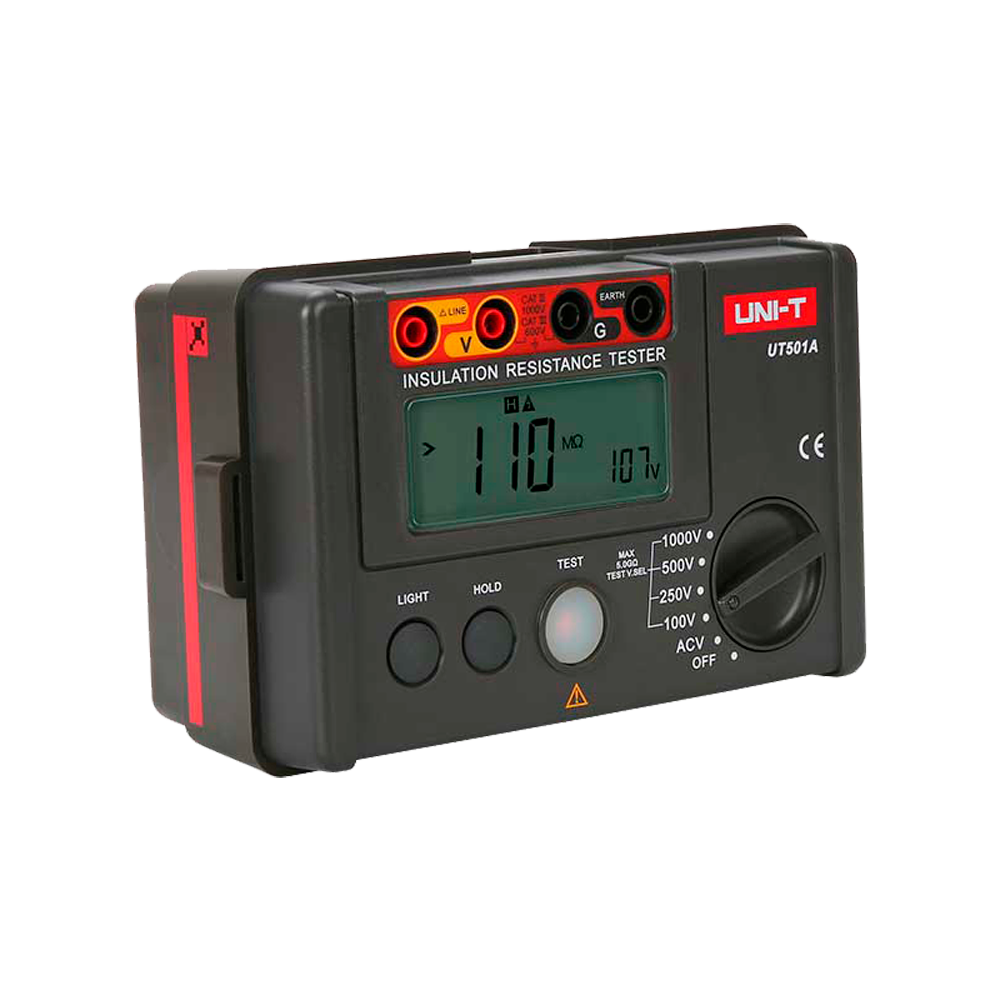

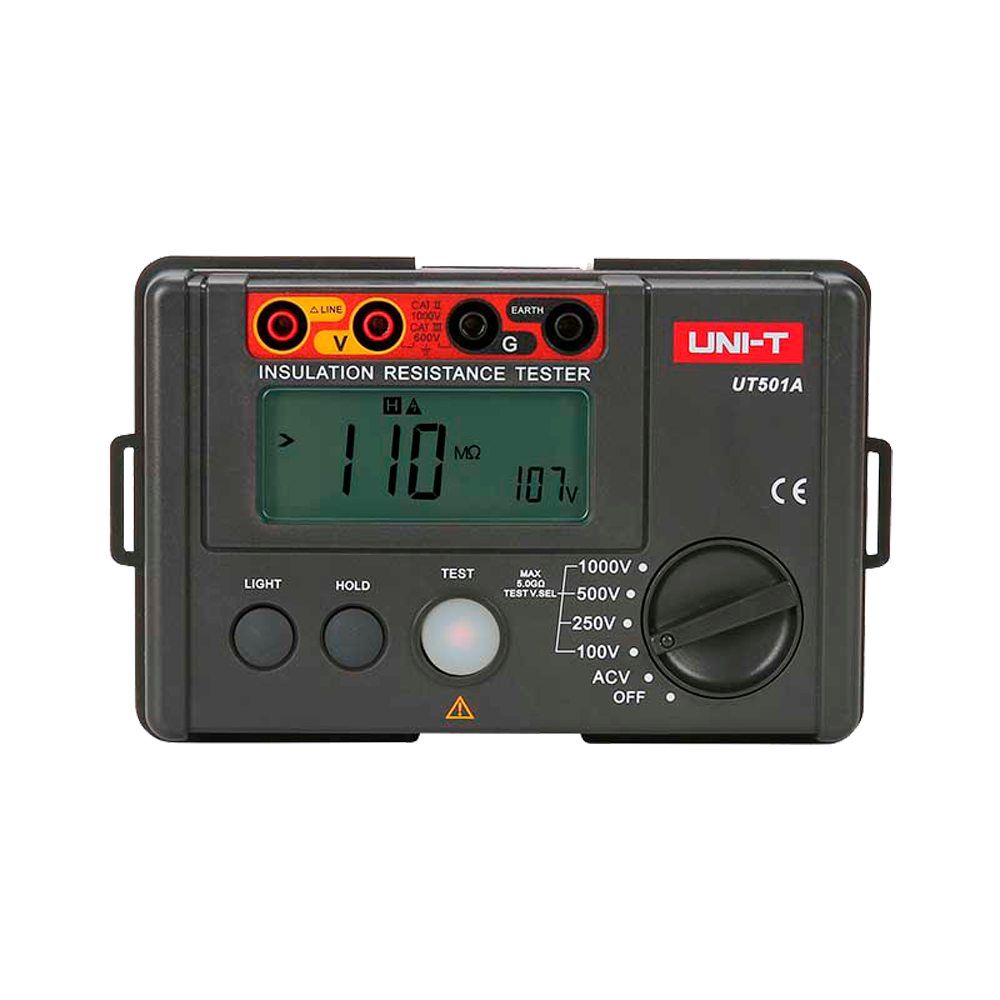

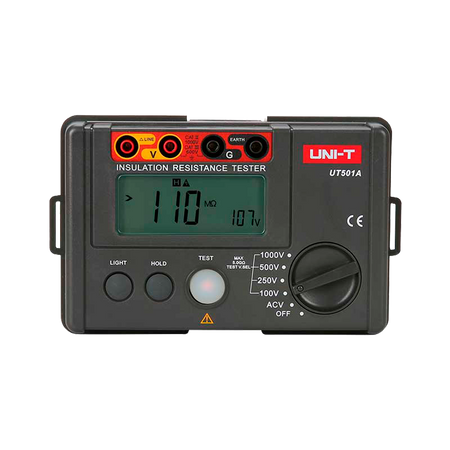

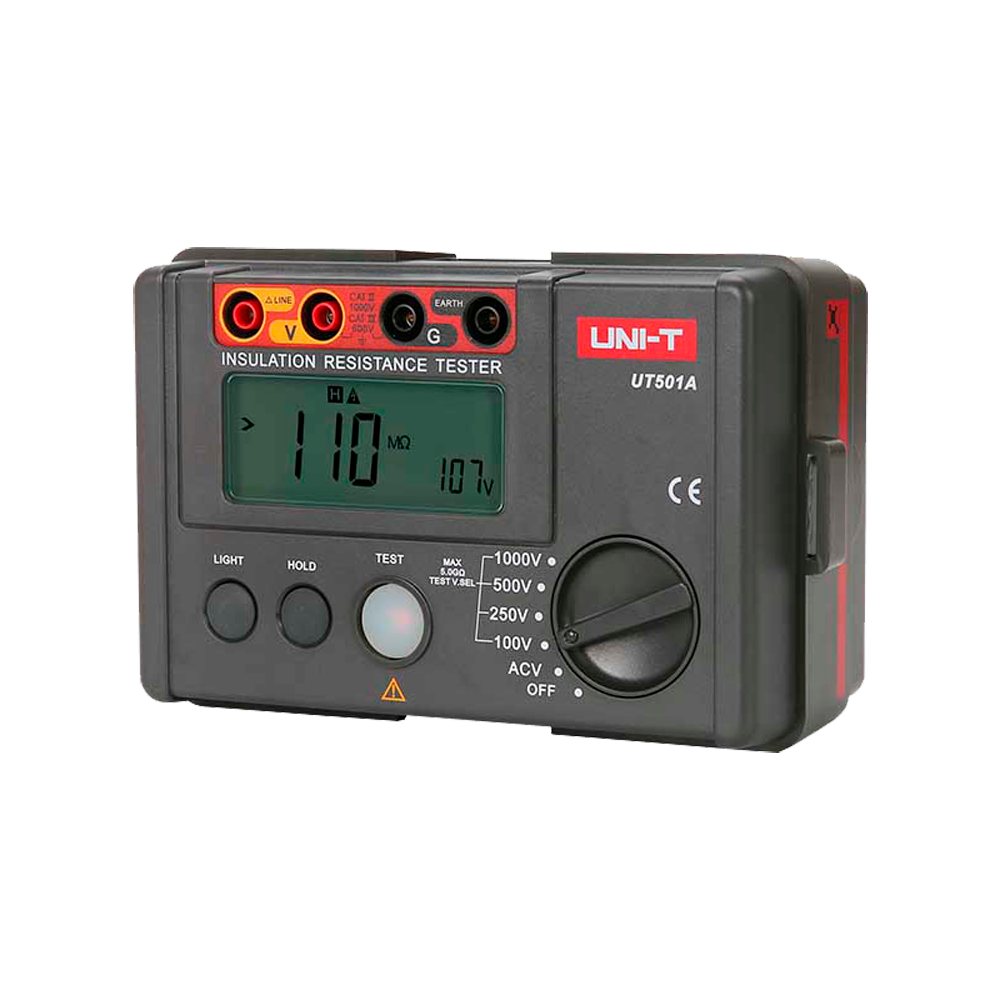

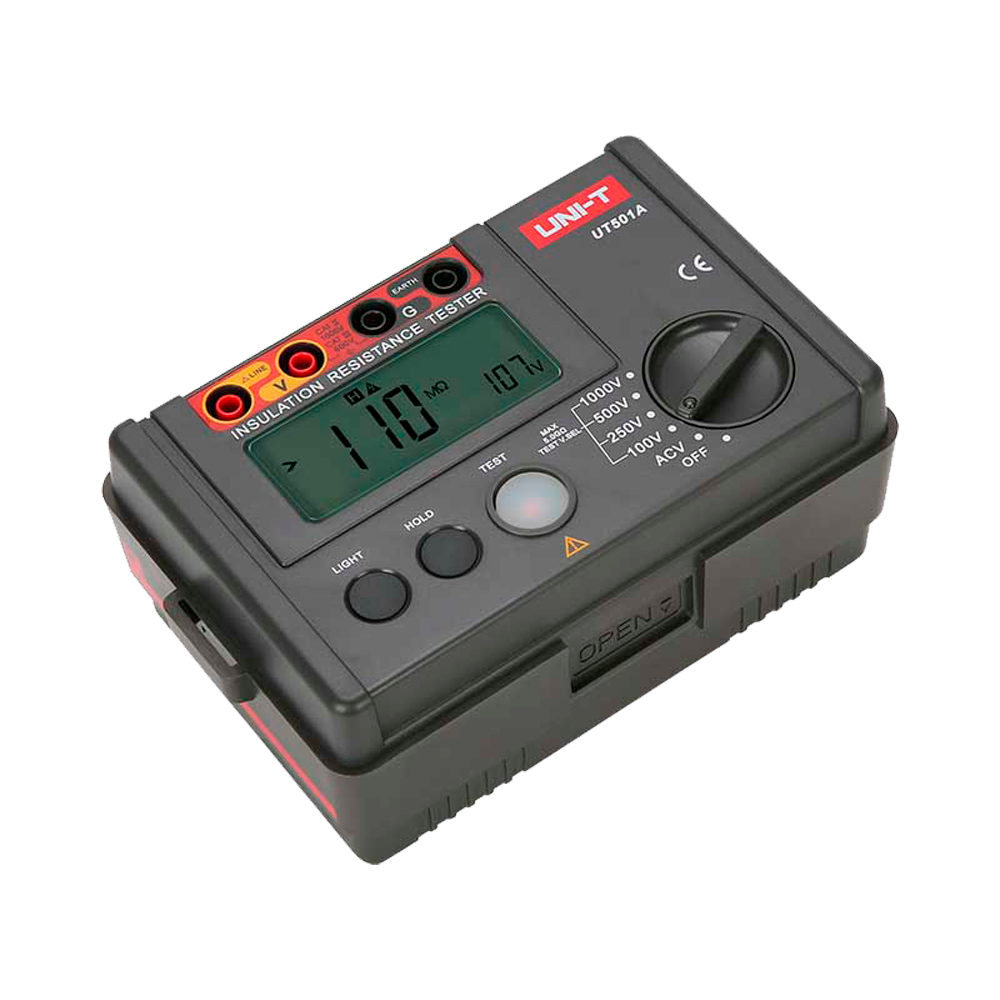

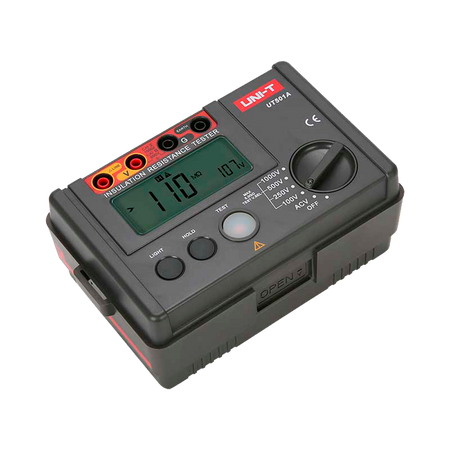

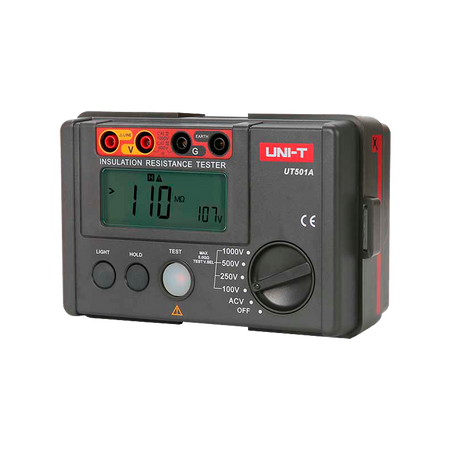

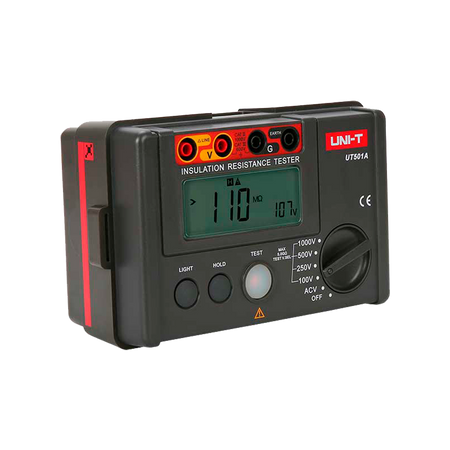

Uni-T electrical insulation resistance tester - AC voltage measurement up to 750V
Uni-T electrical insulation resistance tester - AC voltage measurement up to 750V
Regular price
€83,01
Final price
Regular price
-19%
€102,62
Sale price
€83,01
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Electrical insulation resistance tester - LCD display up to 2000 counts - AC voltage measurement up to 750V - Automatic power-off - 100V/250V/500V/1000V ranges
📋 SPECIFICATIONS:
• Brand: Uni-T
• Insulation resistance: 100V: 0MΩ~100MΩ ±(3%+5); 250V: 0MΩ~99.9MΩ ±(3%+5) / 100MΩ~5GΩ ±(5%+5); 500V: 0MΩ~99.9MΩ ±(3%+5) / 100MΩ~5GΩ ±(5%+5); 1000V: 0MΩ~99.9MΩ ±(3%+5) / 100MΩ~5GΩ ±(5%+5)
• Load current: 50V (R=50kΩ) 1mA; 0%~10%; 100V (R=100kΩ) 1mA; 0%~10%; 250V (R=250kΩ) 1mA; 0%~10%; 500V (R=500kΩ) 1mA; 0%~10%; 1000V (R=1MΩ) 1mA; 0%~10%
• Short-circuit current: <2mA
• AC voltage measurement range: 30V~750V ±(2%+3)
• Display dimensions: 70.6mm x 34mm
• Display counts: Up to 2000
• High voltage buzzer: Available
• Overload indicator: Available
• 10 MΩ internal resistance test: Available
• Dimensions: 100 (H) x 150 (W) x 71 (D) mm
• Power supply: 6 x 1.5V batteries (LR6)
• Weight: 500 g
• Safety: CAT II 1000V/ CAT III 600V

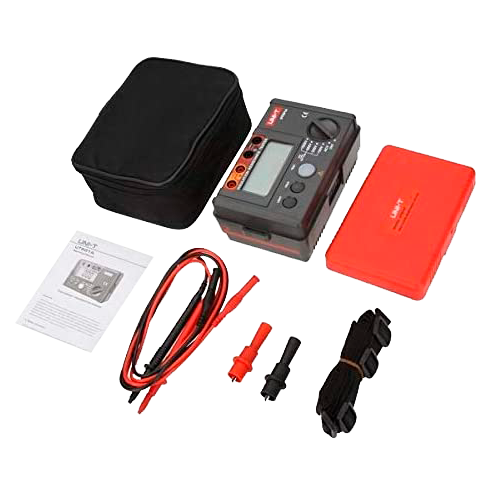

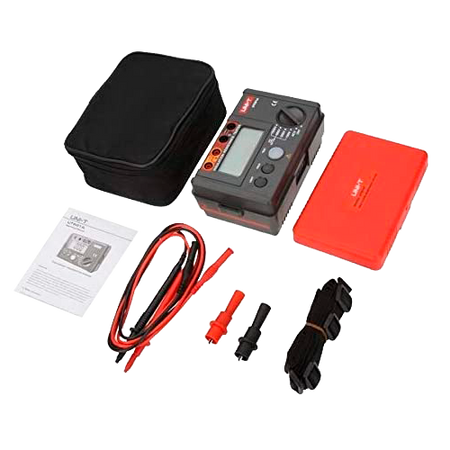

📦 INCLUDED:
• Electrical insulation resistance tester• Alligator clips• User instructions
| Insulation resistance | 100V: 0MΩ~100MΩ ±(3%+5) 250V: 0MΩ~99.9MΩ ±(3%+5) / 100MΩ~5GΩ ±(5%+5) 500V: 0MΩ~99.9MΩ ±(3%+5) / 100MΩ~5GΩ ±(5%+5) 1000V: 0MΩ~99.9MΩ ±(3%+5) / 100MΩ~5GΩ ±(5%+5) |
|---|---|
| Charging current | 50V (R=50kΩ) 1mA; 0%~10% 100V (R=100kΩ) 1mA; 0%~10% 250V (R=250kΩ) 1mA; 0%~10% 500V (R=500kΩ) 1mA; 0%~10% 1000V (R=1MΩ) 1mA; 0%~10% |
| Short-circuit current | <2mA |
| AC voltage measurement range | 30V~750V ±(2%+3) |
| Display dimensions | 70.6mm x 34mm |
| Display count | Up to 2000 |
| High voltage buzzer | Yes |
| Overload indicator | Yes |
| Internal resistance test 10 MΩ | Yes |
| Dimensions | 100 (H) x 150 (W) x 71 (D) mm |
| Power supply | 6 x 1.5V batteries (LR6) |
| Weight | 500 g |
| Safety | CAT II 1000V/ CAT III 600V |
- User manual Link
