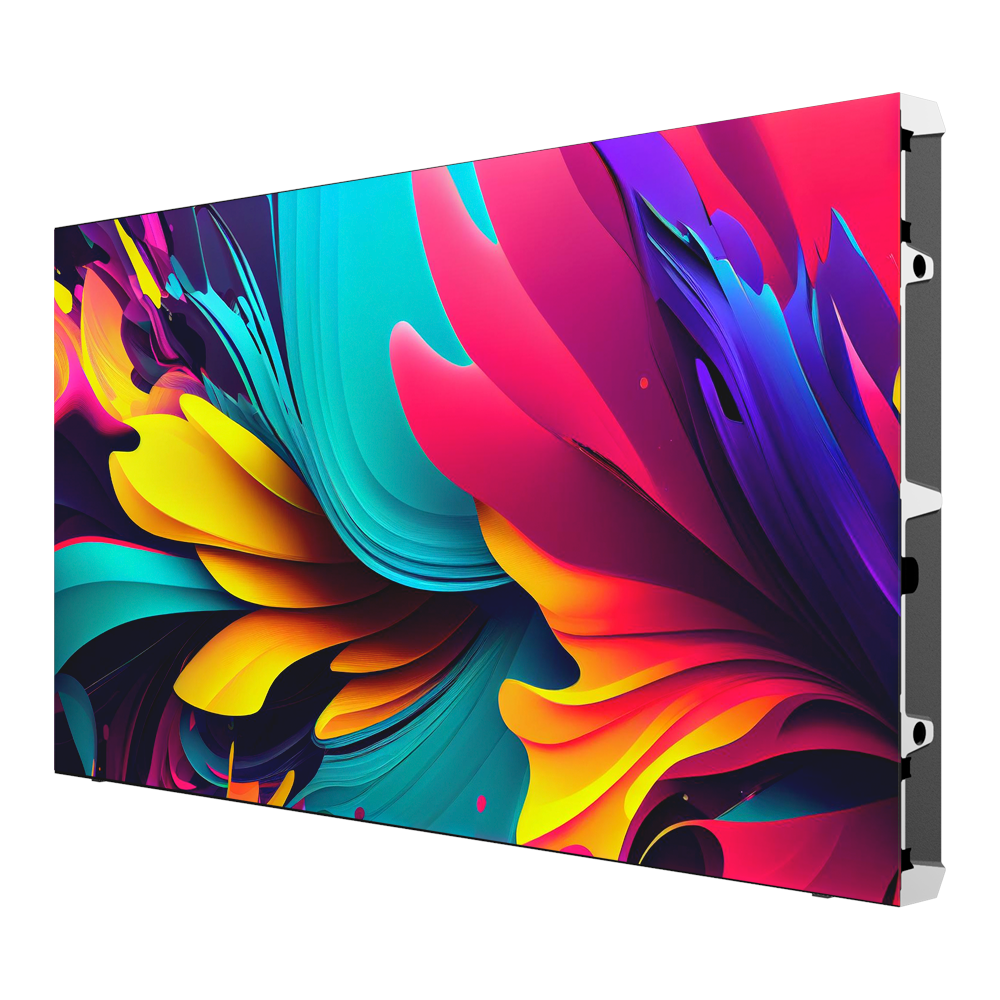

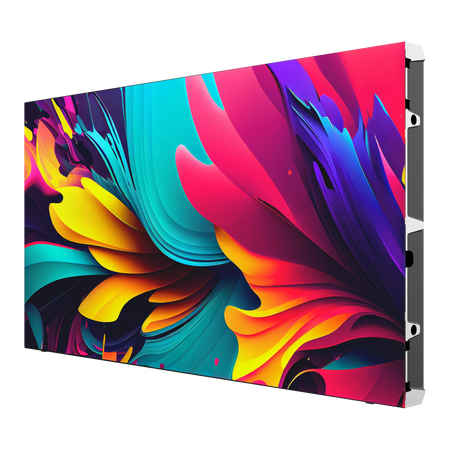

UNILUMIN LED Cabinet UMiniP 1.5
Regular price
€753,62
Final price
Regular price
-2%
€769,04
Sale price
€753,62
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
UNILUMIN LED Cabinet UMiniP 1.5 - Pixel pitch 1.5 mm - LED type COB - Cabinet dimensions 600x337.5 mm - Brightness 600 cd/m2 - Indoor
📋 SPECIFICATIONS:
• Brand: UNILUMIN
• Size: 150x168.75 mm
• Pixel Pitch: 1.56 mm
• Resolution: 96x108 px
• Cabinet connection: Via connector, cable-free.
• LED Type: COB (Chip On Board): LED chips are placed directly on the board and then covered with a protective layer (resin), resulting in greater protection, a more uniform display, higher contrast, and better heat dissipation.
• Brightness: 600 cd/m2
• Contrast: 15,000:1; Thanks to EBL (Enhance Black Level) processing technology, higher contrast is achieved, making blacks more intense. This technology reduces reflections and better controls the minimum LED brightness.
• Refresh rate: 3,840 Hz
• Viewing angle (horizontal / vertical): 160 / 160 º
• Color temperature (standard): 2,000 ~ 9,500 K (adjustable)
• Protection: IP54
• Dimensions: 600 (H) x 337.5 (W) x 39.75 (D) mm
• Resolution: 384x216 px
• Maintenance: Front
• Installation: Indoor
• Material: Die-cast aluminum
• Weight: 4 Kg
• Power supply: 100 ~ 240 V
• Power consumption: Average: 25 W/cabinet; Maximum: 70 W/cabinet
• Operating conditions: Temperature: -10 ~ 40 ºC; Humidity: 10 ~ 90 % (non-condensing)
• Storage conditions: Temperature: -20 ~ 60 ºC; Humidity: 10 ~ 80 % (non-condensing)
📦 INCLUDED:
• Module 150x168.75 mm (8 units)• Cabinet 600x337.5 mm• Power supply (in cabinet)• Receiving card (in cabinet)• Power and data cabling
| Size | 150x168.75 mm |
|---|---|
| Pixel Pitch | 1.56 mm |
| Resolution | 96x108 px |
| Cabinet connection | Cable-free, via connector. |
| LED type | COB (Chip On Board): LED chips are placed directly on the board and then covered with a protective layer (resin), resulting in greater protection, more uniform display, higher contrast, and better heat dissipation. |
| Brightness | 600 cd/m2 |
| Contrast | 15,000:1 Thanks to EBL (Enhance Black Level) processing technology, higher contrast is achieved, making blacks deeper. This technology reduces reflections and better controls the minimum LED brightness. |
| Refresh rate | 3,840 Hz |
| Viewing angle (horizontal / vertical) | 160 / 160 º |
| Color temperature (standard) | 2,000 ~ 9,500 K (adjustable) |
| Protection | IP54 |
| Size | 600 (H) x 337.5 (W) x 39.75 (D) mm |
| Resolution | 384x216 px |
| Maintenance | Front |
| Installation | Indoor |
| Material | Die-cast aluminum |
| Weight | 4 Kg |
| Power supply | 100 ~ 240 V |
| Power consumption | Average: 25 W/cabinet Maximum: 70 W/cabinet |
| Working conditions | Temperature: -10 ~ 40 ºC Humidity: 10 ~ 90 % (non-condensing) |
| Storage conditions | Temperature: -20 ~ 60 ºC Humidity: 10 ~ 80 % (non-condensing) |
