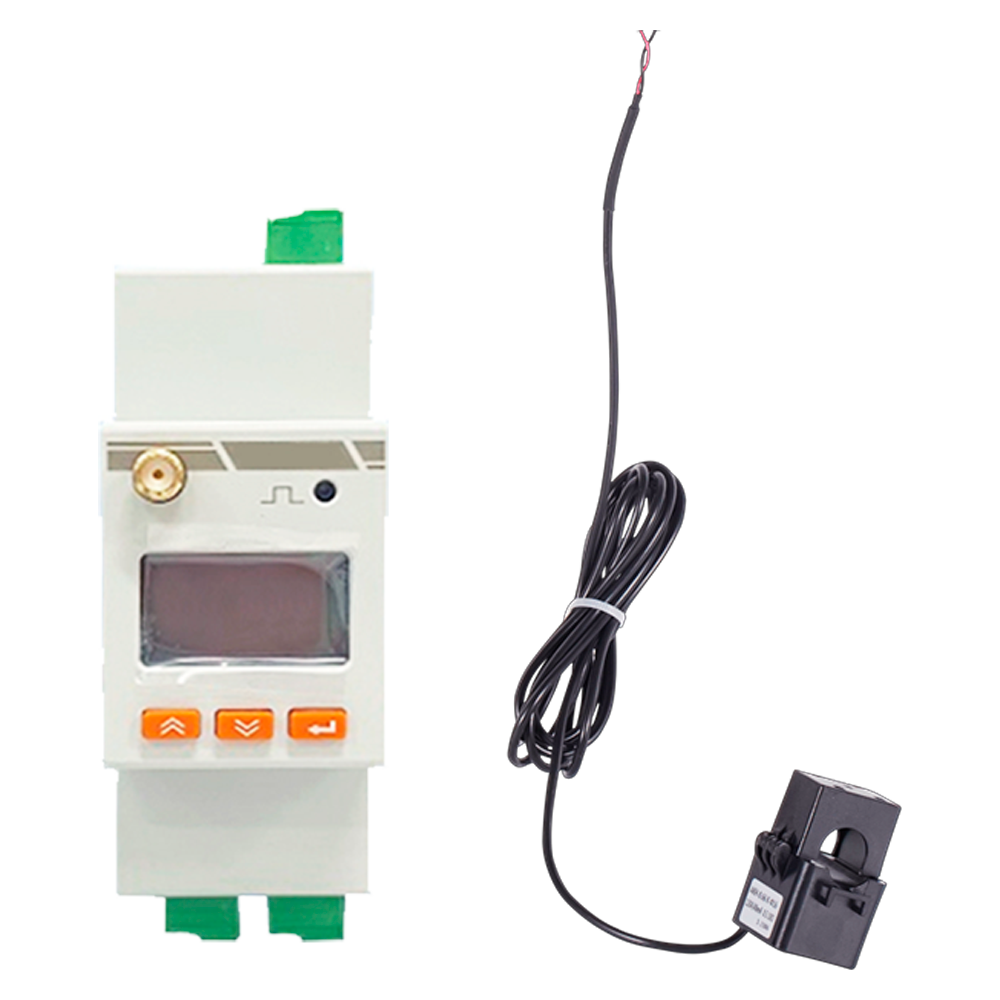

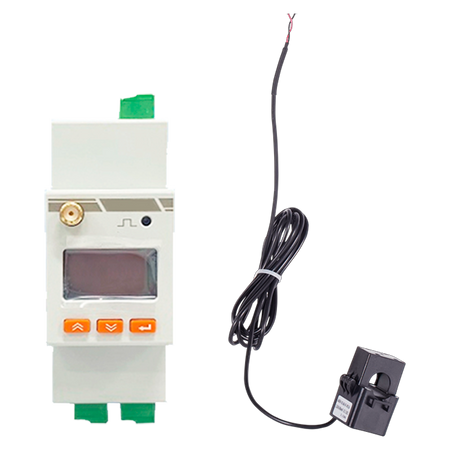

TSUN Single-Phase Smart Meter
Regular price
€154,49
Final price
Regular price
-6%
€164,00
Sale price
€154,49
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
TSUN Smart Meter - Single-phase - Compatible with MSU, MAU, and MH - DIN rail mounting - For On-Grid and AC Coupling systems - Wi-Fi / Bluetooth communication
📋 SPECIFICATIONS:
• Brand: TSUN
• Type: Smart Meter
• Mounting: 35mm DIN rail
• Indicator: LED
• Rated voltage: 230Vac
• Maximum current: 100A
• Standby power consumption: <1W
• Frequency: 50/60 Hz
• Display: LCD
• Operating temperature range: -20ºC - +55 ºC
• Relative humidity range: 0% - 95%
• Dimensions: 36 x 90 x 90mm
• Weight: 130g
• Recommended altitude: <2000m
• Communication: WiFi type 802.11 b/g/n; Bluetooth BLE 5.0
• WiFi frequency range: 2400MHz - 2483.5MHz
• Maximum distance from router: 100m
• Bluetooth frequency range: 2400MHz - 2483.5MHz
• Maximum distance from smartphone: 50m
• Connection limit: Max 5 microinverters
• Communication time: 300s server; 300ms microinverter
• Communication antenna: Cable length 2m
• CT toroidal clamp: Cable length 2m; Diameter 16mm
• Compatibility: MAU, MSU, MH series
📦 INCLUDED:
• TSUN Smart Meter• WiFi antenna• Toroidal clamp• QR label for commissioning
| Type | Smart Meter |
|---|---|
| Mounting | 35mm DIN rail |
| Indicator | LED |
| Rated voltage | 230Vac |
| Maximum current | 100A |
| Standby consumption | <1W |
| Frequency | 50/60 Hz |
| Display | LCD |
| Operating temperature range | -20ºC - +55 ºC |
| Relative humidity range | 0% - 95% |
| Dimensions | 36 x 90 x 90mm |
| Weight | 130g |
| Recommended altitude | <2000m |
| Communication | WiFi type 802.11 b/g/n Bluetooth BLE 5.0 |
| WiFi frequency range | 2400MHz - 2483.5MHz |
| Maximum distance to router | 100m |
| Bluetooth frequency range | 2400MHz - 2483.5MHz |
| Maximum distance to mobile | 50m |
| Connection limit | 5 microinverters maximum |
| Communication time | 300s server 300ms microinverter |
| Communication antenna | Cable length 2m |
| CT toroidal clamp | Cable length 2m Diameter 16mm |
| Compatibility | MAU, MSU, MH series |
