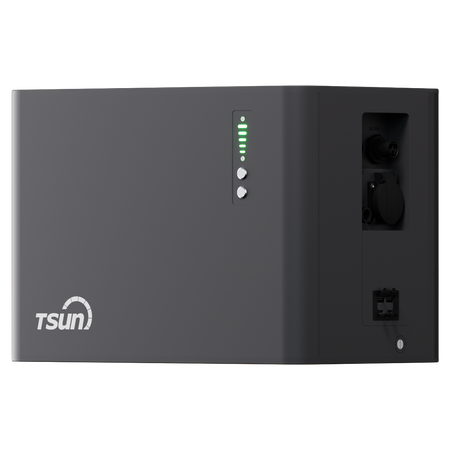

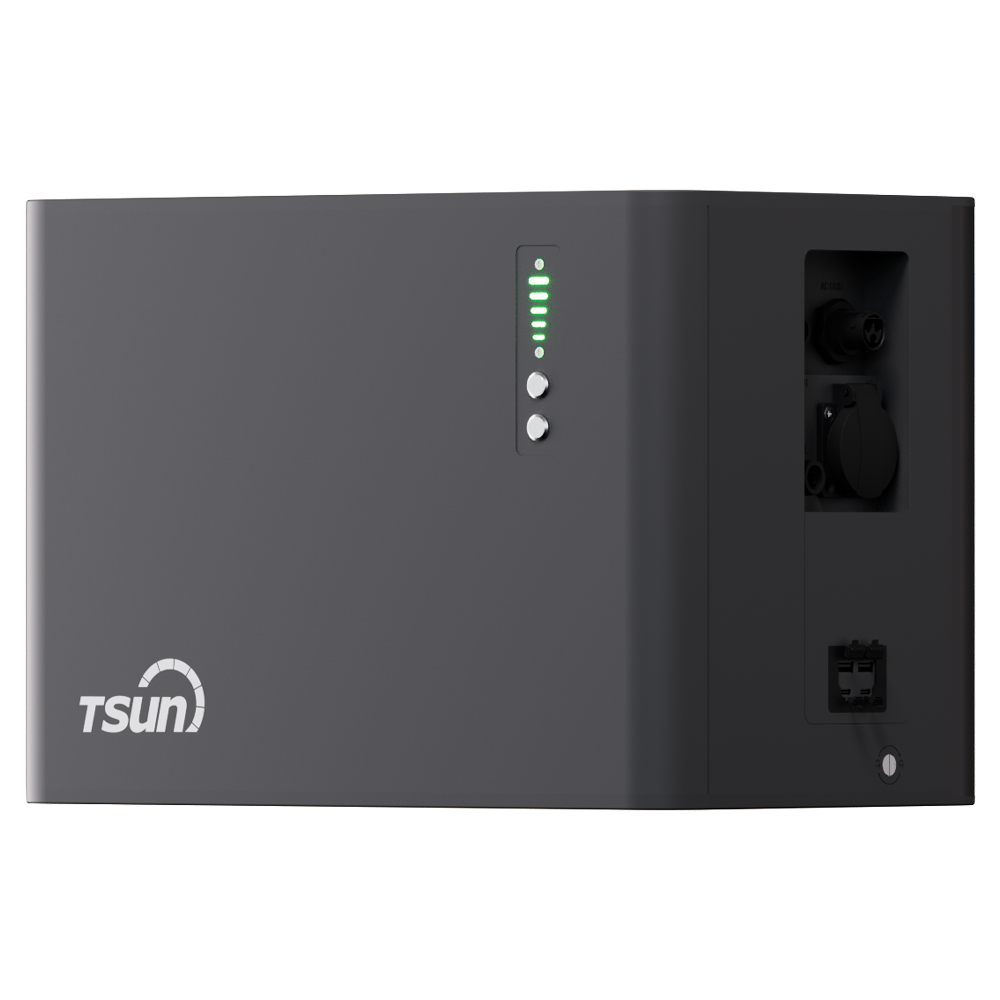

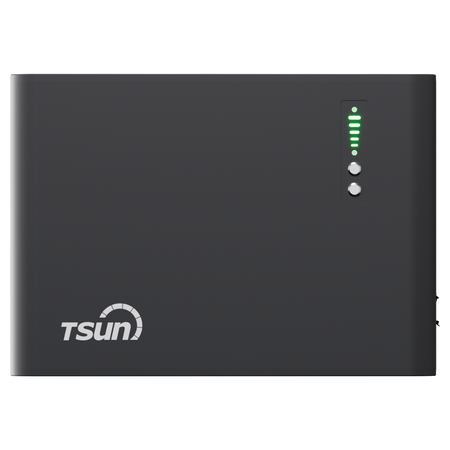

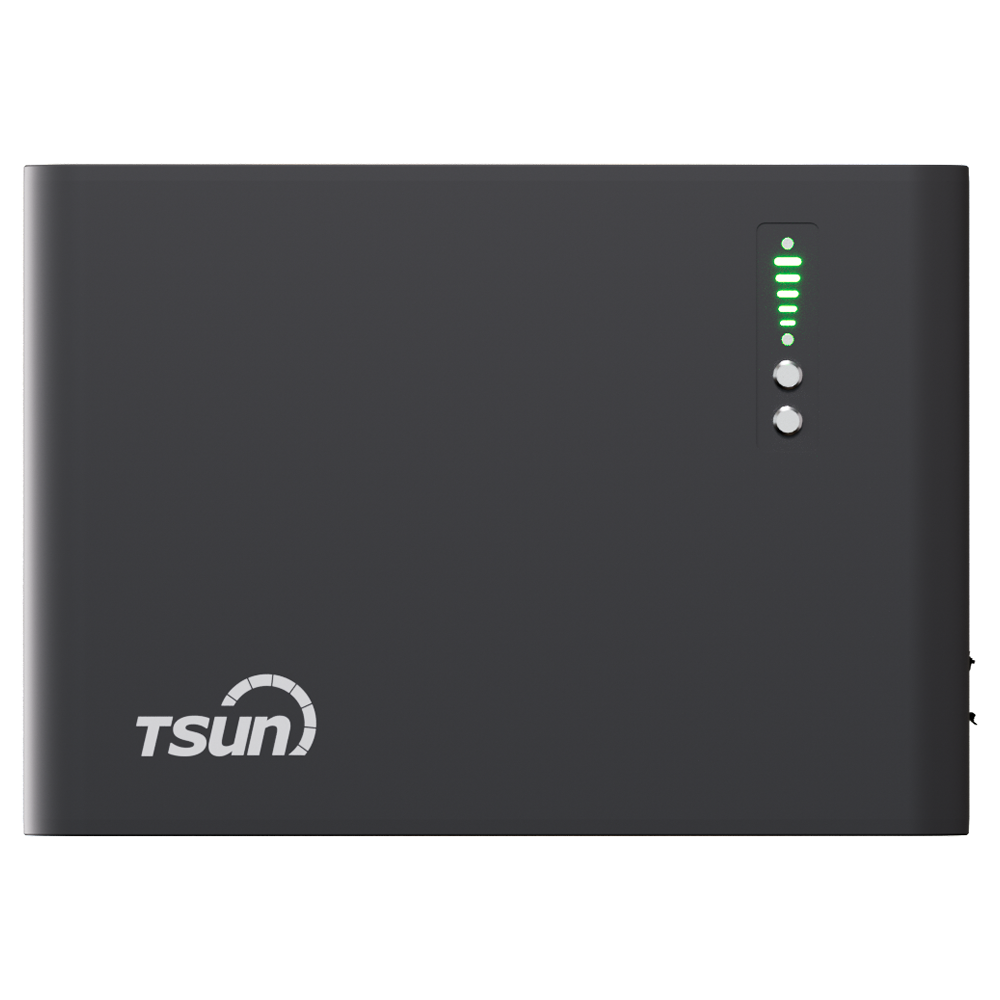

TSUN all-in-one single-phase inverter

TSUN all-in-one single-phase inverter - 2000W power - 2048Wh LiFePO4 battery - Inverter, battery charger, and controller - Expandable up to 10kWh - For On-Grid, Off-Grid, and UPS solutions

📋 SPECIFICATIONS:
• Brand: TSUN
• Type: All-in-one inverter + battery
• Operating modes: On-Grid (Smart Meter required); Off-Grid; UPS
• Peak inverter efficiency: 97%
• MPPT efficiency: 99%
• Battery charge/discharge efficiency: 95%
• Standby consumption: <25W
• Power-off consumption: <1W
• Dimensions: 455 x 325 x 280 mm (inverter); 455 x 205 x 280 mm (battery)
• Weight: 27kg
• Communication: WiFi / BLE; Battery: RS485
• Extra communication ports: 2x RS485 (Smart Meter + Reserve)
• Protection: IP65
• Cooling: Natural convection
• Rated temperature range: -20 - 55ºC
• Relative humidity: 0-95%
• Maximum altitude: 2000m
• Recommended solar panel power: 300-700W
• Number of solar panels connected: 1 to 4
• MPPT: 4 (1 panel / MPPT)
• Maximum solar power: 2150W
• Start-up voltage / MPPT: 22V
• Voltage range / MPPT: 16 - 60V
• Maximum voltage / MPPT: 60V
• Rated input voltage / MPPT: 42V
• Short-circuit current / MPPT: 25A
• Maximum current / MPPT: 18A
• Display: Charging status LED
• Protection class: I
• Overvoltage category: PV II, AC III
• Capacity: 2048Wh
• Battery type: LiFePO4
• Nominal voltage: 51.2V
• Operating voltage range: 43.2 - 58.4V
• Maximum charging power: 2000W
• Maximum discharging power: 2000W
• Maximum system capacity: 10240Wh (with up to 4 additional TSOL-B2000 batteries)
• Maximum output power: 800W (expandable up to 2000W online)
• Maximum output current: 4A (expandable up to 10A online)
• Maximum input power: 2000W
• Maximum input current: 11A
• Rated voltage: 220/230/240 V L/N/PE
• Rated frequency: 50/60Hz
• Power factor: 0.99
• THDI: <3% at 100% load
• Accessories: TSOL-PEEM-S100 Smart Meter (required for self-consumption)
• Maximum output power: 2000W
• Maximum output current: 10A
• Rated voltage: 220/230/240 V L/N/PE
• UPS response time: <20ms

📦 INCLUDED:
• Inverter
• Battery
• 3m AC cable
• 2x RS485 connectors
• Installation guide
• Battery base
