TSUN Microinverter 800W Power
Regular price
€276,70
Final price
Regular price
-5%
€290,00
Sale price
€276,70
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

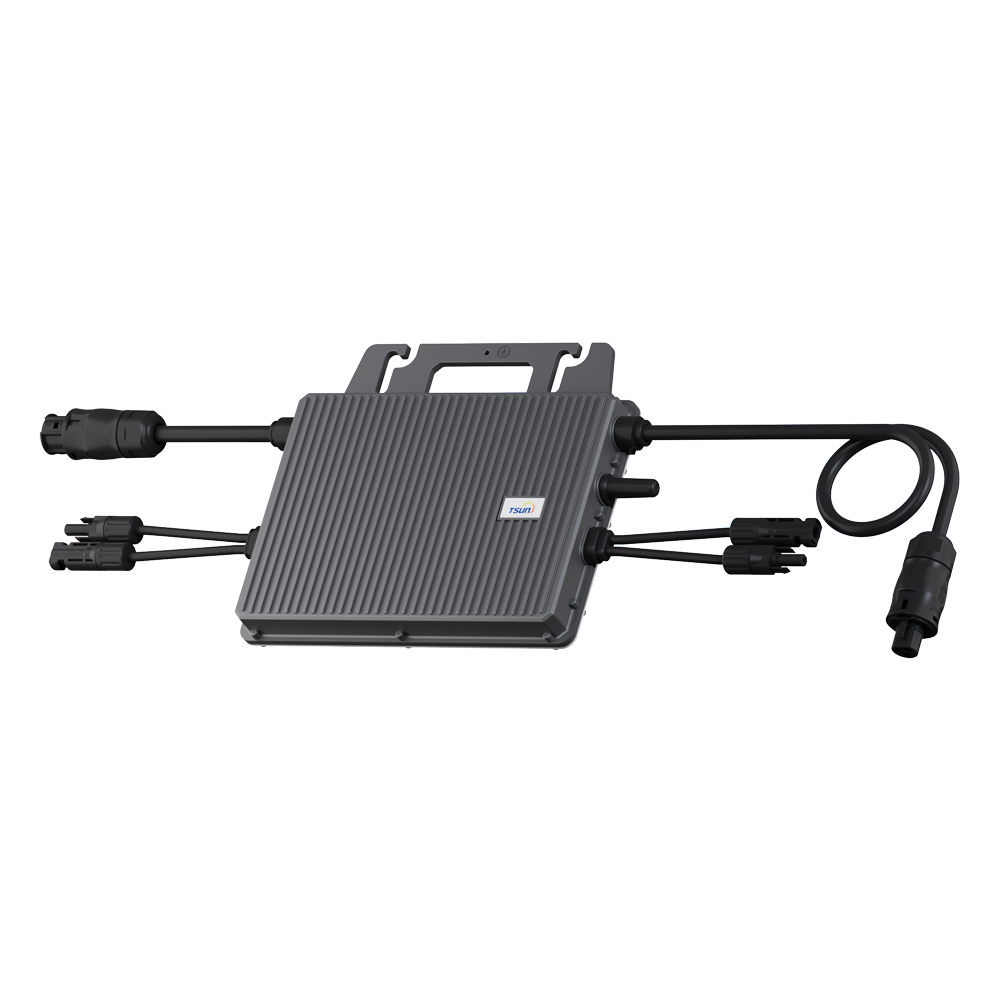

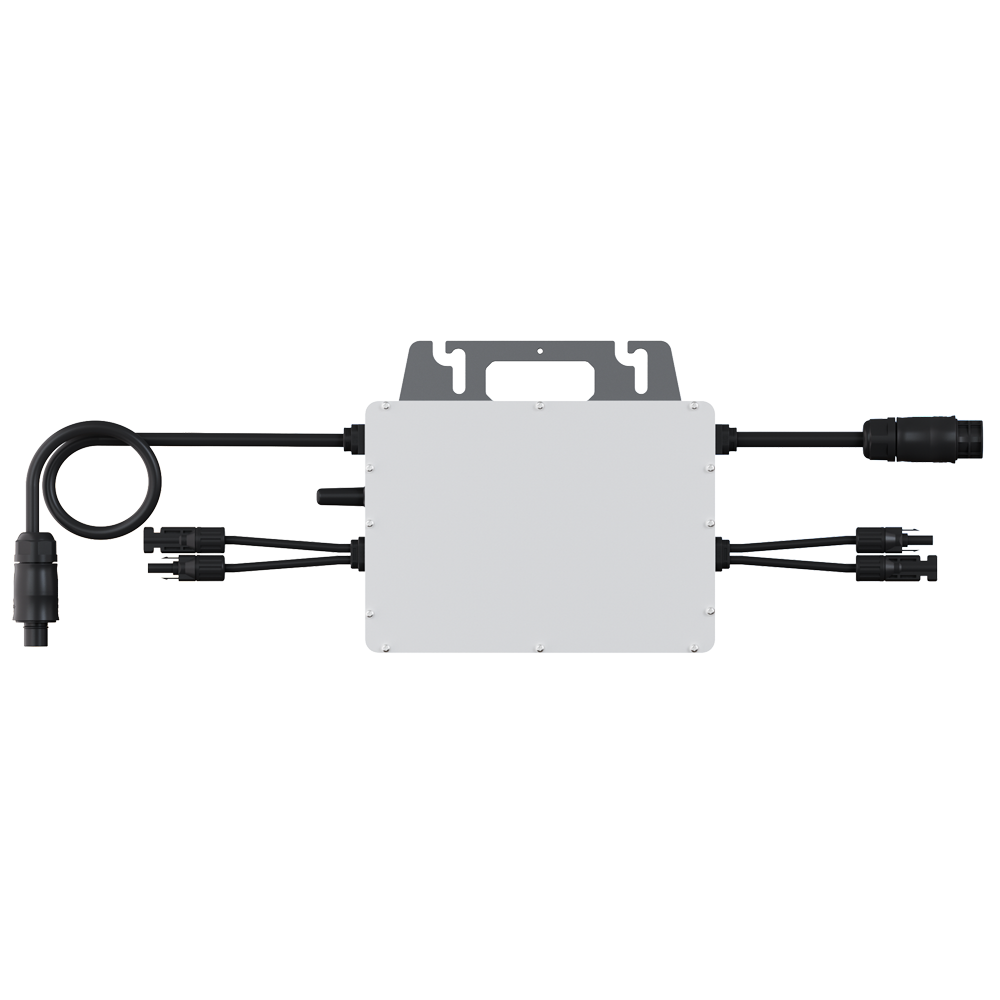

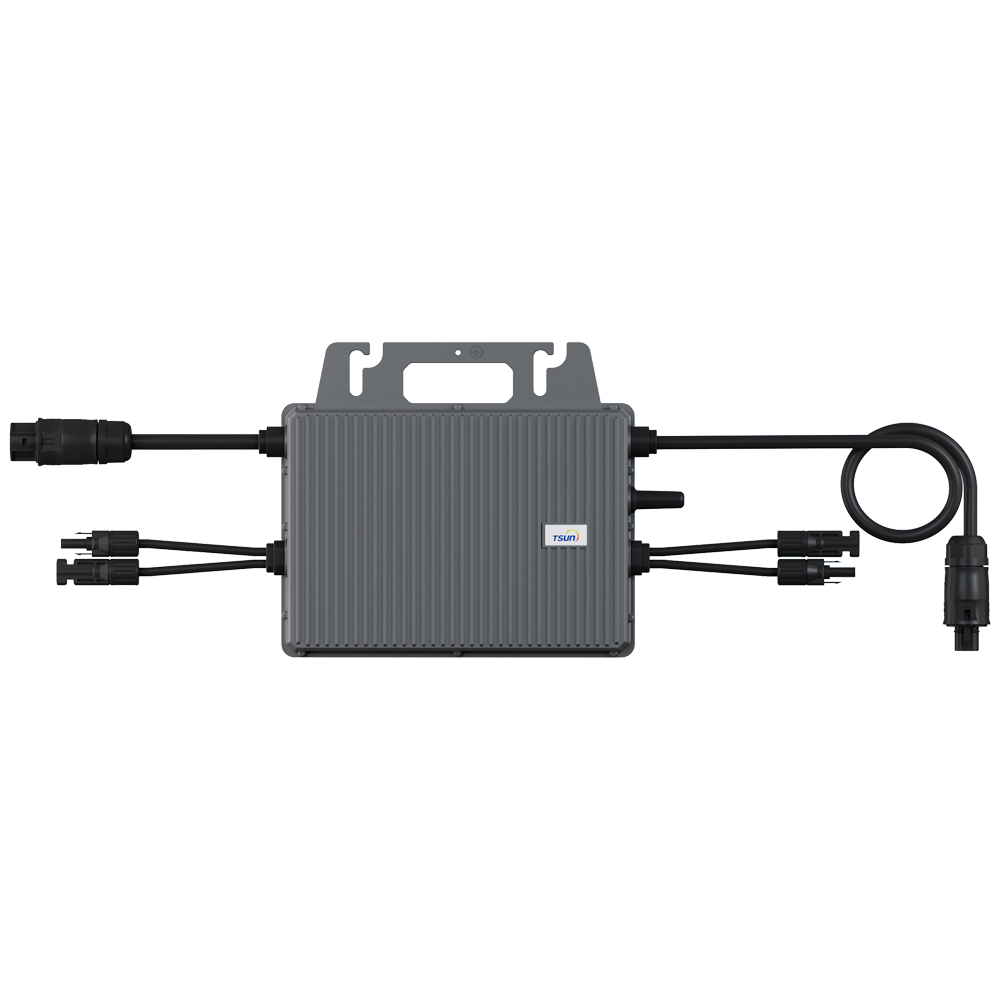

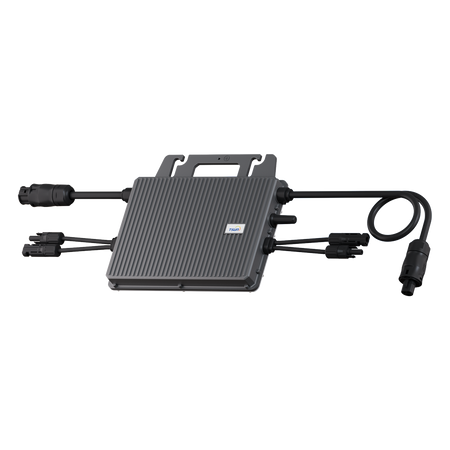

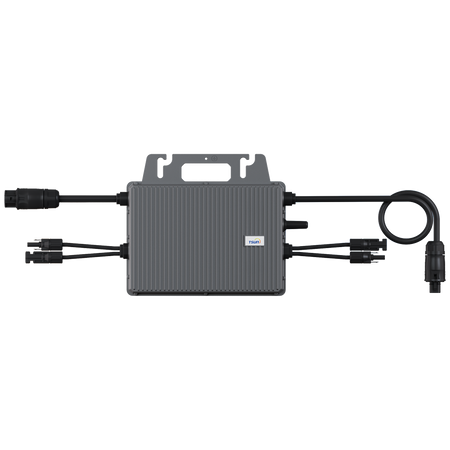

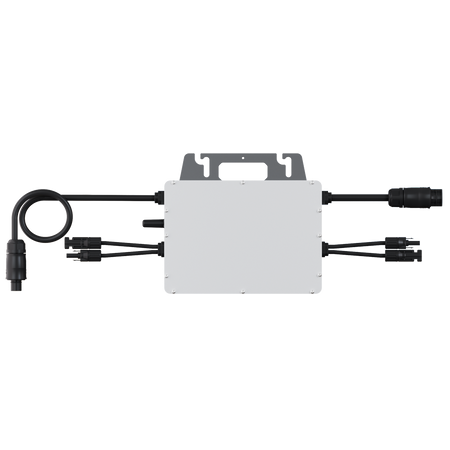

TSUN Microinverter - Power 800W - 2 MPPT inputs / 2 panels - IP67 - Wi-Fi communication module - Web and Smartphone monitoring
📋 SPECIFICATIONS:
• Brand: TSUN
• Rated output power: 800 W
• Maximum output current: 4 A
• Number of MPPTs: 2
• Number of inputs: 2 inputs
• Number of panels: 1-2 panels
• Recommended panel power: 300-550 W
• Start-up voltage per input: 22 V
• MPPT voltage range: 16~60 V
• Maximum allowed voltage per input: 60 V
• Maximum short-circuit current per input: 20 A
• Maximum allowed current per input: 14 A
• Rated output voltage: 220/230/240 V, L/N/PE
• Rated frequency: 50/60 Hz
• Power factor: >0.99 default, 0.8 leading ... 0.8 lagging
• Output harmonic distortion current: <3%
• Peak inverter efficiency: 96.7%
• CEC efficiency: 96.5%
• Rated MPPT efficiency: 99.9%
• Communication: Wi-Fi / BLE
• Scalable: Up to 9 units (12 AWG gauge); Up to 12 units (10 AWG gauge)
• AC cable: Included. 2.43 m
• Nighttime consumption: < 50 mW
• IP protection rating: IP67
• Operating temperature: -40 ~ +65 °C; (derates above 50°C ambient temperature)
• Relative humidity: 100%
• Maximum altitude: 2000m
• Cooling: Natural convection
• Dimensions: 250 (H) x 223 (W) x 30 (D) mm
• Weight: 3.1 Kg
• Installation type: On-Grid
📦 INCLUDED:
• Microinverter
| Rated output power | 800 W |
|---|---|
| Maximum output current | 4 A |
| Number of MPPTs | 2 |
| Number of inputs | 2 inputs |
| Number of panels | 1-2 panels |
| Recommended panel power | 300-550 W |
| Start-up voltage for each input | 22 V |
| MPPT voltage range | 16~60 V |
| Maximum allowed voltage for each input | 60 V |
| Maximum short-circuit current for each input | 20 A |
| Maximum allowed current for each input | 14 A |
| Rated output voltage | 220/230/240 V, L/N/PE |
| Rated frequency | 50/60 Hz |
| Power factor | >0.99 default, 0.8 leading ... 0.8 lagging |
| Output harmonic distortion current | <3% |
| Inverter peak efficiency | 96.7% |
| CEC efficiency | 96.5% |
| Rated MPPT efficiency | 99.9% |
| Communication | Wi-Fi / BLE |
| Scalable | Up to 9 units (12 AWG gauge) Up to 12 units (10 AWG gauge) |
| AC cable | Included. 2.43 m |
| Nighttime power consumption | < 50 mW |
| IP protection rating | IP67 |
| Operating temperature | -40 ~ +65 °C (derating above 50°C ambient temperature) |
| Relative humidity | 100% |
| Maximum altitude | 2000m |
| Cooling | Natural convection |
| Dimensions | 250 (H) x 223 (W) x 30 (D) mm |
| Weight | 3.1 Kg |
| Installation type | On-Grid |
Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.
For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.
The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
