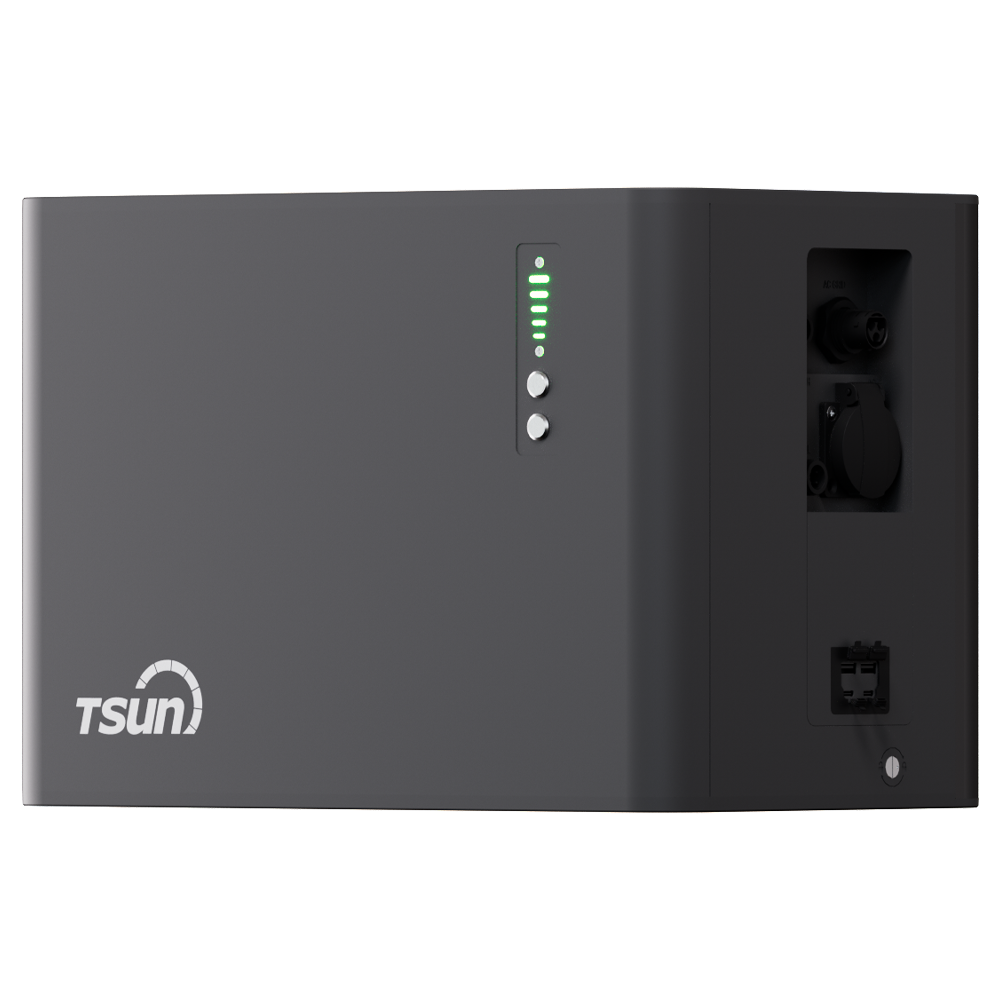

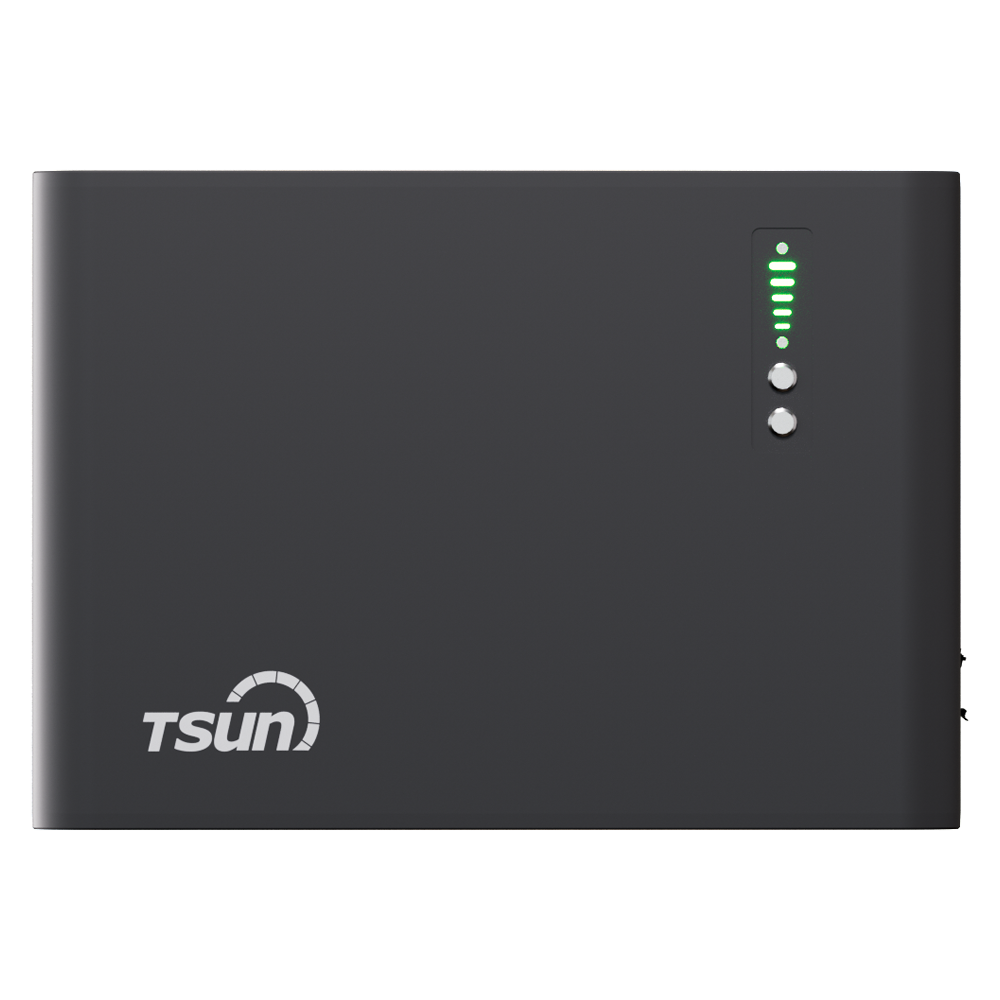

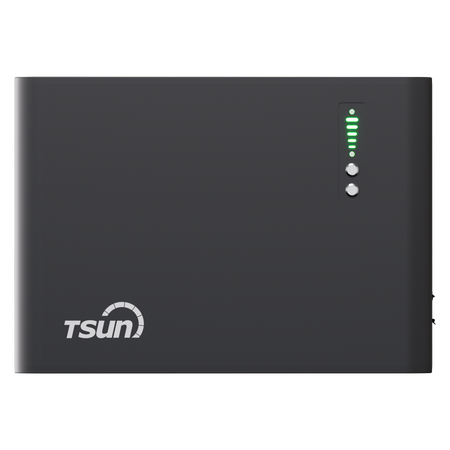

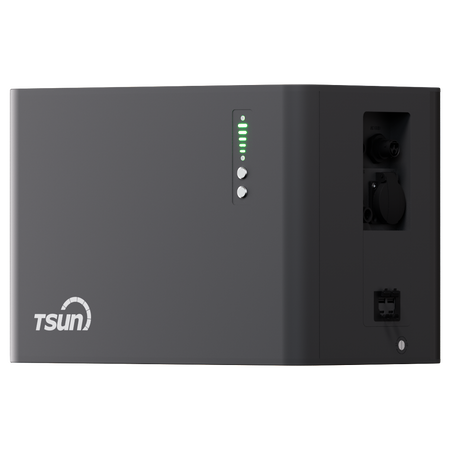

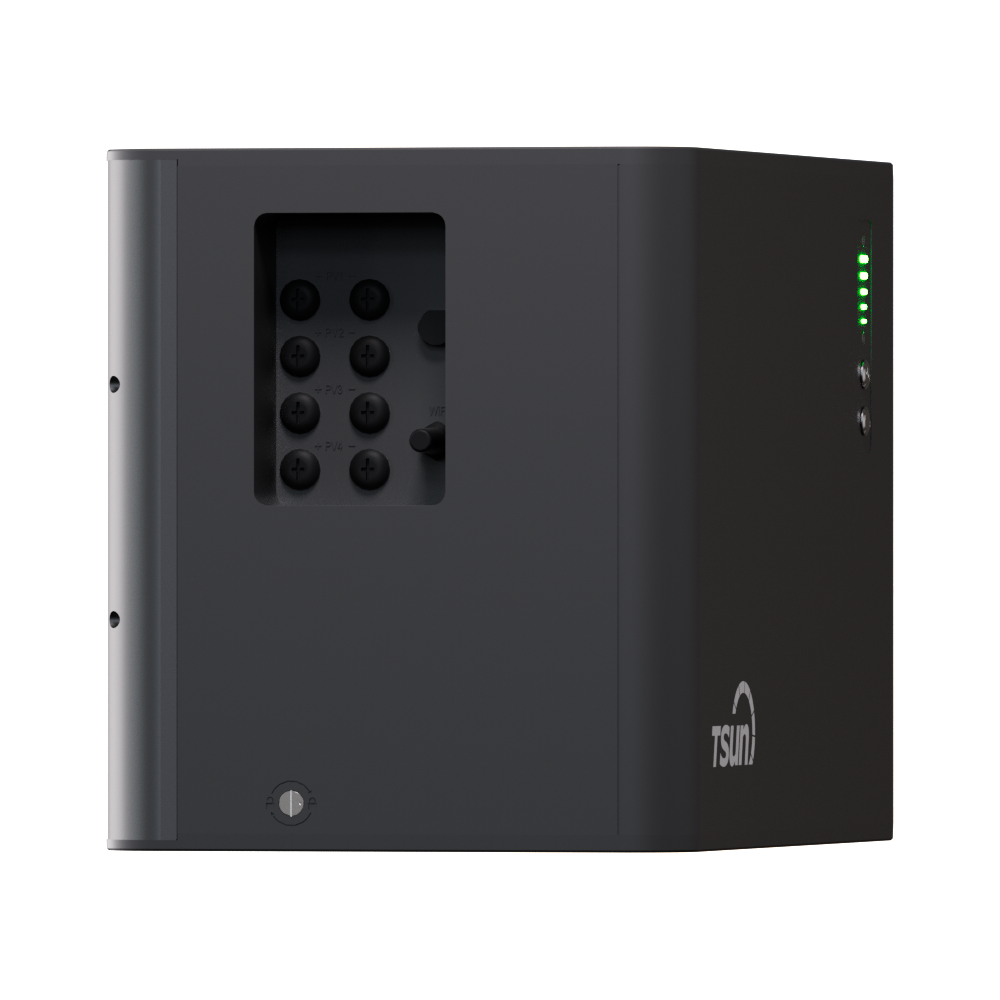

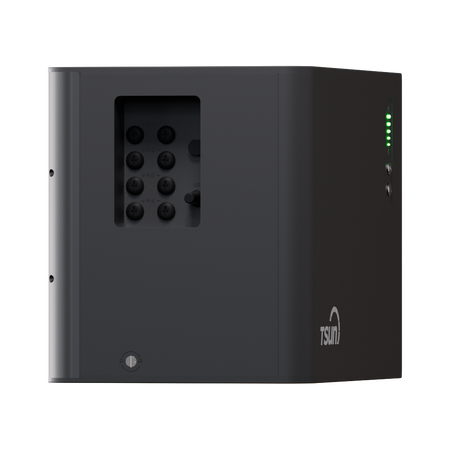

TSUN all-in-one AC coupling unit

TSUN AC-coupled all-in-one unit - 2000W power - 2048Wh LiFePO4 battery - Inverter and charger - Expandable up to 10kWh - For On-Grid, Off-Grid, and UPS solutions

📋 SPECIFICATIONS:
• Brand: TSUN
• Type: All-in-one inverter + battery
• Operating modes: On-Grid (Smart Meter required); Off-Grid; UPS
• Battery charge/discharge efficiency: 95%
• Standby consumption: < 25W
• Standby consumption: < 1W
• Dimensions: 455 x 325 x 280 mm (inverter); 455 x 205 x 280 mm (battery)
• Weight: 26.5kg
• Communication: WiFi / BLE; Battery: RS485
• Additional communication ports: 2x RS485 (Smart Meter + Backup)
• Protection: IP65
• Cooling: Natural convection
• Nominal temperature range: -20 - 55ºC
• Relative humidity: 0-95%
• Maximum altitude: 2000m
• Capacity: 2048Wh
• Battery type: LiFePO4
• Nominal voltage: 51.2V
• Operating voltage range: 43.2 - 58.4V
• Maximum charging power: 2000W
• Maximum discharge power: 2000W
• Maximum system capacity: 10240Wh (up to 4 additional TSOL-B2000 batteries)
• Maximum output power: 2000W
• Maximum output current: 10A
• Maximum input power: 2000W
• Maximum input current: 11A
• Nominal voltage: 220/230/240 V L/N/PE
• Nominal frequency: 50/60Hz
• Power factor: 0.99
• THDI: <3% at 100% load
• Accessories: TSOL-PEEM-S100 Smart Meter (required for self-consumption)
• Maximum output power: 2000W
• Maximum output current: 10A
• Nominal voltage: 220/230/240 V L/N/PE
• UPS response time: <20ms

📦 INCLUDED:
• Inverter
• Battery
• 3m AC cable
• 2x RS485 connectors
• Installation guide
• Battery base
