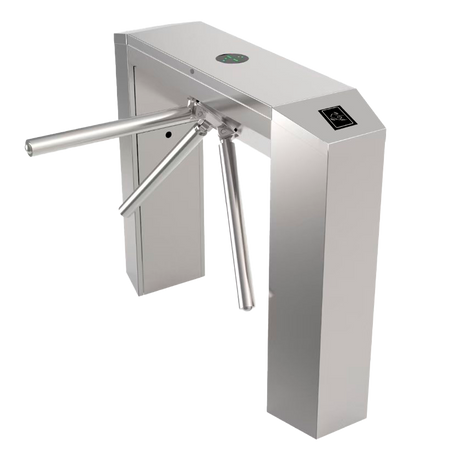

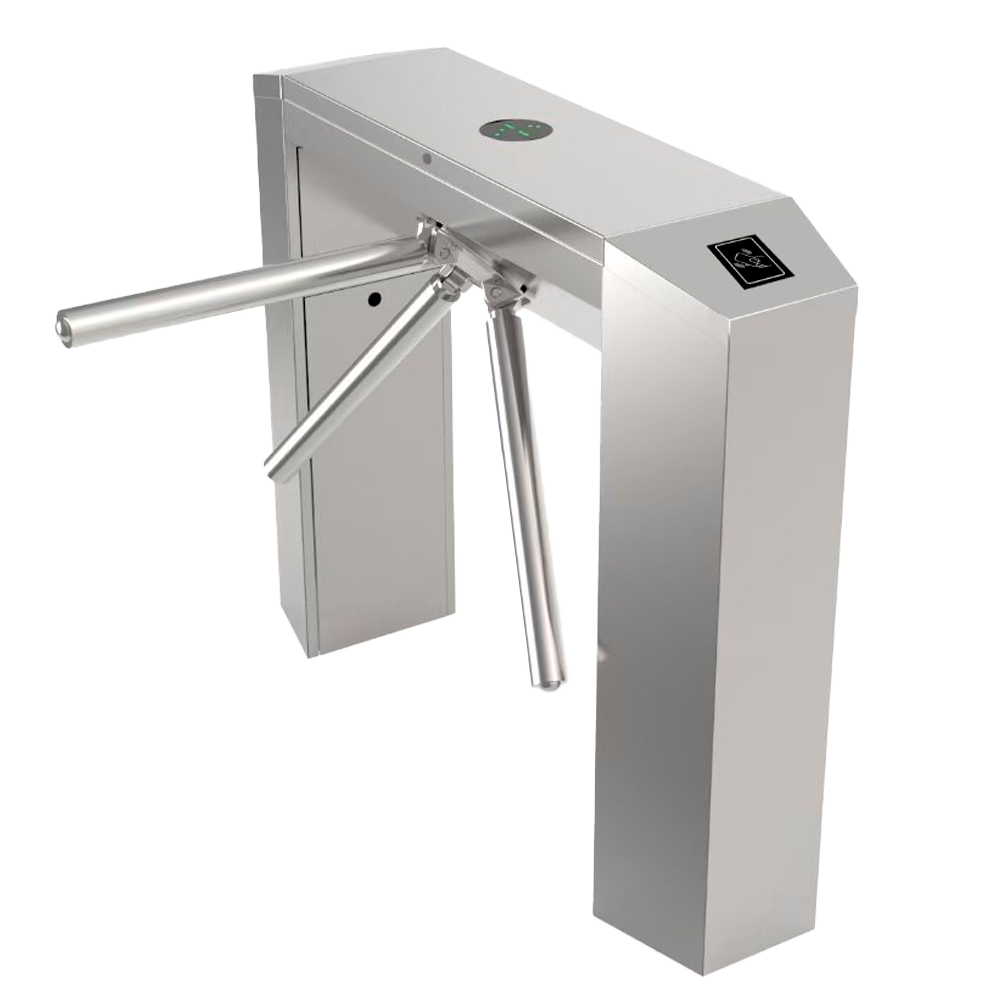

TS-TR602-OUTDOOR-316
TS-TR602-OUTDOOR-316

Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

Elettricity

Bidirectional access gate - 3 rotating arms | Double support - 1.5 mm SUS316 stainless steel

SKU: TS-TR602-OUTDOOR-316
(0)
Disponibile su richiesta · spedizione speciale
Available upon request
€1.913,81 Final price
-4% €1.996,00 €1.913,81 Final price
Su richiesta · chiedi all'assistente

Articolo ordinato su richiesta, con spedizione speciale: prezzo definitivo e tempi li conferma il nostro tecnico.

Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Bidirectional access gate - 3 rotating arms | Dual support - Schedules, alarms, and opening modes - Passage width 550 mm - 1.5 mm SUS316 stainless steel - IP56 outdoor certification

📋 SPECIFICATIONS:
• Model: TS-TR602-OUTDOOR-316
• Controller: Turnstile control board compatible with any Access Control system
• LED Indicator: Turnstile status LED indicator
• Arm movement: Mechanical arm rotation (user-pushed)
• Emergency mode: Automatic arm drop in case of power loss
• Security: 3 arms / Anti-tailgating security
• Compatibility: Integrates with any third-party Plug & Play Access Control system / Universal covers for RFID readers
• Configuration modes: One or two-way passage / Free passage in one direction and Access Control in the opposite direction mechanically configured
• Manufacturing material: 1.5 mm thick SUS316 stainless steel and PC caps
• Throughput rate: 30-35 people/minute
• Reliability: 5,000,000 cycles
• Power supply: AC 110/220 V / 35 W max.
• Operating temp.: -25º C ~ +70º C
• Lane width: 550 mm
• Passage dimensions: 550 (W) x 1200 (D) mm
• Dimensions: 980 (L) x 280 (W) x 1200 (D) mm
• Weight: 35 kg
• Protection: Suitable for outdoor use IP56

📦 INCLUDED:
• Tripod turnstile• Mounting hardware• User manual• Security keys
Model TS-TR602-OUTDOOR-316
Controller Tripod turnstile control board compatible with any Access Control system
LED Indicator Turnstile status LED indicator
Arm movement Mechanical arm rotation (user-pushed)
Emergency mode Automatic arm drop in case of power failure
Security 3 arms / Anti-tailgating security
Compatibility Integrates with any third-party Plug & Play Access Control system / Universal RFID reader covers
Configuration mode Uni- or bi-directional / Free passage in one direction and Access Control in the opposite direction configured mechanically
Manufacturing material 1.5 mm thick SUS316 stainless steel and PC caps
Passage speed 30-35 people/minute
Reliability 5,000,000 cycles
Power supply AC 110/220 V / 35 W max.
Operating temp. -25º C ~ +70º C
Lane width 550 mm
Passage dimensions 550 (W) x 1200 (D) mm
Dimensions 980 (H) x 280 (W) x 1200 (D) mm
Weight 35 kg
Protection IP56 outdoor rated
