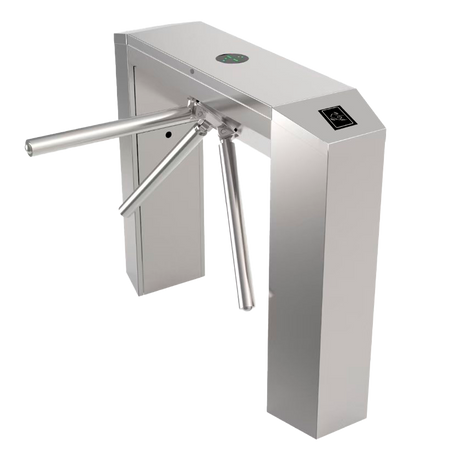

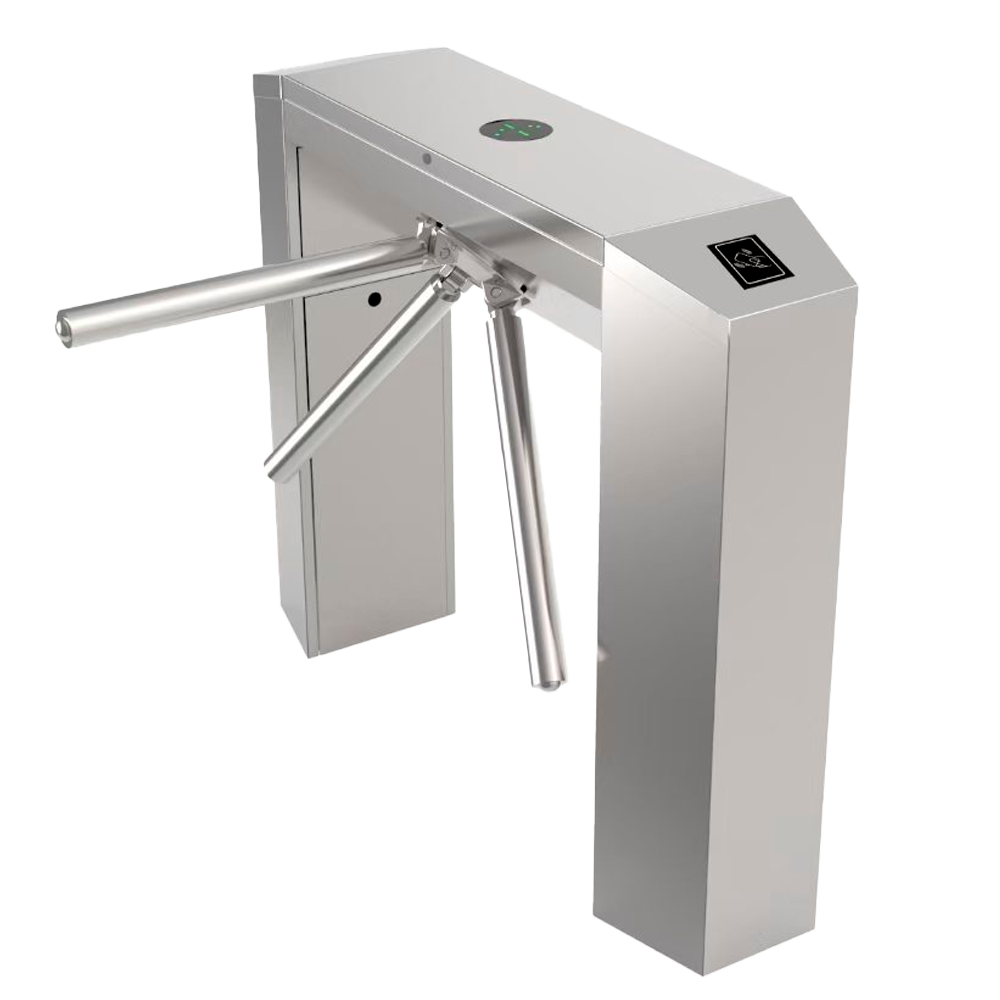

TS-TR602-OUTDOOR
TS-TR602-OUTDOOR

Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

Elettricity

Bidirectional access gate - 3-arm tripod turnstile | Double support - 1.5 mm SUS304 stainless steel

SKU: TS-TR602-OUTDOOR
(0)
Disponibile su richiesta · spedizione speciale
Available upon request
€1.381,17 Final price
-8% €1.500,00 €1.381,17 Final price
Su richiesta · chiedi all'assistente

Articolo ordinato su richiesta, con spedizione speciale: prezzo definitivo e tempi li conferma il nostro tecnico.

Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Bidirectional access gate - 3 rotating arms | Dual support - Schedules, alarms, and opening modes - Passage width 550 mm - 1.5 mm SUS304 stainless steel - IP56 certification for outdoor use

📋 SPECIFICATIONS:
• Model: TS-TR602-OUTDOOR
• Controller: Turnstile control board compatible with any Access Control system
• LED Indicator: Turnstile status LED indicator
• Arm movement: Mechanical arm rotation (user-pushed)
• Emergency mode: Automatic arm drop in case of power loss
• Security: 3 arms / Anti-tailgating security
• Compatibility: Integrates with any third-party Plug & Play Access Control system / Universal RFID reader covers
• Configuration mode: Single or dual direction / Free passage in one direction and Access Control in the opposite direction configured mechanically
• Manufacturing material: 1.5 mm thick SUS304 stainless steel and PC covers
• Throughput speed: 30-35 people/minute
• Reliability: 5,000,000 cycles
• Power supply: AC 110/220 V / 35 W max.
• Operating temp.: -25º C ~ +70º C
• Lane width: 550 mm
• Passage dimensions: 550 (W) x 1200 (D) mm
• Dimensions: 980 (W) x 280 (H) x 1200 (D) mm
• Weight: 35 kg
• Protection: Suitable for outdoor use IP56

📦 INCLUDED:
• Tripod turnstile• Mounting hardware• User manual• Security keys
Model TS-TR602-OUTDOOR
Controller Turnstile control board compatible with any Access Control system
LED Indicator Turnstile status LED indicator
Arm movement Mechanical arm rotation (pushed by the user)
Emergency mode Emergency arm drop in case of power loss
Security 3 arms / Anti-tailgating security
Compatibility Integrates with any third-party Plug & Play Access Control system / Universal RFID reader covers
Configuration modes One or two-way traffic / Free passage in one direction and Access Control in the opposite direction configured mechanically
Manufacturing material 1.5 mm thick SUS304 stainless steel and PC covers
Throughput 30-35 people/minute
Reliability 5,000,000 cycles
Power supply AC 110/220 V / 35 W max.
Operating temp. -25º C ~ +70º C
Lane width 550 mm
Passage dimensions 550 (W) x 1200 (D) mm
Dimensions 980 (W) x 280 (H) x 1200 (D) mm
Weight 35 kg
Protection Suitable for outdoor use IP56
