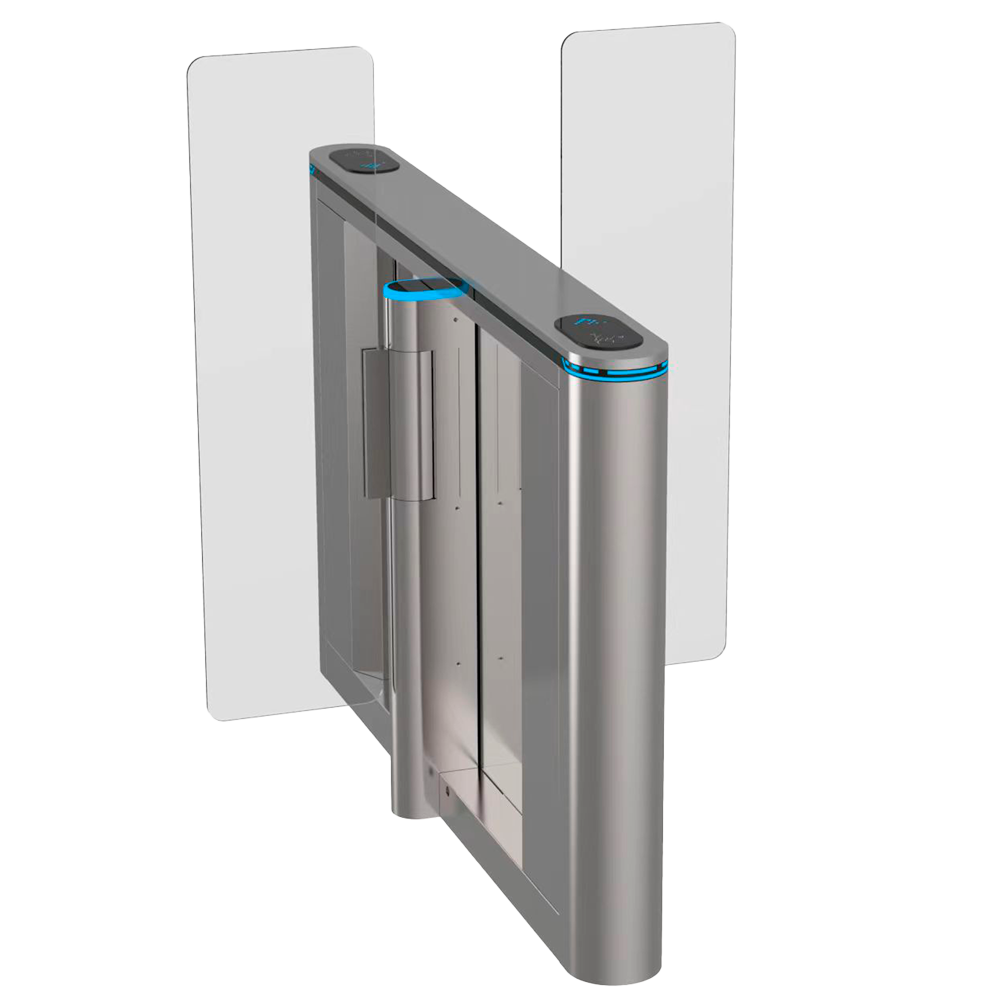

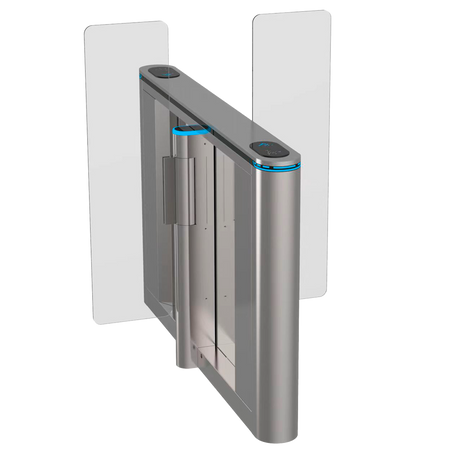

Bidirectional access gate - Gate with 1.5 m folding acrylic wing - Schedules, alarms, and opening modes - Passage width 800 mm | 10,000,000 cycles - Manufactured in SUS304 stainless steel - Possibility of adding the central element to the TS-SG808-800-HIGH
📋 SPECIFICATIONS:
• Model: TS-SG808-M-800
• Controller: Turnstile control board with display compatible with any Access Control system
• LED indicator: Turnstile status LED indicator
• Barrier movement: Acrylic barrier opening in the direction of travel (entry or exit)
• Emergency mode: Emergency barrier opening with fire signal; Automatic barrier opening in case of power failure (with additional backup battery not included)
• Security: Unauthorized access with sound and lock; Configurable anti-tailgating with sound and closure
• Compatibility: Integrates with any third-party Plug & Play Access Control system / Universal RFID reader covers
• Configuration modes: One or two directions of travel / Free passage in one direction and Access Control in the opposite direction
• Manufacturing material: SUS304 stainless steel with acrylic wings and PC covers
• Passage speed: 50-60 people/minute
• Reliability: Servomotor; 10,000,000 cycles
• Infrared sensors: 6 pairs of infrared sensors
• Power supply: AC 110/220 V / 100 W max.
• Operating temp.: -25º C ~ +70º C
• Lane dimensions: 800 mm (intermediate gate, 400 mm dimension); Wings with special height of 1.5 m from the ground
• Passage dimensions: 400 (W) x 1500 (D) mm (suitable for people with reduced mobility)
• Dimensions: 980 (W) x 150 (H) x 1500 (D) mm
• Weight: 65 kg (each machine body)
• Protection: Indoor
📦 INCLUDED:
• Intermediate motorized gate• Mounting hardware• User instructions• Security keys
| Model | TS-SG808-M-800 |
|---|---|
| Controller | Turnstile control board with display, compatible with any Access Control system |
| LED Indicator | Turnstile status LED indicator |
| Barrier movement | Acrylic barrier opening in the direction of travel (entry or exit) |
| Emergency mode | Emergency barrier opening with fire alarm signal; automatic barrier opening in case of power failure (with additional backup battery not included) |
| Security | Unauthorized access with sound and lock; configurable anti-tailgating with sound and closure |
| Compatibility | Integrates with any third-party Plug & Play Access Control system / Universal covers for RFID readers |
| Configuration modes | One or two directions of travel / Free passage in one direction and Access Control in the opposite direction |
| Manufacturing material | SUS304 stainless steel with acrylic wings and PC covers |
| Passage speed | 50-60 people/minute |
| Reliability | Servo motor 10,000,000 cycles |
| Infrared sensors | 6 pairs of infrared sensors |
| Power supply | AC 110/220 V / 100 W max. |
| Operating temp. | -25º C ~ +70º C |
| Lane dimensions | 800 mm (intermediate lane, 400 mm dimension) Wings with special height of 1.5 m from the ground |
| Passage dimensions | 400 (W) x 1500 (D) mm (suitable for people with reduced mobility) |
| Dimensions | 980 (W) x 150 (H) x 1500 (D) mm |
| Weight | 65 kg (each machine body) |
| Protection | Indoor |
