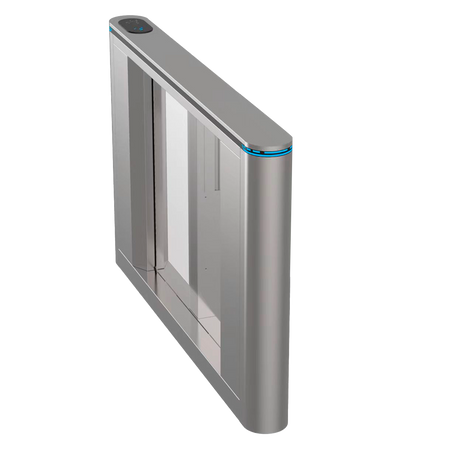

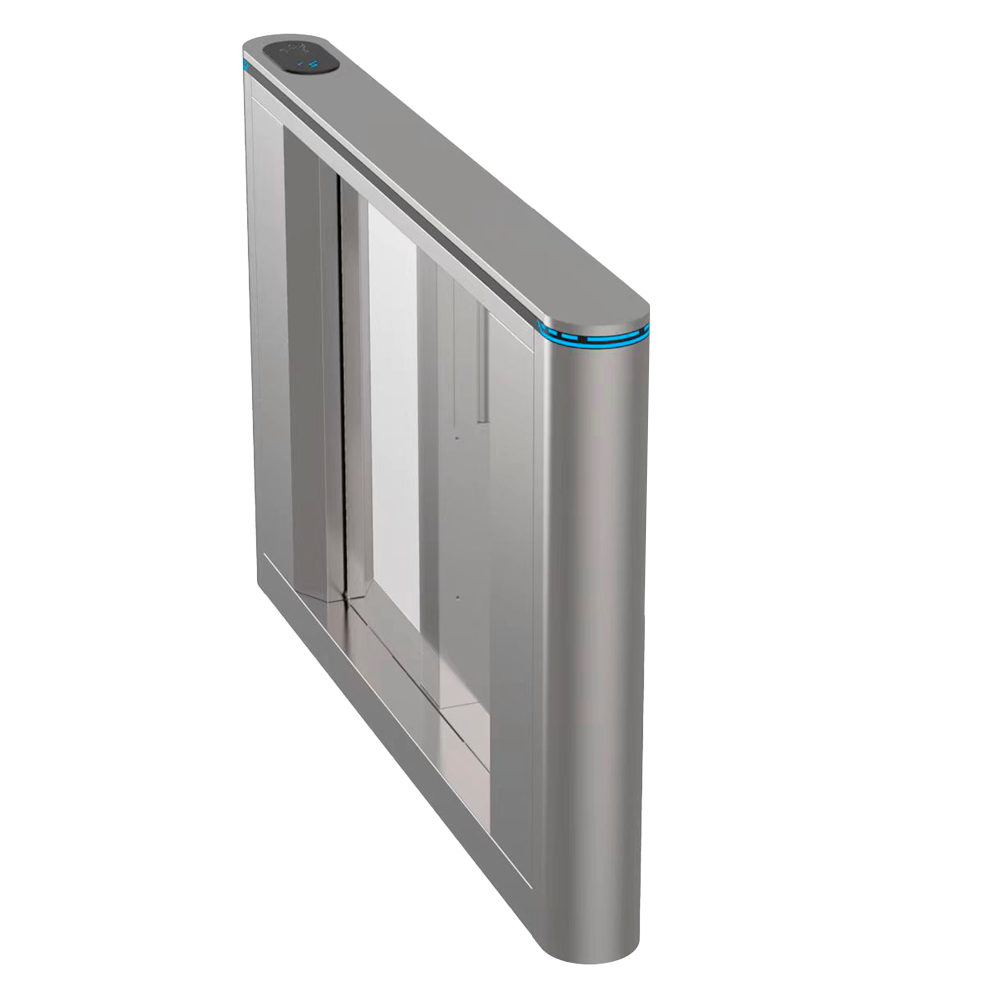

Central element of the bidirectional access turnstile - Motorized gate | 10,000,000 cycles
Central element of the bidirectional access turnstile - Motorized gate | 10,000,000 cycles
Regular price
€2.651,67
Final price
Regular price
-5%
€2.780,00
Sale price
€2.651,67
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Central element of the bidirectional access turnstile - Motorized gate | 10,000,000 cycles - Schedules, alarms, and opening modes - Without wings | Customizable with TS-SG808-Dx00 - Manufactured in SUS304 stainless steel - Left Slave Module
📋 SPECIFICATIONS:
• Model: TS-SG808-L
• Controller: Slave board for connecting TS-SG808-L
• LED Indicator: Turnstile status LED indicator
• Barrier movement: Opening of the acrylic barrier (not included) in the direction of travel (entry or exit)
• Emergency mode: Emergency barrier opening with fire signal; Automatic barrier opening in case of power failure (with additional backup battery not included)
• Security: Unauthorized access with sound and lock; Configurable anti-tailgating with sound and closure
• Compatibility: Integrates with any third-party Plug & Play Access Control system / Universal RFID reader covers
• Configuration mode: One or two directions of travel / Free passage in one direction and Access Control in the opposite direction
• Manufacturing material: SUS304 stainless steel and PC covers
• Throughput rate: 50-60 people/minute
• Reliability: Servo motor; 10,000,000 cycles
• Infrared sensors: 6 pairs of infrared sensors
• Power supply: AC 110/220 V / 100 W max.
• Operating temp.: -25º C ~ +70º C
• Lane dimensions: Customizable by adding TS-SG808-Dx00 gates
• Passage dimensions: Custom (W) x 1500 (D) mm (suitable for people with reduced mobility)
• Dimensions: 980 (H) x 150 (W) x 1500 (D) mm
• Weight: 65 kg
• Protection: Indoor
📦 INCLUDED:
• Left machine body without gate• Mounting hardware• User manual• Security keys
| Model | TS-SG808-L |
|---|---|
| Controller | Slave board for TS-SG808-L connection |
| LED indicator | Turnstile status LED indicator |
| Barrier movement | Opening of the acrylic barrier (not included) in the direction of travel (entry or exit) |
| Emergency mode | Emergency barrier opening with fire alarm signal. Automatic barrier opening in case of power failure (with additional backup battery not included) |
| Security | Unauthorized access with sound and lock. Configurable anti-tailgating with sound and closure |
| Compatibility | Integrates with any third-party Access Control system Plug & Play / Universal RFID reader covers |
| Configuration modes | One or two directions of travel / Free passage in one direction and Access Control in the opposite direction |
| Manufacturing material | SUS304 stainless steel and PC covers |
| Passage speed | 50-60 people/minute |
| Reliability | Servo motor 10,000,000 cycles |
| Infrared sensors | 6 pairs of infrared sensors |
| Power supply | AC 110/220 V / 100 W max. |
| Operating temp | -25º C ~ +70º C |
| Lane dimensions | Customizable by adding TS-SG808-Dx00 gates |
| Passage dimensions | Customized (W) x 1500 (D) mm (suitable for people with reduced mobility) |
| Dimensions | 980 (W) x 150 (H) x 1500 (D) mm |
| Weight | 65 kg |
| Protection | Indoor |
