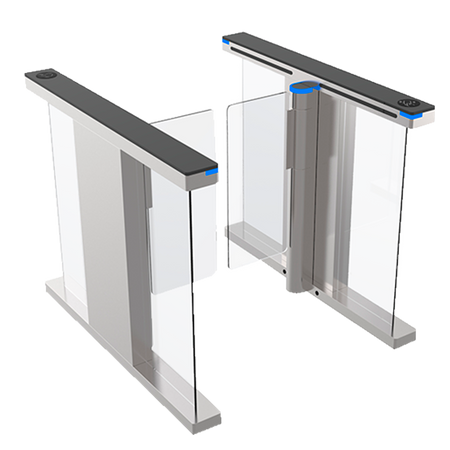

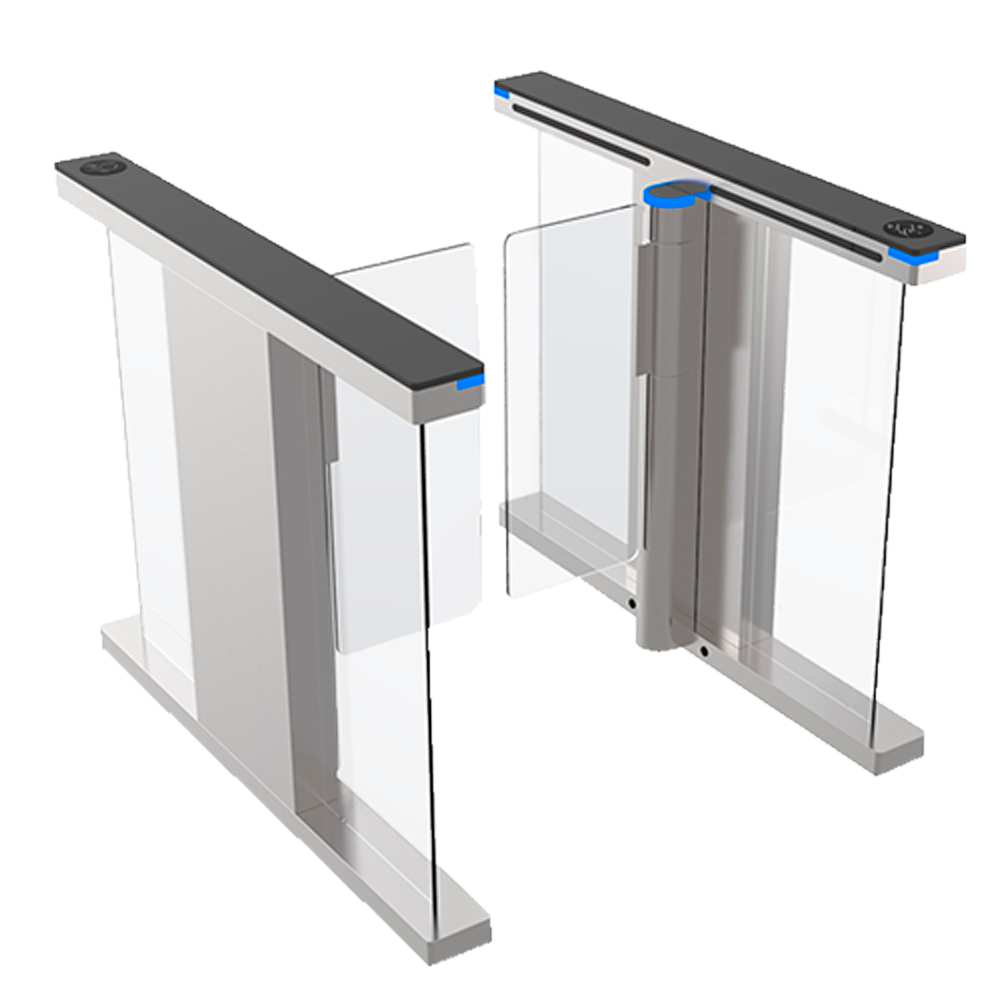

Bidirectional access gate - Acrylic swing door - 6 pairs of infrared sensors - 900 mm - 4
Bidirectional access gate - Acrylic swing door - 6 pairs of infrared sensors - 900 mm - 4
Regular price
€4.980,53
Final price
Regular price
-5%
€5.220,00
Sale price
€4.980,53
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Bi-directional access gate - Acrylic swing leaf - Schedules, alarms and opening modes - Passage width 900 mm | 5,000,000 cycles - Manufactured in SUS304 stainless steel - Compatible with third-party systems
📋 SPECIFICATIONS:
• Model: TS-SG804-900
• Controller: Turnstile control board with display compatible with any Access Control system
• LED indicator: Turnstile status LED indicator
• Barrier movement: Acrylic barrier opening in the direction of travel (entry or exit)
• Emergency mode: Emergency barrier opening with fire signal; Automatic barrier opening in case of power failure (backup battery included)
• Security: Unauthorized access with sound and lock; Configurable anti-tailgating with sound and closure
• Compatibility: Integrates with any third-party Plug & Play Access Control system / Universal covers for RFID readers
• Configuration modes: One or two directions of travel / Free passage in one direction and Access Control in the opposite direction
• Material of manufacture: SUS304 stainless steel with acrylic leaves and PC covers
• Passage speed: 40-50 people/minute
• Reliability: Brushless motor; 5,000,000 cycles
• Infrared sensors: 6 pairs of infrared sensors
• Power supply: AC 110/220 V / 35 W max.
• Operating temp.: -25º C ~ +70º C
• Lane dimensions: 900 mm
• Passage dimensions: 900 (W) x 1500 (D) mm (suitable for people with reduced mobility)
• Dimensions: 980 (W) x 120 (H) x 1500 (D) mm
• Weight: 60 kg (each machine body)
• Protection: Indoor
📦 INCLUDED:
• Motorized gate• Mounting material• User instructions• Security keys
| Model | TS-SG804-900 |
|---|---|
| Controller | Turnstile control board with display, compatible with any Access Control system |
| LED indicator | Turnstile status LED indicator |
| Barrier movement | Acrylic barrier opening in the direction of travel (entry or exit) |
| Emergency mode | Emergency barrier opening upon fire signal; automatic barrier opening in case of power failure (backup battery included) |
| Security | Unauthorized access with sound and lock; configurable anti-tailgating with sound and lock |
| Compatibility | Integrates with any third-party Plug & Play Access Control system / Universal covers for RFID readers |
| Configuration mode | One or two directions of travel / Free passage in one direction and Access Control in the opposite direction |
| Manufacturing material | SUS304 stainless steel with acrylic wings and PC lids |
| Passage speed | 40-50 people/minute |
| Reliability | Brushless motor, 5,000,000 cycles |
| Infrared sensors | 6 pairs of infrared sensors |
| Power supply | AC 110/220 V / 35 W max. |
| Operating temp. | -25º C ~ +70º C |
| Lane width | 900 mm |
| Passage dimensions | 900 (W) x 1500 (D) mm (suitable for people with reduced mobility) |
| Dimensions | 980 (W) x 120 (H) x 1500 (D) mm |
| Weight | 60 kg (each machine body) |
| Protection | Indoor |
