Bidirectional access gate housing - Motorized flap | 3,000,000 cycles
Bidirectional access gate housing - Motorized flap | 3,000,000 cycles
Regular price
€1.833,11
Final price
Regular price
-8%
€1.990,00
Sale price
€1.833,11
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

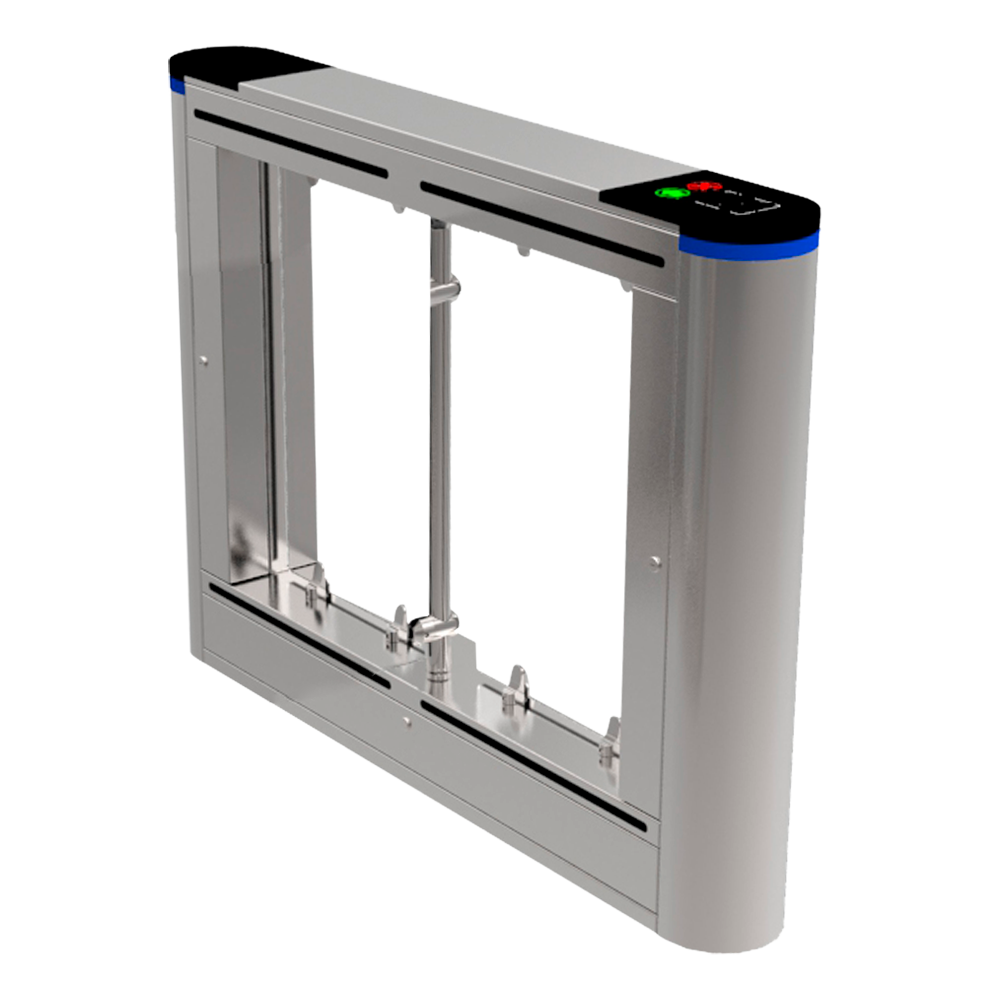

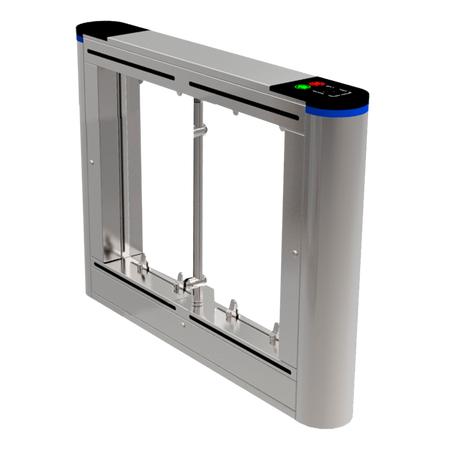

Bi-directional access gate machine body - Motorized flap | 3,000,000 cycles - Schedules, alarms, and opening modes - Without wings | Customizable with TS-SG801-Dx00 - Manufactured in SUS304 stainless steel - Right-hand machine body
📋 SPECIFICATIONS:
• Model: TS-SG801-R
• Controller: Turnstile control board with display compatible with any Access Control system
• LED indicator: Turnstile status LED indicator
• Barrier movement: Acrylic barrier opening (not included) in the direction of travel (entry or exit)
• Emergency mode: Emergency barrier opening upon fire signal; Automatic barrier opening in case of power failure (backup battery included)
• Security: Unauthorized access with sound and lock; Configurable anti-tailgating with sound and closure
• Compatibility: Integrates with any third-party Plug & Play Access Control system / Universal covers for RFID readers
• Configuration mode: One or two directions of travel / Free passage in one direction and Access Control in the opposite direction
• Manufacturing material: SUS304 stainless steel and PC covers
• Throughput speed: 30-40 people/minute
• Reliability: Brushed motor; 3,000,000 cycles
• Infrared sensors: 5 pairs of infrared sensors
• Power supply: AC 110/220 V / 35 W max.
• Operating temp.: -25º C ~ +70º C
• Line dimensions: Customizable with the addition of TS-SG801-Dx00 gates
• Passage dimensions: Custom (W) x 1400 (D) mm (suitable for people with reduced mobility)
• Dimensions: 1020 (W) x 185 (H) x 1400 (D) mm
• Weight: 65 kg
• Protection: Indoor
📦 INCLUDED:
• Right-hand machine body without wing • Mounting hardware • User manual • Security keys
| Model | TS-SG801-R |
|---|---|
| Controller | Turnstile control board with display compatible with any Access Control system |
| LED indicator | Turnstile status LED indicator |
| Barrier movement | Opening of the acrylic barrier (not included) in the direction of travel (entry or exit) |
| Emergency mode | Emergency barrier opening via fire signal; automatic barrier opening in case of power failure (backup battery included) |
| Security | Unauthorized access with sound and locking; configurable anti-tailgating with sound and locking |
| Compatibility | Integrates with any third-party Plug & Play Access Control system / Universal RFID reader covers |
| Configuration modes | One or two directions of travel / Free passage in one direction and Access Control in the opposite direction |
| Manufacturing material | SUS304 stainless steel and PC covers |
| Throughput speed | 30-40 people/minute |
| Reliability | Brushed motor 3,000,000 cycles |
| Infrared sensors | 5 pairs of infrared sensors |
| Power supply | AC 110/220 V / 35 W max. |
| Operating temp. | -25º C ~ +70º C |
| Lane dimensions | Customizable by adding TS-SG801-Dx00 gates |
| Passage dimensions | Custom (W) x 1400 (D) mm (suitable for people with reduced mobility) |
| Dimensions | 1020 (W) x 185 (H) x 1400 (D) mm |
| Weight | 65 kg |
| Protection | Indoor |
- User manual Link
