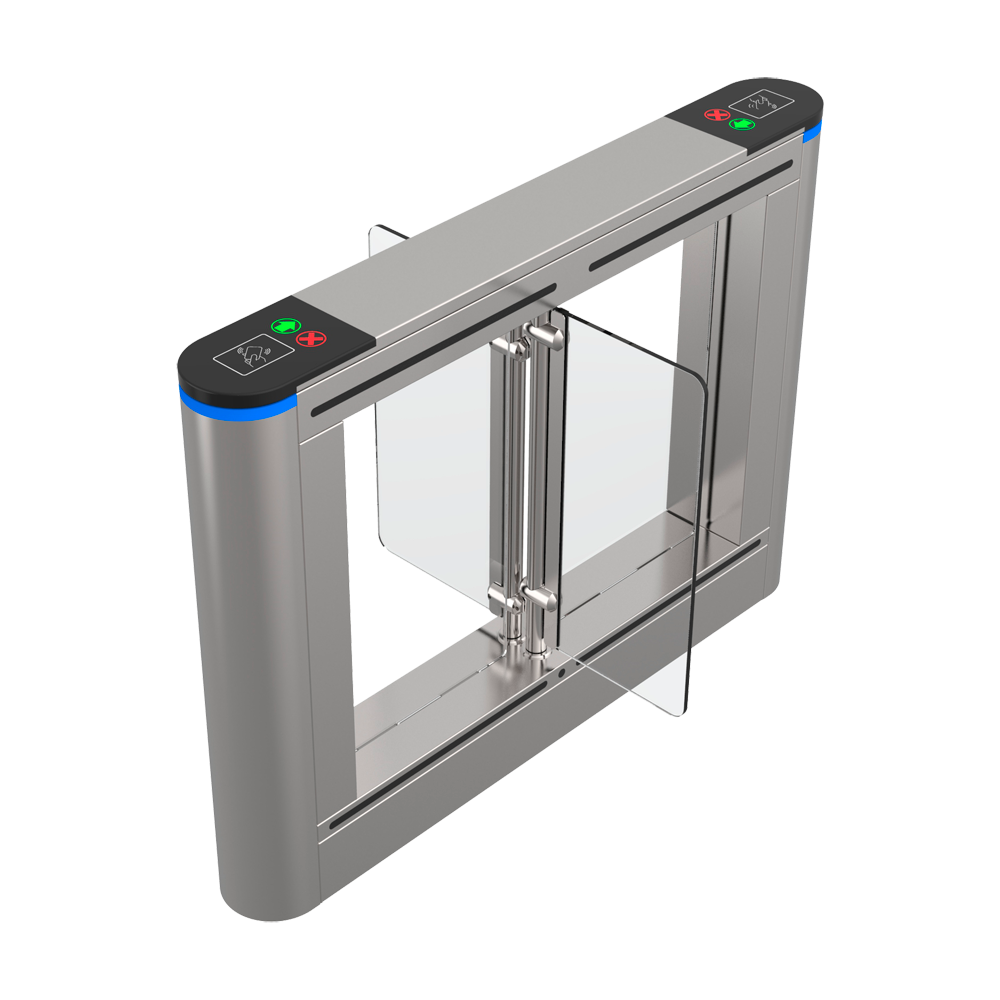

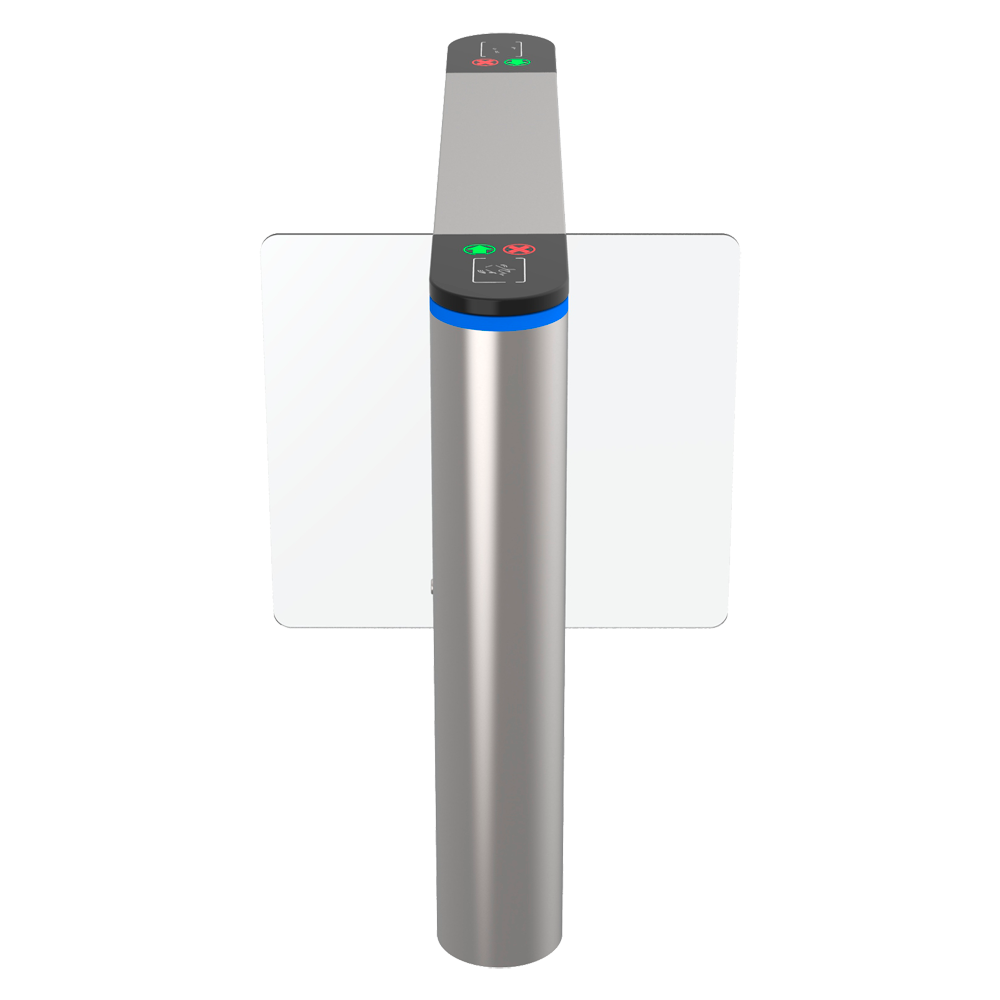

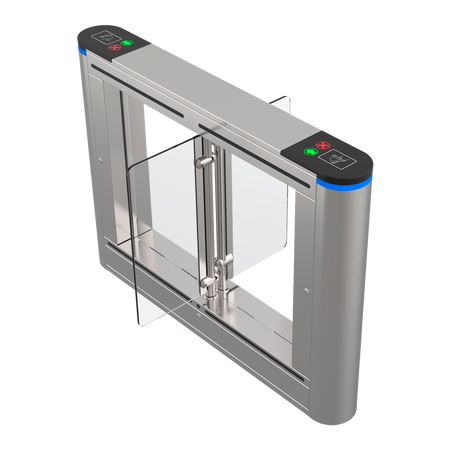

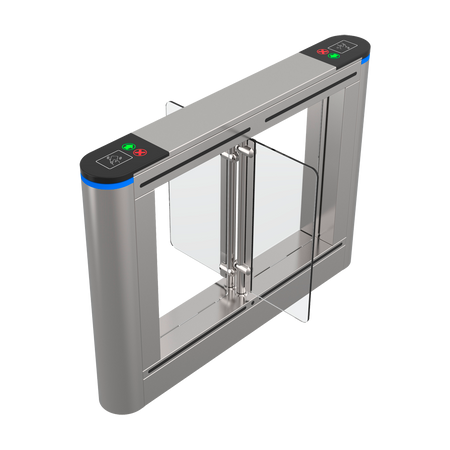

Bidirectional access gate - Acrylic swing door - 5 pairs of infrared sensors - 65 kg - 9
Bidirectional access gate - Acrylic swing door - 5 pairs of infrared sensors - 65 kg - 9
Regular price
€3.124,36
Final price
Regular price
-7%
€3.370,00
Sale price
€3.124,36
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

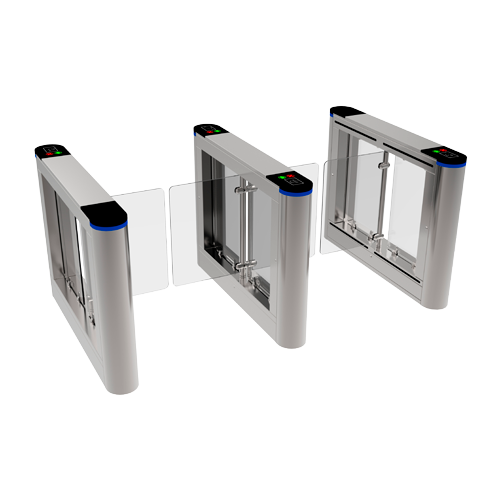

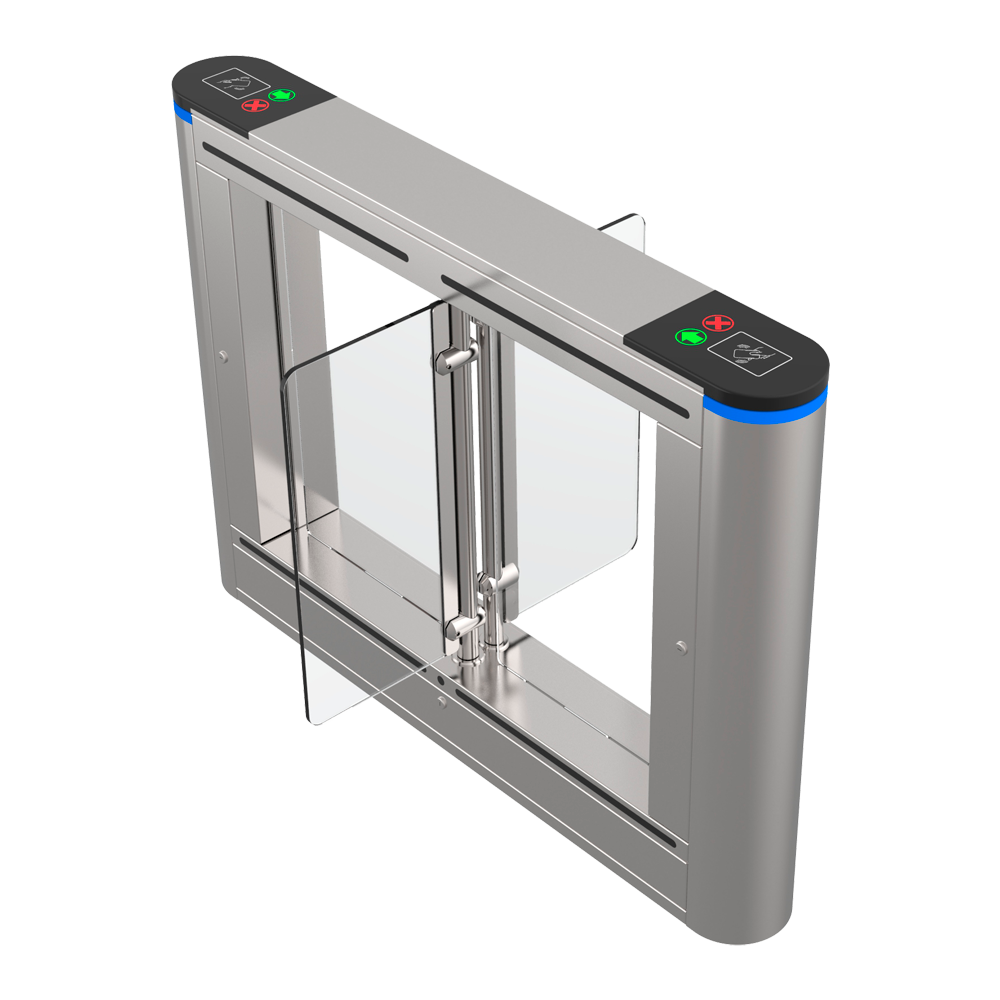

Bidirectional access gate - Acrylic swing door - Schedules, alarms, and opening modes - Passage width 900 mm | 3,000,000 cycles - Manufactured in SUS304 stainless steel - Possibility to add the central element to the TS-SG801-900
📋 SPECIFICATIONS:
• Model: TS-SG801-M-900

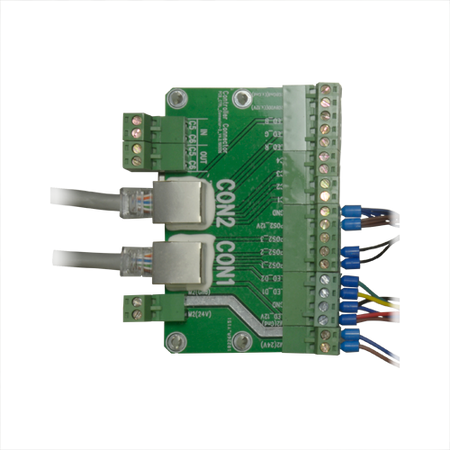

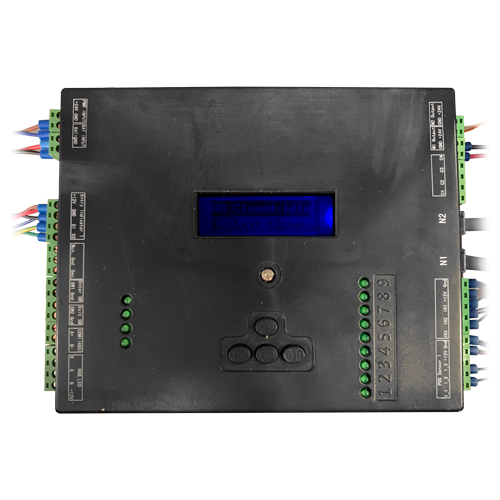

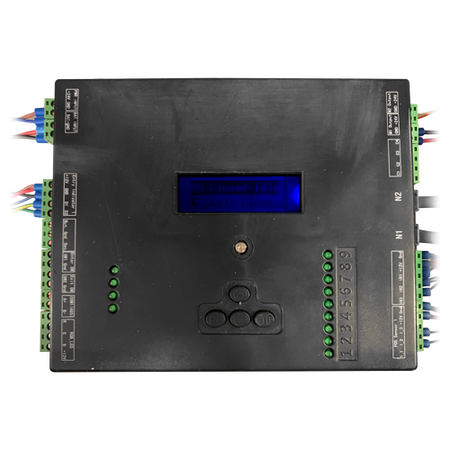

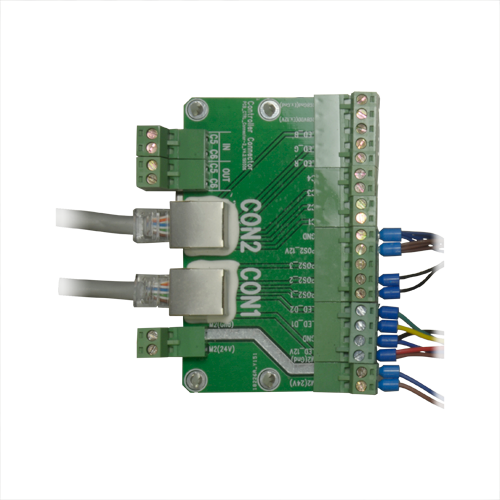

• Controller: Turnstile control board with display, compatible with any Access Control system
• LED indicator: Turnstile status LED indicator

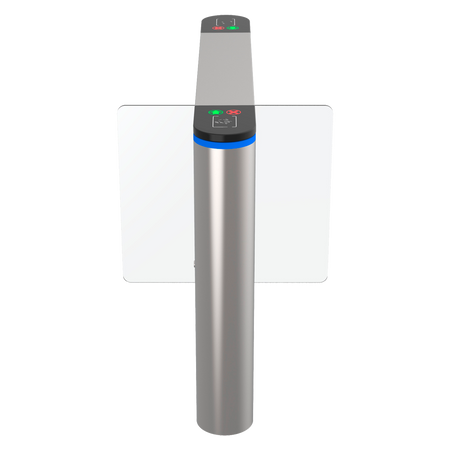

• Barrier movement: Acrylic barrier opens in the direction of travel (entry or exit)
• Emergency mode: Emergency barrier opening upon fire alarm signal; Automatic barrier opening in case of power failure (backup battery included)
• Security: Unauthorized access with sound and lock; Configurable anti-tailgating with sound and closure
• Compatibility: Integrates with any third-party Plug & Play Access Control system / Universal RFID reader covers
• Configuration modes: One or two directions of travel / Free passage in one direction and Access Control in the opposite direction
• Manufacturing material: SUS304 stainless steel with acrylic wings and PC covers
• Passage speed: 30-40 people/minute
• Reliability: Brush motor; 3,000,000 cycles
• Infrared sensors: 5 pairs of infrared sensors
• Power supply: AC 110/220 V / 35 W max.
• Operating temp.: -25º C ~ +70º C

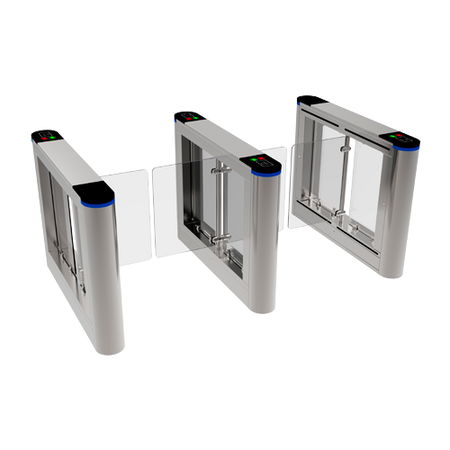

• Lane dimensions: 900 mm (intermediate gate, dimension 450 mm)
• Passage dimensions: 450 (W) x 1400 (D) mm (suitable for people with reduced mobility)
• Dimensions: 1020 (W) x 185 (H) x 1400 (D) mm
• Weight: 65 kg
• Protection: Indoor
📦 INCLUDED:
• Intermediate motorized gate• Mounting hardware• User manual• Security keys
| Model | TS-SG801-M-900 |
|---|---|
| Controller | Turnstile control board with display, compatible with any Access Control system |
| LED indicator | Turnstile status LED indicator |
| Barrier movement | Acrylic barrier opening in the direction of travel (entry or exit) |
| Emergency mode | Emergency barrier opening upon fire alarm signal; automatic barrier opening in case of power failure (backup battery included) |
| Security | Unauthorized access alert with sound and locking; configurable anti-tailgating with sound and locking |
| Compatibility | Integrates with any third-party Plug & Play Access Control system / Universal RFID reader covers |
| Configuration modes | One or two directions of travel / Free passage in one direction and Access Control in the opposite direction |
| Manufacturing material | SUS304 stainless steel with acrylic wings and PC lids |
| Passage speed | 30-40 people/minute |
| Reliability | Brushed motor, 3,000,000 cycles |
| Infrared sensors | 5 pairs of infrared sensors |
| Power supply | AC 110/220 V / 35 W max. |
| Operating temp. | -25º C ~ +70º C |
| Lane width | 900 mm (intermediate passage, 450 mm size) |
| Passage dimensions | 450 (W) x 1400 (D) mm (suitable for people with reduced mobility) |
| Dimensions | 1020 (W) x 185 (H) x 1400 (D) mm |
| Weight | 65 kg |
| Protection | Indoor |
