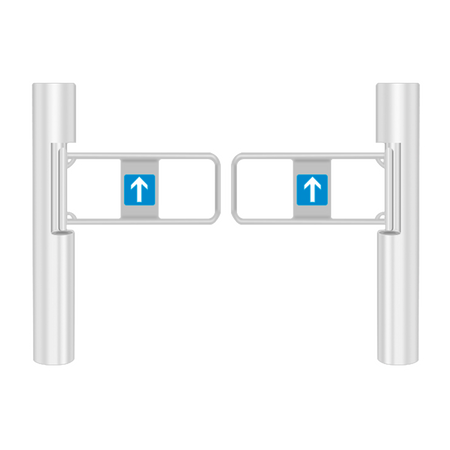

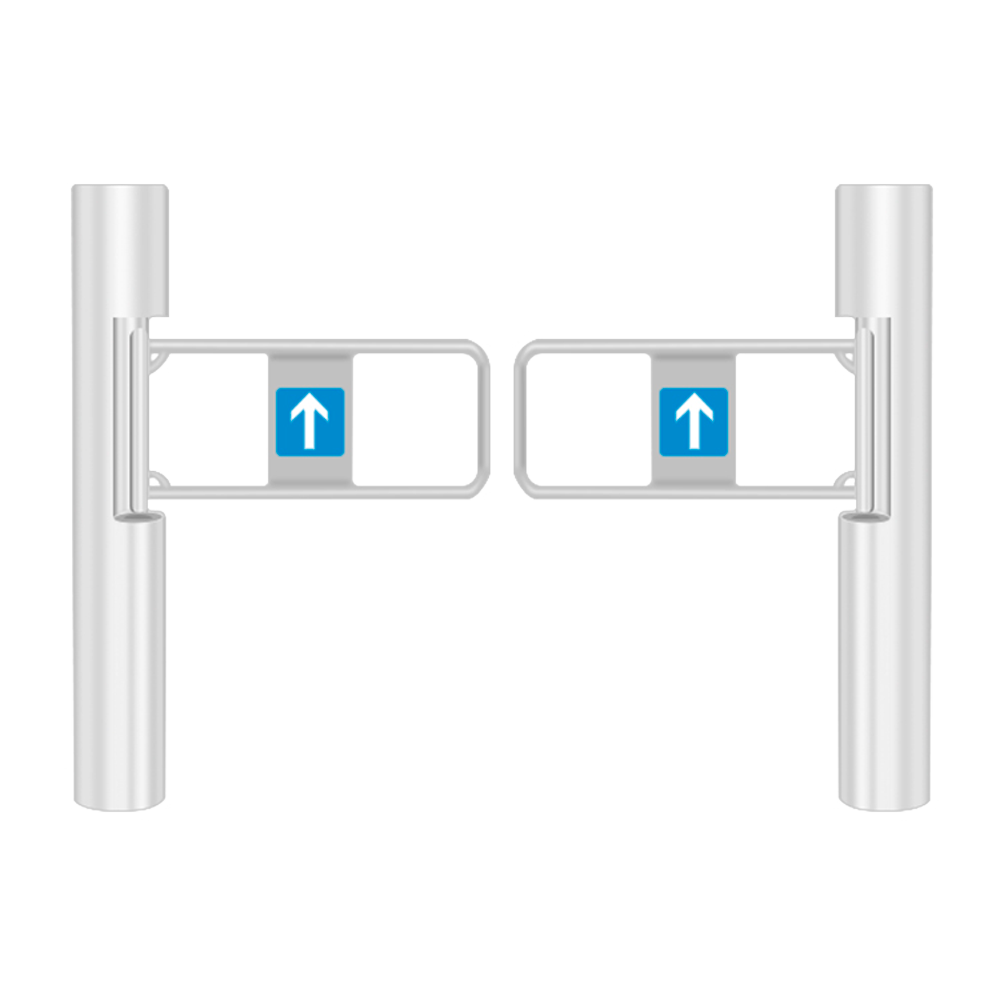

Bidirectional access gate - Double motorized leaf for supermarkets
Bidirectional access gate - Double motorized leaf for supermarkets
Regular price
€2.651,67
Final price
Regular price
-5%
€2.790,00
Sale price
€2.651,67
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Bidirectional access gate - Motorized double-wing for supermarkets - Schedules, alarms, and opening modes - Passage width 1200 mm | 5,000,000 cycles - Manufactured in SUS304 stainless steel - Compatible with third-party systems
📋 SPECIFICATIONS:
• Model: TS-SB502-1200-SMARKET
• Controller: Turnstile control board with display compatible with any Access Control system
• Barrier movement: Angular opening of the metal barrier in the direction of travel (entry or exit)
• Emergency mode: Emergency barrier opening with fire signal; Automatic barrier opening in case of power failure (backup battery included)
• Compatibility: Integrates with any third-party Plug & Play Access Control system
• Configuration mode: One or two directions of travel / Free passage in one direction and Access Control in the opposite direction
• Construction material: SUS304 stainless steel with metal wing
• Passage speed: 40-50 people/minute
• Reliability: Brushless motor; 5,000,000 cycles
• Infrared sensors: 2 pairs of infrared sensors (allow automatic opening upon detection of people)
• Power supply: AC 110/220 V
• Operating temp: -15º C ~ +60º C
• Lane dimensions: 1200 mm
• Passage dimensions: 1200 (W) x 168 (D) (suitable for people with reduced mobility)
• Dimensions: 1050 (H) x 168 (W) x 168 (D) mm
• Weight: 25 kg (each machine body)
• Protection: Indoor
📦 INCLUDED:
• Motorized supermarket gate• Mounting hardware• User manual• Security keys
| Model | TS-SB502-1200-SMARKET |
|---|---|
| Controller | Turnstile control board with display, compatible with any Access Control system |
| Barrier movement | Angular opening of the metal barrier in the direction of travel (entry or exit) |
| Emergency mode | Emergency barrier opening via fire signal; automatic barrier opening in case of power failure (backup battery included) |
| Compatibility | Integrates with any third-party Plug & Play Access Control system |
| Configuration mode | One or two directions of travel / Free passage in one direction and Access Control in the opposite direction |
| Manufacturing material | SUS304 stainless steel with metal wing |
| Throughput | 40-50 people/minute |
| Reliability | Brushless motor, 5,000,000 cycles |
| Infrared sensors | 2 pairs of infrared sensors (allow automatic opening upon detection of people) |
| Power supply | AC 110/220 V |
| Operating temp. | -15º C ~ +60º C |
| Lane width | 1200 mm |
| Passage dimensions | 1200 (W) x 168 (D) (suitable for people with reduced mobility) |
| Dimensions | 1050 (H) x 168 (W) x 168 (D) mm |
| Weight | 25 kg (per unit) |
| Protection | Indoor |
