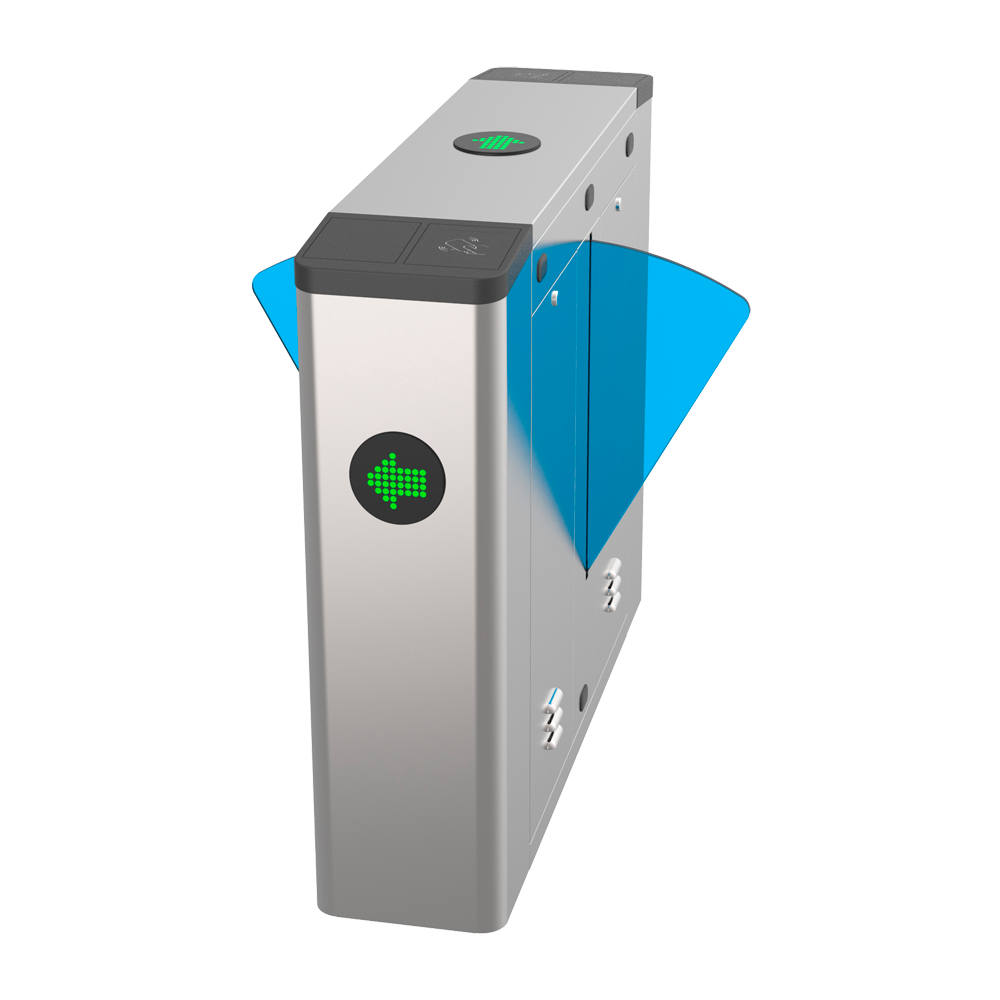

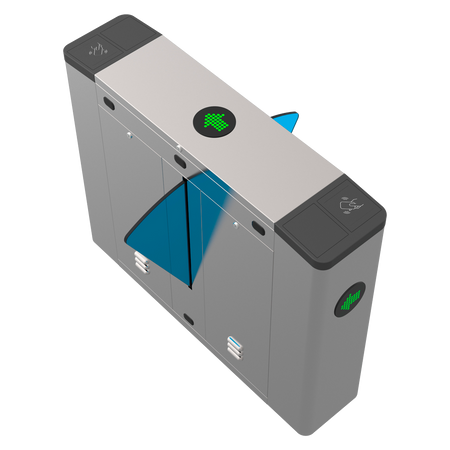

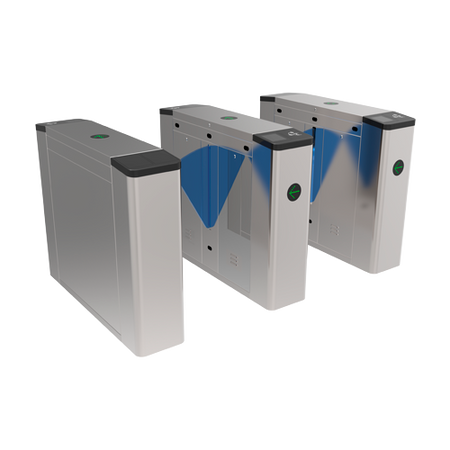

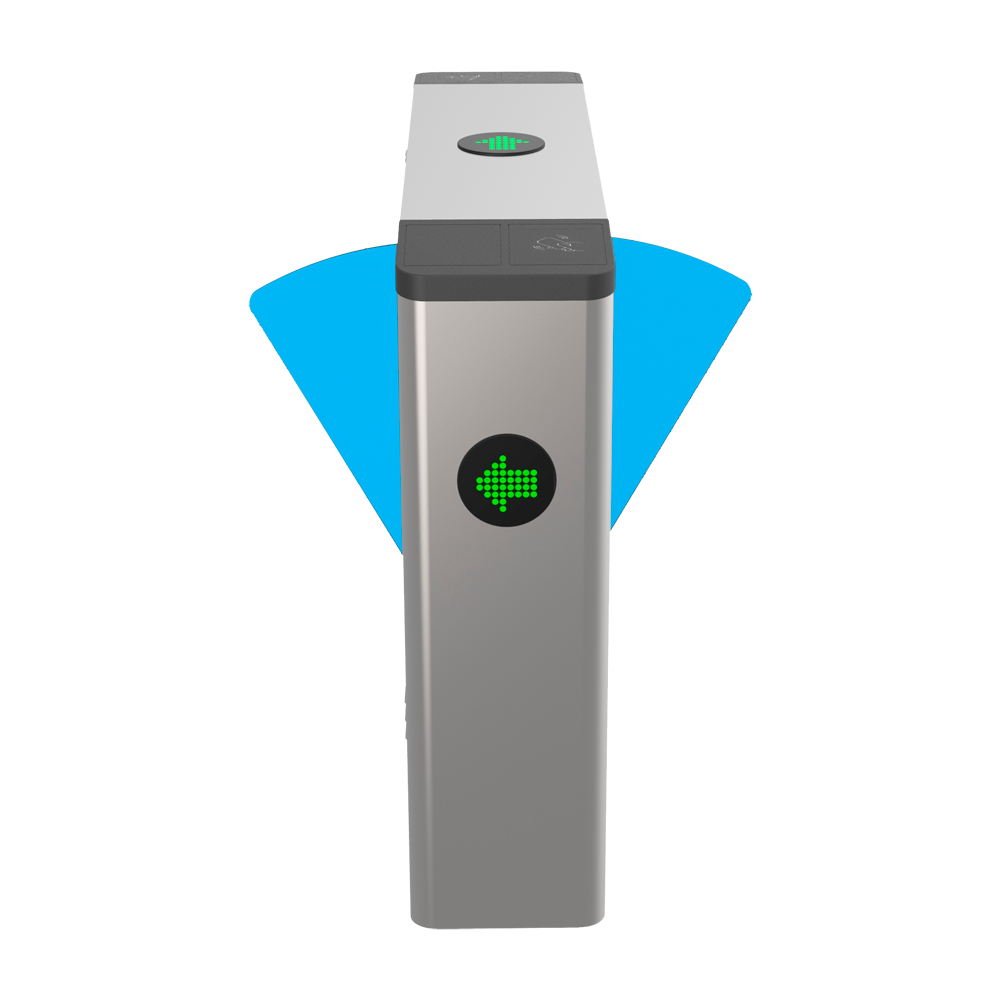

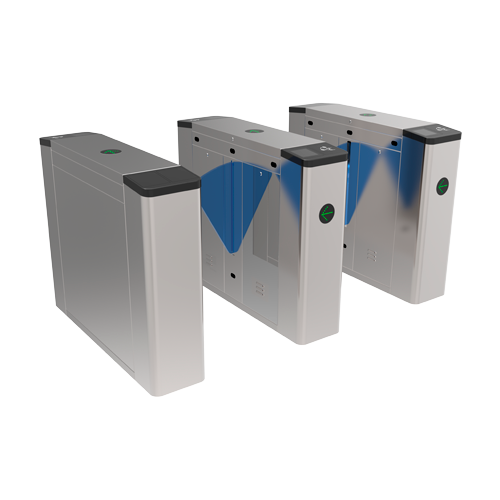

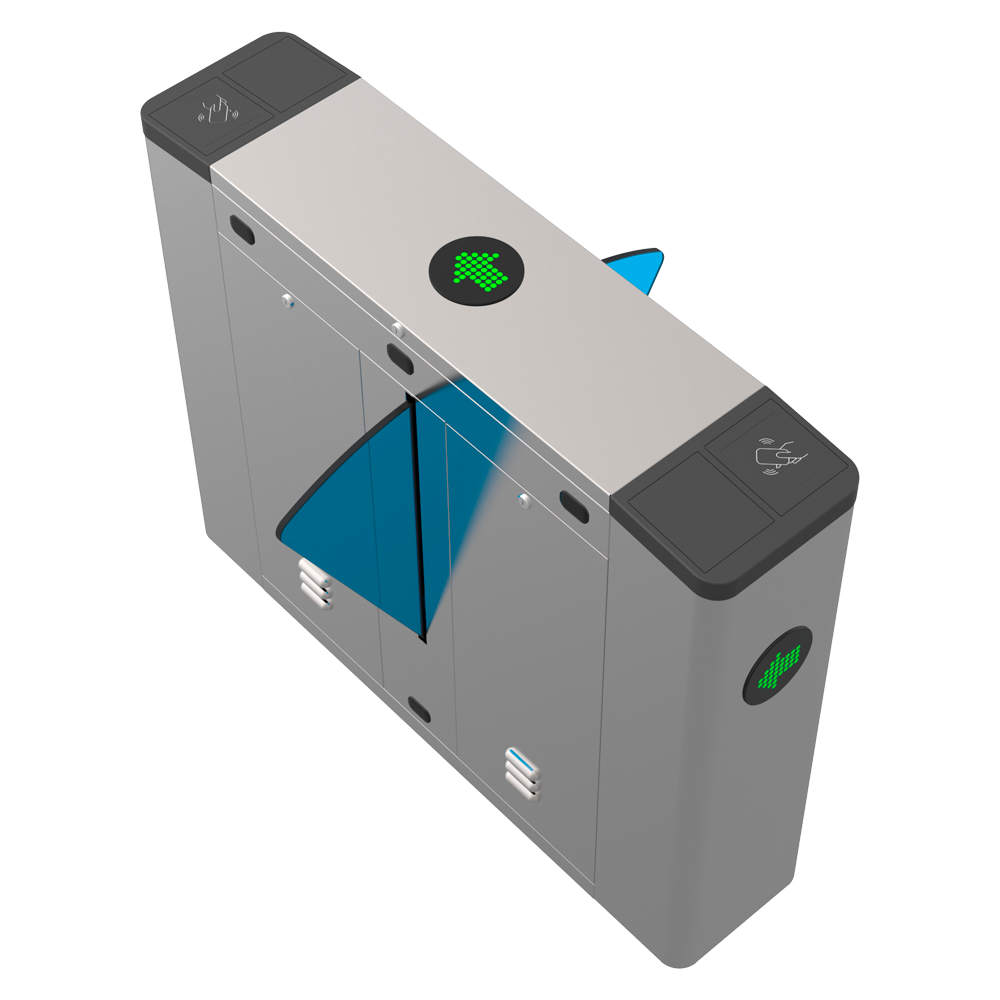

Bi-directional access gate - Opening with retractable acrylic barrier - 550 mm - dimension 225 mm)
Bi-directional access gate - Opening with retractable acrylic barrier - 550 mm - dimension 225 mm)
Regular price
€2.294,27
Final price
Regular price
-4%
€2.390,00
Sale price
€2.294,27
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

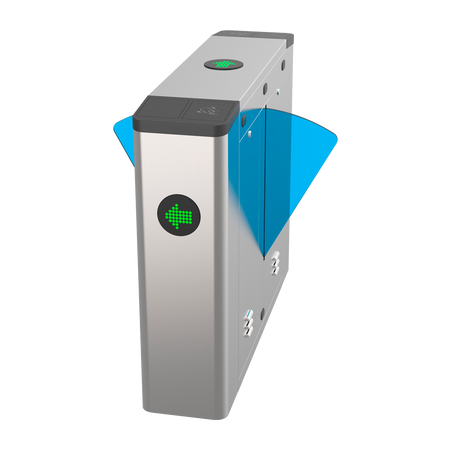

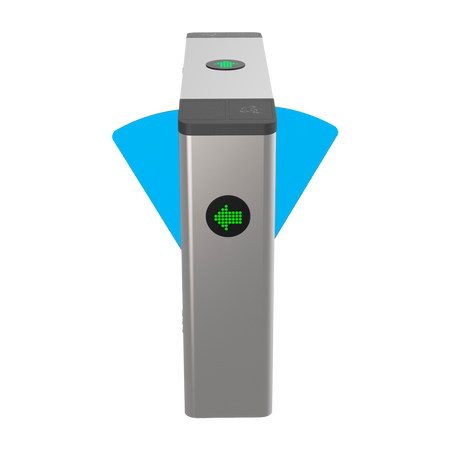

Bi-directional access gate - Opening with retractable acrylic barrier - Schedules, alarms, and opening modes - Passage width 550 mm | 3,000,000 cycles - Manufactured in SUS304 stainless steel - Possibility to add the central element to the TS-FB701
📋 SPECIFICATIONS:

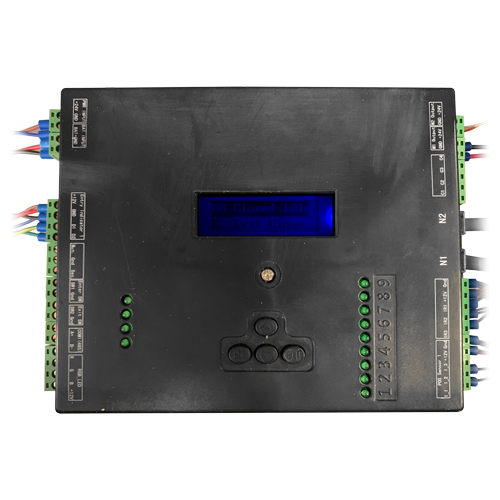

• TS-FB701-M: Turnstile control board with display, compatible with any Access Control system
• Turnstile status LED indicator: Foldable and retractable for opening the acrylic leaf inside the turnstile
• Integrates with any third-party Plug & Play Access Control system / Universal RFID reader covers: One or two directions of travel / Free passage in one direction and Access Control in the opposite direction
• SUS304 stainless steel with acrylic leaves and PC covers: 30-40 people/minute
• 4 pairs of infrared sensors: AC 110/220 V
• -28º C ~ +60º C: 550 mm (central element, dimension 225 mm)
• 550 (W) x 1200 (D) mm: 980 (W) x 280 (H) x 1200 (D) mm
• 48 kg: Indoor
📦 INCLUDED:
• Motorized intermediate structure gate• Mounting hardware• User manual• Security keys
| Model | TS-FB701-M |
|---|---|

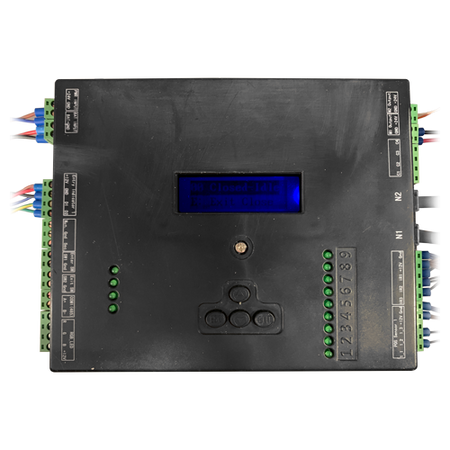

| Controller | Turnstile control board with display compatible with any Access Control system |
| LED indicator | Turnstile status LED indicator |
| Barrier movement | Retractable folding for acrylic wing opening inside the turnstile |
| Emergency mode | Emergency barrier opening with fire signal Automatic barrier opening in case of power failure (backup battery included) |
| Security | Unauthorized access with sound and lock Configurable anti-tailgating with sound and locking |
| Compatibility | Integrates with any third-party Plug & Play Access Control system / Universal covers for RFID readers |
| Configuration mode | One or two directions of travel / Free passage in one direction and Access Control in the opposite direction |
| Manufacturing material | SUS304 stainless steel with acrylic wings and PC covers |
| Throughput speed | 30-40 people/minute |
| Reliability | Brush motor 3,000,000 cycles |
| Infrared sensors | 4 pairs of infrared sensors |
| Power supply | AC 110/220 V |
| Operating temp. | -28º C ~ +60º C |
| Lane dimensions | 550 mm (center element, 225 mm dimension) |
| Step dimensions | 550 (W) x 1200 (D) mm |
| Dimensions | 980 (W) x 280 (H) x 1200 (D) mm |
| Weight | 48 kg |
| Protection | Indoor |
