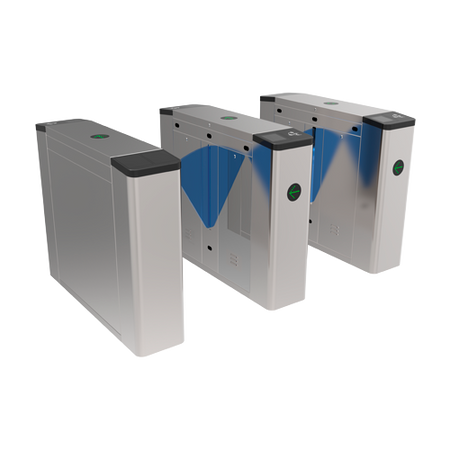

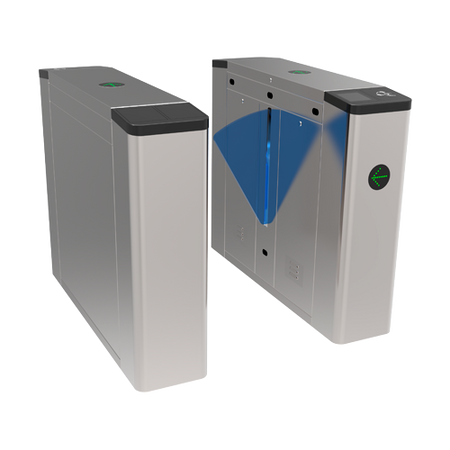

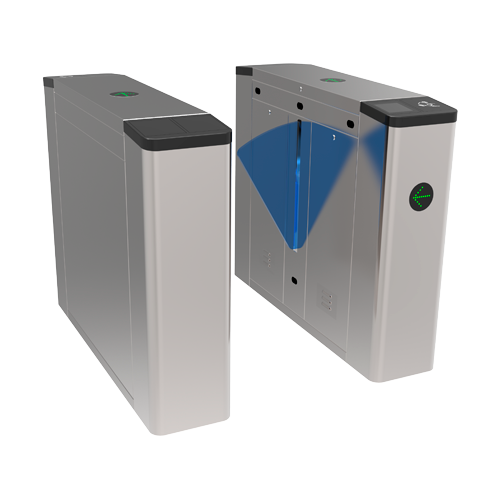

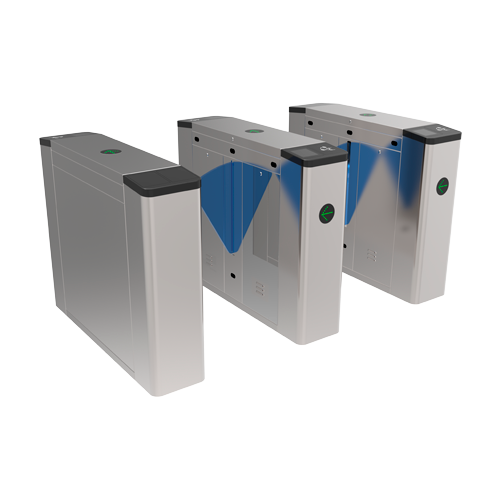

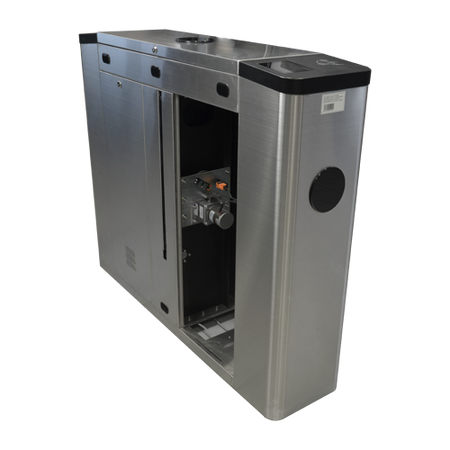

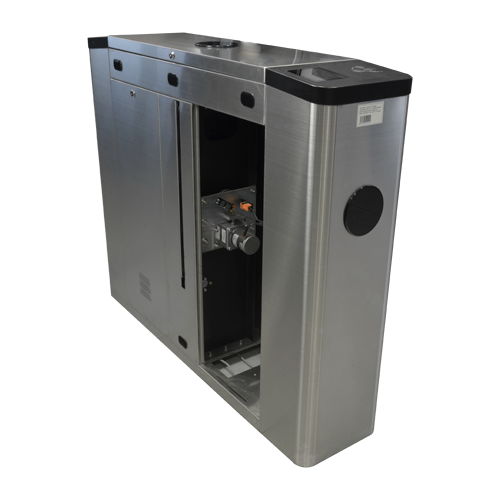

Bidirectional access gate - Retractable acrylic barrier opening - 550 mm
Bidirectional access gate - Retractable acrylic barrier opening - 550 mm
Regular price
€2.766,96
Final price
Regular price
-3%
€2.840,00
Sale price
€2.766,96
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Bidirectional access gate - Opening with retractable acrylic barrier - Schedules, alarms and opening modes - Passage width 550 mm | 3,000,000 cycles - Manufactured in SUS304 stainless steel - Compatible with third-party systems
📋 SPECIFICATIONS:
• Model: TS-FB701

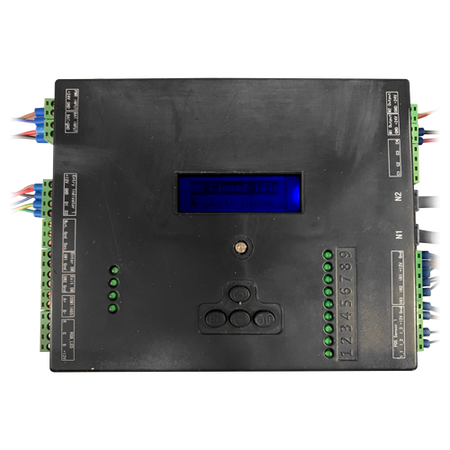

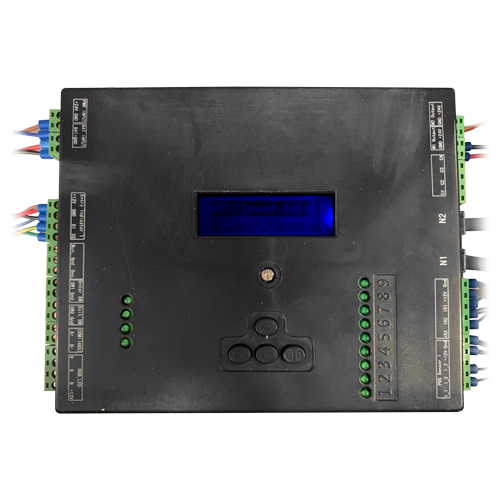

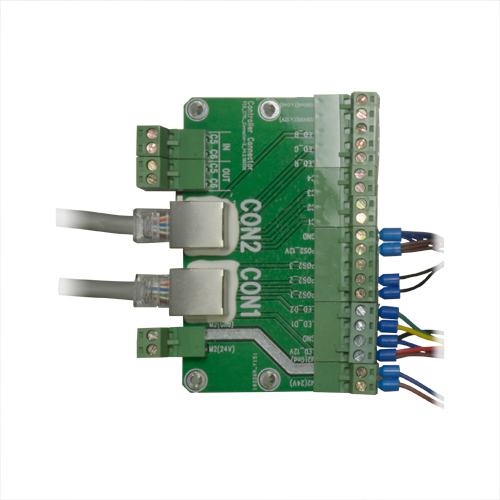

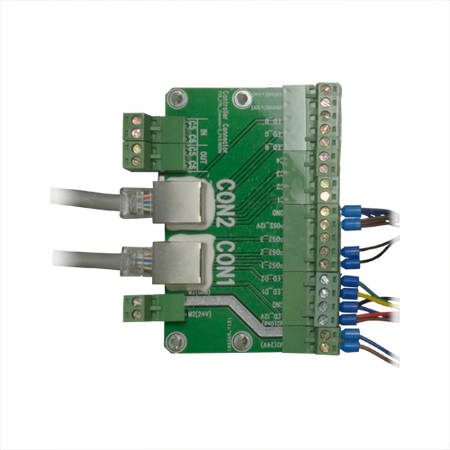

• Controller: Turnstile control board with display, compatible with any Access Control system
• LED indicator: Turnstile status LED indicator
• Barrier movement: Retractable folding for acrylic wing opening inside the turnstile
• Emergency mode: Emergency barrier opening with fire signal; automatic barrier opening in case of power failure (backup battery included)
• Security: Unauthorized access with sound and lock; configurable anti-tailgating with sound and closure
• Compatibility: Integrates with any third-party Plug & Play Access Control system / Universal covers for RFID readers
• Configuration modes: One or two directions of travel / Free passage in one direction and Access Control in the opposite direction
• Manufacturing material: SUS304 stainless steel with acrylic wings and PC covers
• Passage speed: 30-40 people/minute
• Reliability: Brushed motor; 3,000,000 cycles
• Infrared sensors: 4 pairs of infrared sensors
• Power supply: AC 110/220 V
• Operating temp.: -28º C ~ +60º C
• Lane dimensions: 550 mm
• Step dimensions: 550 (H) x 1200 (D) mm
• Dimensions: 980 (W) x 280 (H) x 1200 (D) mm
• Weight: 48 kg (each machine body)
• Protection: Indoor
📦 INCLUDED:
• Motorized gate• Mounting hardware• User instructions• Security keys
| Model | TS-FB701 |
|---|---|
| Controller | Turnstile control board with display compatible with any Access Control system |
| LED indicator | Turnstile status LED indicator |
| Barrier movement | Retractable folding for acrylic wing opening inside the turnstile |
| Emergency mode | Emergency barrier opening with fire signal, automatic barrier opening in case of power failure (backup battery included) |
| Security | Unauthorized access with sound and lock, configurable anti-tailgating with sound and locking |
| Compatibility | Integrates with any third-party Plug & Play Access Control system / Universal RFID reader covers |
| Configuration mode | Single or dual direction of travel / Free passage in one direction and Access Control in the opposite direction |
| Manufacturing material | SUS304 stainless steel with acrylic wings and PC covers |
| Throughput rate | 30-40 people/minute |
| Reliability | Brush motor 3,000,000 cycles |
| Infrared sensors | 4 pairs of infrared sensors |
| Power supply | AC 110/220 V |
| Operating temp. | -28º C ~ +60º C |
| Lane width | 550 mm |
| Passage dimensions | 550 (W) x 1200 (D) mm |
| Dimensions | 980 (W) x 280 (H) x 1200 (D) mm |
| Weight | 48 kg (each machine body) |
| Protection | Indoor |
