NOT TYPE-APPROVED FOR ROAD USE Safire - INSTALLATION NOT INCLUDED
NOT TYPE-APPROVED FOR ROAD USE Safire - INSTALLATION NOT INCLUDED
Regular price
€10.376,10
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

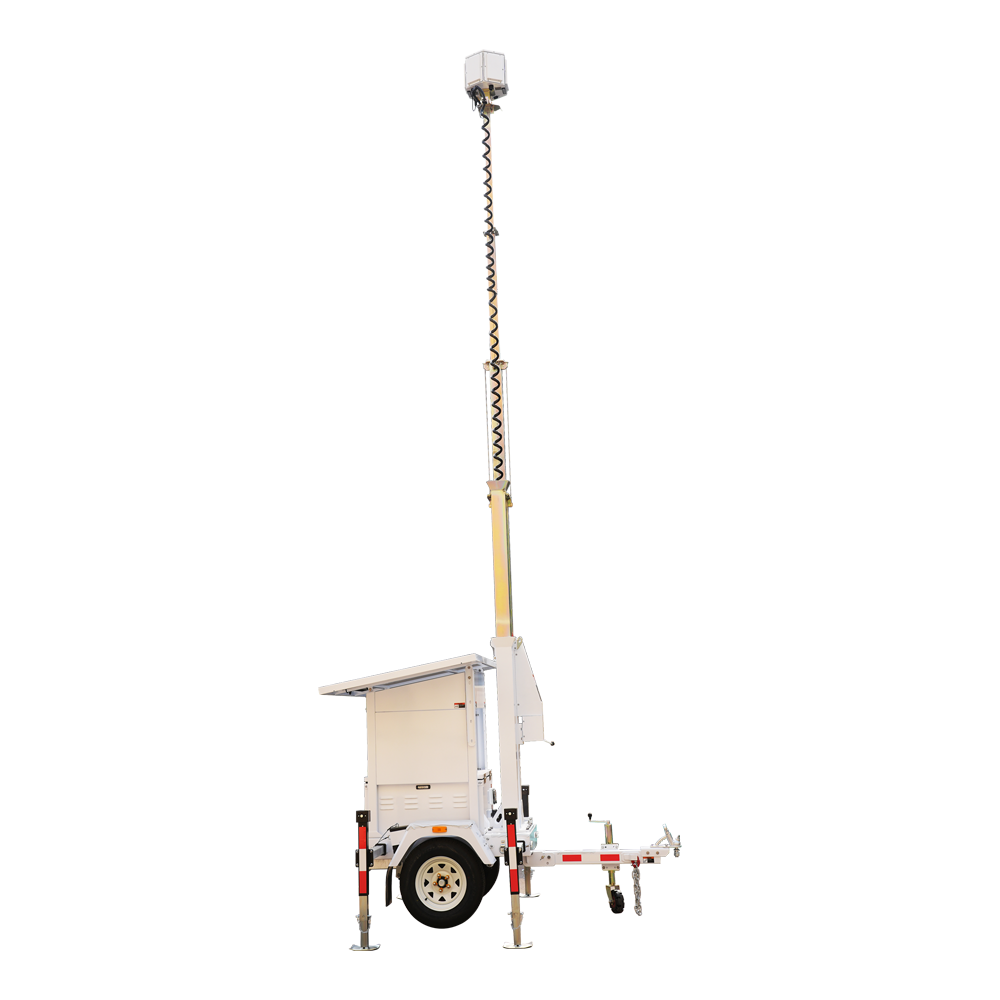

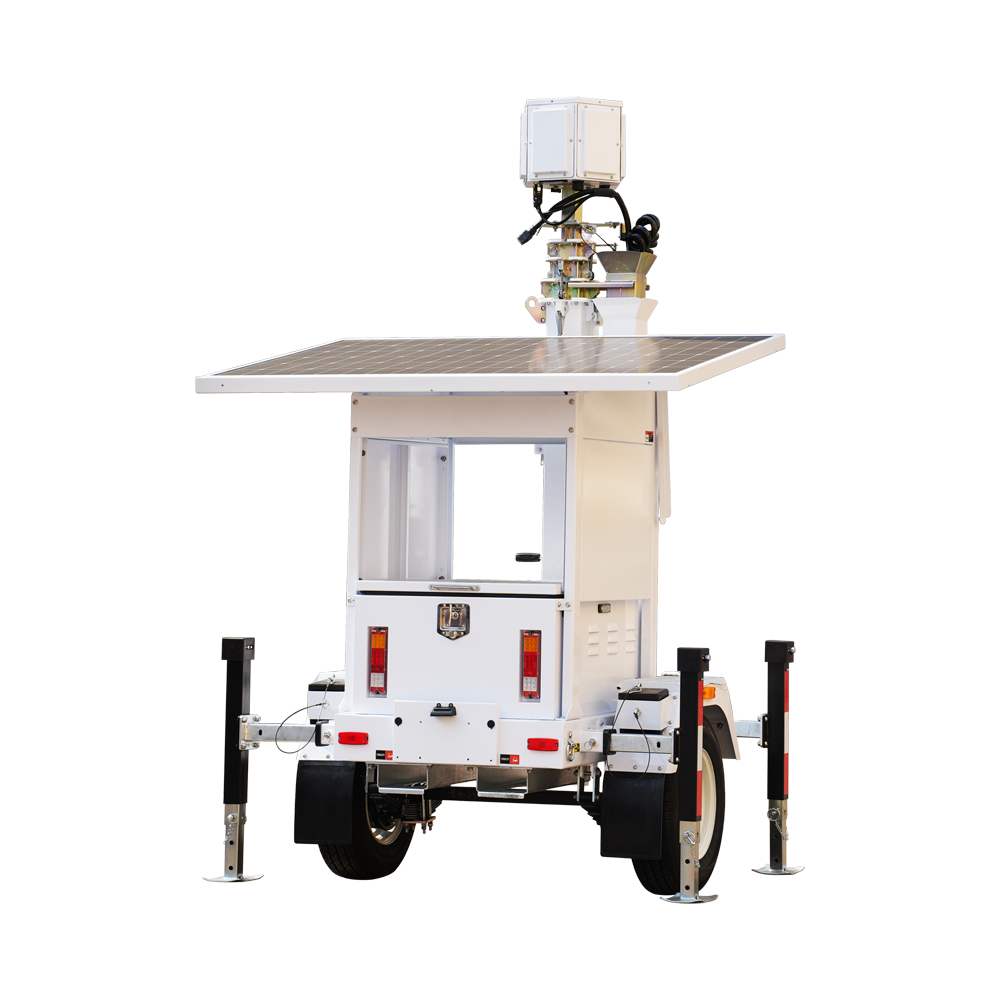

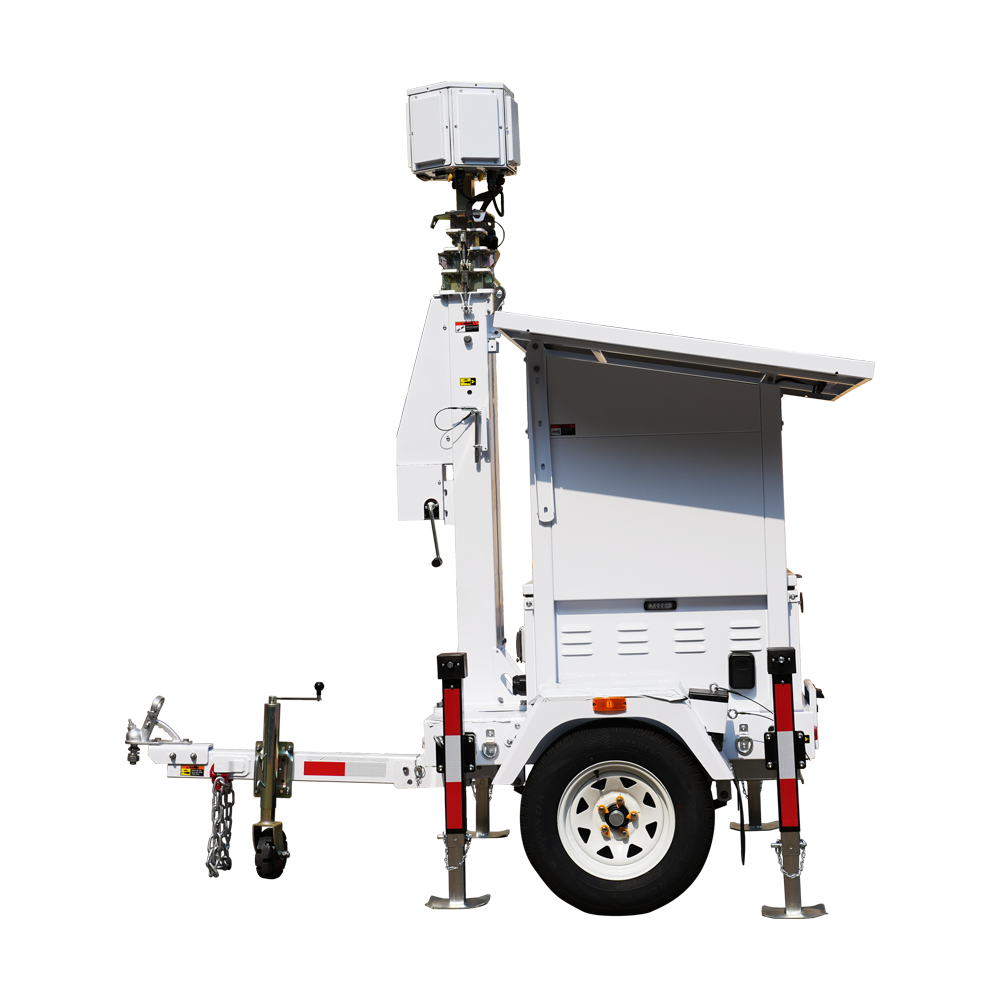

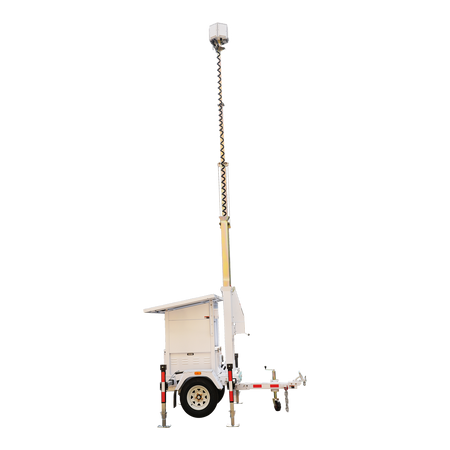

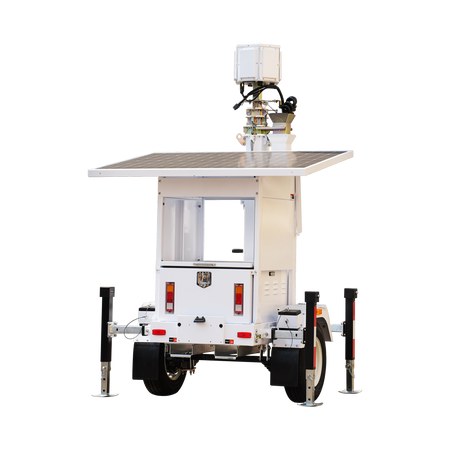

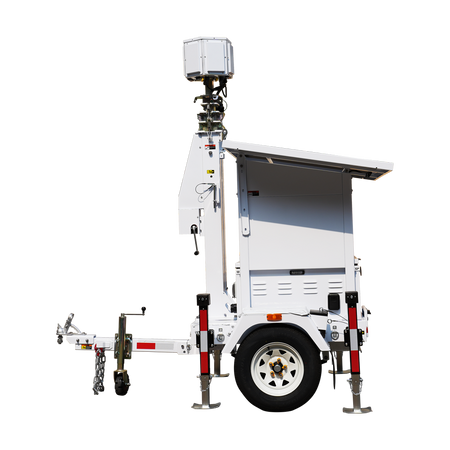

NOT ROAD LEGAL | ASSEMBLY NOT INCLUDED - Compact high-capacity CCTV trailer - Capacity 5890W/h | 440W panel | Lithium - IP65 outdoor and anti-corrosion protection - Ready for installation on perimeters and construction sites - ASSEMBLY NOT INCLUDED
📋 SPECIFICATIONS:
• Model: UST-300S
• Frame material: Q235 Steel
• Surface treatment: Outdoor powder coating + anti-corrosion
• Transport dimensions: 1340 x 1048 x 1780 mm
• Transport dimensions: 2673 x 1767 x 2884 mm
• Operational dimensions: 3834 x 2714 x 7408 mm
• Total weight: 784 kg (1728 lb)
• Nominal system voltage: DC 24V
• Operating temperature: -20°C to 60°C
• Manufacturer warranty: 2 years
• Solar panel power: 1 x 440W
• Open circuit voltage: DC 39.33V
• Solar panel efficiency: 22.3%
• Solar tilt adjustment: 10° to 45°, manual lift
• Solar controller type: EPEVER XTRA4415N G3 BLE
• Controller efficiency: 95%+
• Protection systems: Yes, integrated as standard
• Controller connectivity: Built-in Bluetooth
• Battery type: LiFePO4 (Lithium Iron Phosphate)
• Battery settings: 1 x 230Ah
• Battery voltage: DC 25.6V
• Total energy stored: 5.89 kWh
• Management system (BMS): Yes, integrated
• Battery heater: Yes, integrated as standard
• Battery life: 4000 cycles at 95% DOD (25°C)
• AC charger power: 2.5 kW
• AC charging current: 100A
• AC charger efficiency: 93%
• AC power outlet: AC 230V
• Maximum mast height: 7 meters (22.97 ft)
• Mast sections: 5 sections, square type
• Mast material: Q235 Steel, galvanized
• Lifting mechanism: Manual winch
• Traction cable: 304 Stainless steel, 5mm diameter
• Internal coiled cable: 2x Cat5e + 14x Power
• Peak load range: 5 kg to 50 kg (11 lb to 110 lb)
• Maximum wind resistance: 117 km/h (72.7 mph)
• Trailer standards: US / AU / EU standards
• Trailer lights: US / AU / EU standards
• Hitch type: 50 mm (2 inch) ball
• Jockey wheel: 200 mm (8 inches)
• Axle configuration: Single axle, suspension, electric brake
• Tire size: 14 inches
• Spirit levels: 4 pieces integrated
• Forklift pockets: Yes, integrated into the frame
• Lifting eyes: 4 pieces standard
• CCTV electrical distribution: DC 12V, 24V, 48V standard
• Integrated PoE switch: Yes, included as standard
• Warning lights: 4x Strobe lights
• Camera mounting structure: Standard quick-release structure
📦 INCLUDED:
• 1x UST-300S Solar CCTV Tower• 1x Manuals and technical documentation• 4x Galvanized mechanical stabilizers• 2x Wheel safety chocks
| Model | UST-300S |
|---|---|
| Frame material | Q235 steel |
| Surface treatment | Outdoor powder coating + anti-corrosion |
| Transport dimensions | 1340 x 1048 x 1780 mm |
| Transport dimensions | 2673 x 1767 x 2884 mm |
| Operating dimensions | 3834 x 2714 x 7408 mm |
| Total weight | 784 kg (1728 lb) |
| System nominal voltage | DC 24V |
| Operating temperature | -20°C to 60°C |
| Manufacturer warranty | 2 years |
| Solar panel power | 1 x 440W |
| Open circuit voltage | DC 39.33V |
| Solar panel efficiency | 22.3% |
| Solar tilt adjustment | 10° to 45°, manual lift |
| Solar controller type | EPEVER XTRA4415N G3 BLE |
| Controller efficiency | 95%+ |
| Protection systems | Yes, integrated as standard |
| Controller connectivity | Built-in Bluetooth |
| Battery type | LiFePO4 (Lithium Iron Phosphate) |
| Battery settings | 1 x 230Ah |
| Battery voltage | DC 25.6V |
| Total stored energy | 5.89 kWh |
| Battery Management System (BMS) | Yes, integrated |
| Battery heater | Yes, integrated as standard |
| Battery life | 4000 cycles at 95% DOD (25°C) |
| AC charger power | 2.5 kW |
| AC charging current | 100A |
| AC charger efficiency | 93% |
| AC power outlet | AC 230V |
| Maximum mast height | 7 meters (22.97 ft) |
| Mast sections | 5 sections, square type |
| Mast material | Q235 steel, galvanized |
| Lifting mechanism | Manual winch |
| Pull cable | 304 stainless steel, 5mm diameter |
| Internal coiled cable | 2x Cat5e + 14x Power |
| Peak load range | 5 kg to 50 kg (11 lb to 110 lb) |
| Maximum wind resistance | 117 km/h (72.7 mph) |
| Trailer standards | US / AU / EU standards |
| Trailer lights | US / AU / EU standards |
| Hitch type | 50 mm (2-inch) ball |
| Jockey wheel | 200 mm (8 inches) |
| Axle configuration | Single axle, suspension, electric brake |
| Tire size | 14 inches |
| Spirit levels | 4 pieces integrated |
| Forklift pockets | Yes, integrated into the frame |
| Lifting eyes | 4 pieces as standard |
| CCTV electrical distribution | DC 12V, 24V, 48V as standard |
| Integrated PoE switch | Yes, included as standard |
| Warning lights | 4x Strobe lights |
| Camera mounting structure | Standard quick-release structure |
