TOA

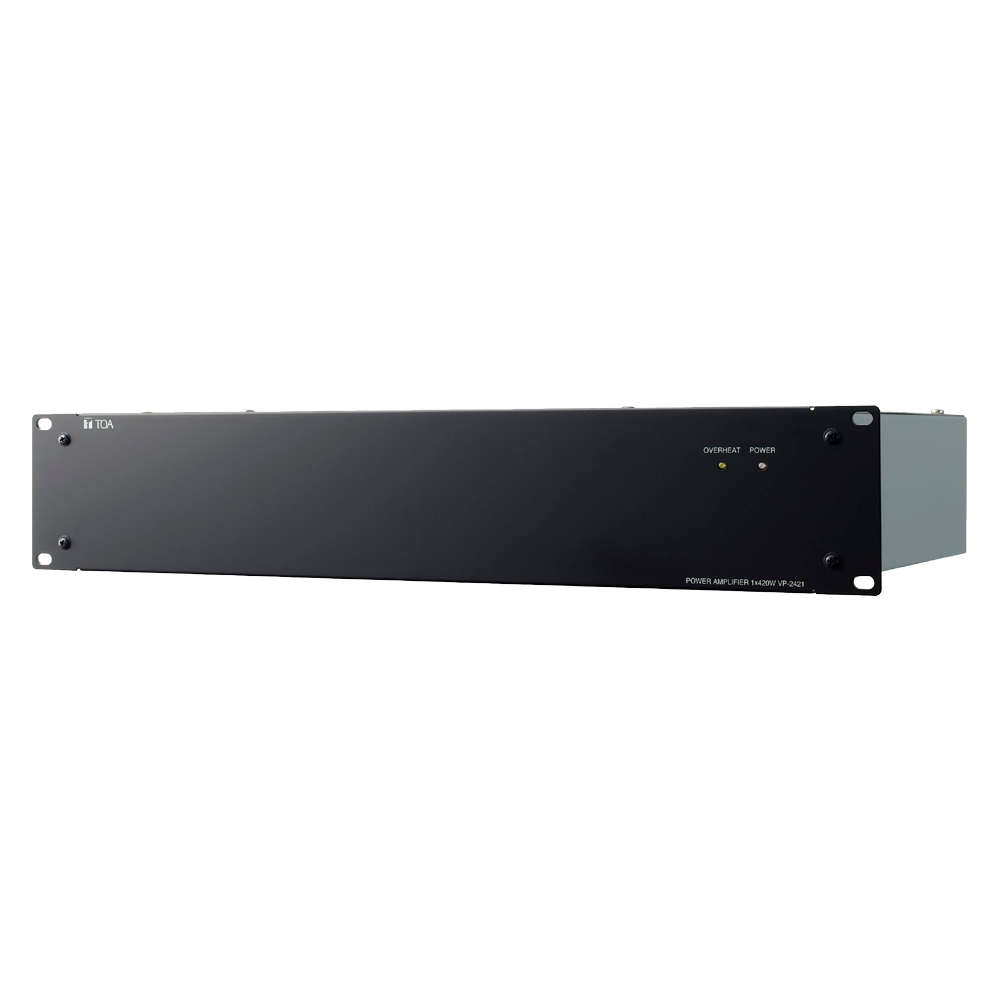

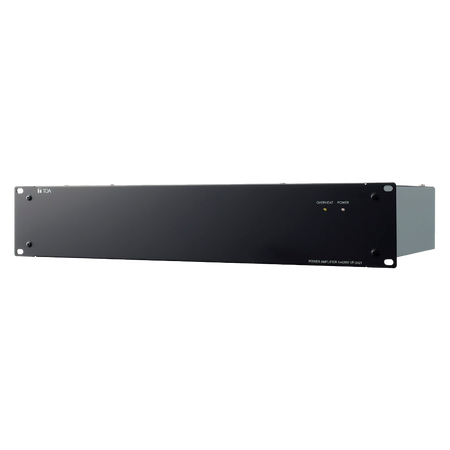

TOA VM-3000 EN54 backup amplifier

SKU: TOA-VP-2421
(0)
In stock
Usually shipped within 24 hours
€1.611,75 Final price
-9% €1.764,00 €1.611,75 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

EN54 VM-3000 backup amplifier - Automatic switching in case of failure - 420 Wrms power - Requires VP-200VX input module - Requires VX‐200PS power supply - Programmable standby mode

📋 SPECIFICATIONS:
• Model: VP-2421
• Power supply: 28 V DC (operating range: 20 - 40 V DC); M4 screw terminal, barrier distance: 12 mm
• Current consumption: 0.03 A (standby mode), 0.60 A (no audio input), 7.6 A (1/8 rated output, EN60065), 29 A (rated output)
• Rated power output: 420 W (minimum resistive load and maximum capacitive load)
• Power output (on AC mains: 195.5 V): 320 W (minimum resistive load and maximum capacitive load)
• Output voltage: 100 V (70 V, 50 V: selectable via internal wiring change)
• Minimum resistive load: 24 Ω (at 100 V), 12 Ω (at 70 V), 6 Ω (at 50 V)
• Maximum capacitive load: 0.5 μF (at 100 V), 1 μF (at 70 V), 1 μF (at 50 V)
• Number of channels: 1
• Input: Specified by the VP-200VX input module
• Number of module slots: 1, usable module: VP-200VX
• Output: Power amplifier output (speaker line):; M3.5 screw terminal, barrier distance: 8.8 mm
• Frequency response: 40 Hz - 16 kHz, ±3 dB (at 1/3 rated output)
• Distortion: 1 % or less (rated output, 1 kHz)
• Signal-to-noise ratio: 80 dB or more
• Indicator panel: Channel power indicator: 1 channel, dual-color LED indicator; overheating: yellow LED
• Operating temperature: 0 ℃ to +40 ℃
• Finish: Panel: Surface-treated steel plate, black, 30 % gloss, paint
• Dimensions: 482 (W) × 88.4 (H) × 340.5 (D) mm
• Weight: 9.5 kg
• Accessory: Chassis mounting screw... 4, fiber washer... 4

📦 INCLUDED:
• Amplifier• Installation material• User manual
Model VP-2421
Power Source 28 V DC (operating range: 20 - 40 V DC), M4 screw terminal, distance between barriers: 12 mm
Current Consumption 0.03 A (standby mode), 0.60 A (no audio input), 7.6 A (1/8 rated output, EN60065), 29 A (rated output)
Rated Power Output 420 W (minimum resistive load and maximum capacitive load)
Power Output (at AC mains 195.5 V): 320 W (minimum resistive load and maximum capacitive load)
Output Voltage 100 V (70 V, 50 V: selectable via internal wiring change)
Minimum Resistive Load 24 Ω (at 100 V), 12 Ω (at 70 V), 6 Ω (at 50 V)
Maximum Capacitive Load 0.5 μF (at 100 V), 1 μF (at 70 V), 1 μF (at 50 V)
Number of Channels 1
Input Specified by VP-200VX input module
Number of Module Slots 1, usable module: VP-200VX
Output Power amplifier output (speaker line): M3.5 screw terminal, distance between barriers: 8.8 mm
Frequency Response 40 Hz - 16 kHz, ±3 dB (at 1/3 rated output)
Distortion 1 % or less (rated output, 1 kHz)
S/N Ratio 80 dB or more
Indicator Panel Channel power indicator: 1 channel, Overheat dual-color LED indicator: yellow LED
Operating Temperature 0 ℃ to +40 ℃
Finish Panel: Surface-treated steel plate, black, 30 % gloss, paint
Dimensions 482 (W) × 88.4 (H) × 340.5 (D) mm
Weight 9.5 kg
Accessory Rack mounting screw... 4, fiber washer... 4
