TOA-PC-245AB-EB
TOA-PC-245AB-EB

Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

TOA

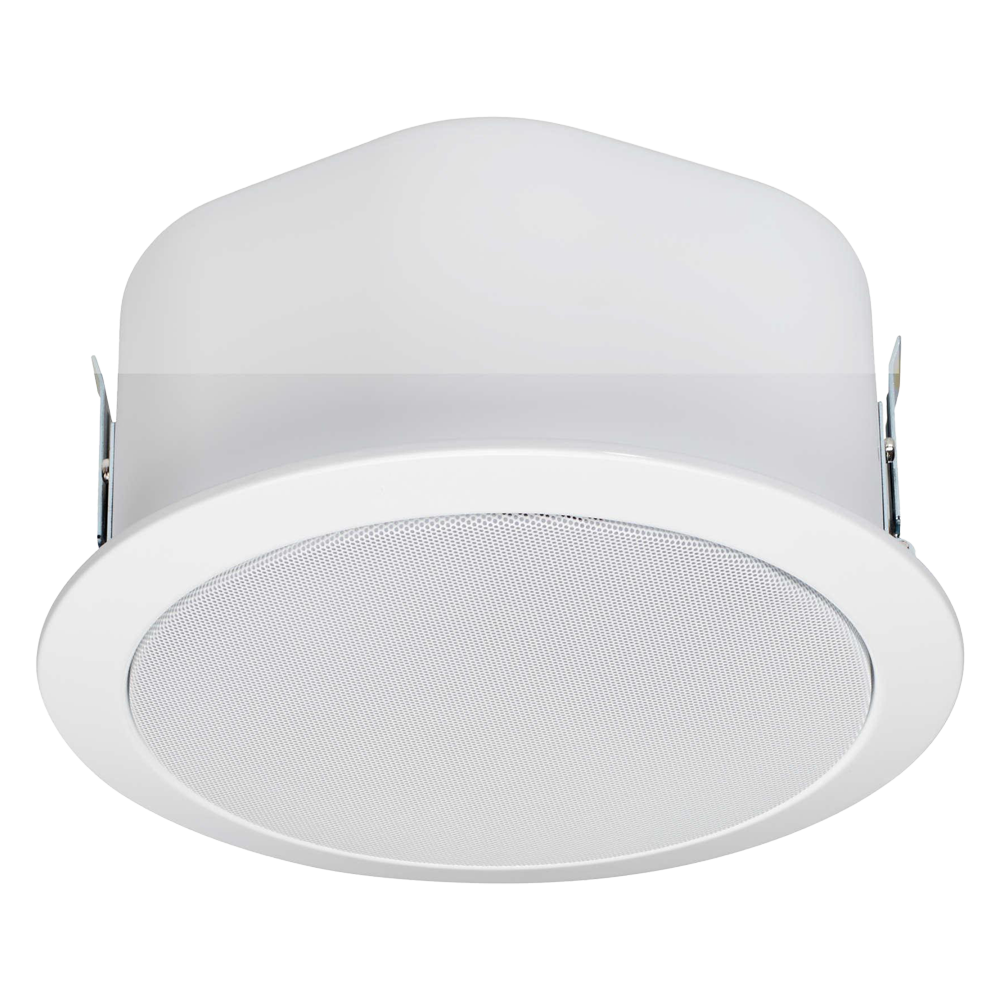

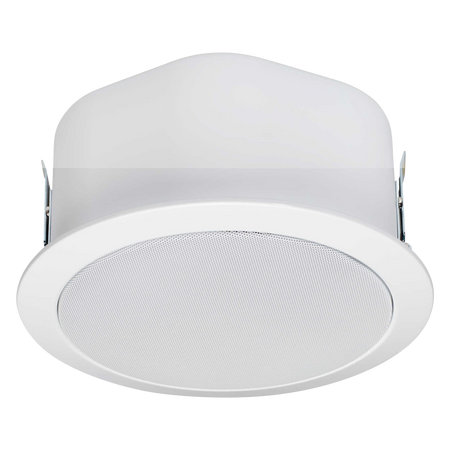

TOA ceiling speaker for 100V

SKU: TOA-PC-245AB-EB
(0)
Only 1 left
Stock running low: hurry!
€72,00 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

TOA ceiling speaker for 100V - 5" full-range speaker - Power 6 / 3 / 1.5 W - Sensitivity 91 dB - Range 150~20000 Hz - Metal dust cover / Aesthetic design

📋 SPECIFICATIONS:
• Model: TOA-PC-245AB-EB
• Speaker type: Ceiling speaker (flush mount)
• Connection: Push-in connection (bridge terminal - 2-branch type)
• Rated input (high impedance): 6 W (100 V line)
• Power selection: 100 V line: 6 W (1.67 kΩ), 3 W (3.33 kΩ), 1.5 W (6.67 kΩ)
• Speaker component: Two 8 x 12 cm (3'' x 5") cone-type units
• Sensitivity (2 x 0.5 W, 1 m): 91 dB
• Maximum SPL (2 x 6 W, 1 m): 102 dB
• Frequency response: 150 Hz - 20 kHz
• Coverage: Horizontal: 180º (500 Hz), 170º (1 kHz), 140º (2 kHz), 70º (4kHz); Vertical: 180º (500 Hz), 170º (1 kHz), 110º (2 kHz), 160º (4kHz)
• Mounting method: Spring clamps
• Finish: Painted steel plate (traffic white) / Metal dust cover
• Protection rating: IP 32 (indoor use)
• Operating temperature: -10º C ~ +55º C
• Weight: 2.05 Kg
• Dimensions: 131 (H) x 245 (Ø) x 15 (Bezel) mm

📦 INCLUDED:
• Ceiling speaker• Installation material• User manual
Model TOA-PC-245AB-EB
Speaker type Ceiling speaker (flush mount)
Connection Push-in connector (bridging terminal - 2 branch type)
Rated input (high impedance) 6 W (100 V line)
Power selection 100 V line: 6 W (1.67 kΩ), 3 W (3.33 kΩ), 1.5 W (6.67 kΩ)
Speaker component Two 8 x 12 cm (3'' x 5") cone type units
Sensitivity (2 x 0.5 W, 1 m) 91 dB
Maximum SPL (2 x 6 W, 1 m) 102 dB
Frequency response 150 Hz - 20 kHz
Coverage Horizontal: 180º (500 Hz), 170º (1 kHz), 140º (2 kHz), 70º (4 kHz) Vertical: 180º (500 Hz), 170º (1 kHz), 110º (2 kHz), 160º (4 kHz)
Mounting method Spring clamps
Finish Painted steel plate (traffic white) / Metal dust cover
Protection rating IP 32 (indoor use)
Operating temperature -10º C ~ +55º C
Weight 2.05 kg
Dimensions 131 (H) x 245 (Ø) x 15 (Bezel) mm

Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.

For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.

The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
