TODAIR

Todair stand-alone CCTV power supply system

SKU: TO-TDM100W50A
(0)
In stock
Usually shipped within 24 hours
€767,83 Final price
-5% €810,00 €767,83 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

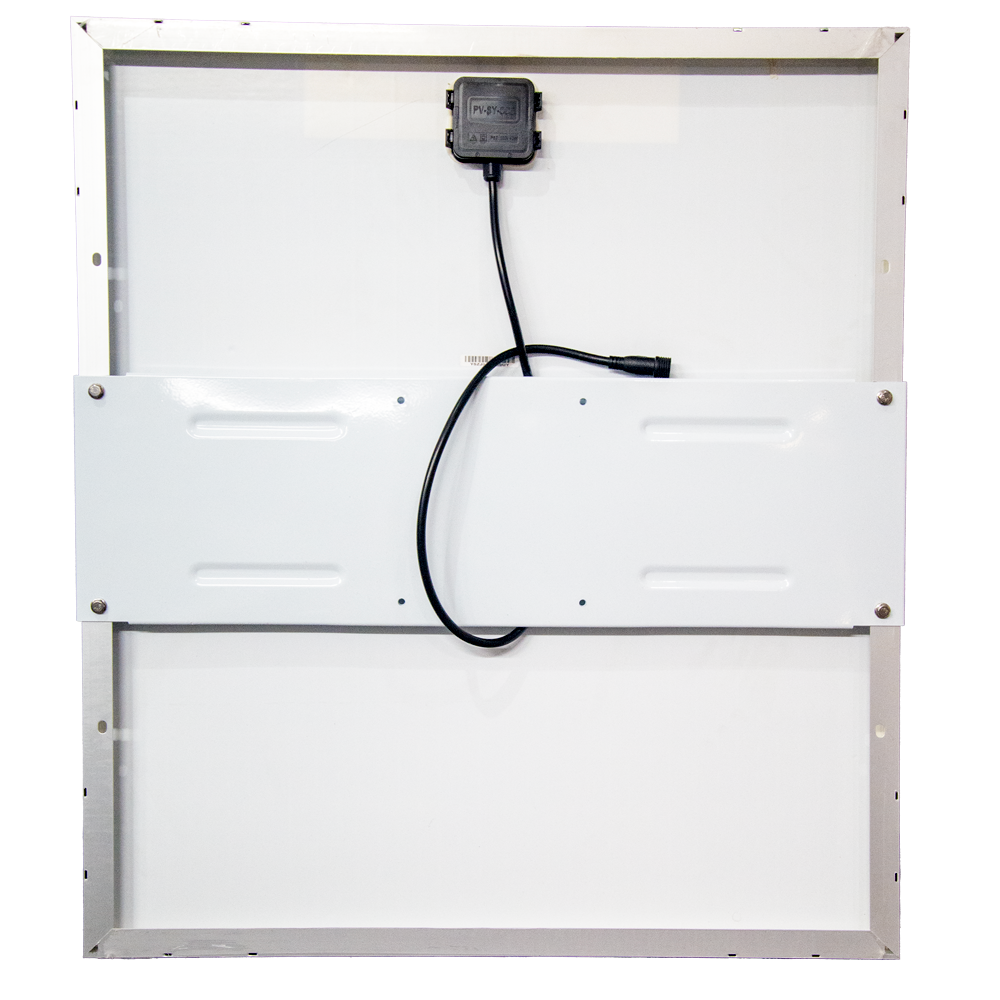

Stand-alone power system for CCTV - 100W solar panel - 665.6Wh LFP lithium battery - Integrated MPPT controller - Mounting bracket - RS-485 for communication

📋 SPECIFICATIONS:
• Nominal system voltage: 12V
• Charging current: 8 A
• Discharge current: 8 A
• Maximum input voltage: 18 V
• Maximum open-circuit voltage: 46 V (25 ºC)
• RS485 communication: Optional bridge required for cloud platform use
• Material: LFP Lithium
• Operating temperature: -20ºC + 50ºC
• Relative humidity: ≤95%
• Maximum power: 100 W
• Vmp voltage: 18.9 V
• Open-circuit voltage: 22.5 V
• Peak current: 5.74 A
• Short-circuit current: 6.08 A
• Short-circuit voltage: 22.5 V
• Maximum system voltage: 1000 V DC (IEC)/600 V DC (UL)
• Protection diode: 2 per step / 4 per step
• Transfer efficiency: 20% - 21%
• Tolerance: -3/+3 %
• Dimensions: 86 x 76 x 28 CM
• Weight: 5.9 kg
• Protection rating: IP 67
• Connector type: MC4
• Temperature properties: Operating temperature -5℃~65℃; Storage temperature -40℃~75℃
• Capacity: 50 AH / 665.6 Wh
• Voltage: V
• Power: W
• Internal resistance: ≤80mΩ
• Maximum charge: -V (4.2V/cell)
• Maximum discharge: -V (2.8V/cell)
• Maximum charging current: 10 A
• Operating temperature: -20 ºC～55 ºC
• Storage relative humidity: 5%～95% (non-condensing)
• Material: Hand-painted galvanized steel sheet
• Total weight: 26 kg

📦 INCLUDED:

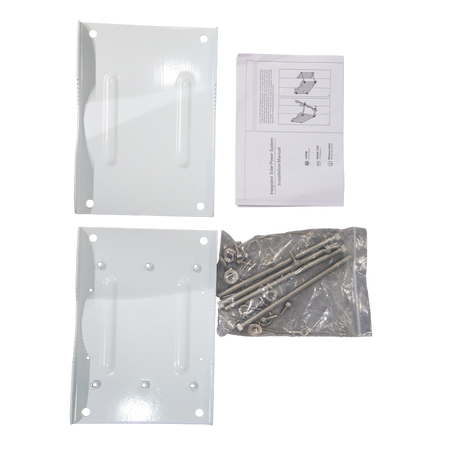

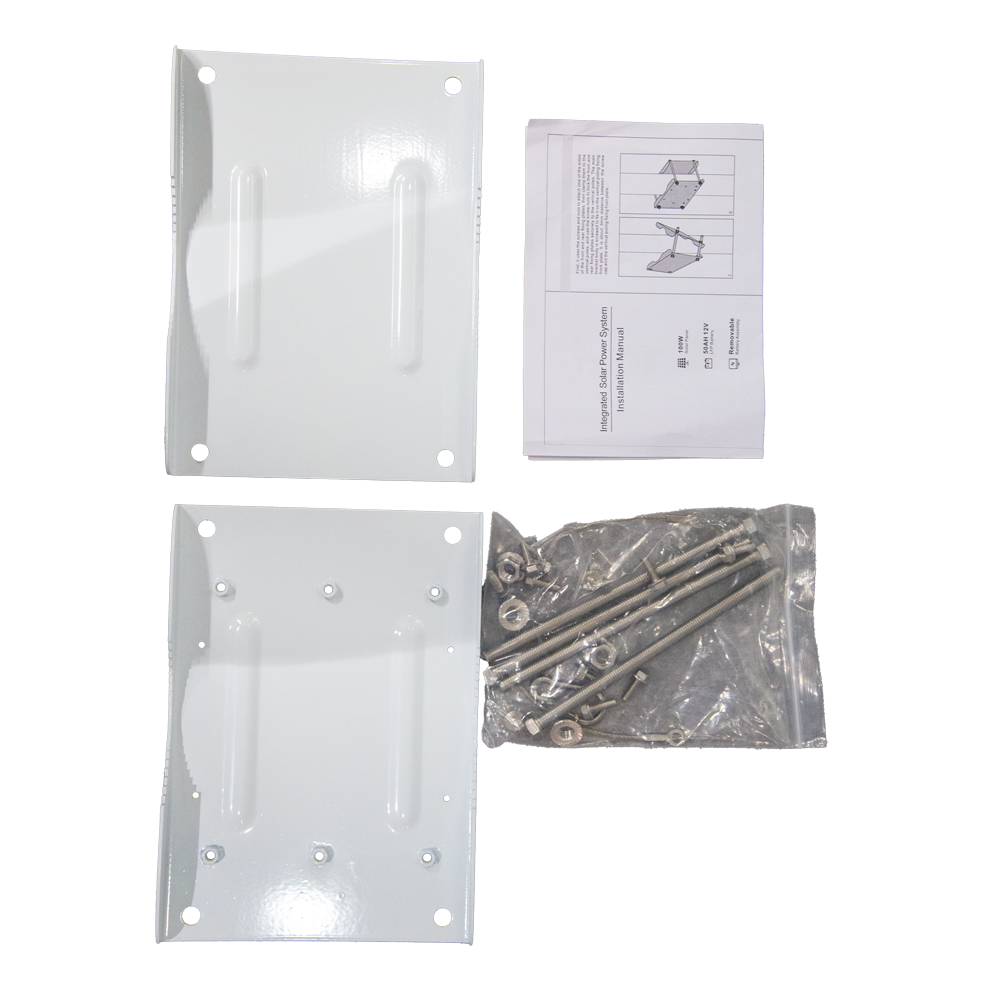

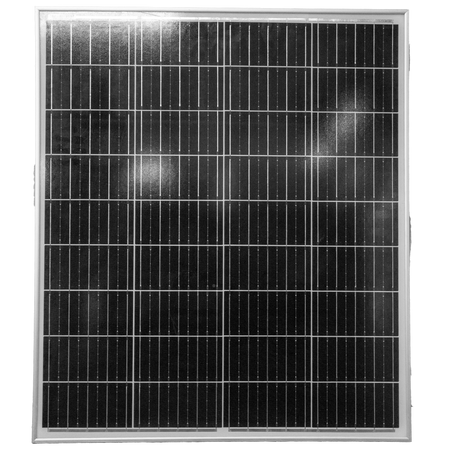

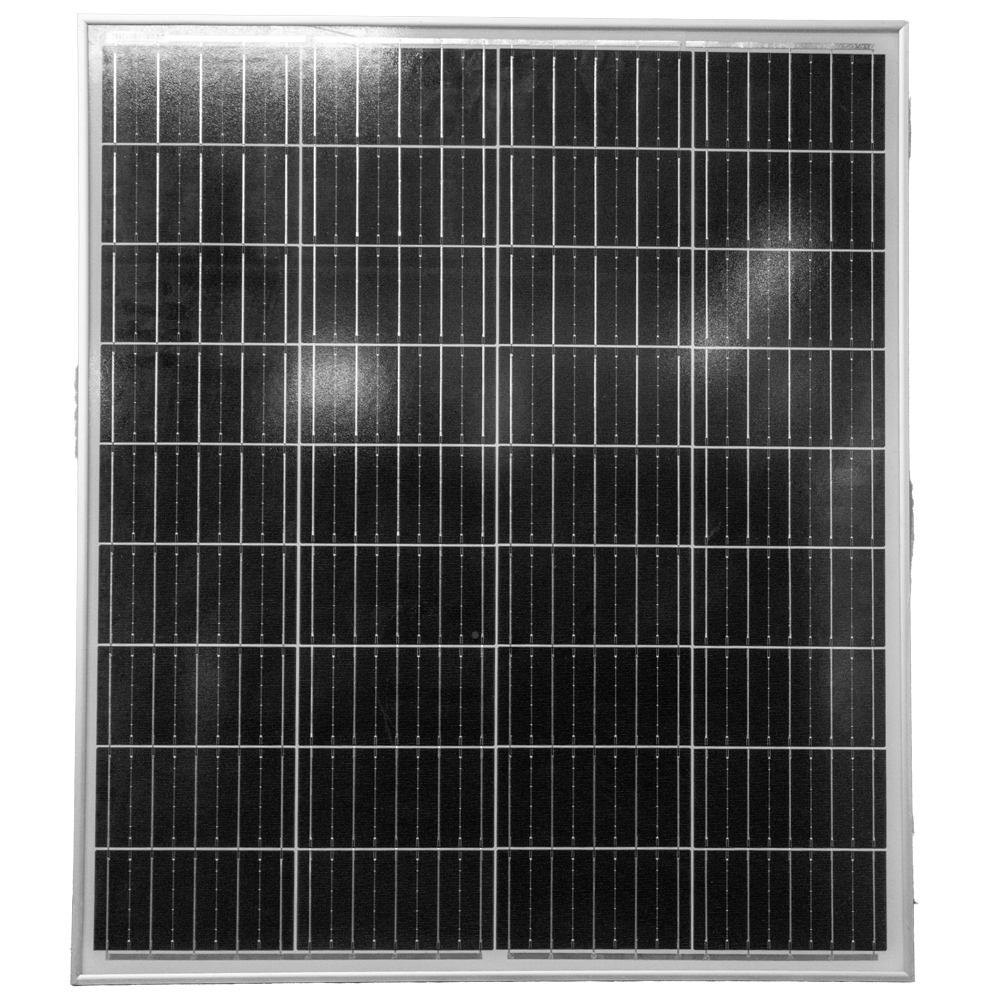

• 100W Solar panel• 665.6Wh LFP lithium battery• Pole bracket• Mounting accessories• Assembly instructions• Pole is NOT included
System nominal voltage 12V
Charging current 8 A
Discharge current 8 A
Maximum input voltage 18 V
Maximum open circuit voltage 46 V (25 ºC)
RS485 communication Optional bridge required for cloud platform use
Material LFP Lithium
Operating temperature -20ºC + 50ºC
Relative humidity ≤95%
Maximum power 100 W
Vmp voltage 18.9 V
Open circuit voltage 22.5 V
Peak current 5.74 A
Short-circuit current 6.08 A
Short-circuit voltage 22.5 V
Maximum system voltage 1000 V DC (IEC)/600 V DC (UL)
Protection diode 2 per step / 4 per step
Transfer efficiency 20% - 21%
Tolerance -3/+3 %
Dimensions 86 x 76 x 28 CM
Weight 5.9 kg
Protection rating IP 67
Connector type MC4
Temperature properties Operating temperature -5℃~65℃ Storage temperature -40℃~75℃
Capacity 50 AH / 665.6 Wh
Voltage - V
Power - W
Internal resistance ≤80mΩ
Maximum charge -V (4.2V/cell)
Maximum discharge -V (2.8V/cell)
Maximum charging current 10 A
Operating temperature -20 ºC～55 ºC
Storage relative humidity 5%～95% (non-condensing)
Material Hand-painted galvanized steel sheet
Total weight 26Kg
