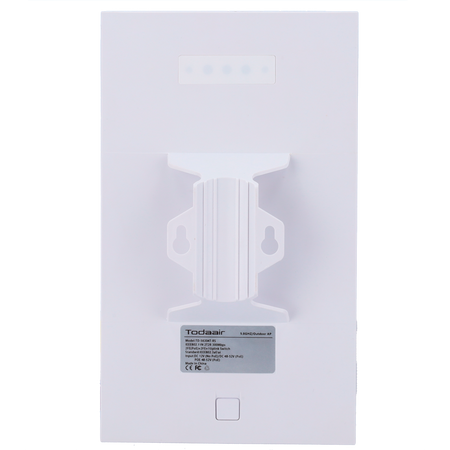

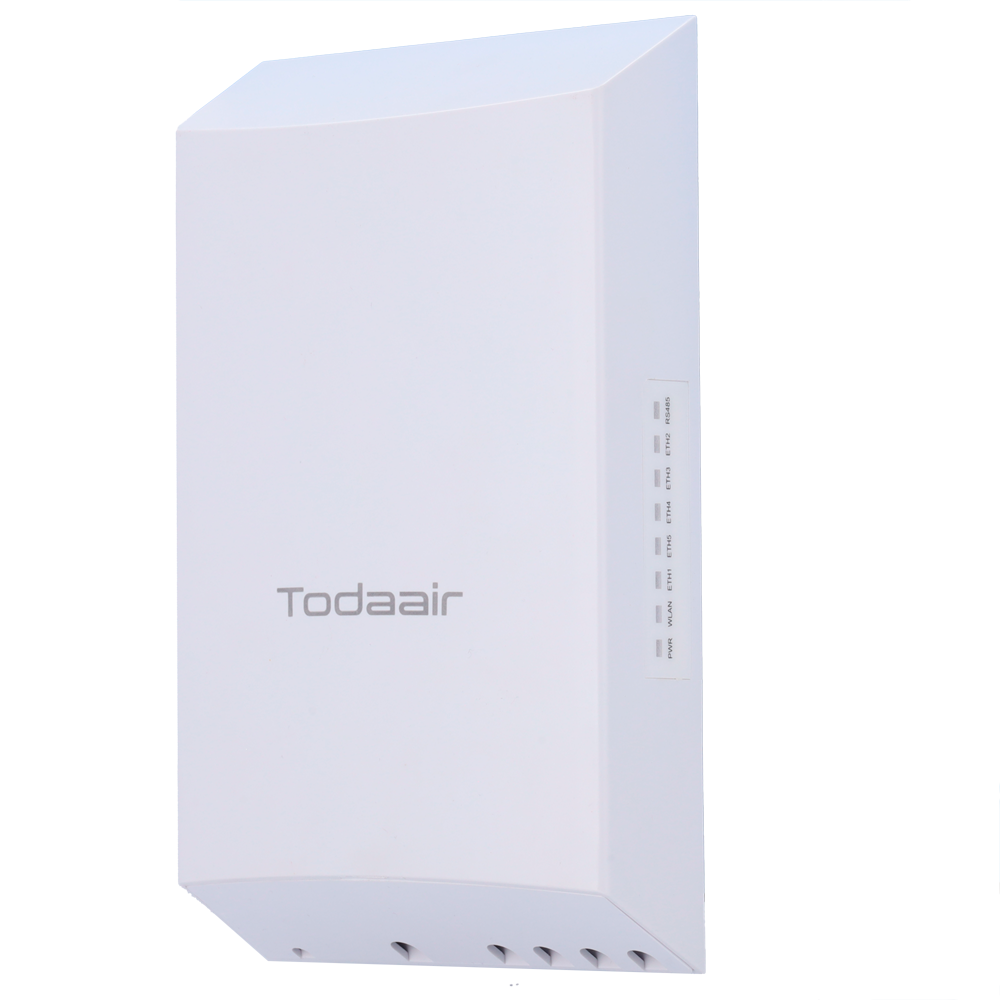

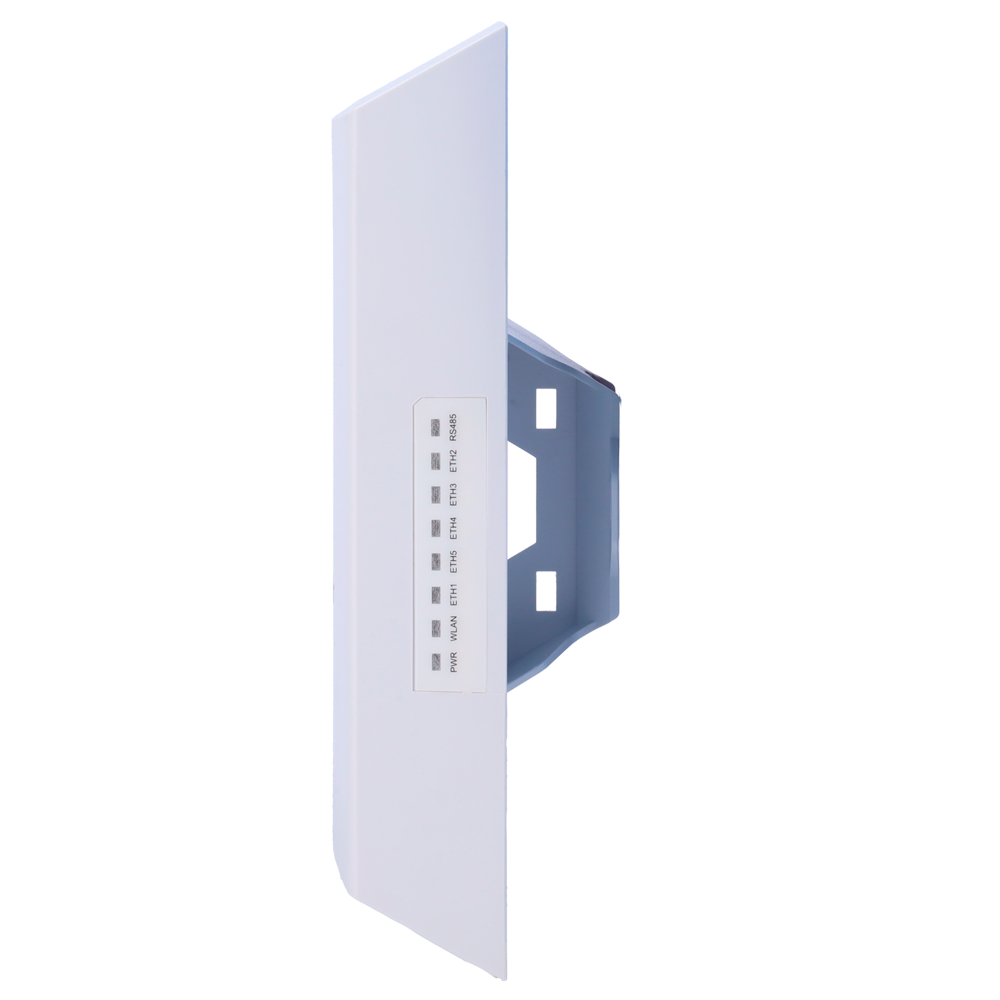

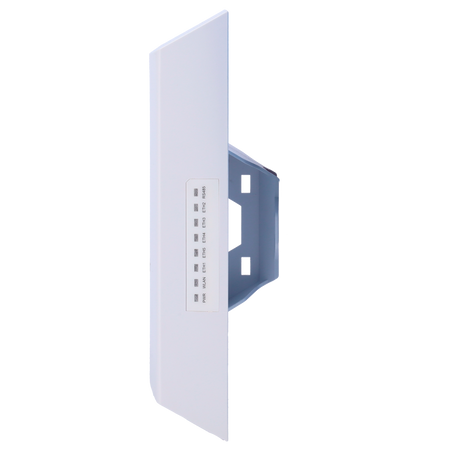

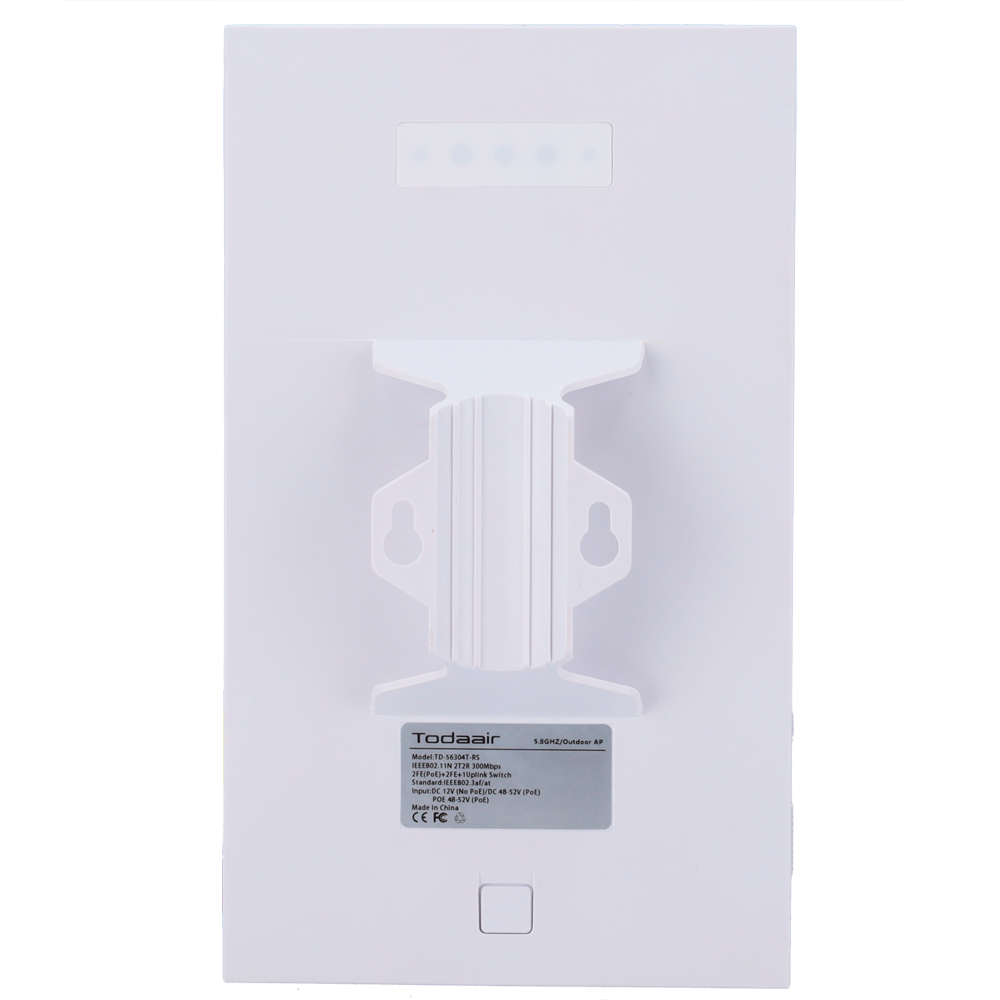

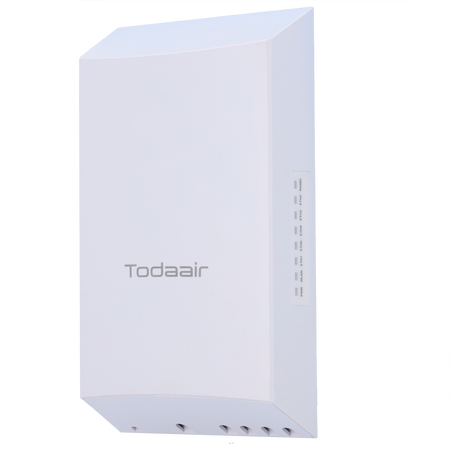

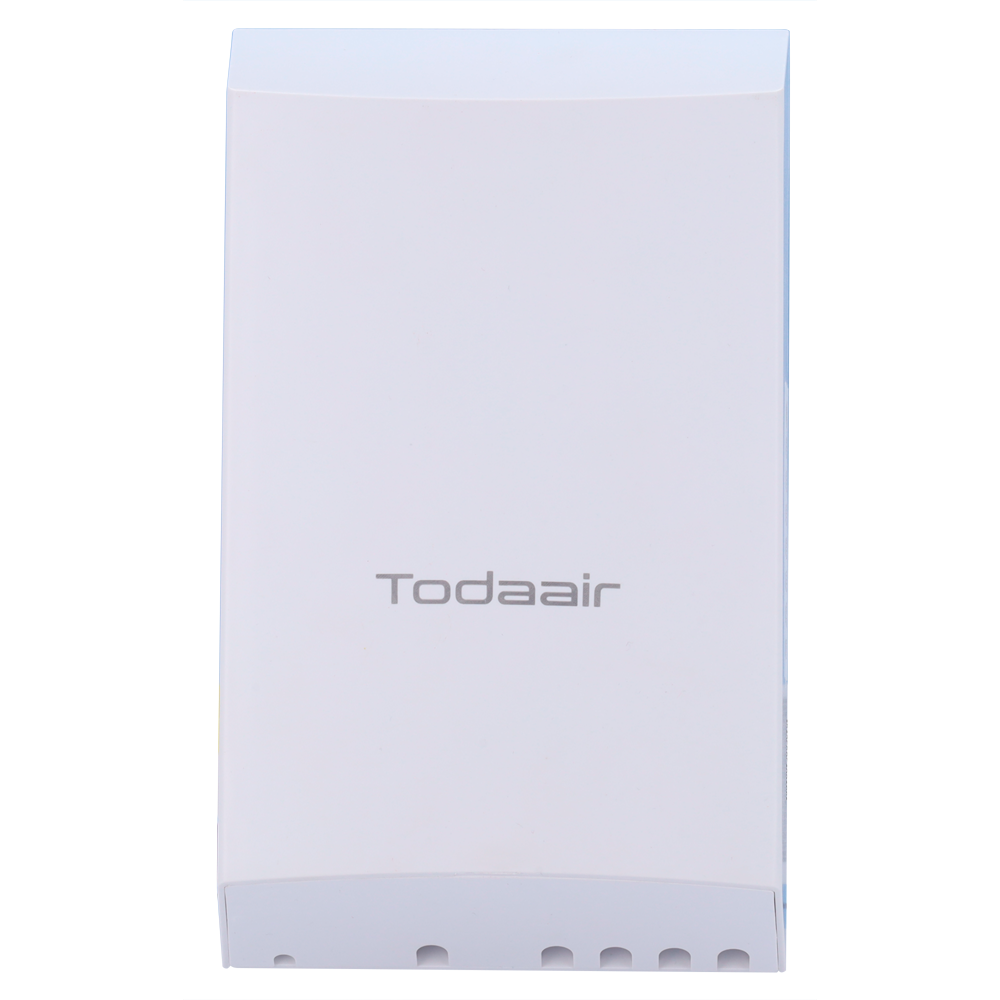

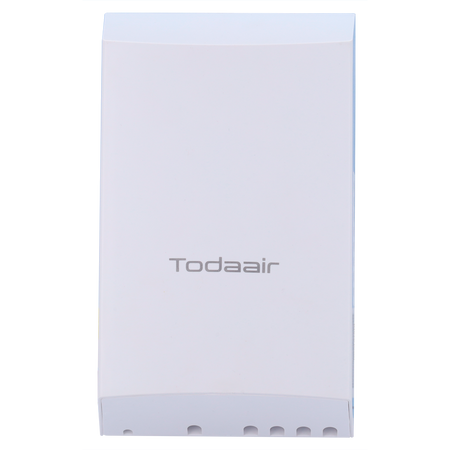

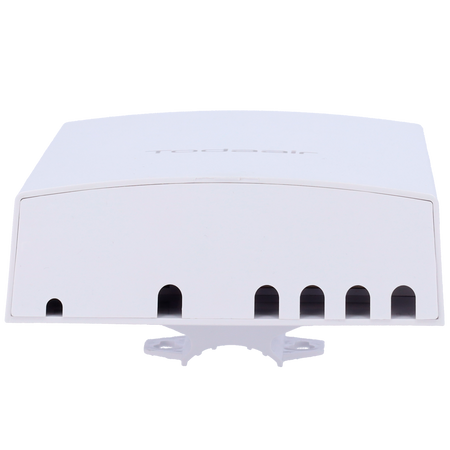

TODAIR - Wireless link up to 3 km - 5.8 GHz frequency - Based on 802.11 a/n - IP55, suitable for outdoor use - RS485 for solar panel and battery monitoring
📋 SPECIFICATIONS:
• Brand: TODAIR
• Chipset: Atheros AR9344 600MHz
• DRAM: DDR2 64MByte
• Flash: 8MByte

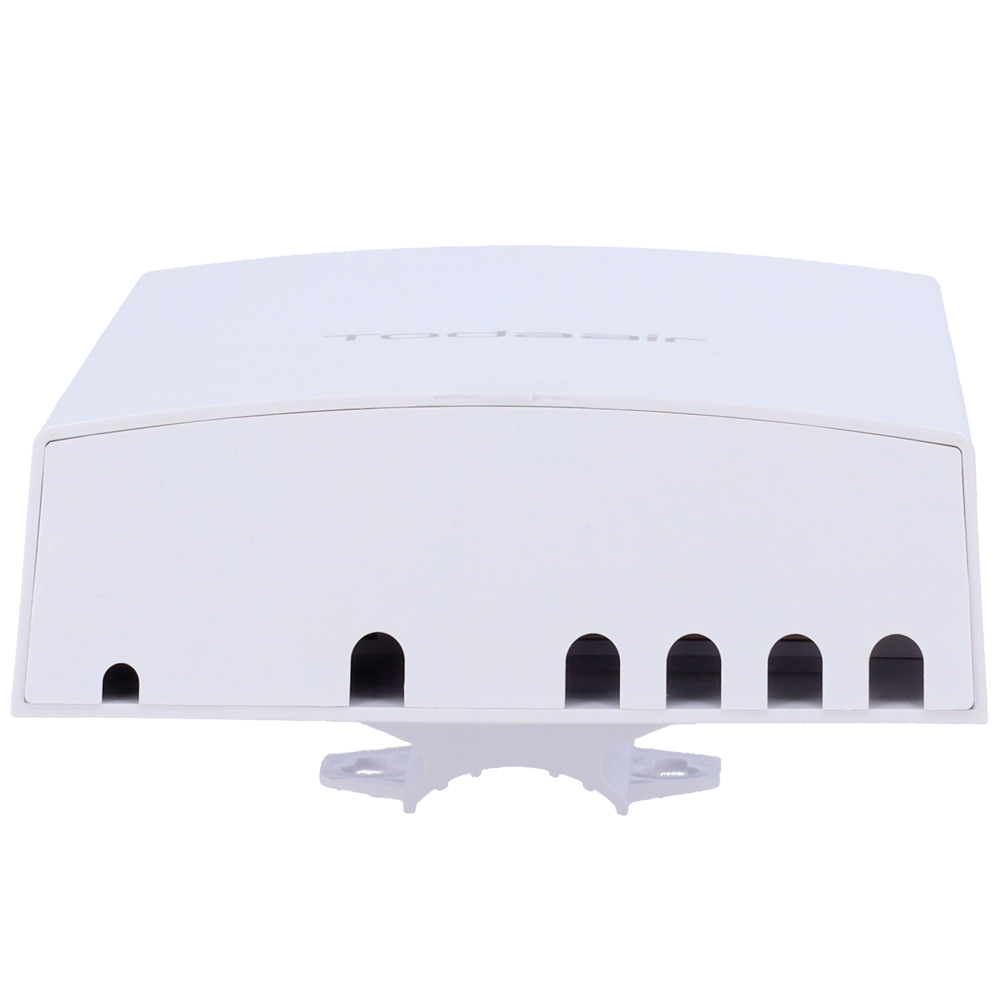

• Ethernet Ports: 5 x 10/100 Mbps RJ45 ports (if POE48 input is present on the ETH1 port, ports ETH2-3 support standard 802.3af/at 48V output)
• Power Connector: 1 x DC interface (ETH2-3 port supports IEEE802.3af/at standard POE48V output when DC input voltage is 48-52V)
• RS485: Communication port for monitoring solar panels and batteries via the manufacturer's cloud platform
• Data Rate: 11a: 54M,48M,36M,24M,18M,12M,9M,6Mbps; HT20:7.2M,14.4M,21.7M,28.9M,43.3M,57.8M,65M,72.2M,14.4M,28.9M,43.3M,57.8M,86.7M,115.6M,130M,144.4Mbps; HT40:15M,30M,45M,60M,90M,120M,135M,150M,30M,60M,90M,120M,180M,240M,270M,300Mbps
• Transmission: Direct Sequence Spread Spectrum (DSSS)
• Modulation: OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK
• Network Standards: Wireless Bridge: IEEE802.11n, IEEE802.11a, IEEE802.3u; Switch: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af, IEEE802.3at
• Protocols: CSMA/CA, TCP/IP, IPX/SPX, NetBEUI, DHCP, NDIS3, NDIS4, NDIS5
• Supported Channels: 4900 ~ 6100MHz
• Power Consumption: ≤6W
• Power Supply: DC 12-52V / POE 48-56V (PoE 25W per port with 60W power supply)
• Performance: Backplane bandwidth 1 Gbps; Packet forwarding rate: 12.96 Mpps; Wire-speed forwarding for all ports; MAC address table size: 4K; Auto MDI/MDI-X: Yes
• RF Power: 802.11a; 6-24Mbps 27±2dBm; 36-48Mbps 26±2dBm; 54Mbps 25±2dBm; 802.11n; HT20; MCS 0-3 27±2dBm; MCS 4 26±2dBm; MCS 5 25.5±2dBm; MCS 6 25±2dBm; MCS 7 24.5±2dBm; HT40; MCS 0-3 26±2dBm; MCS 4 25.5±2dBm; MCS 5 25±2dBm; MCS 6 24.5±2dBm; MCS 7 24±2dBm
• Sensitivity: 802.11a 6Mbps ≤ -89, 54Mbps ≤-73; 802.11n; HT20 MCS 0 ≤ -86, MCS7≤-68; HT40 MCS 0 ≤ -83, MCS7≤-65
• Antenna: Frequency range 4900 ~ 6100Mhz; Polarization - vertical/horizontal; Gain - 16Dbi
• Management: Web server, SNMP MIB, Telnet, Serial port
• Security: MAC control, WEP 64/128 bit encryption, WPA, WPA2, 802.1x
• Operating Temperature: -30 ~ 65℃
• Storage Temperature: -50 ~ 80℃
• Relative Humidity: ≤ 95% non-condensing
• Dimensions: 228 x 135 x 43mm
• Weight: 0.4kg
📦 INCLUDED:
• Device • Power supply • Wall plugs and screws • Metal washer for pole mounting
| Chipset | Atheros AR9344 600MHz |
|---|---|
| DRAM | DDR2 64MByte |
| Flash | 8MByte |
| Ethernet ports | 5 x 10/100 Mbps RJ45 ports (if a POE48 input is present on the ETH1 port, the ETH2-3 ports support 48V 802.3af/at standard output) |
| Power connector | 1 x DC interface (ETH2-3 ports support IEEE802.3af/at standard POE48V output when the DC input voltage is 48-52 V) |
| RS485 | Communication port for monitoring solar panels and batteries via the manufacturer's cloud platform |
| Data rate | 11a: 54M, 48M, 36M, 24M, 18M, 12M, 9M, 6Mbps HT20: 7.2M, 14.4M, 21.7M, 28.9M, 43.3M, 57.8M, 65M, 72.2M, 14.4M, 28.9M, 43.3M, 57.8M, 86.7M, 115.6M, 130M, 144.4Mbps HT40: 15M, 30M, 45M, 60M, 90M, 120M, 135M, 150M, 30M, 60M, 90M, 120M, 180M, 240M, 270M, 300Mbps |
| Transmission | Direct Sequence Spread Spectrum (DSSS) |
| Modulation | OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK |
| Network standards | Wireless Bridge: IEEE802.11n, IEEE802.11a, IEEE802.3u Switch: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af, IEEE802.3at |
| Protocols | CSMA/CA, TCP/IP, IPX/SPX, NetBEUI, DHCP, NDIS3, NDIS4, NDIS5 |
| Supported channels | 4900 ~ 6100MHz |
| Power dissipation | ≤6W |
| Power supply | DC 12-52V / POE 48-56V (PoE 25W per port with 60W power supply) |
| Performance | Backplane bandwidth 1 Gbps Packet forwarding rate: 12.96 Mpps Wire-speed forwarding for all ports MAC address table size: 4K Auto MDI/MDI-X: Yes |
| RF power | - 802.11a 6-24Mbps 27±2dBm 36-48Mbps 26±2dBm 54Mbps 25±2dBm - 802.11n HT20 MCS 0-3 27±2dBm MCS 4 26±2dBm MCS 5 25.5±2dBm MCS 6 25±2dBm MCS 7 24.5±2dBm HT40 MCS 0-3 26±2dBm MCS 4 25.5±2dBm MCS 5 25±2dBm MCS 6 24.5±2dBm MCS 7 24±2dBm |
| Sensitivity | 802.11a 6Mbps ≤ -89, 54Mbps ≤-73 802.11n HT20 MCS 0 ≤ -86, MCS7≤-68 HT40 MCS 0 ≤ -83, MCS7≤-65 |
| Antenna | Frequency range 4900 ~ 6100MHz Polarization - vertical/horizontal Gain - 16dBi |
| Management | Web server, SNMP MIB, Telnet, Serial port |
| Security | MAC control 64/128-bit WEP encryption, WPA, WPA2, 802.1x |
| Operating temperature | -30 ~ 65℃ |
| Storage temperature | -50 ~ 80℃ |
| Relative humidity | ≤ 95% non-condensing |
| Dimensions | 228 x 135 x 43mm |
| Weight | 0.4kg |
