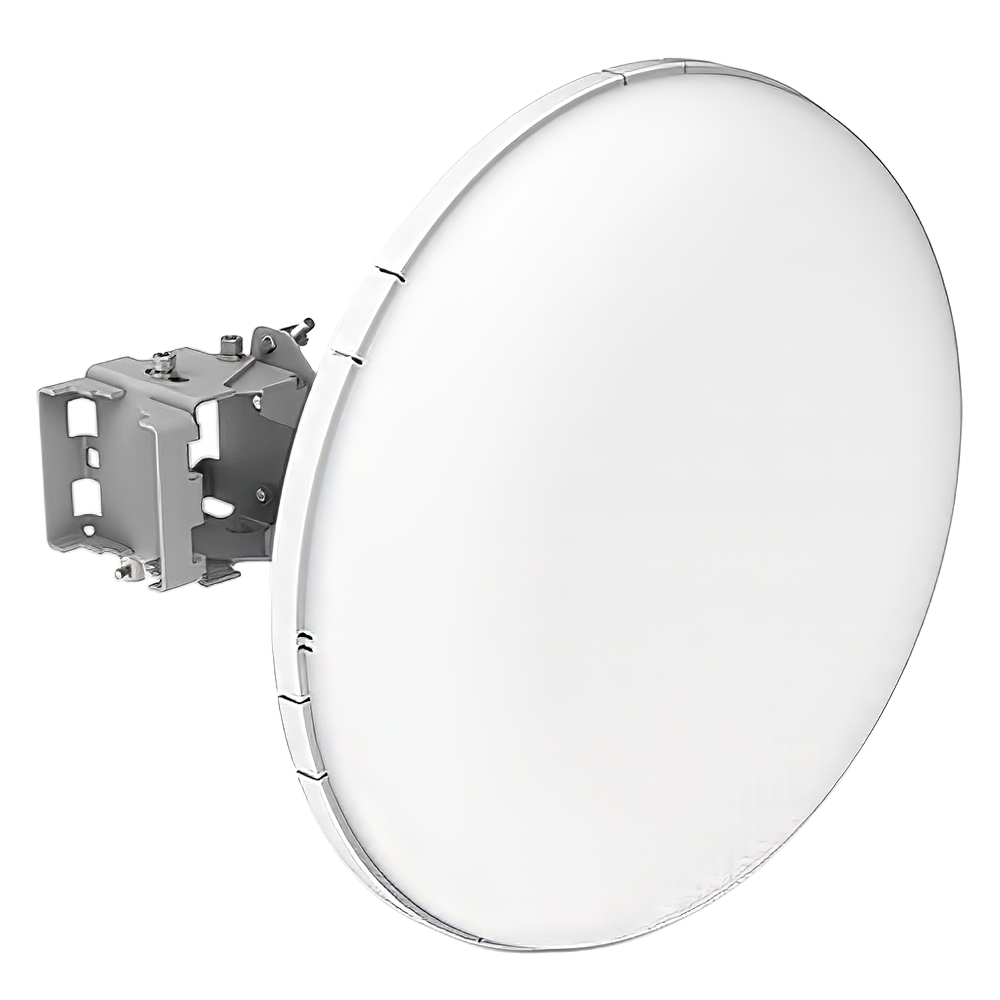

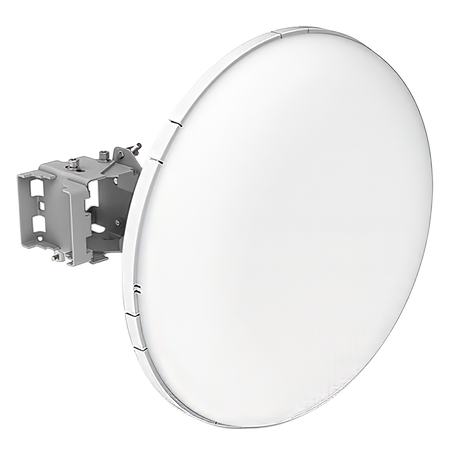

Tachyon Networks TNA-AK-300 Antenna Kit - Ultra-high power 42 dBi gain - 2º x 2º focused beam - Enables long-distance radio links (6 km) - 300 x 300 x 80 mm industrial design - Compatible with TNA-M-P mounting bracket
📋 SPECIFICATIONS:
• Device type: Modular antenna kit (passive)
• Compatibility: Exclusive to TNA-303X/TNA-305X unit
• Antenna gain: 42 dBi
• Beam-steering range: 2° x 2°
• Operating frequency: 57-71 GHz (Full band: Channels 1-6)
• Supported throughput: Up to 2.3 Gbps (2+ Gbps)
• Maximum distance (System): Up to 6 km
• Maximum system EIRP: 64 dBm
• Operating mode: Accessory for Station / Access Point
• Wireless encryption: AES 128 + GCMP (supported by base radio station)
• Traffic scheduling: Dynamic TDMA (supported by base radio station)
• Polarization: Linear (supported by base radio station)
• Maximum MTU: 7900 bytes (supported by base radio station)
• Network mode: Transparent bridge / VLAN passthrough
• Physical interfaces: Mechanical coupling to TNA-303X/TNA-305X
• Recommended mount: TNA-M-P (not included)
• Operating temperature: -30 °C to 55 °C
• Dimensions: 300 x 300 x 80 mm
📦 INCLUDED:
• 1x Tachyon TNA-AK-300 Modular Antenna Kit• 1x Installation and alignment documentation
| Device type | Modular antenna kit (passive) |
|---|---|
| Compatibility | Exclusive to TNA-303X/TNA-305X unit |
| Antenna gain | 42 dBi |
| Beam-steering range | 2° x 2° |
| Operating frequency | 57-71 GHz (Full band: Channels 1-6) |
| Supported throughput | Up to 2.3 Gbps (2+ Gbps) |
| Maximum distance (System) | Up to 6 km |
| Maximum system EIRP | 64 dBm |
| Operating mode | Accessory for Station / Access Point |
| Wireless encryption | AES 128 + GCMP (supported by base radio station) |
| Traffic scheduling | Dynamic TDMA (supported by base radio station) |
| Polarization | Linear (supported by base radio station) |
| Maximum MTU | 7900 bytes (supported by base radio station) |
| Network mode | Transparent bridge / VLAN passthrough |
| Physical interfaces | Mechanical coupling to TNA-303X/TNA-305X |
| Recommended support | TNA-M-P (not included) |
| Operating temperature | -30 °C to 55 °C |
| Dimensions | 300 x 300 x 80 mm |
