Tachyon Networks Antenna Kit - 150
Regular price
€65,42
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

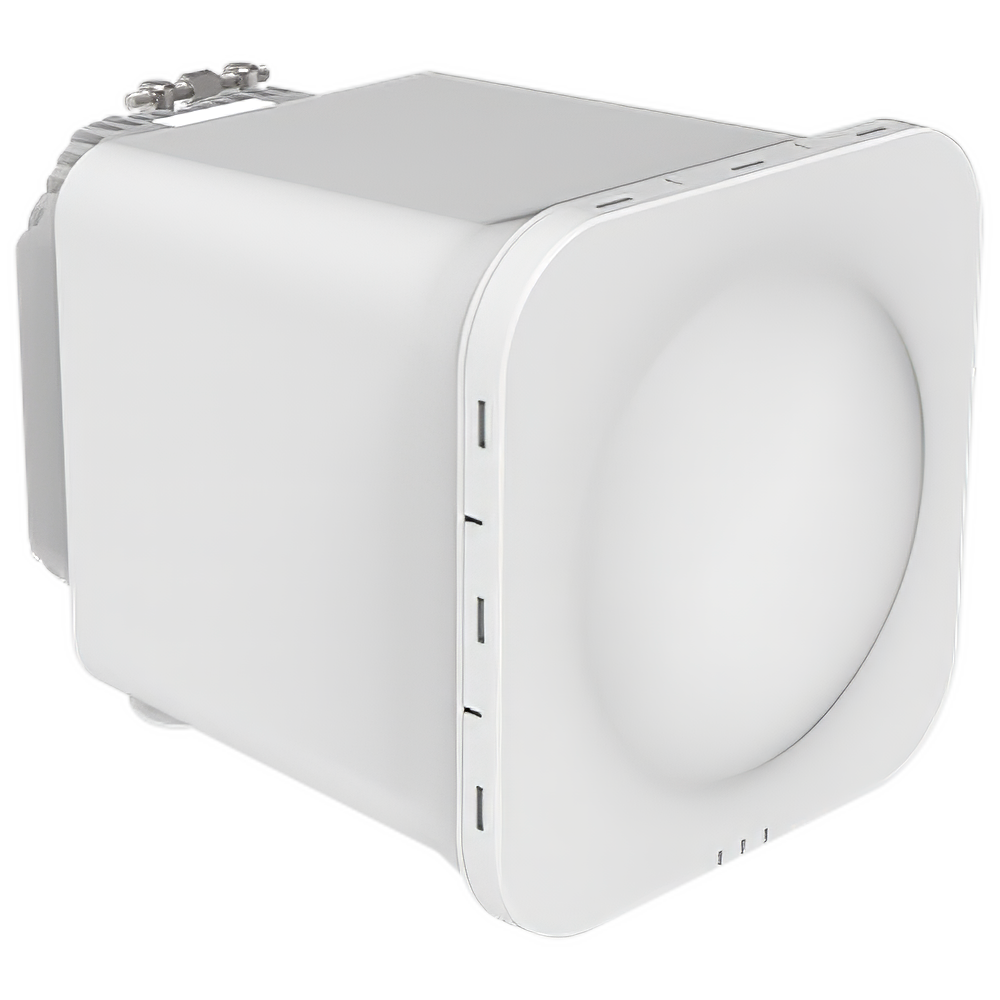

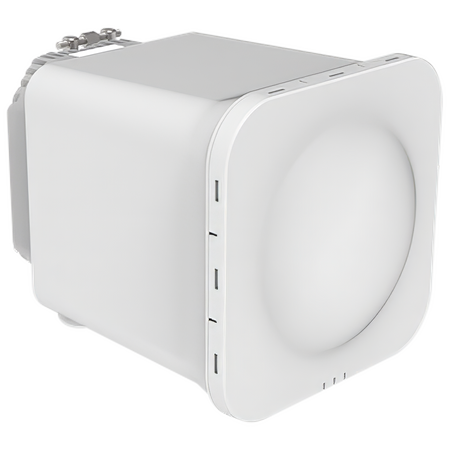

Tachyon Networks TNA-AK-150 Antenna Kit - Ultra-high power 37 dBi gain - 4° x 4° focused beam - Enables long-range radio links - Industrial design 180 x 150 x 150 mm - Compatible with TNA-M-P mounting bracket
📋 SPECIFICATIONS:
• Device type: Modular antenna kit (passive)
• Compatibility: Exclusive to TNA-303X/TNA-305X unit
• Antenna gain: 37 dBi
• Beam-steering range: 4° x 4°
• Operating frequency: 57-71 GHz (Full band: Channels 1-6)
• Supported throughput: Up to 2.3 Gbps (2+ Gbps)
• Maximum distance (System): Up to 6 km
• Operating mode: Station / Access Point accessory
• Maximum number of stations (STA): Up to 32 per AP (supported by the base radio station)
• Wireless encryption: AES 128 + GCMP (Supported by the base radio station)
• Traffic scheduling: Dynamic TDMA (Supported by the base radio station)
• Polarization: Simple linear (Supported by the base radio station)
• Maximum MTU: 7900 bytes (Supported by the base radio station)
• Network mode: Transparent bridge / VLAN passthrough
• Physical interfaces: Mechanical coupling to TNA-303X/TNA-305X
• Recommended mount: TNA-M-P (not included)
• Operating temperature: -30 °C to 55 °C
• Dimensions: 180 x 150 x 150 mm
📦 INCLUDED:
• 1x Tachyon TNA-AK-150 modular antenna kit• 1x Installation and alignment documentation
| Device type | Modular antenna kit (passive) |
|---|---|
| Compatibility | Exclusive to TNA-303X/TNA-305X unit |
| Antenna gain | 37 dBi |
| Beam-steering range | 4° x 4° |
| Operating frequency | 57-71 GHz (Full band: Channels 1-6) |
| Supported throughput | Up to 2.3 Gbps (2+ Gbps) |
| Maximum distance (System) | Up to 6 km |
| Operating mode | Accessory for Station / Access Point |
| Maximum number of stations (STA) | Up to 32 via AP (supported by the base radio station) |
| Wireless encryption | AES 128 + GCMP (Supported by the base radio station) |
| Traffic scheduling | Dynamic TDMA (Supported by the base radio station) |
| Polarization | Single linear (Supported by the base radio station) |
| Maximum MTU | 7900 bytes (Supported by the base radio station) |
| Network mode | Transparent bridge / VLAN passthrough |
| Physical interfaces | Mechanical coupling to TNA-303X/TNA-305X |
| Recommended support | TNA-M-P (not included) |
| Operating temperature | -30 °C to 55 °C |
| Dimensions | 180 x 150 x 150 mm |
Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.
For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.
The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
