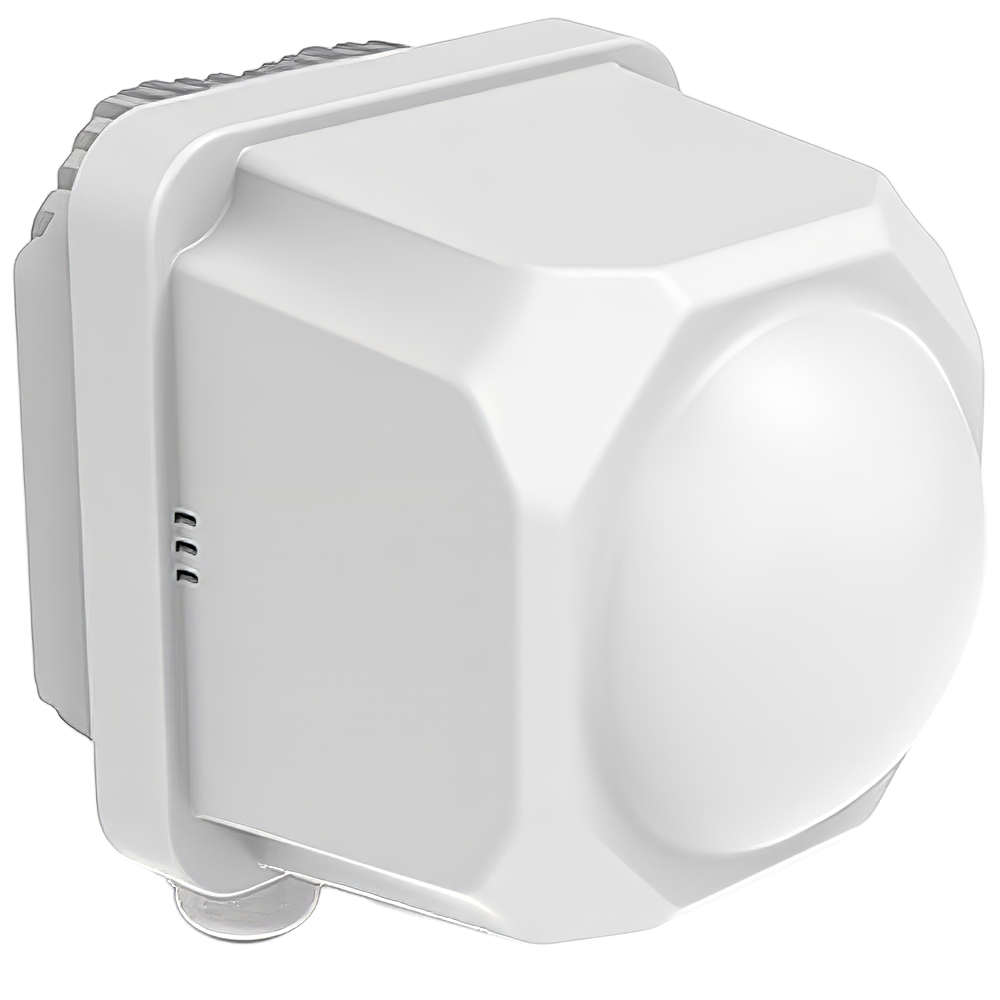

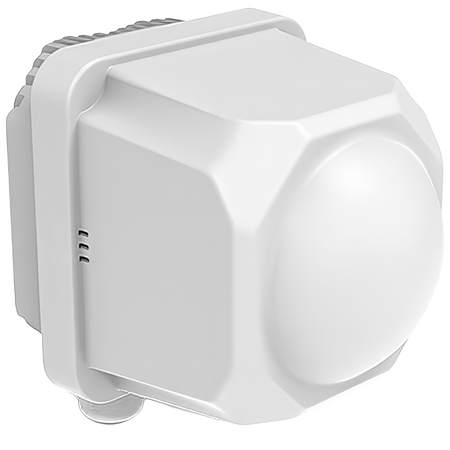

Tachyon Networks Antenna Kit - 100
Regular price
€54,14
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Tachyon Networks TNA-AK-100 Antenna Kit - 33 dBi high-power gain - 6º x 6º ultra-focused beam for greater precision - Supports maximum EIRP up to 55 dBm - Compact 130 x 130 x 130 mm design - Includes L-mounting bracket
📋 SPECIFICATIONS:
• Device type: Modular antenna kit (passive)
• Compatibility: Exclusive to TNA-303X or TNA-305X
• Antenna gain: 33 dBi
• Beam-steering range: 6° x 6°
• Maximum system EIRP: 55 dBm
• Operating frequency: 57-71 GHz (Channels 1-6)
• Supported throughput: Up to 2.3 Gbps (2+ Gbps)
• Maximum distance (System): Up to 6 km
• Polarization: Linear (supported by base radio station)
• Duplexing: TDD (supported by base radio station)
• Mounting type: Wall or pole (L-bracket included)
• Material: Industrial-grade for outdoor use
• Operating temperature: -30 °C to 55 °C (Supported by base radio station)
• Dimensions: 130 x 130 x 130 mm
📦 INCLUDED:
• 1x Tachyon TNA-AK-100 modular antenna kit
• 1x L-mounting bracket
• 1x Connection accessories for TNA-303X/TNA-305X units
| Device type | Modular antenna kit (passive) |
|---|---|
| Compatibility | Exclusive to TNA-303X or TNA-305X |
| Antenna gain | 33 dBi |
| Beam-steering range | 6° x 6° |
| Maximum system EIRP | 55 dBm |
| Operating frequency | 57-71 GHz (Channels 1-6) |
| Supported throughput | Up to 2.3 Gbps (2+ Gbps) |
| Maximum distance (System) | Up to 6 km |
| Polarization | Linear (supported by base station) |
| Duplexing | TDD (supported by base station) |
| Mounting type | Wall or pole (L-bracket included) |
| Material | Industrial-grade for outdoor use |
| Operating temperature | -30 °C to 55 °C (Supported by base station) |
| Dimensions | 130 x 130 x 130 mm |
Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.
For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.
The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
