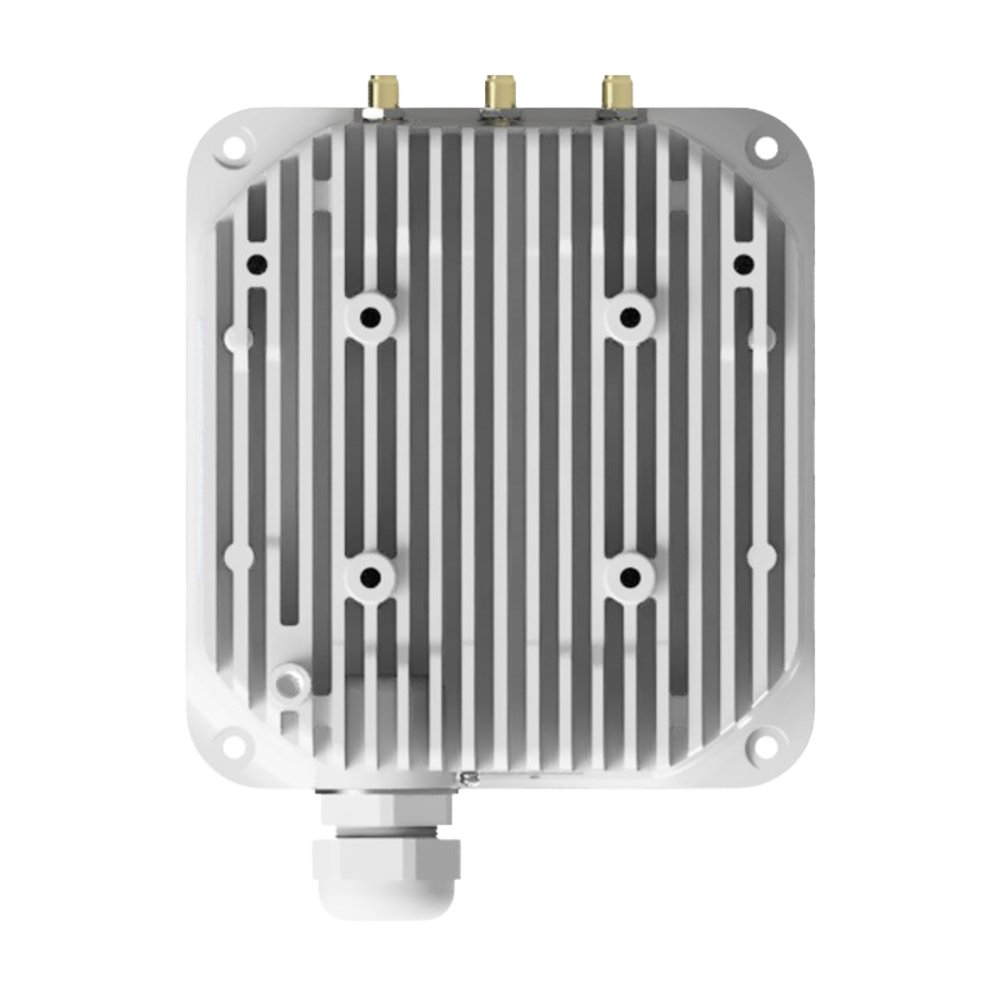

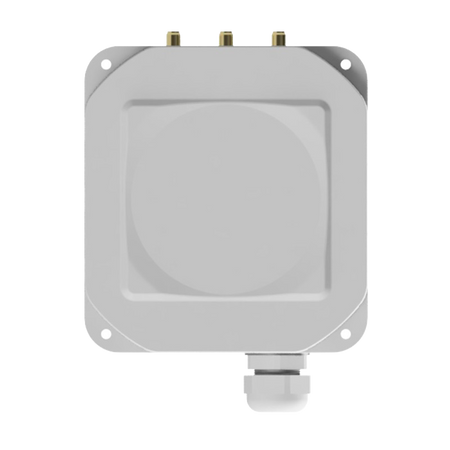

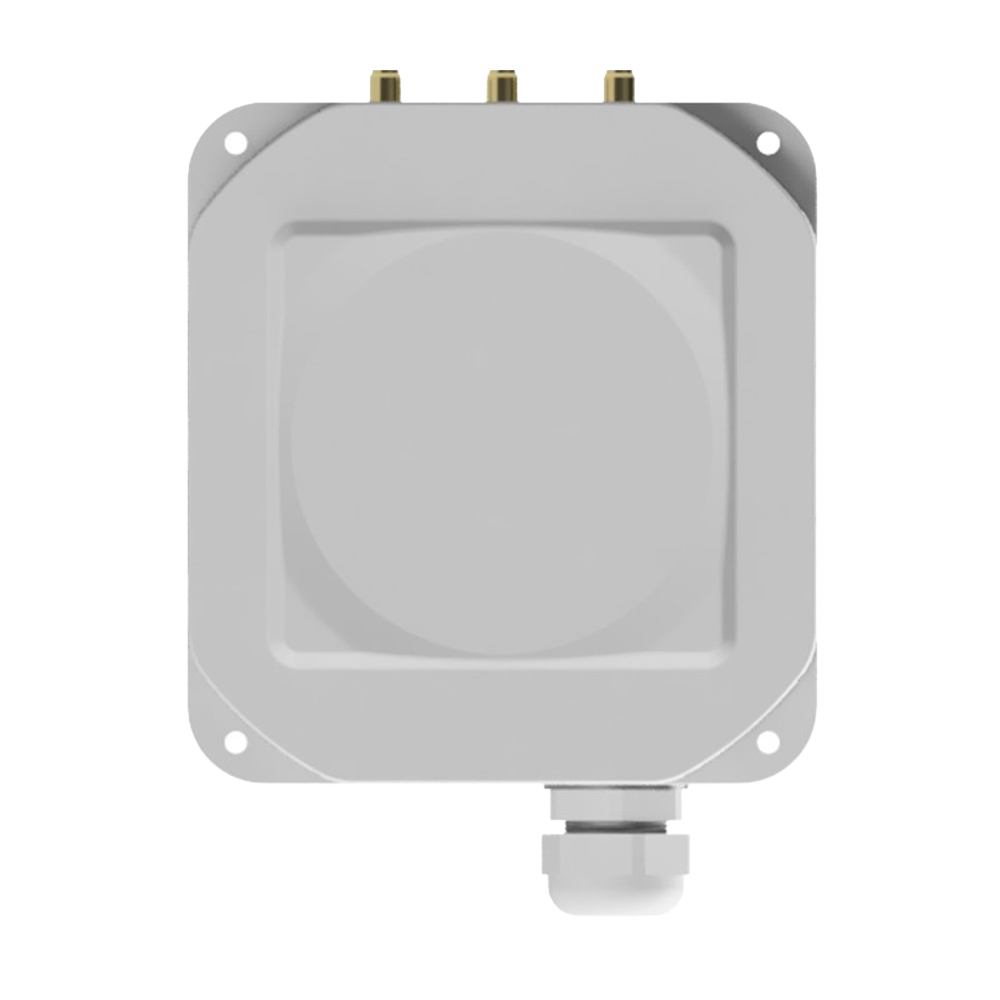

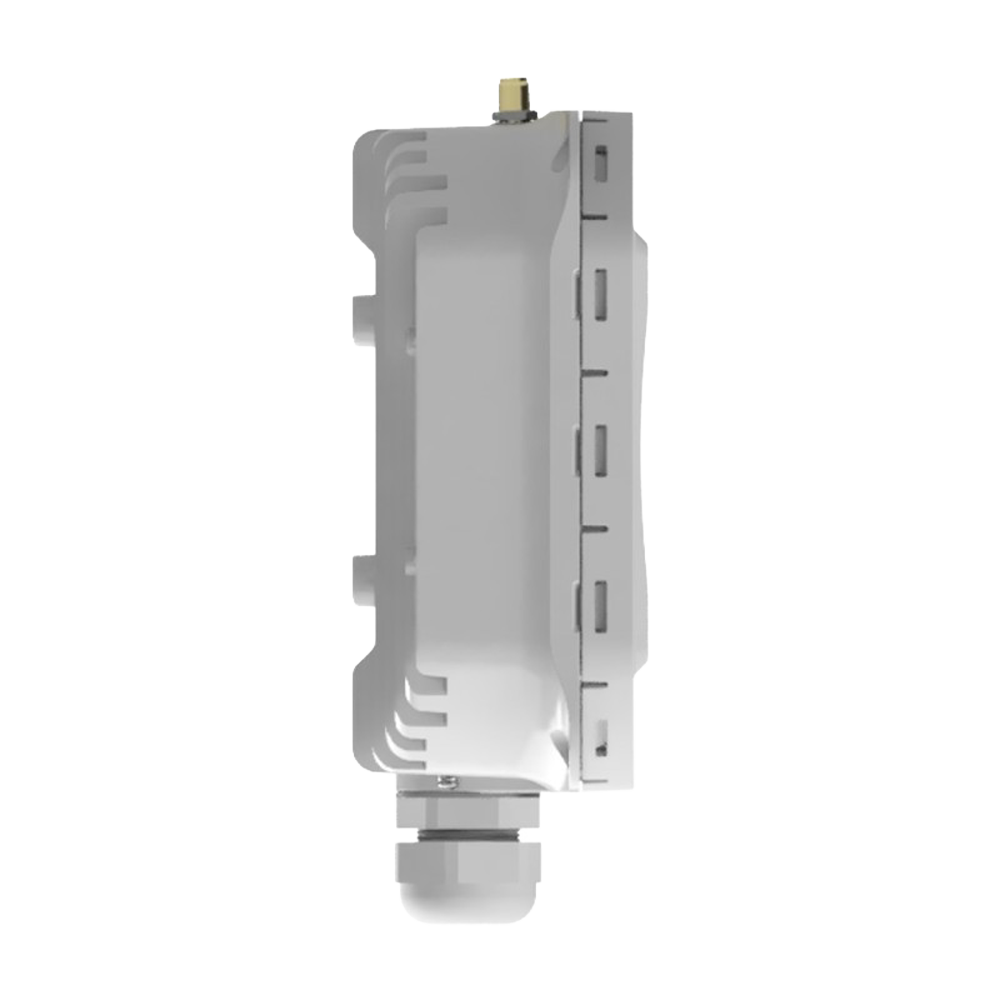

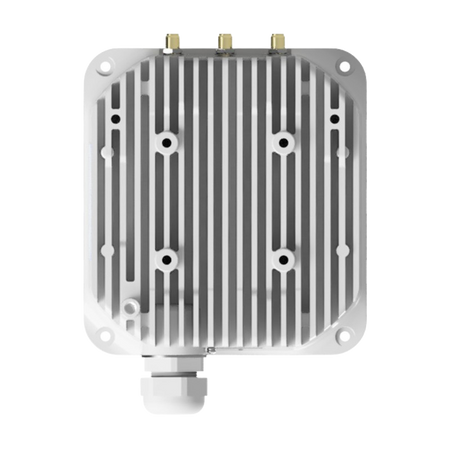

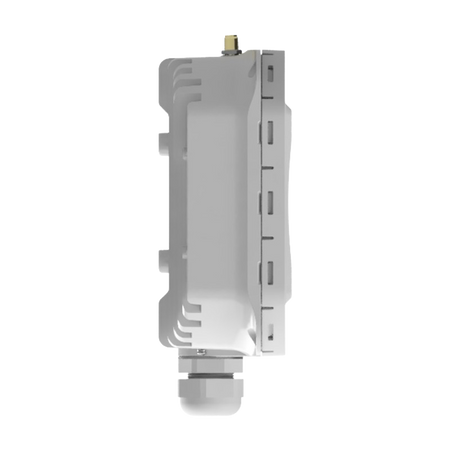

Tachyon Networks TNA-305X Base AP 60GHz+5GHz
Regular price
€448,88
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Tachyon Networks TNA-305X 60GHz+5GHz Base AP - Integrated 5-7GHz WiFi-7 backup radio - 2.3 Gbps speed and range up to 8+ km - Modular design compatible with antenna kits - 2.5G Ethernet port for multi-gigabit data - 90-degree modular azimuth coverage
📋 SPECIFICATIONS:
• Operating modes: Station, Access Point, PTP
• Maximum throughput: Up to 2.3 Gbps
• Maximum distance: Up to 8+ km (depending on antenna kit)
• Maximum number of stations (STA): Up to 32 per AP
• Transmit power: 38 dBm EIRP (Base) / Higher with kit
• Wireless encryption: AES 128+ (60GHz) / AES 256+ (5GHz)
• Wireless frequency: 57-71 GHz / 5.1-7 GHz
• Supported channels: 1-6 (60GHz) / 20 to 320 MHz (5GHz)
• Traffic scheduling: TDMA (60GHz) / OFDMA (5GHz)
• Antenna gain (Base): 16 dBi (60GHz) / 9 dBi (5GHz)
• Antenna coverage (Base): +/- 45° azimuth (90° total)
• Beam width (base): 30° azimuth x 30° elevation
• Polarization / Duplex: Linear / TDD
• Maximum MTU: 2024 b
• Network mode: Transparent bridge / IPv4 and IPv6
• Management protocols: Web, SNMP v2/v3, RESTful API, SSH
• Physical interfaces: 1x 2.5G Ethernet / GPS DGPS
• Management interface: WiFi-7 2.4GHz with internal antennas
• Power input: 38-57VDC active PoE
• Power consumption: TBD (To Be Determined)
• Temperature range: -30°C to 55°C
• Dimensions: 130 x 120 x 55 mm
• Unit weight: 425 g
• Compatible kits: TNA-AK-100, TNA-AK-150, TNA-AK-300
📦 INCLUDED:
• 1x Tachyon TNA-305X Base Unit • 1x Passive PoE injector included • 1x Pole or wall mounting plate • Note: Antenna and scanning kits are sold separately
| Operating modes | Station, Access Point, PTP |
|---|---|
| Maximum throughput | Up to 2.3 Gbps |
| Maximum distance | Up to 8+ km (depending on antenna kit) |
| Maximum number of stations (STA) | Up to 32 per AP |
| Transmit power | 38 dBm EIRP (Base) / Higher with kit |
| Wireless encryption | AES 128+ (60GHz) / AES 256+ (5GHz) |
| Wireless frequency | 57-71 GHz / 5.1-7 GHz |
| Supported channels | 1-6 (60GHz) / 20 to 320 MHz (5GHz) |
| Traffic scheduling | TDMA (60GHz) / OFDMA (5GHz) |
| Antenna gain (Base) | 16 dBi (60GHz) / 9 dBi (5GHz) |
| Antenna coverage (Base) | +/- 45° azimuth (90° total) |
| Beam size (Base) | 30° azimuth x 30° elevation |
| Polarization / Duplex | Linear / TDD |
| Maximum MTU | 2024 b |
| Network mode | Transparent Bridge / IPv4 and IPv6 |
| Management protocols | Web, SNMP v2/v3, RESTful API, SSH |
| Physical interfaces | 1x 2.5G Ethernet / GPS DGPS |
| Management interface | WiFi-7 2.4GHz with internal antennas |
| Power supply | Active PoE 38-57VDC |
| Power consumption | TBD (To Be Determined) |
| Temperature range | -30°C to 55°C |
| Dimensions | 130 x 120 x 55 mm |
| Unit weight | 425 g |
| Compatible kits | TNA-AK-100, TNA-AK-150, TNA-AK-300 |
Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.
For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.
The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
