Tachyon Networks AP/PTP 60GHz
Regular price
€270,68
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

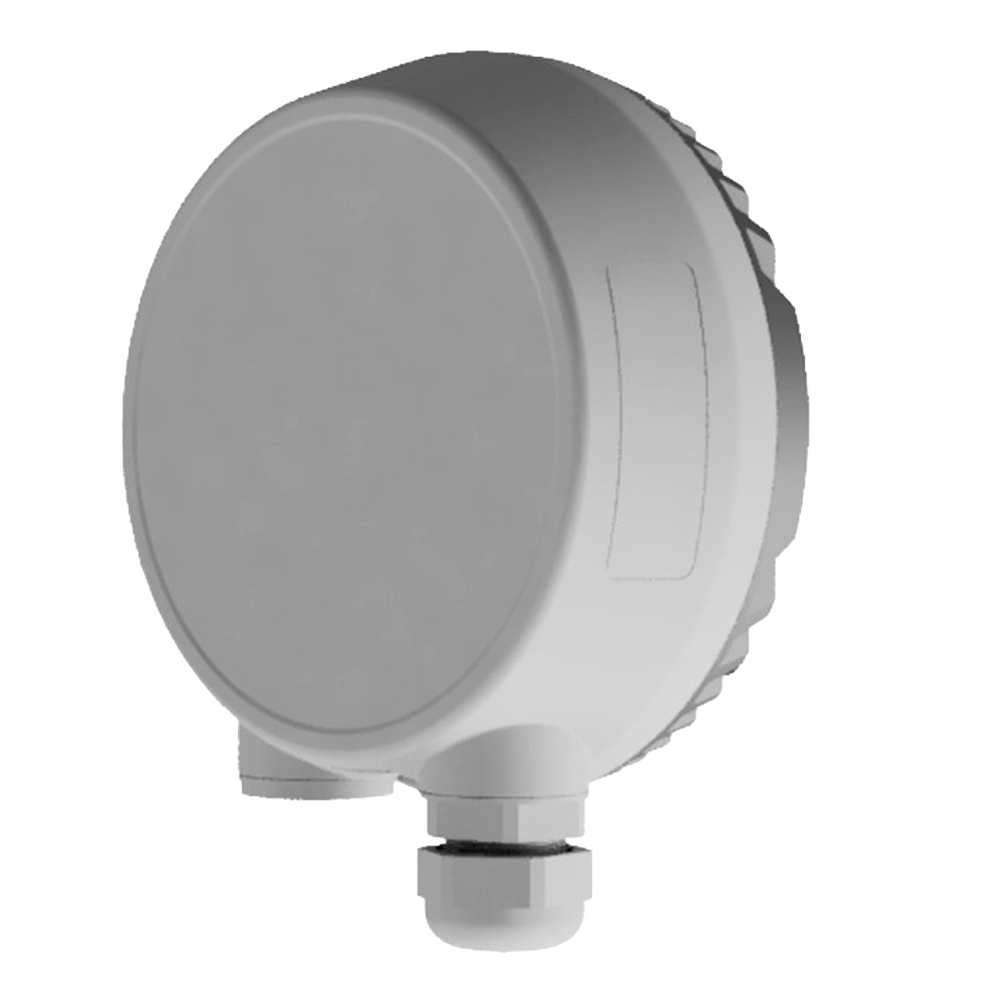

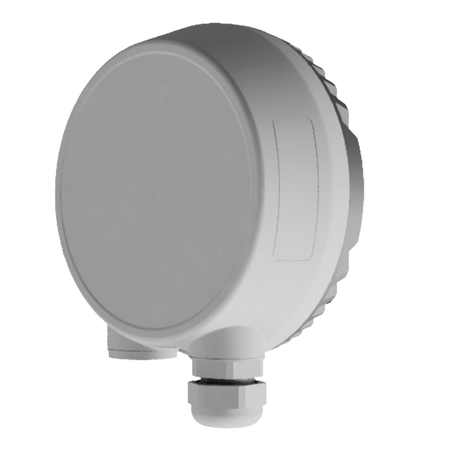

Tachyon Networks TNA-303L-EU AP/PTP 60GHz - Real Gigabit performance up to 1 Gbps - Ultra-compact design with low wind resistance - Integrated 90° x 50° dynamic beamforming - Full-band support from 57 to 71 GHz - USB Type-A port for alignment
📋 SPECIFICATIONS:
• Operating modes: AP, Station, PTP (Software configurable)
• Maximum throughput: Up to 1 Gbps
• Maximum distance: 400m (PTP) / 1.4km (TNA-303L-65) / 3km (TNA-303X + AK-300)
• Maximum number of stations (STA): Up to 32 per sector
• Transmit power: 38 dBm EIRP (depending on regulations)
• Wireless encryption: AES 128 + GCMP
• Wireless frequency: 57-71 GHz (Full band: Channels 1-6)
• Supported channels: Full (2 GHz) / Half (1 GHz)
• Traffic scheduling: TDMA: dynamic mechanism
• Antenna coverage: 90° azimuth x 50° elevation (Beamforming)
• Duplexing: TDD
• Maximum MTU: 7900 b
• Network mode: Transparent bridge / VLAN passthrough
• Management protocols: Web, SNMP v2/v3, RESTful API, SSH
• Physical interfaces: 1x 1G Ethernet / 1x USB Type-A for alignment
• Power supply: Active PoE 38-57VDC
• Power consumption: Maximum 15W
• Temperature range: -30°C to 55°C
• Dimensions: 130 x 120 x 47 mm
• Unit weight: 425 g (15 oz)
📦 INCLUDED:
• 1x Tachyon TNA-303L-EU radio link • 1x Passive PoE injector included • 1x Pole mount bracket included
| Operating modes | AP, Station, PTP (Software configurable) |
|---|---|
| Maximum throughput | Up to 1 Gbps |
| Maximum distance | 400m (PTP) / 1.4km (TNA-303L-65) / 3km (TNA-303X + AK-300) |
| Maximum number of stations (STA) | Up to 32 per sector |
| Transmit power | 38 dBm EIRP (depending on regulations) |
| Wireless encryption | AES 128 + GCMP |
| Wireless frequency | 57-71 GHz (Full band: Channels 1-6) |
| Supported channels | Full (2 GHz) / Half (1 GHz) |
| Traffic scheduling | TDMA: dynamic mechanism |
| Antenna coverage | 90° azimuth x 50° elevation (Beamforming) |
| Duplexing | TDD |
| Maximum MTU | 7900 b |
| Network mode | Transparent bridge / VLAN passthrough |
| Management protocols | Web, SNMP v2/v3, RESTful API, SSH |
| Physical interfaces | 1x 1G Ethernet / 1x USB Type A for alignment |
| Power supply | Active PoE 38-57VDC |
| Power consumption | Maximum 15W |
| Temperature range | -30°C to 55°C |
| Dimensions | 130 x 120 x 47 mm |
| Unit weight | 425 g (15 oz) |
Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.
For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.
The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
