Tachyon Networks PTP Kit
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!

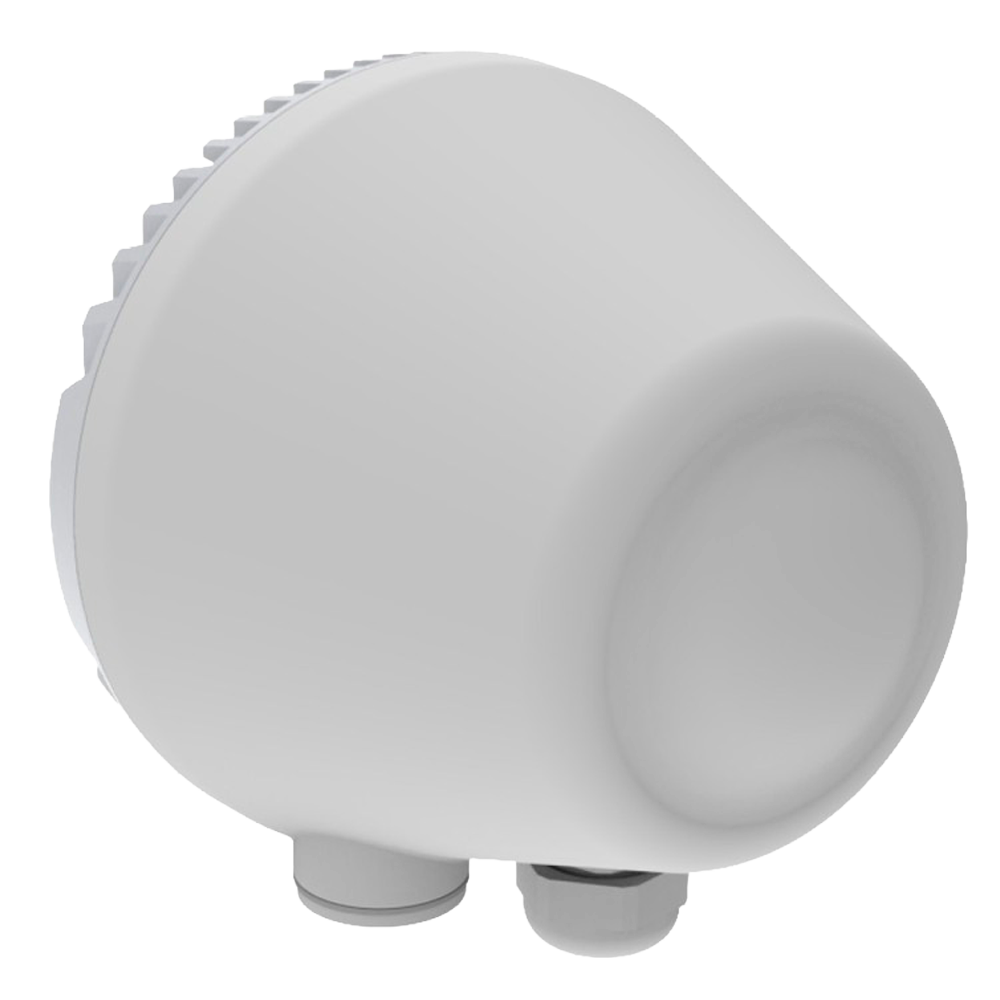

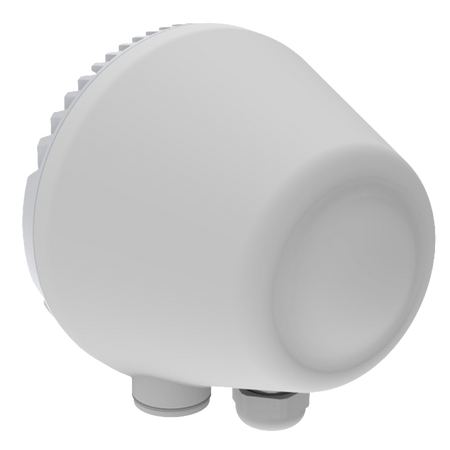

Tachyon Networks TNA-303L-65-LIB-EU PTP Kit - 1 Gbps performance and up to 3 km distance - Antenna with 8º x 8º beam for extended range - Factory pre-assembled kit: ready to use - USB Type-A port for alignment assistance - AES 128+ GCMP encryption for total security
📋 SPECIFICATIONS:
• Operating mode: PTP (factory preconfigured)
• Maximum throughput: Up to 1 Gbps
• Maximum distance: Up to 3 km
• Maximum number of stations: Configured as a PTP link
• Transmit power: 54 dBm EIRP (depending on regulations)
• Wireless encryption: AES 128 + GCMP
• Wireless frequency: 57-71 GHz (Full band: Channels 1-6)
• Supported channels: Full (2 GHz) / Half (1 GHz)
• Traffic scheduling: TDMA: dynamic mechanism
• Beamforming: 8° azimuth x 8° elevation
• Polarization / Duplex: Vertical / TDD
• Maximum MTU: 7900 b
• Network mode: Transparent bridge / VLAN passthrough
• Physical interfaces: 1x 1G Ethernet, 1x USB Type A per unit
• Power supply: Active PoE 38-57VDC
• Power consumption: Maximum 15W per unit
• Temperature range: -30°C to 55°C
• Dimensions: 130 x 120 x 100 mm
• Unit weight: 425 g (15 oz) per unit
📦 INCLUDED:
• 2x Tachyon TNA-303L-65-EU radio links (Pre-paired)• 2x Passive PoE injectors included • 2x Pole mounting brackets included
| Operating mode | PTP (factory preconfigured) |
|---|---|
| Maximum throughput | Up to 1 Gbps |
| Maximum distance | Up to 3 km |
| Maximum number of stations | Configured as PTP link |
| Transmit power | 54 dBm EIRP (depending on regulations) |
| Wireless encryption | AES 128 + GCMP |
| Wireless frequency | 57-71 GHz (Full band: Channels 1-6) |
| Supported channels | Full (2 GHz) / Half (1 GHz) |
| Traffic scheduling | TDMA: dynamic mechanism |
| Beamforming | 8° azimuth x 8° elevation |
| Polarization / Duplex | Vertical / TDD |
| Maximum MTU | 7900 B |
| Network mode | Transparent bridge / VLAN passthrough |
| Physical interfaces | 1x 1G Ethernet, 1x USB Type A per unit |
| Power supply | 38-57VDC Active PoE |
| Power consumption | Maximum 15W per unit |
| Temperature range | -30°C to 55°C |
| Dimensions | 130 x 120 x 100 mm |
| Unit weight | 425 g (15 oz) per unit |
