Tachyon Networks Station 60GHz
Regular price
€270,68
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

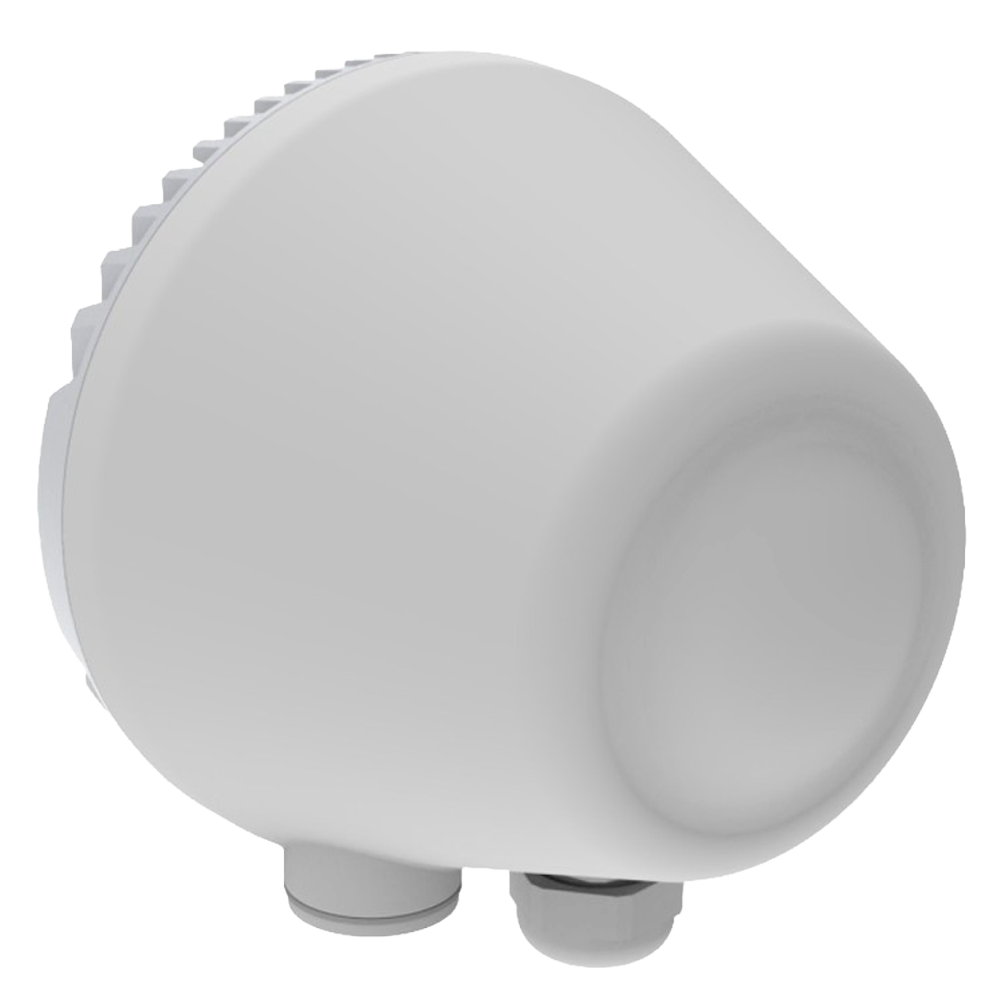

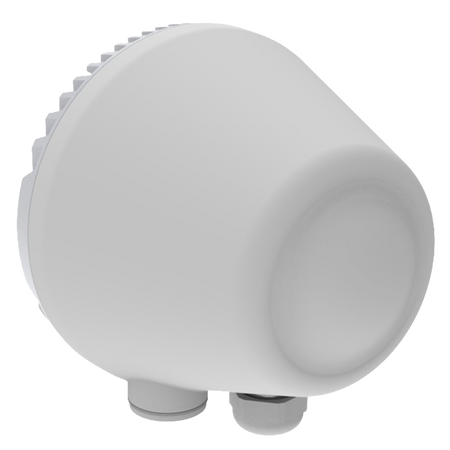

Tachyon Networks TNA-303L-65-EU 60GHz Station - 1 Gbps performance and up to 3 km range - 8º x 8º beam antenna for increased reach - Ultra-compact design with low wind resistance - USB Type-A port for alignment assistance - AES 128+ GCMP encryption for total security
📋 SPECIFICATIONS:
• Operating modes: Station, PTP (Software configurable)
• Maximum throughput: Up to 1 Gbps
• Maximum distance: Up to 3 km (PTP) / 2 km (PTMP)
• Maximum number of stations (STA): Up to 32 per sector (in AP mode)
• Transmit power: 54 dBm EIRP (depending on regulation)
• Wireless encryption: AES 128 + GCMP
• Wireless frequency: 57-71 GHz (Full band: Channels 1-6)
• Supported channels: Full (2 GHz) / Half (1 GHz)
• Traffic scheduling: TDMA: dynamic mechanism
• Antenna gain: Beam steering
• Antenna coverage: 8° azimuth x 8° elevation
• Beam size: 8° x 8°
• Polarization / Duplex: Vertical / TDD
• Maximum MTU: 7900 b [cit: 240]
• Network modes: Transparent bridge / VLAN passthrough
• Management protocols: Web, SNMP v2/v3, RESTful API, SSH

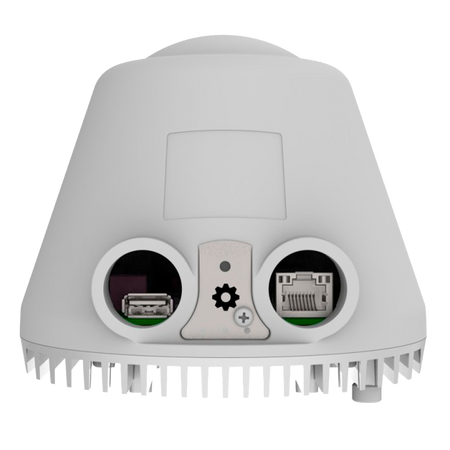

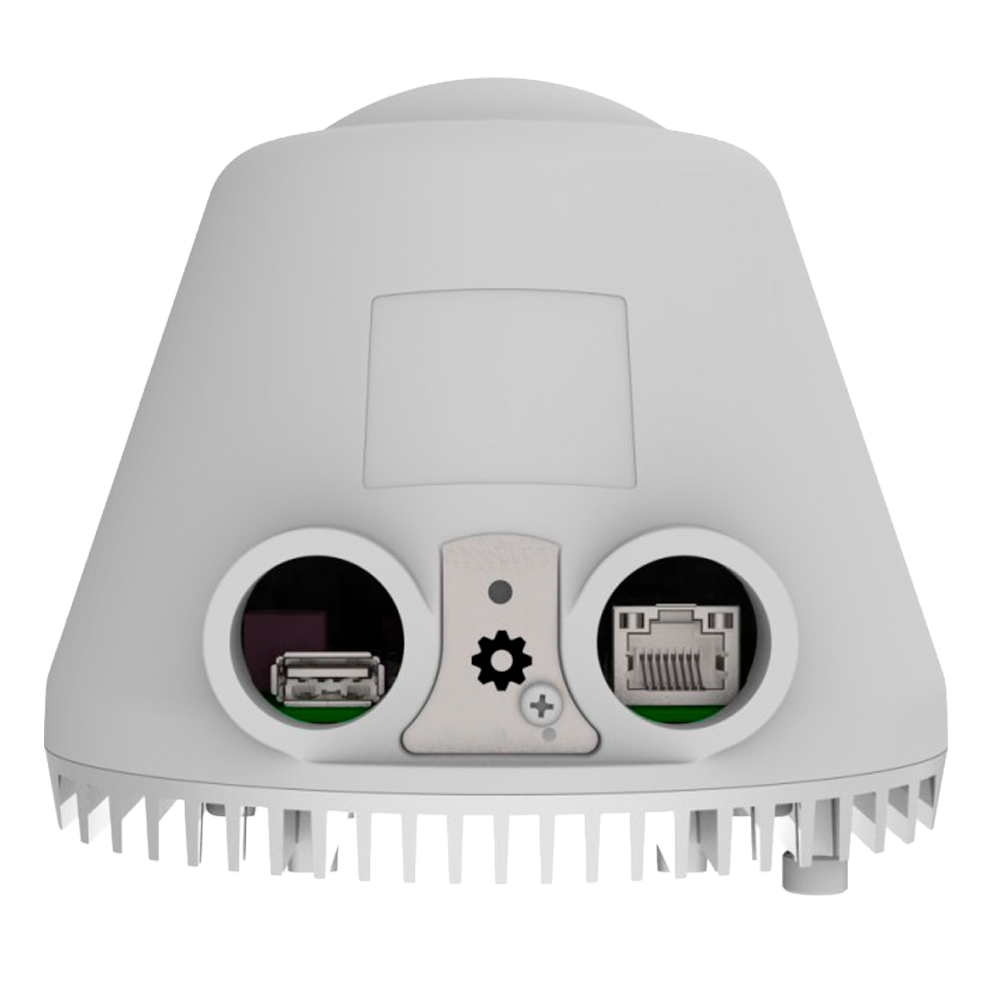

• Physical interfaces: 1x 1G Ethernet, 1x USB Type-A (alignment)
• Power supply: Active PoE 38-57VDC
• PoE output (1G): Not available
• Power consumption: Maximum 15W
• Temperature range: -30°C to 55°C
• Unit weight: 425 g (15 oz)
• Dimensions: 130 x 120 x 100 mm
📦 INCLUDED:
• 1x Tachyon TNA-303L-65-EU radio link • 1x Passive PoE injector included • 1x Pole mounting bracket included
| Operating modes | Station, PTP (Software configurable) |
|---|---|
| Maximum throughput | Up to 1 Gbps |
| Maximum distance | Up to 3 km (PTP) / 2 km (PTMP) |
| Maximum number of stations (STA) | Up to 32 per sector (in AP mode) |
| Transmit power | 54 dBm EIRP (depending on regulation) |
| Wireless encryption | AES 128 + GCMP |
| Wireless frequency | 57-71 GHz (Full band: Channels 1-6) |
| Supported channels | Full (2 GHz) / Half (1 GHz) |
| Traffic scheduling | TDMA: dynamic mechanism |
| Antenna gain | Beam steering |
| Antenna coverage | 8° azimuth x 8° elevation |
| Beam size | 8° x 8° |
| Polarization / Duplex | Vertical / TDD |
| Maximum MTU | 7900 b [cit: 240] |
| Network mode | Transparent bridge / VLAN passthrough |
| Management protocols | Web, SNMP v2/v3, RESTful API, SSH |
| Physical interfaces | 1x 1G Ethernet, 1x USB Type A (alignment) |
| Power supply | Active PoE 38-57VDC |
| PoE output (1G) | Not available |
| Power consumption | Maximum 15W |
| Temperature range | -30°C to 55°C |
| Unit weight | 425 g (15 oz) |
| Dimensions | 130 x 120 x 100 mm |
