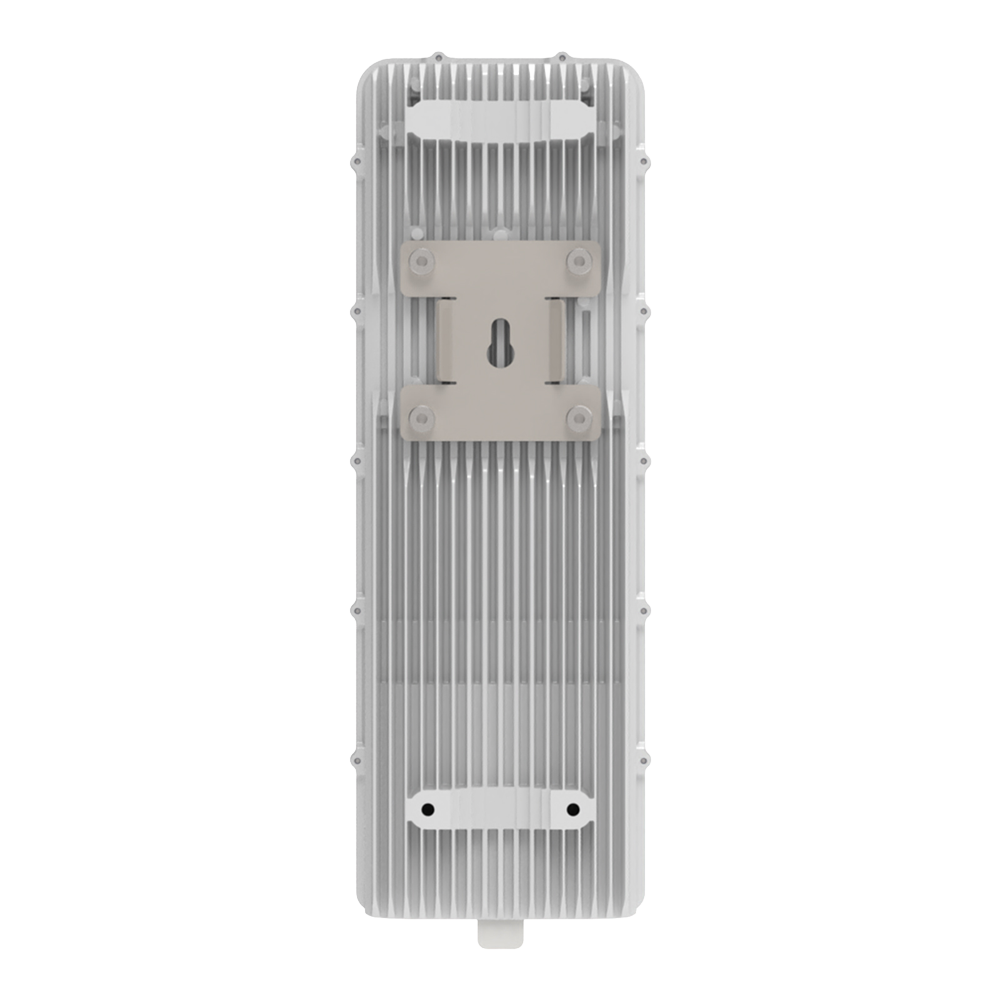

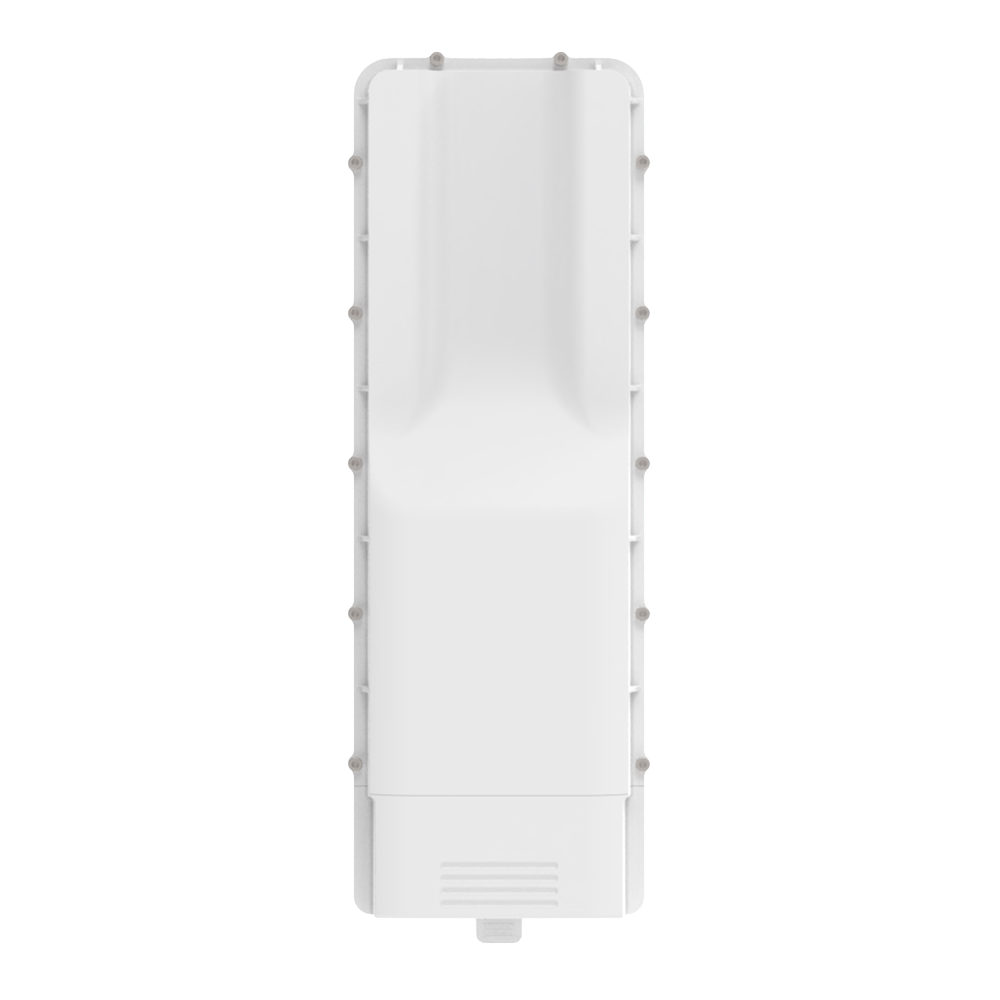

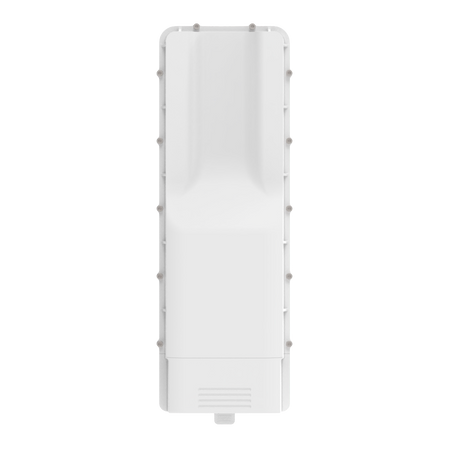

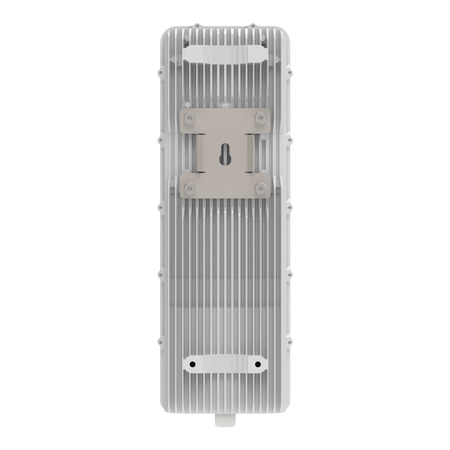

Tachyon Networks Station 60GHz mmWave
Regular price
€446,62
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Tachyon Networks Station 60GHz mmWave - Performance up to 2.3 Gbps and 1 km range - 2.5G Ethernet port and 1G PoE-out port - 22 dBi phased array antenna with 3D beamforming - Targeted 40-degree coverage (azimuth) - Station and Access Point operating modes
📋 SPECIFICATIONS:
• Operating mode: Station (Default) / Access Point
• Maximum throughput: Up to 2.3 Gbps
• Maximum distance: Up to 1 km
• Maximum number of stations (STA): Up to 32 via AP (in AP mode)
• Transmit power: 40 EIRP
• Wireless encryption: AES + GCMP
• Wireless frequency: 57-71 GHz (Full band)
• Supported channels: 1-6 (Full 2 GHz) / 1-11 (Half 1 GHz)
• Traffic scheduling: TDMA: dynamic mechanism
• Antenna gain: 22 dBi (3D beamforming phased array)
• Antenna coverage: +/- 20° azimuth (40° total) / +/- 20° elevation
• Beam size: 12° azimuth x 12° elevation
• Polarization / Duplex: Vertical / TDD
• Maximum MTU: 7900 bytes
• Network mode: Transparent bridge / VLAN passthrough
• Management protocols: Web, SNMP v2/v3, RESTful API, SSH

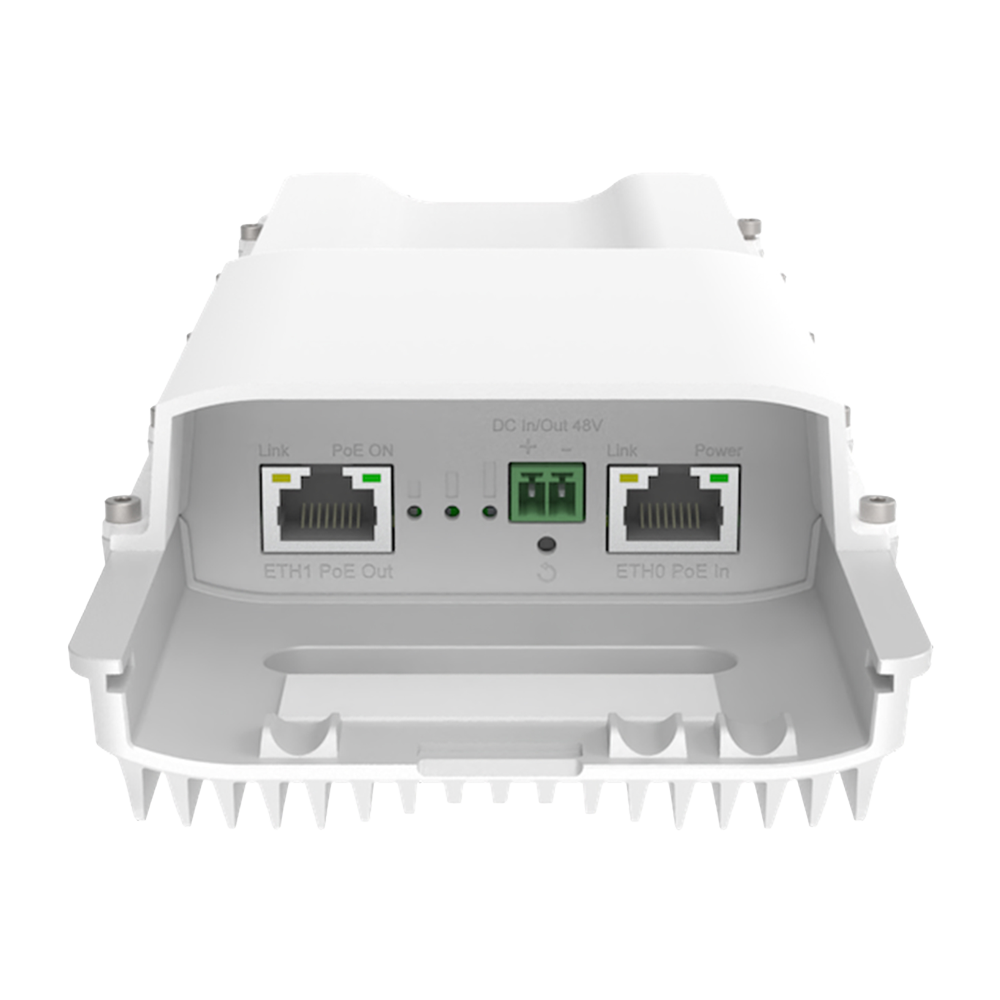

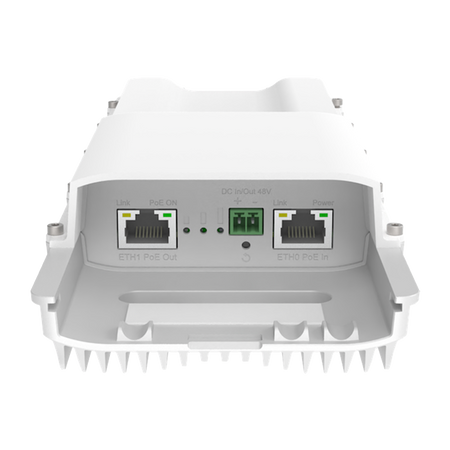

• Physical interfaces: 1x 2.5G Ethernet, 1x 1G Ethernet, DC terminal
• Power supply: Passive PoE 38-52V (2 or 4 pairs)
• PoE output (1G): PoE output (max. 0.5A)
• Power consumption: 17W (without PoE output) / 41W (with PoE output)
• Temperature range: -30°C to 60°C
• Certifications: FCC, IC, CE (Coming soon)
• Dimensions: 280 x 102 x 51 mm
• Unit weight: 695 g
📦 INCLUDED:
• 1x Tachyon TNA-302 radio link• 1x 48V 0.5A PoE adapter and cable
| Operating mode | Station (Default) / Access Point |
|---|---|
| Maximum throughput | Up to 2.3 Gbps |
| Maximum distance | Up to 1 km |
| Maximum number of stations (STA) | Up to 32 via AP (in AP mode) |
| Transmit power | 40 EIRP |
| Wireless encryption | AES + GCMP |
| Wireless frequency | 57-71 GHz (Full band) |
| Supported channels | 1-6 (Full 2 GHz) / 1-11 (Half 1 GHz) |
| Traffic scheduling | TDMA: dynamic mechanism |
| Antenna gain | 22 dBi (3D beamforming phased array) |
| Antenna coverage | +/- 20° azimuth (40° total) / +/- 20° elevation |
| Beam size | 12° azimuth x 12° elevation |
| Polarization / Duplex | Vertical / TDD |
| Maximum MTU | 7900 bytes |
| Network mode | Transparent bridge / VLAN passthrough |
| Management protocols | Web, SNMP v2/v3, RESTful API, SSH |
| Physical interfaces | 1x 2.5G Ethernet, 1x 1G Ethernet, DC terminal |
| Power supply | 38-52V passive PoE (2 or 4 pairs) |
| PoE output (1G) | PoE output (max. 0.5A) |
| Power consumption | 17W (without PoE output) / 41W (with PoE output) |
| Temperature range | -30°C to 60°C |
| Certifications | FCC, IC, CE (Coming soon) |
| Dimensions | 280 x 102 x 51 mm |
| Unit weight | 695 g |
