Tachyon Networks 60GHz mmWave Access Point - Performance up to 2.3 Gbps and 1 km range - 2.5G Ethernet port and 1G PoE-out port - 20 dBi phased array antenna with 3D beamforming - Capacity of up to 32 stations per sector - 120-degree horizontal coverage (azimuth)
📋 SPECIFICATIONS:
• Operating modes: Access Point (Default) / Station
• Maximum throughput: Up to 2.3 Gbps
• Maximum distance: Up to 1 km
• Maximum number of stations (STA): Up to 32 per AP
• Transmit power: 40 EIRP
• Wireless encryption: AES + GCMP
• Frequency range: 57-71 GHz (Channels 1-6 Full / 1-11 Half)
• Channel size: Full (2 GHz) / Half (1 GHz)
• Station scheduling: TDMA: dynamic scheduling mechanism
• Antenna gain: 20 dBi (3D beamforming phased array)
• Antenna coverage: +/- 60° azimuth (120° total) / +/- 25° elevation
• Beam width: 23° azimuth x 12° elevation
• Polarization / Duplex: Vertical / TDD
• Maximum MTU: 7900 bytes
• Network mode: Transparent bridge with VLAN passthrough

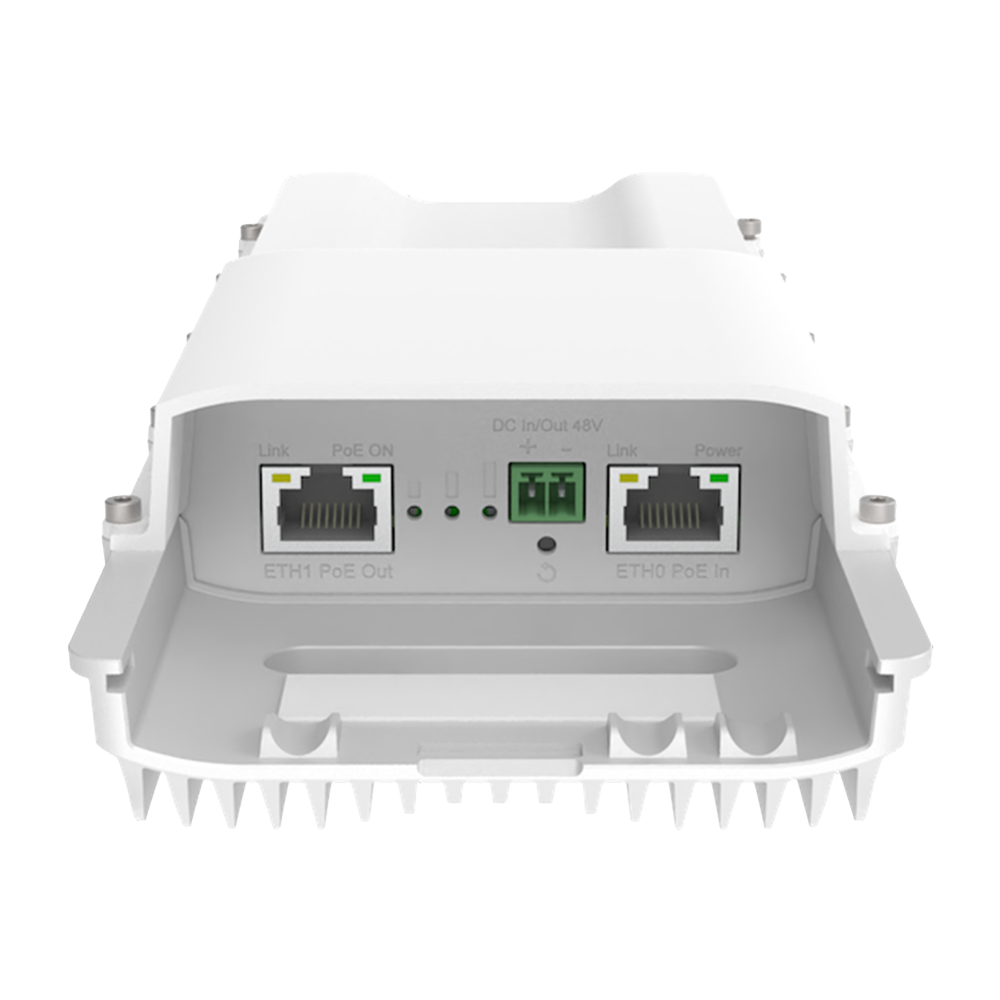

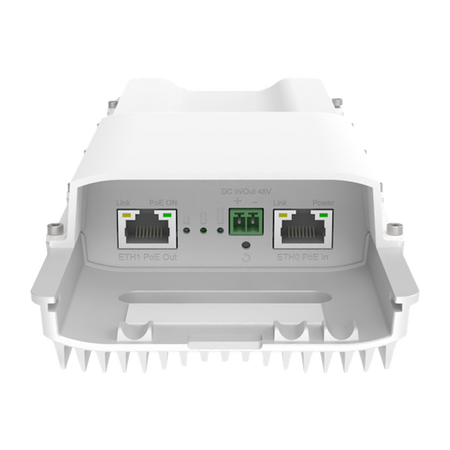

• Physical interfaces: 1x 2.5G Ethernet, 1x 1G Ethernet, DC terminal
• Power supply: Passive PoE 38-52V (2 or 4 pairs)
• PoE output (1G): PoE out (max. 0.5A)
• Power consumption: 17W (without PoE out) / 41W (with PoE out)
• Temperature range: -30°C to 60°C
• Dimensions: 280 x 102 x 51 mm
• Unit weight: 695 g
📦 INCLUDED:
• 1x Tachyon TNA-301 radio link • 1x 48V 0.5A PoE adapter and cable
| Operating mode | Access Point (Default) / Station |
|---|---|
| Maximum throughput | Up to 2.3 Gbps |
| Maximum distance | Up to 1 km |
| Maximum number of stations (STA) | Up to 32 per AP |
| Transmission power | 40 EIRP |
| Wireless encryption | AES + GCMP |
| Frequency range | 57-71 GHz (Channels 1-6 Full / 1-11 Half) |
| Channel size | Full (2 GHz) / Half (1 GHz) |
| Station scheduling | TDMA: dynamic scheduling mechanism |
| Antenna gain | 20 dBi (3D beamforming phased array) |
| Antenna coverage | +/- 60° azimuth (120° total) / +/- 25° elevation |
| Beam size | 23° azimuth x 12° elevation |
| Polarization / Duplex | Vertical / TDD |
| Maximum MTU | 7900 bytes |
| Network mode | Transparent bridge with VLAN passthrough |
| Physical interfaces | 1x 2.5G Ethernet, 1x 1G Ethernet, DC terminal |
| Power supply | Passive PoE 38-52V (2 or 4 pairs) |
| PoE output (1G) | PoE output (max. 0.5A) |
| Power consumption | 17W (without PoE output) / 41W (with PoE output) |
| Temperature range | -30°C to 60°C |
| Dimensions | 280 x 102 x 51 mm |
| Unit weight | 695 g |
