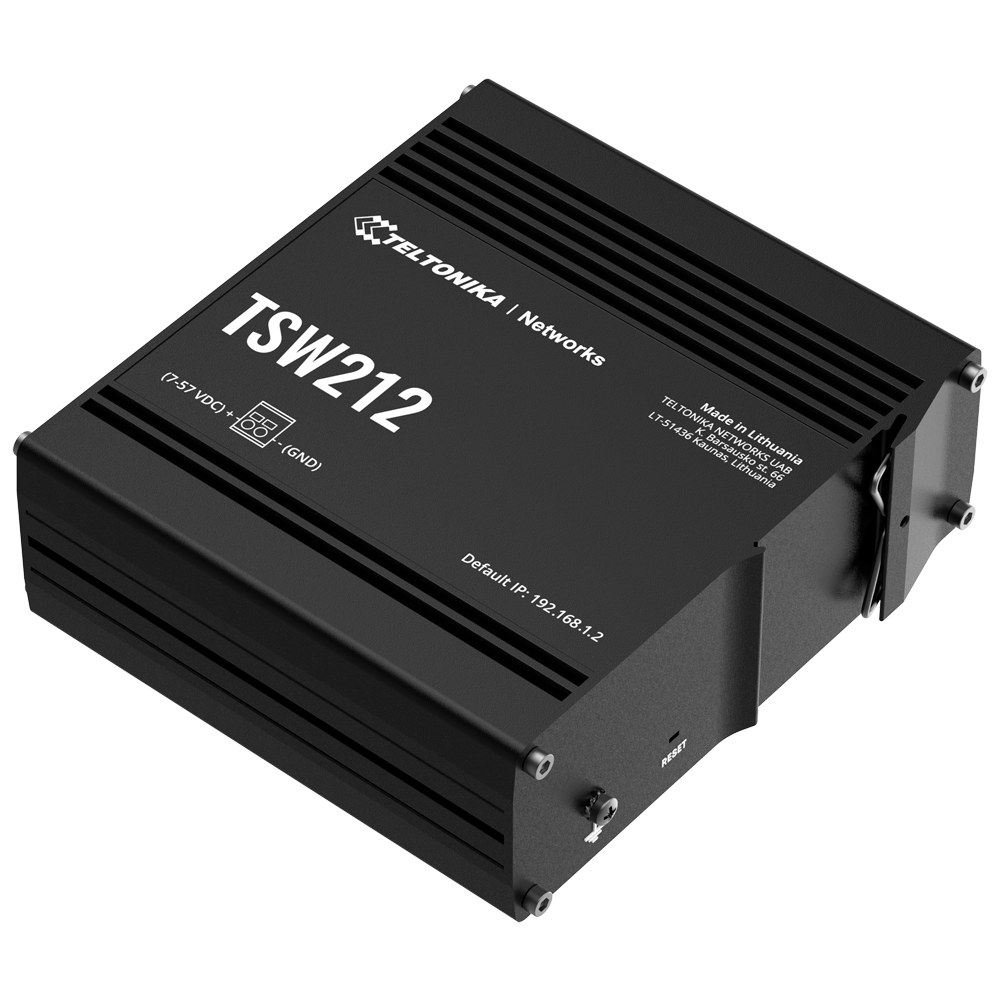

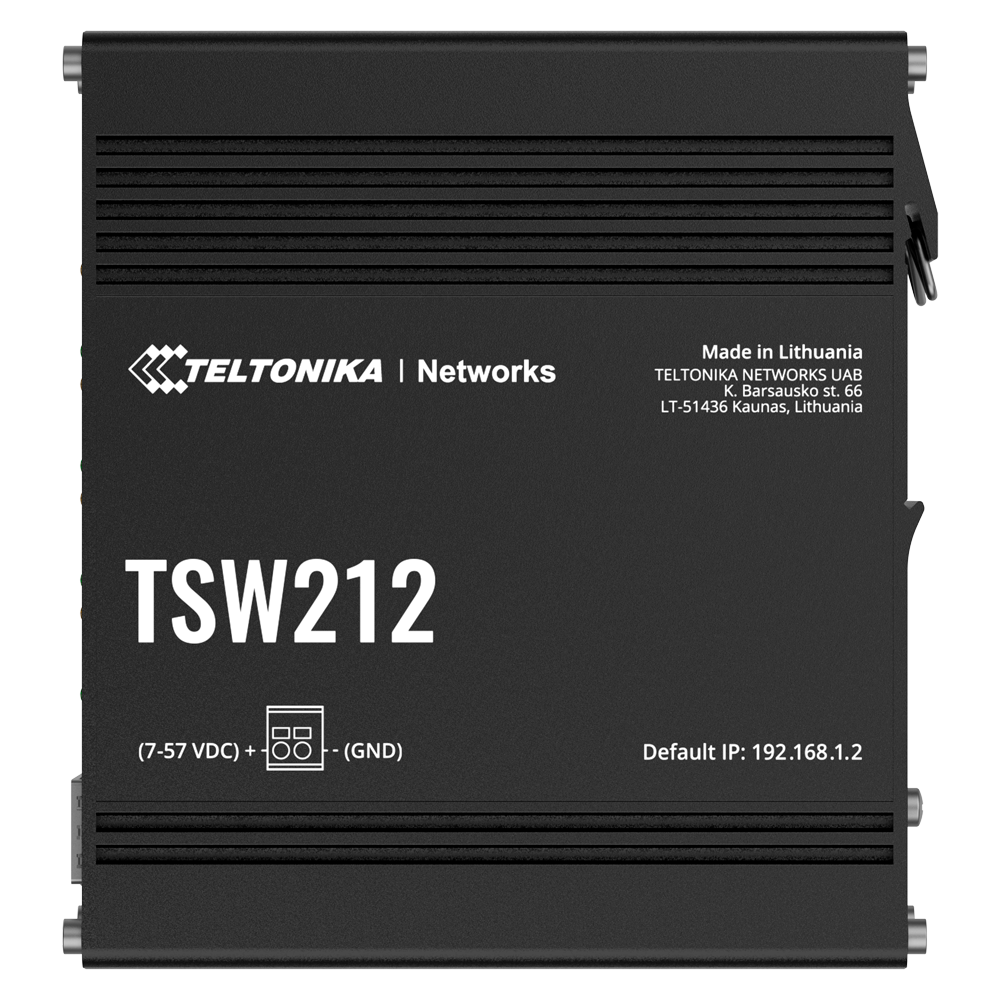

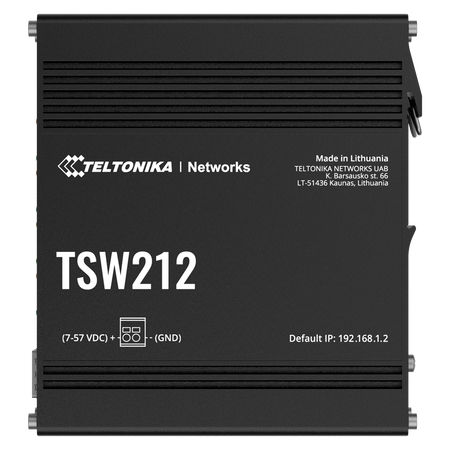

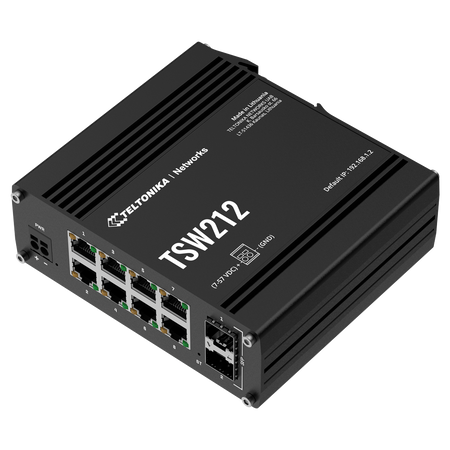

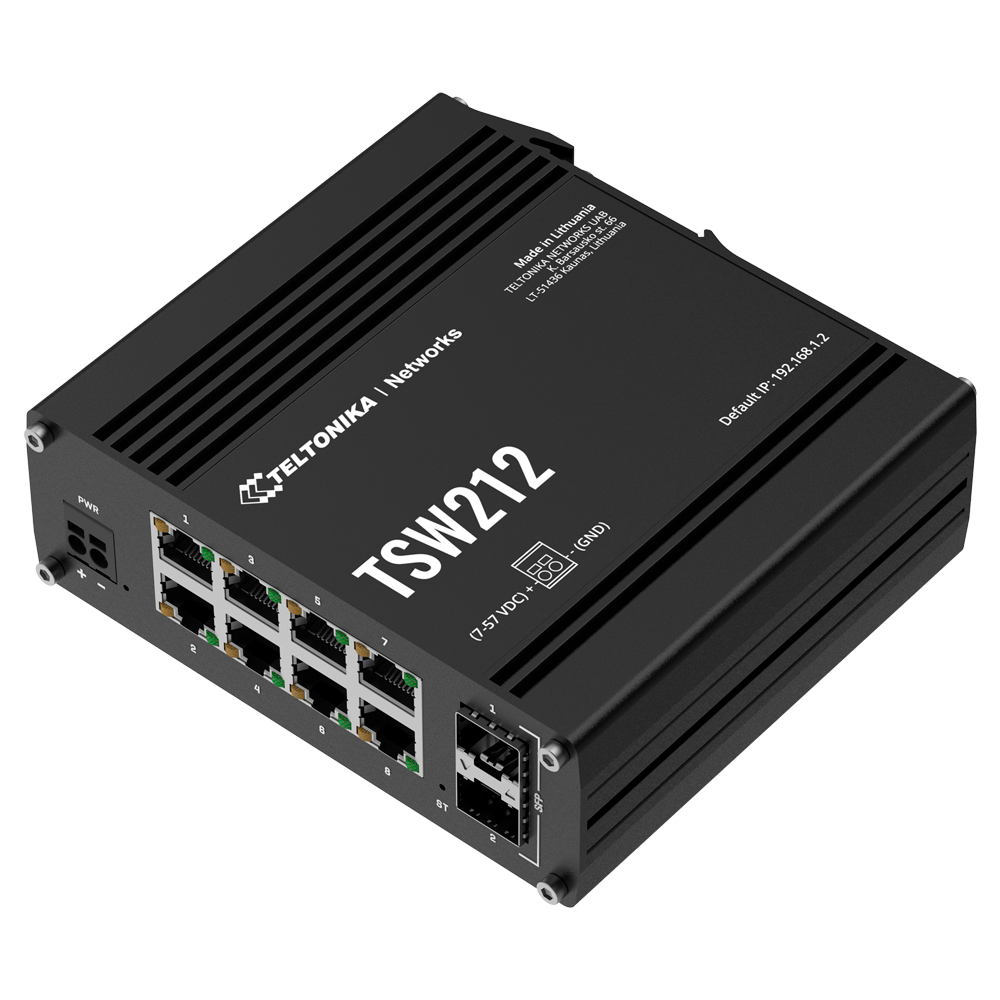

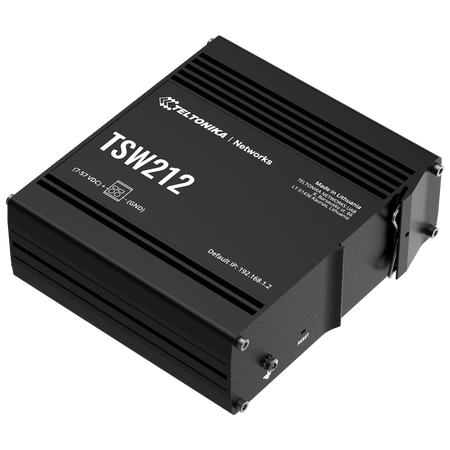

Teltonika Managed Industrial Ethernet Switch
Regular price
€199,22
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Teltonika Managed Industrial Ethernet Switch - 10 total ports (8 GE RJ45 / 2 fiber SFP) - Native support for PROFINET and EtherNet/IP industrial standards - Robust L2 capacity with L3 static routing - Extreme thermal tolerance from -40°C to +75°C - IP30 anodized aluminum industrial chassis
📋 SPECIFICATIONS:
• Brand: Teltonika Networks
• Product category: Industrial managed switch (L2 with additional L3 features)

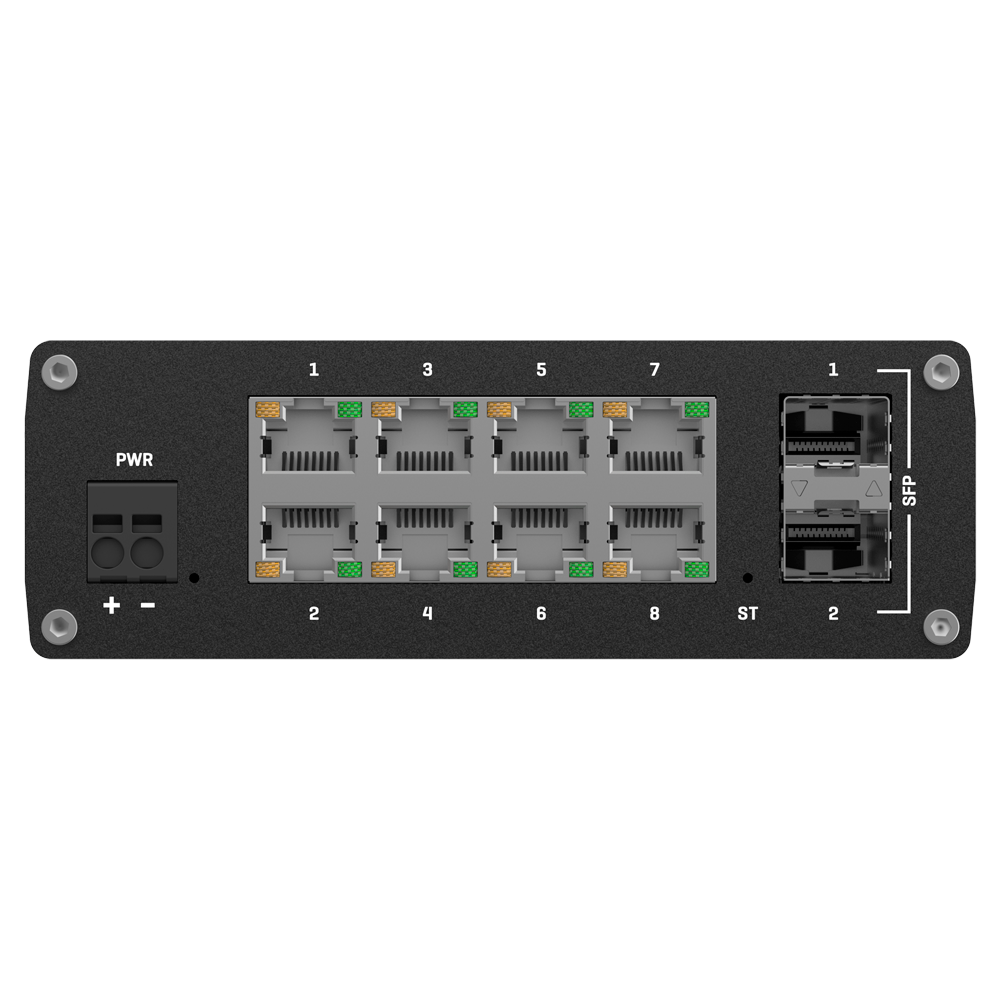

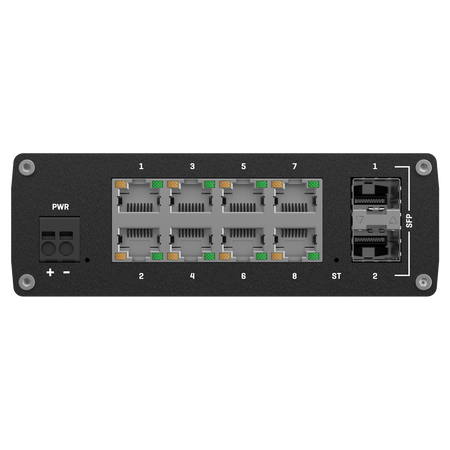

• Fixed network interfaces: 8 × 10/100/1000 Mbps RJ45 Gigabit Ethernet, 2 × fiber optic SFP slots
• Crossover detection: Automatic native support for MDI/MDIX crossover cables on all copper ports
• Supported IEEE standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
• Industrial protocols: PROFINET (Class B compliance via optional code), EtherNet/IP, MRP (Client and Manager)
• Switching bandwidth: 20 Gbps (Non-blocking)
• Packet Forwarding Rate: 14.88 Mpps
• Processing and memory: 128 MB DDR3 internal RAM / 16 MB serial flash memory
• Switch buffer: 512 KB packet buffer memory
• MAC address table: 8000 logic entries
• Jumbo Frame size (MTU): Maximum permitted frame length 10000 bytes
• Layer 2 (L2) functions: STP/RSTP, VLAN (802.1Q), Loop protection, Forwarding table, LACP (802.3ad)
• Layer 3 (L3): IPv4/IPv6 static routing, IPv6 address, DHCPv6 client, Dynamic routing (BGP, OSPFv2, RIP v1/v2, EIGRP)
• Integrated network services: DHCP server, DHCP client, DHCP static assignments based on MAC address, SNMP v2c/v3, LLDP, IGMP Snooping, Multicast Querier
• Interface configuration: Enable/Disable, Link speed control, Port isolation, Port mirroring, EEE management
• Cybersecurity environment: PAM authentication (pre-shared key), RADIUS, TACACS+, IP and login attempt blocking, Port-based MAC filtering
• Quality of Service (QoS): Port priority-based classification, DSCP, 802.1p CoS and TOS / Scheduling: SP, WFQ, WRR / Bandwidth control
• Diagnostic tools: Cable diagnostic, Ping, Traceroute, Nslookup
• Management interfaces: TSWOS (OpenWrt-based Linux ecosystem), Web UI, Teltonika Networks Web API (Beta), CLI, SSH, TR-069 CWMP, FOTA, RMS
• Chassis material: Shielded housing and anodized aluminum panels with high mechanical resistance
• Protection rating: Industrial IP30 protection against solid object penetration
• Dissipation mechanism: Completely passive fanless design, thanks to the metal chassis utilizing natural thermal convection

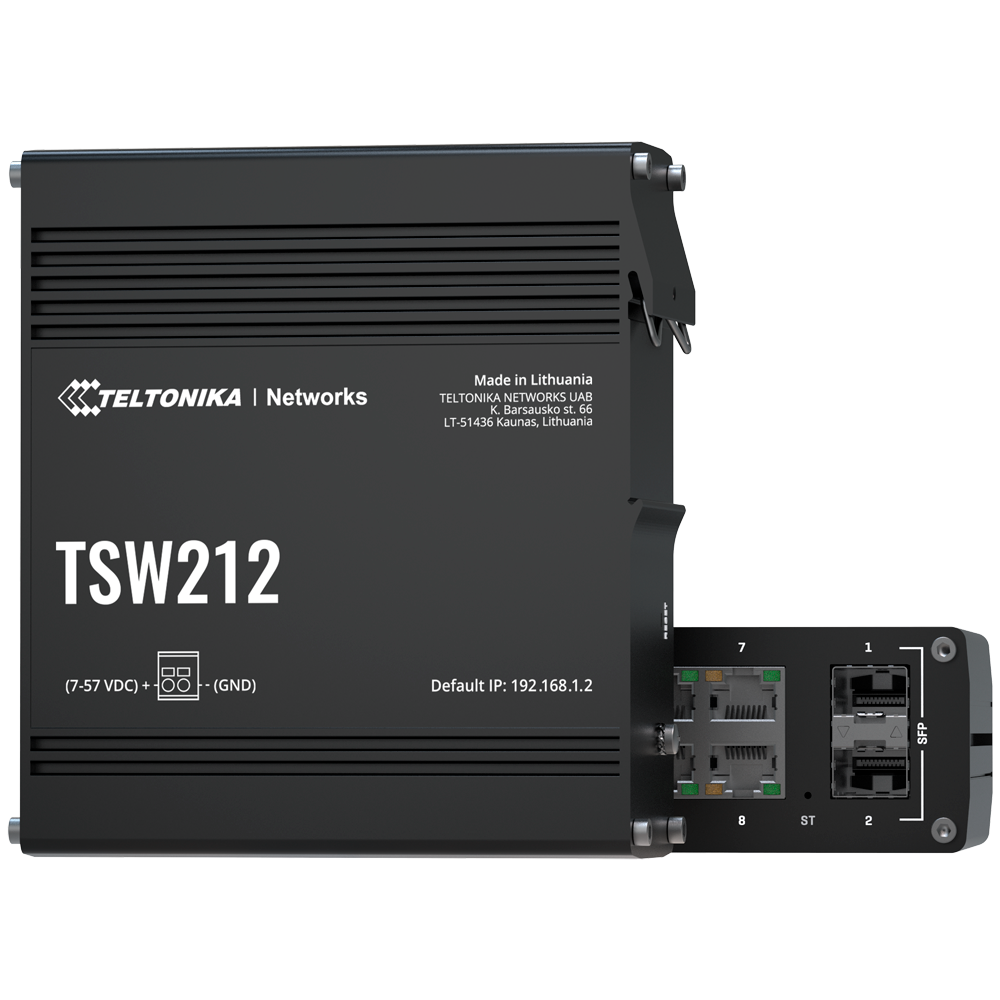

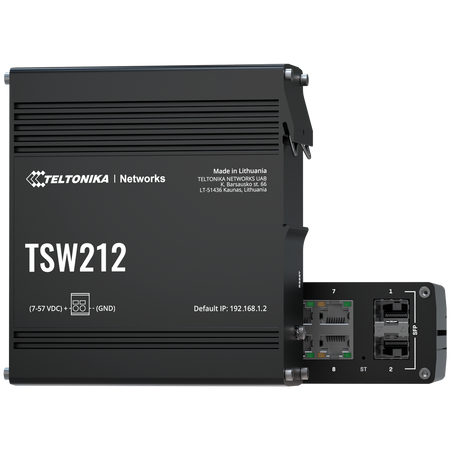

• Installation options: Standard integrated DIN rail support, compatible with wall or surface mounting (requires additional kit)
• Real-time connectivity: Native Hot-Swap support for cables on data ports and power connectors
• System monitoring: LED indicators: 1x Power, 1x Auxiliary, 16x RJ45 status, 2x SFP status / Status alarm / Syslog

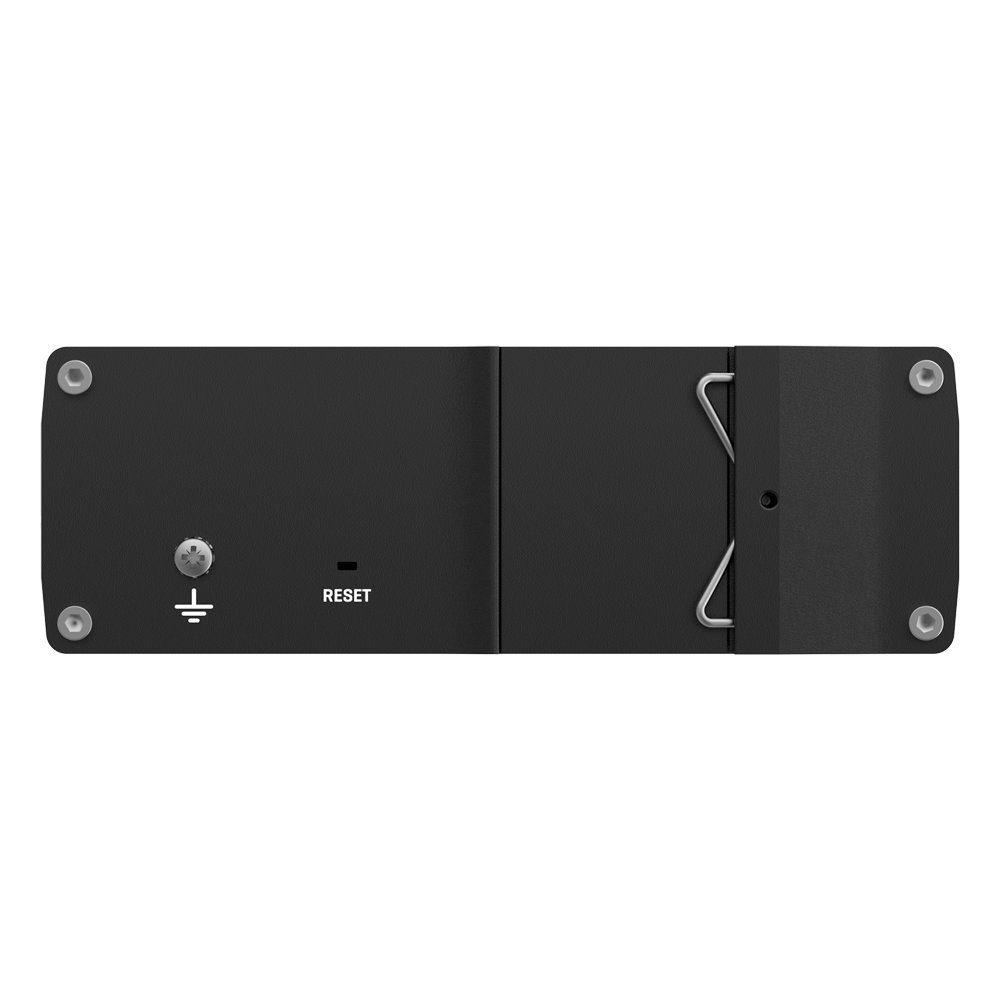

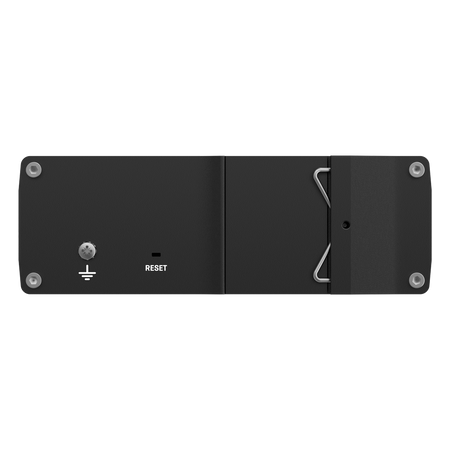

• Physical interface buttons: 1 × Software reset button, 1 × Protective grounding screw
• Lightning protection: ESD immunity according to EN 61000-4-2:2009 standard
• Surge protection: Signal port (Ethernet): 1 kV Line-to-ground / DC power port: 1 kV Line-to-line and 2 kV Line-to-ground (IEC 61000-4-5)
• DC power input: 1 × 2-pin industrial pluggable terminal block (Supported input voltage range: 7 – 57 VDC)
• Power consumption: Idle standby consumption: < 2.5 W / Maximum switch consumption: 6 W
• Operating temperature: -40 °C to +75 °C (-40 °F to +167 °F), ideal for outdoor cabinets exposed to weather
• Operating humidity: 5% to 95% RH (non-condensing)
• Cooling system: Passive natural convection design (Fanless)
• Chassis dimensions (W×D×H): 132 mm x 122.2 mm x 44.2 mm (1U industrial rack form factor for control cabinet)
• Net device weight: 615 g (0.615 kg)
📦 INCLUDED:
• 1x TSW212 Industrial Managed Switch (base unit)• 1x Quick start guide and hardware user manual
| Product category | Industrial managed switch (L2 with additional L3 features) |
|---|---|
| Fixed network interfaces | 8 × 10/100/1000 Mbps RJ45 Gigabit Ethernet, 2 × SFP fiber optic slots |
| Crossover detection | Native automatic support for MDI/MDIX crossover cables on all copper ports |
| Supported IEEE standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Industrial protocols | PROFINET (Class B compliance via optional code), EtherNet/IP, MRP (Client and Manager) |
| Switching bandwidth | 20 Gbps (Non-blocking) |
| Packet Forwarding Rate | 14.88 Mpps |
| Processing and memory | 128 MB DDR3 internal RAM / 16 MB serial flash memory |
| Switch buffer | 512 KB packet buffer memory |
| MAC address table | 8000 logical entries |
| Jumbo Frame size (MTU) | Maximum allowed frame length 10000 bytes |
| Layer 2 (L2) functions | STP/RSTP, VLAN (802.1Q), Loop protection, Forwarding table, LACP (802.3ad) |
| Layer 3 (L3) | IPv4/IPv6 static routing, IPv6 address, DHCPv6 client, Dynamic routing (BGP, OSPFv2, RIP v1/v2, EIGRP) |
| Integrated network services | DHCP server, DHCP client, Static DHCP assignments based on MAC address, SNMP v2c/v3, LLDP, IGMP Snooping, Multicast Querier |
| Interface configuration | Enable/Disable, Link speed control, Port isolation, Port mirroring, EEE management |
| Cybersecurity environment | PAM authentication (pre-shared key), RADIUS, TACACS+, IP address and login attempt blocking, Port-based MAC filtering |
| Quality of Service (QoS) | Classification based on port priority, DSCP, 802.1p CoS and TOS / Scheduling: SP, WFQ, WRR / Bandwidth control |
| Analysis tools | Cable Diagnostic, Ping, Traceroute, Nslookup |
| Management interfaces | TSWOS (OpenWrt-based Linux ecosystem), Web UI, Teltonika Networks Web API (Beta), CLI, SSH, TR-069 CWMP, FOTA, RMS |
| Housing material | Shielded housing and high mechanical strength anodized aluminum panels |
| Protection rating | IP30 industrial protection rating against solid object penetration |
| Dissipation mechanism | Completely passive fanless design, utilizing the metal chassis for natural thermal convection |
| Installation options | Integrated DIN rail mount as standard, compatible with wall or surface mounting (requires additional kit) |
| Real-time connectivity | Native Hot-Swap support for cables on data ports and power connectors |
| System monitoring | LED indicators: 1x Power, 1x Auxiliary, 16x RJ45 status, 2x SFP status / Status alarm / Syslog |
| Physical interface buttons | 1 × software reset button, 1 × protective grounding screw |
| Lightning protection | ESD immunity according to EN 61000-4-2:2009 standard |
| Surge protection | Signal port (Ethernet): 1 kV Line-to-ground / DC power port: 1 kV Line-to-line and 2 kV Line-to-ground (IEC 61000-4-5) |
| DC power input | 1 × 2-pin industrial pluggable terminal block (Supported input voltage range: 7 – 57 VDC) |
| Power consumption | Idle standby consumption: < 2.5 W / Absolute maximum switch consumption: 6 W |
| Operating temperature | -40 °C to +75 °C (-40 °F to +167 °F), ideal for outdoor cabinets exposed to the elements |
| Operating humidity | 5% to 95% RH (non-condensing) |
| Cooling system | Passive natural convection design (Fanless) |
| Chassis dimensions (W×D×H) | 132 mm x 122.2 mm x 44.2 mm (Industrial 1U rack form factor for control cabinet) |
| Net device weight | 615 g (0.615 kg) |
