Teltonika Managed Industrial PoE+ Switch
Regular price
€230,81
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

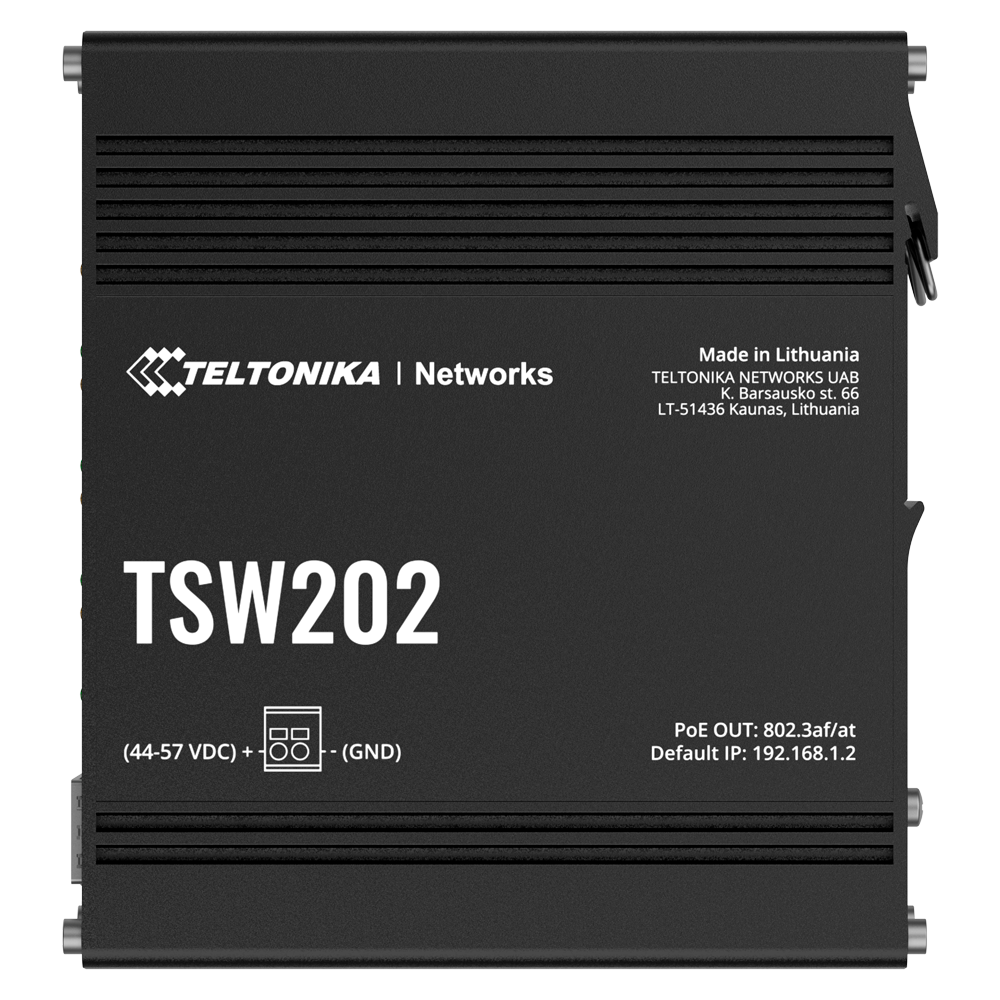

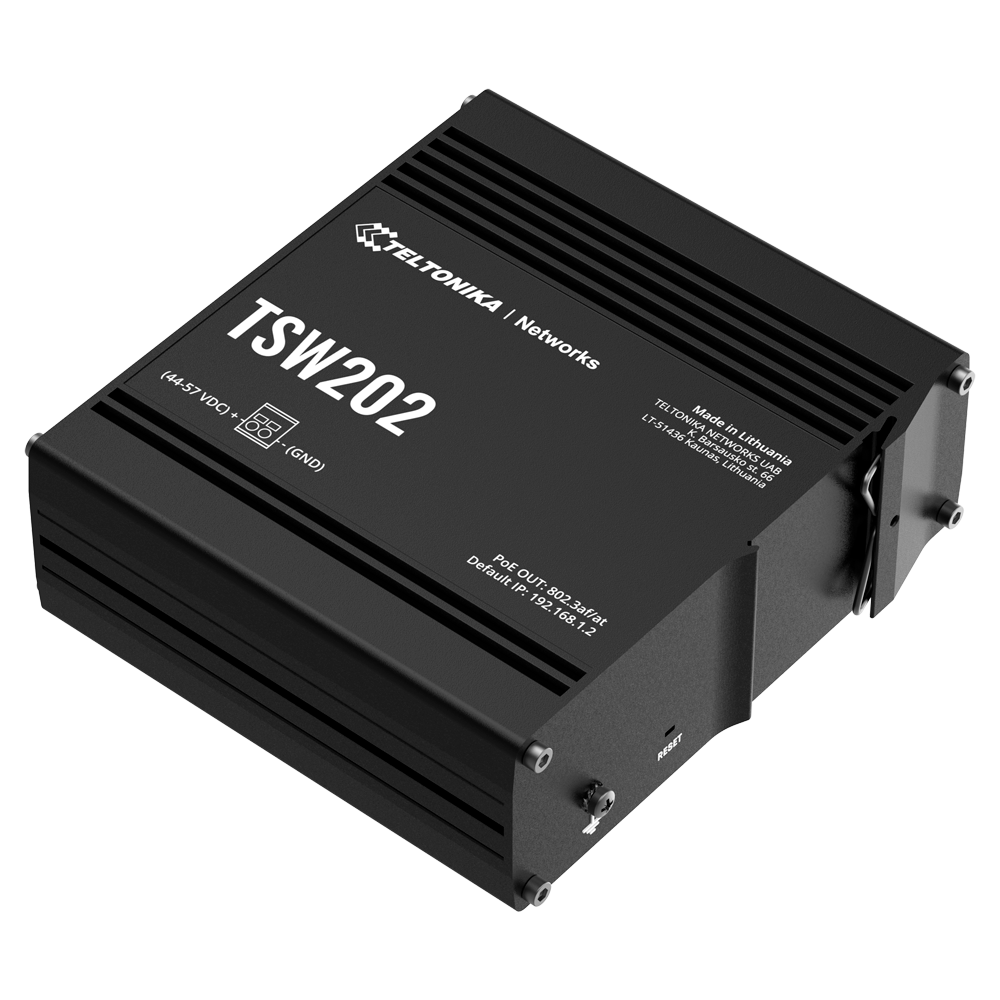

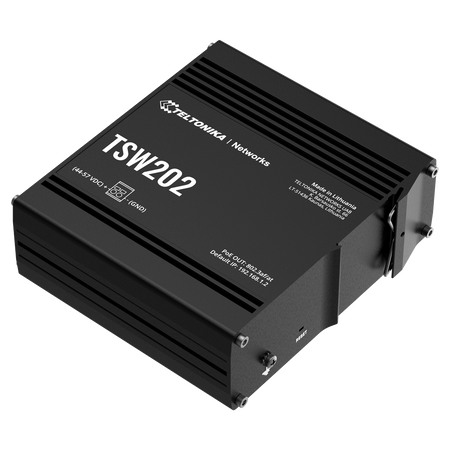

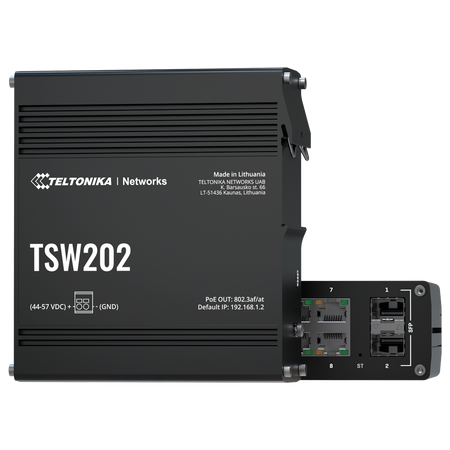

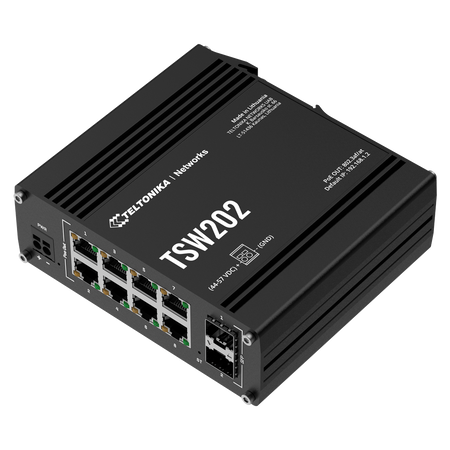

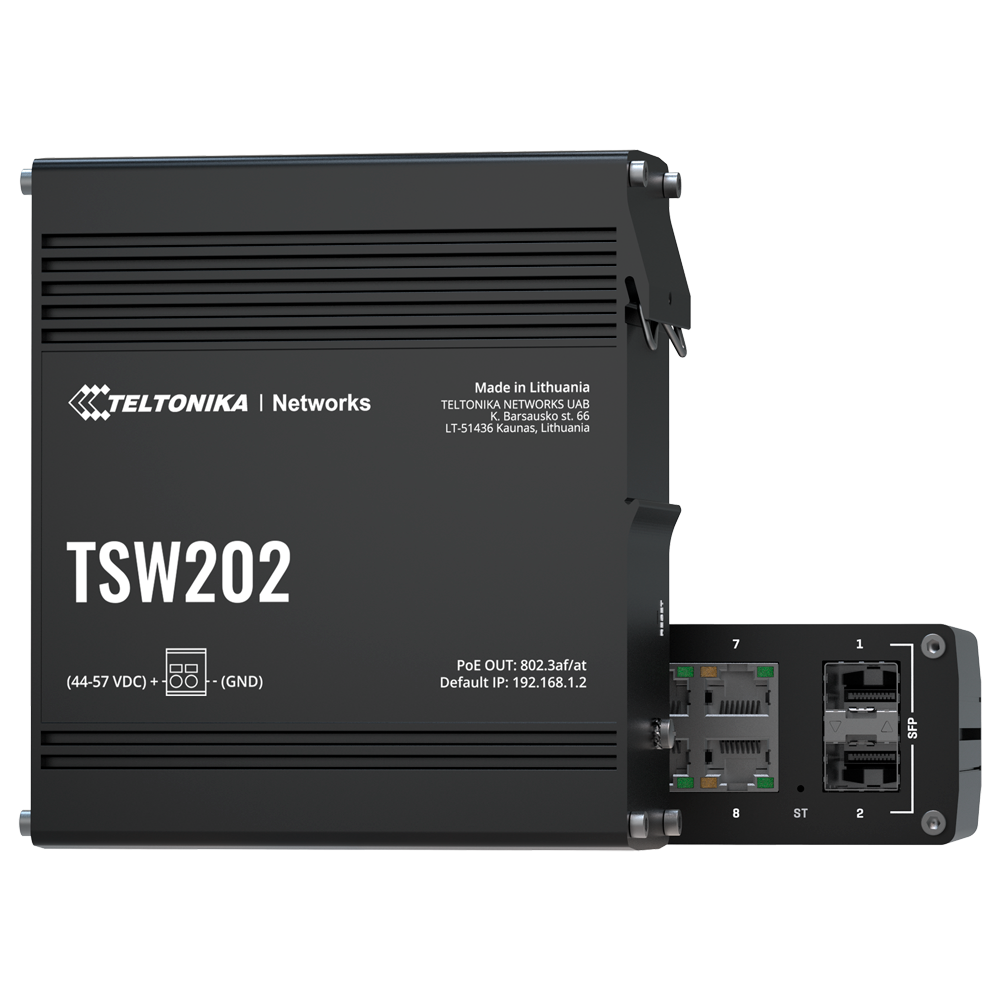

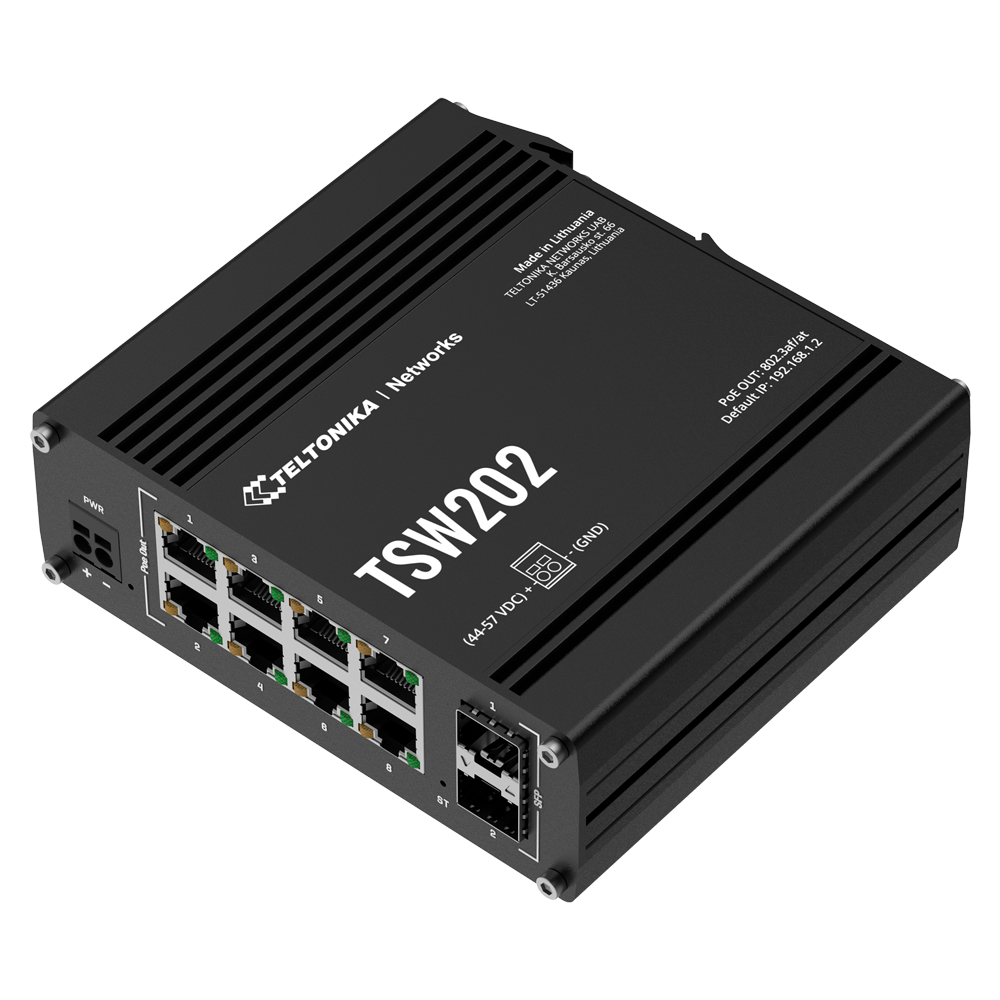

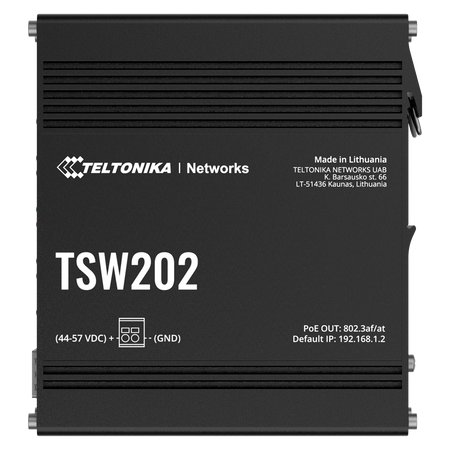

Teltonika Managed Industrial PoE+ Switch - 10 ports total (8 PoE+ GE / 2 SFP fiber) - Native support for industrial PROFINET and EtherNet/IP standards - Robust L2 capacity with L3 static routing - Extreme thermal tolerance from -40°C to +75°C - IP30 anodized aluminum industrial chassis
📋 SPECIFICATIONS:
• Brand: Teltonika Networks
• Product category: Industrial-grade managed switch (L2 with additional L3 features)

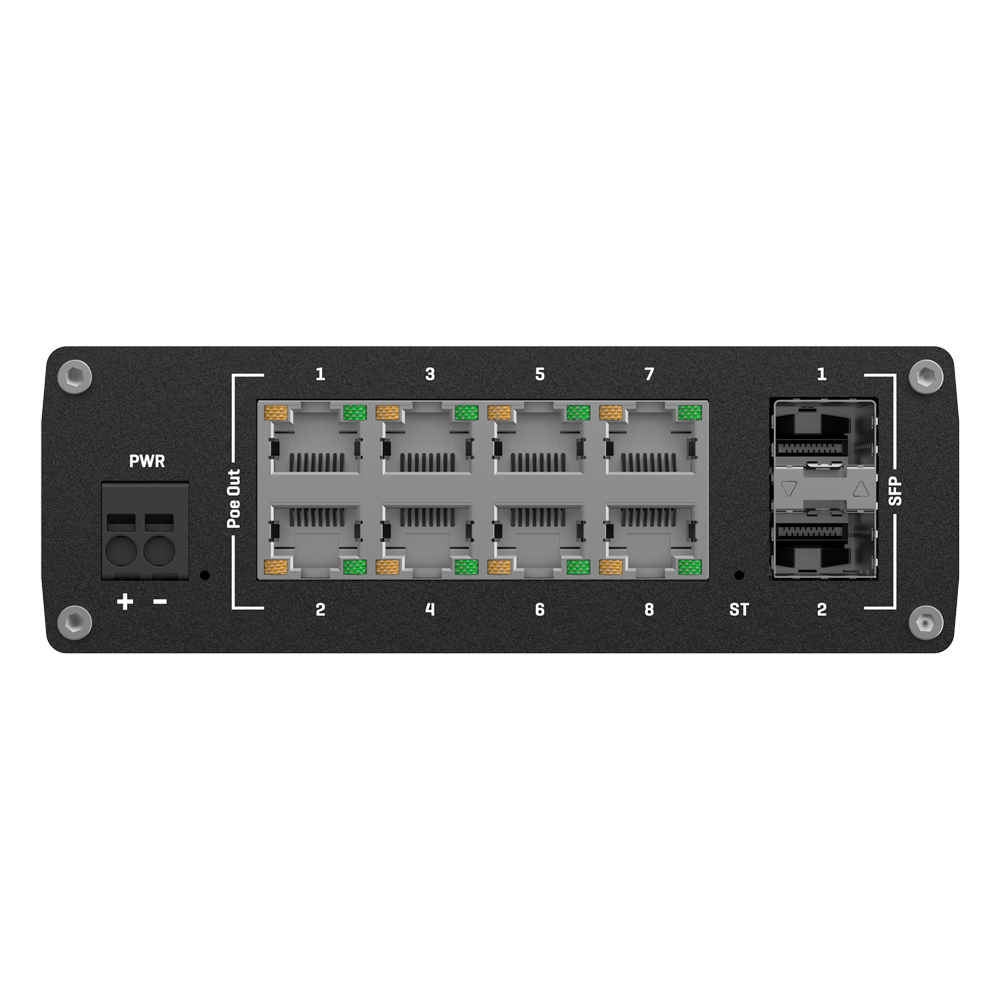

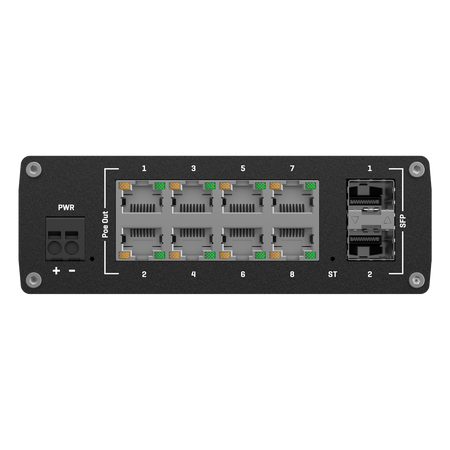

• Fixed network interfaces: 8 × 10/100/1000 Mbps RJ45 Gigabit Ethernet, 2 × SFP optical fiber slots
• Crossover detection: Native automatic support for MDI/MDIX crossover cables on all copper ports
• Supported IEEE standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3z, 802.3ad
• Industrial protocols: PROFINET (Class B compliance via optional code), EtherNet/IP, MRP (Client and Manager)
• PoE Out standards: IEEE 802.3af (PoE Type 1) and IEEE 802.3at (PoE+ Type 2)
• PoE Out pin modes: Batch 1-14 and 16: Alternative B / Batch 15 and from 17 onwards: Alternative A
• Maximum PoE power: 240 W total power on the power terminal block (PSE)
• Maximum power output: Up to 30 W of electrical power injection per individual copper interface (ports 1 to 8)
• Switching bandwidth: 20 Gbps (Non-blocking)
• Packet Forwarding Rate: 14.88 Mpps
• Processing and memory: 128 MB DDR3 internal RAM / 16 MB serial flash memory
• Switch buffer: 512 KB packet buffer memory
• MAC address table: 8000 logical entries
• Jumbo Frame size (MTU): Maximum allowed frame length 10000 bytes
• Layer 2 (L2) features: STP/RSTP, VLAN (802.1Q), loop protection, forwarding table, LACP (802.3ad)
• Layer 3 (L3): IPv4/IPv6 static routing, IPv6 address, DHCPv6 client, dynamic routing (BGP, OSPFv2, RIP v1/v2, EIGRP)
• Integrated network services: DHCP server, DHCP client, static DHCP leases based on MAC address, SNMP v2c/v3, LLDP, IGMP Snooping, Multicast Querier
• Interface configuration: Enable/Disable, link speed control, port isolation, port mirroring, PoE management, EEE management
• Cybersecurity environment: PAM authentication (pre-shared key), RADIUS, TACACS+, IP address and login attempt blocking, MAC filtering per port
• Quality of Service (QoS): Port priority-based classification, DSCP, 802.1p CoS and TOS / Scheduling: SP, WFQ, WRR / Bandwidth control
• Diagnostic tools: Cable Diagnostic, Ping, Traceroute, Nslookup, PoE port reboot function (Ping reboot)
• Management interfaces: TSWOS (OpenWrt-based Linux ecosystem), Web UI, Teltonika Networks Web API (Beta), CLI, SSH, TR-069 CWMP, FOTA, RMS
• Chassis material: Shielded housing and high mechanical strength anodized aluminum panels
• Ingress protection: IP30 industrial rating against solid object penetration
• Dissipation mechanism: Fully passive fanless design, utilizing the metal chassis for natural thermal convection
• Installation options: Integrated DIN rail support as standard, compatible with wall or surface mounting (requires additional kit)
• Real-time connectivity: Native support for Hot-Swap function for cables on data ports and power connectors
• System monitoring: LED indicators: 1x Power, 1x Auxiliary, 16x RJ45 status, 2x SFP status / Status alarm / Syslog

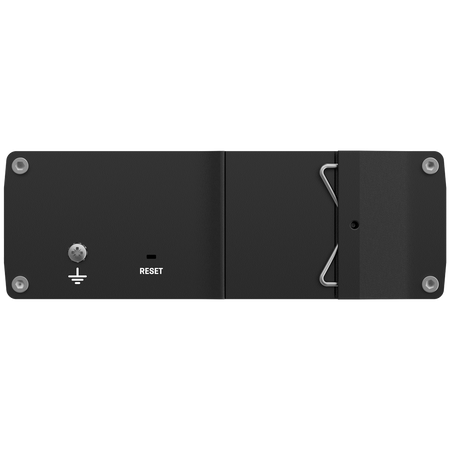

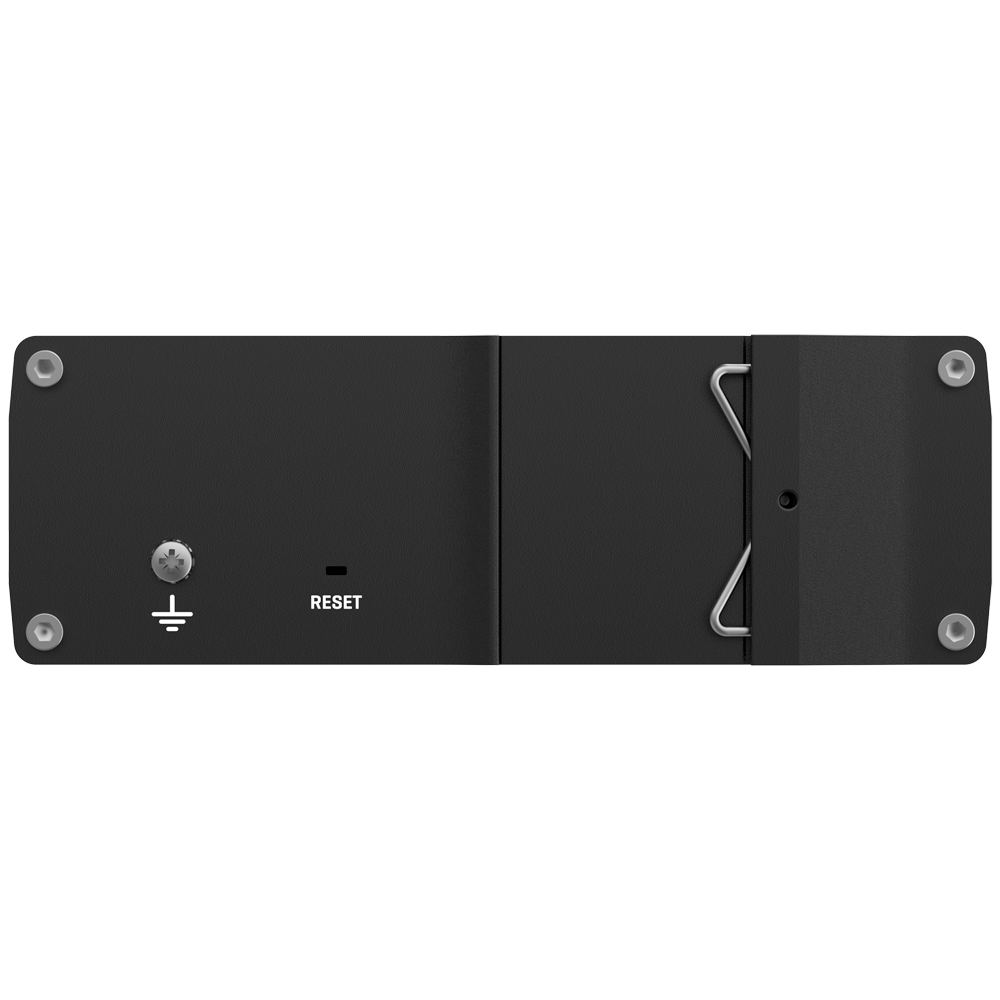

• Physical interface buttons: 1 × software reset button, 1 × protective grounding screw
• Hardware reliability: MTBF of 200,000 hours of continuous operation (approx. 22 years of service life)
• Lightning protection: ESD immunity according to standard EN 61000-4-2:2009
• Surge protection: Signal port (Ethernet): 1 kV Line-to-Ground / DC power port: 1 kV Line-to-Line and 2 kV Line-to-Ground (IEC 61000-4-5)
• DC power input: 1 × 2-pin industrial pluggable terminal block (Input voltage: 7 - 57 VDC / PoE output range: 44 - 57 VDC)
• Power consumption: Idle standby consumption: < 3 W / Maximum switch consumption: 8 W / Absolute maximum power with full PoE load: 248 W
• Operating temperature: -40 °C to +75 °C (-40 °F to +167 °F), ideal for outdoor cabinets exposed to weather
• Cooling system: Passive natural convection design (Fanless)
• Operating humidity: 5% to 95% RH (non-condensing)
• Chassis dimensions (W×D×H): 132 mm x 122.2 mm x 44.2 mm (Form factor optimized for industrial control cabinets)
• Device net weight: 610 g (0.61 kg)
📦 INCLUDED:
• 1x TSW202 Industrial Managed PoE+ Switch (Base unit)• 1x Quick start guide and hardware user manual
| Product category | Industrial-grade managed switch (L2 with additional L3 features) |
|---|---|
| Fixed network interfaces | 8 × 10/100/1000 Mbps RJ45 Gigabit Ethernet, 2 × SFP fiber-optic slots |
| Crossover detection | Native automatic support for MDI/MDIX crossover cables on all copper ports |
| Supported IEEE standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3z, 802.3ad |
| Industrial protocols | PROFINET (Class B compliance via optional code), EtherNet/IP, MRP (Client and Manager) |
| PoE Out standards | IEEE 802.3af (PoE Type 1) and IEEE 802.3at (PoE+ Type 2) |
| PoE Out pin modes | Batch 1-14 and 16: Alternative B / Batch 15 and from 17 onwards: Alternative A |
| Maximum PoE power | 240 W total power on the power terminal block (PSE) |
| Maximum power output | Up to 30 W power injection per individual copper interface (ports 1 to 8) |
| Switching bandwidth | 20 Gbps (Non-blocking) |
| Packet Forwarding Rate | 14.88 Mpps |
| Processing and memory | 128 MB DDR3 internal RAM / 16 MB serial flash memory |
| Switch buffer | 512 KB packet buffer memory |
| MAC address table | 8000 logical entries |
| Jumbo Frame size (MTU) | Maximum allowed frame length 10000 bytes |
| Layer 2 (L2) functions | STP/RSTP, VLAN (802.1Q), Loop protection, Forwarding table, LACP (802.3ad) |
| Layer 3 (L3) | IPv4/IPv6 static routing, IPv6 address, DHCPv6 client, Dynamic routing (BGP, OSPFv2, RIP v1/v2, EIGRP) |
| Integrated network services | DHCP server, DHCP client, Static DHCP assignments based on MAC address, SNMP v2c/v3, LLDP, IGMP Snooping, Multicast Querier |
| Interface configuration | Enable/Disable, Link speed control, Port isolation, Port mirroring, PoE management, EEE management |
| Cybersecurity environment | PAM authentication (pre-shared key), RADIUS, TACACS+, IP address and login attempt blocking, Per-port MAC filtering |
| Quality of Service (QoS) | Classification based on port priority, DSCP, 802.1p CoS and TOS / Scheduling: SP, WFQ, WRR / Bandwidth control |
| Analysis tools | Cable diagnostic, Ping, Traceroute, Nslookup, PoE port reboot function (Ping reboot) |
| Management interfaces | TSWOS (OpenWrt-based Linux ecosystem), Web UI, Teltonika Networks Web API (Beta), CLI, SSH, TR-069 CWMP, FOTA, RMS |
| Chassis material | Shielded housing and high-mechanical-resistance anodized aluminum panels |
| Protection rating | Industrial IP30 ingress protection rating against solid objects |
| Dissipation mechanism | Fully passive fanless design, utilizing the metal chassis for natural thermal convection |
| Installation options | Standard integrated DIN rail mount, compatible with wall or surface mounting (requires additional kit) |
| Real-time connectivity | Native support for Hot-Swap function for cables on data ports and power connectors |
| System monitoring | LED indicators: 1x Power, 1x Auxiliary, 16x RJ45 status, 2x SFP status / Status alarm / Syslog |
| Physical interface buttons | 1 × software reset button, 1 × protective grounding screw |
| Hardware reliability | MTBF of 200,000 hours of continuous operation (approximately 22 years of service life) |
| Lightning protection | ESD immunity according to EN 61000-4-2:2009 |
| Surge protection | Signal port (Ethernet): 1 kV Line-to-ground / DC power port: 1 kV Line-to-line and 2 kV Line-to-ground (IEC 61000-4-5) |
| DC power input | 1 × 2-pin industrial pluggable terminal block (Input voltage: 7 - 57 VDC / Range for PoE output: 44 - 57 VDC) |
| Power consumption | Base standby consumption: < 3 W / Maximum switch consumption: 8 W / Absolute maximum power with full PoE load: 248 W |
| Operating temperature | -40 °C to +75 °C (-40 °F to +167 °F), ideal for outdoor cabinets exposed to the elements |
| Cooling system | Passive natural convection design (Fanless) |
| Operating humidity | 5% to 95% RH (non-condensing) |
| Chassis dimensions (W×D×H) | 132 mm x 122.2 mm x 44.2 mm (Form factor optimized for industrial control cabinets) |
| Device net weight | 610 g (0.61 kg) |
