TELTONIKA

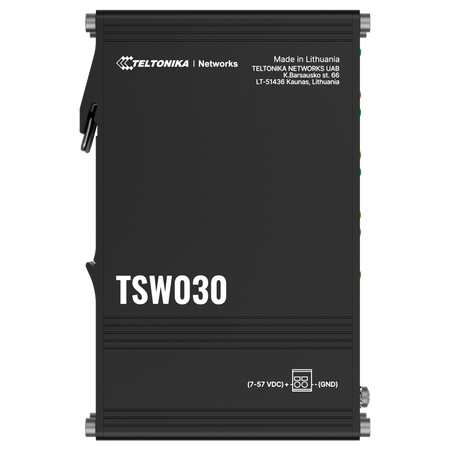

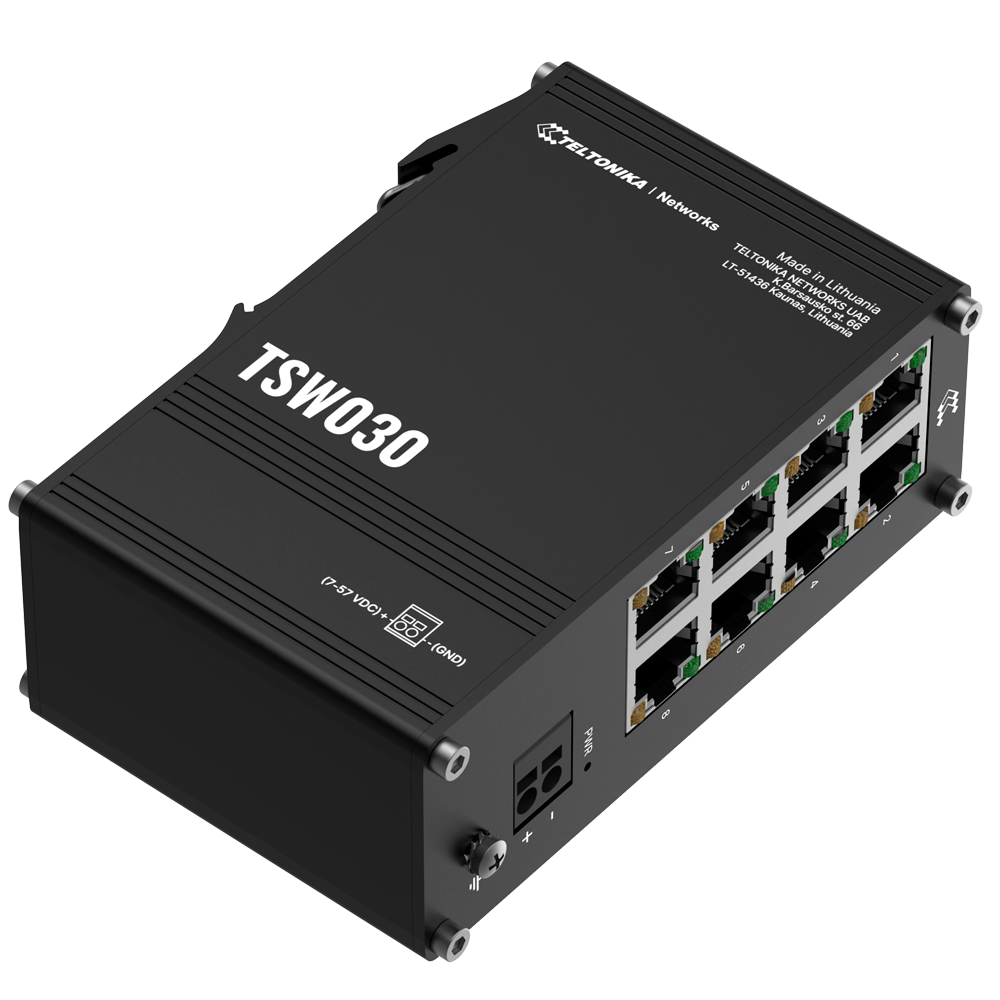

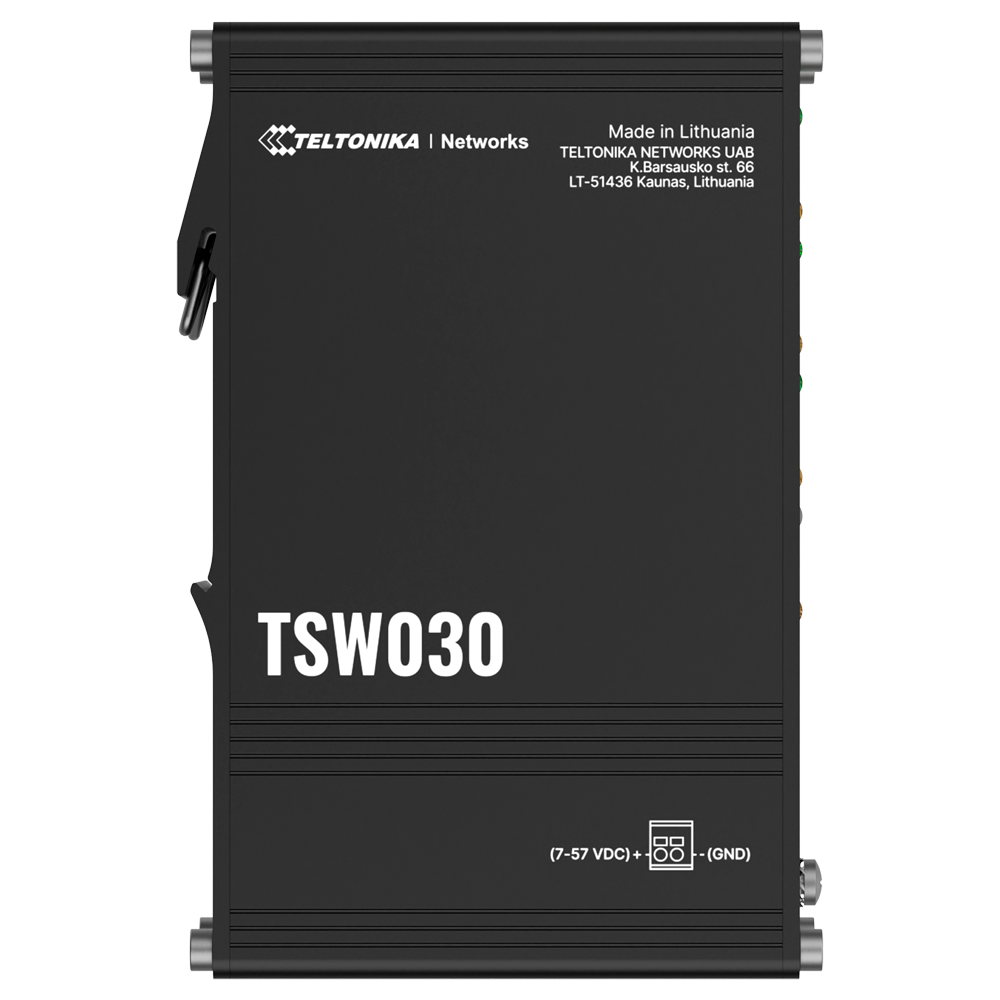

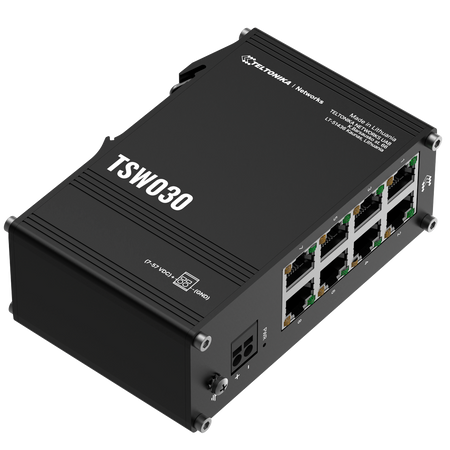

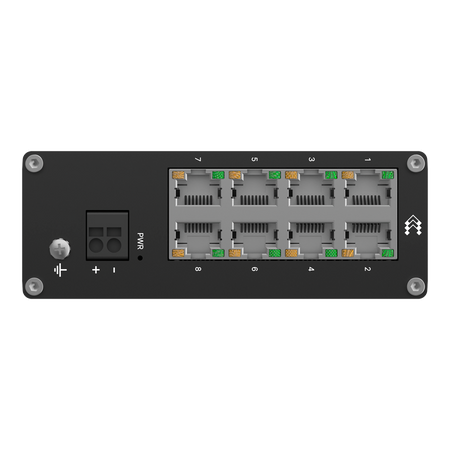

Teltonika Industrial Unmanaged Switch - 8 Fast Ethernet RJ45 ports

SKU: TK-TSW030
(0)
In stock
Usually shipped within 24 hours
€73,32 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Teltonika Industrial Unmanaged Switch - 8 Fast Ethernet RJ45 ports - Rugged Aluminum Housing - Plug and Play - 5 to 57V DC Power Input - Status LEDs

📋 SPECIFICATIONS:
• Brand: Teltonika
• Device: Industrial Unmanaged Switch

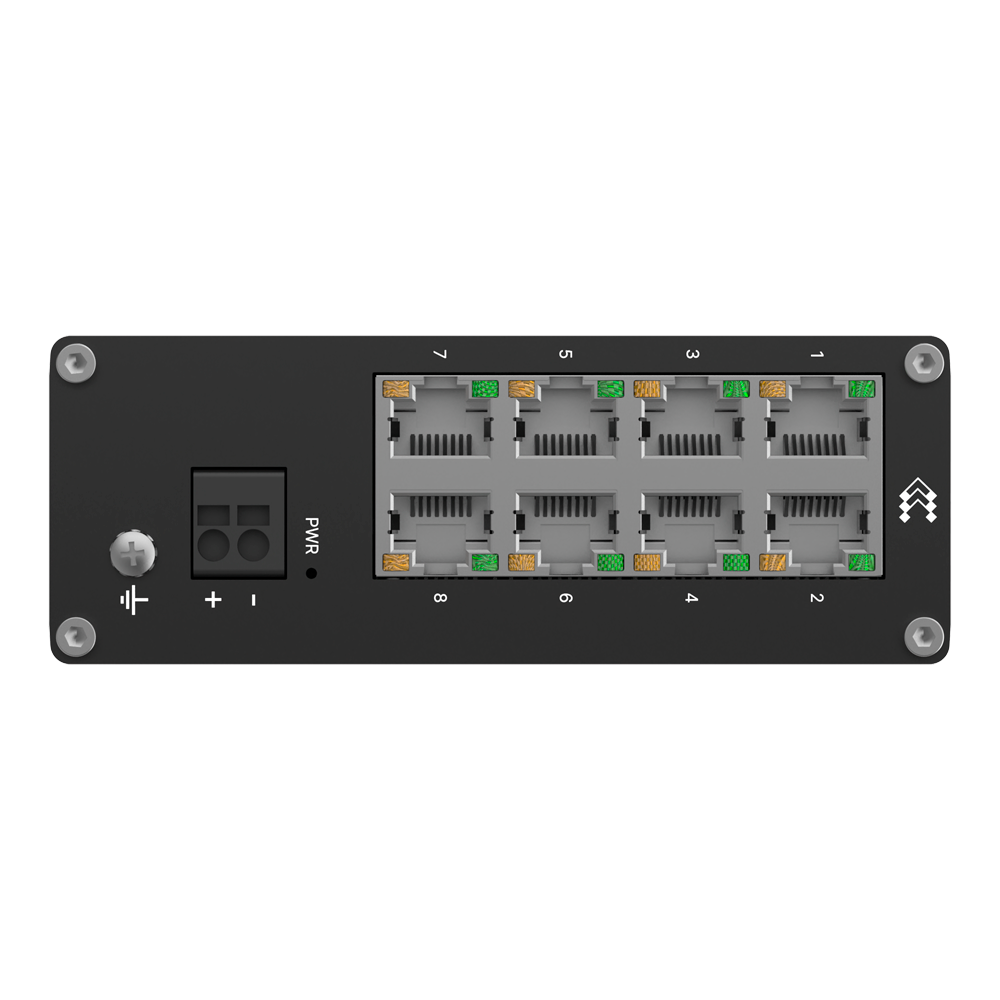

• Ethernet: 8x 10/100Mbps RJ45 Ethernet ports
• IEEE 802.3 standards compliance: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
• Switching capacity (non-blocking): 20Gbps
• MAC table: 2K entries
• Packet Buffer: 128 Kb
• Jumbo Frame: 9216 bytes
• Technology: Auto MDI/MDI-X cable detection
• Power input: 2-pin industrial DC connector 7 to 57V
• Power consumption: Idle: 0.5W / Max: 1.5W
• Power protection: Overvoltage protection: 60 V max; Reverse polarity protection: 80 V max; Surge protection: min. 64.4 V/max. 71.2 V; Breakdown input voltage, 93.6 V maximum reverse voltage @4.3 A reverse surge current.
• Material: Aluminum
• Ingress protection: IP30
• Operating temp.: -40º C ~ +75º C
• Operating humidity: 10 ~ 90% (non-condensing)

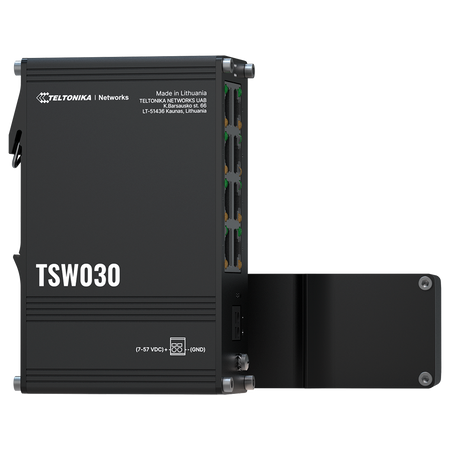

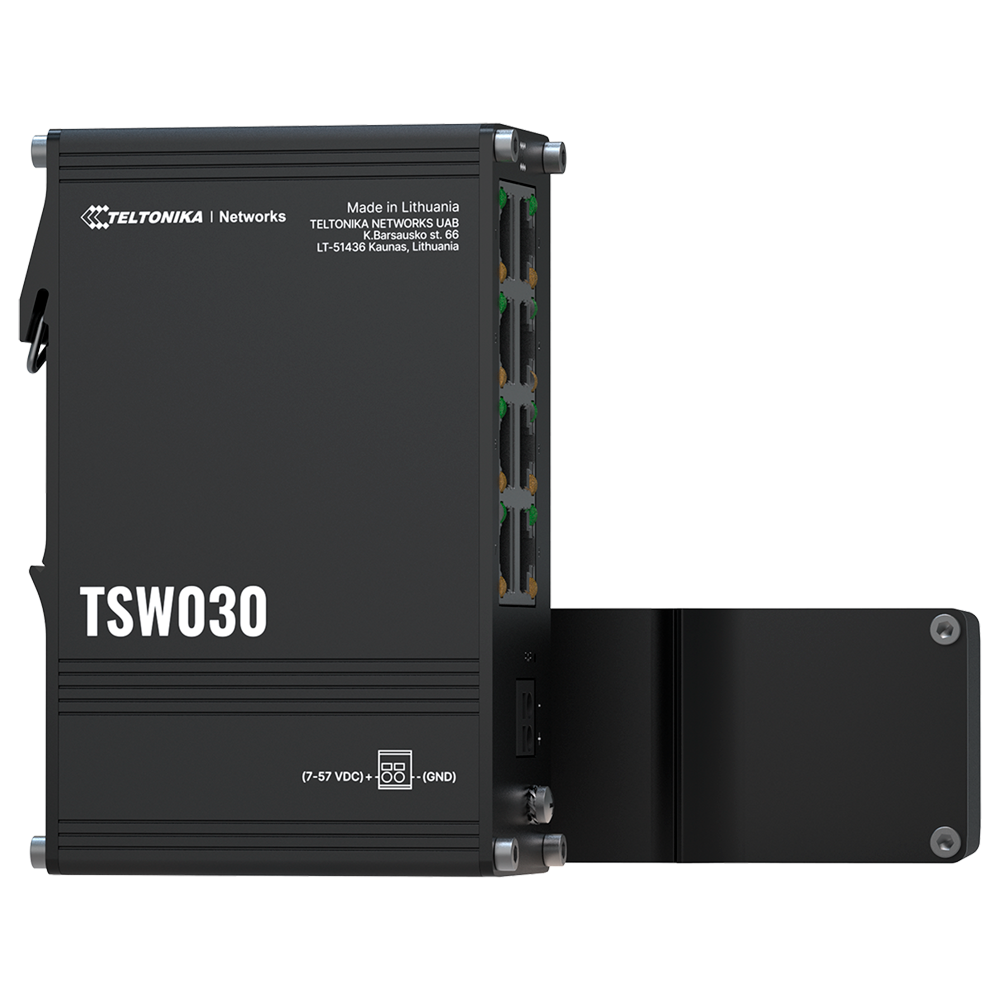

• Optional Mounting Kit (Not included): DIN Rail Mounting Kit
• Dimensions: 41.2 (H) x 113.1 (W) × 74.6 (D) mm
• Weight: 256 g

📦 INCLUDED:

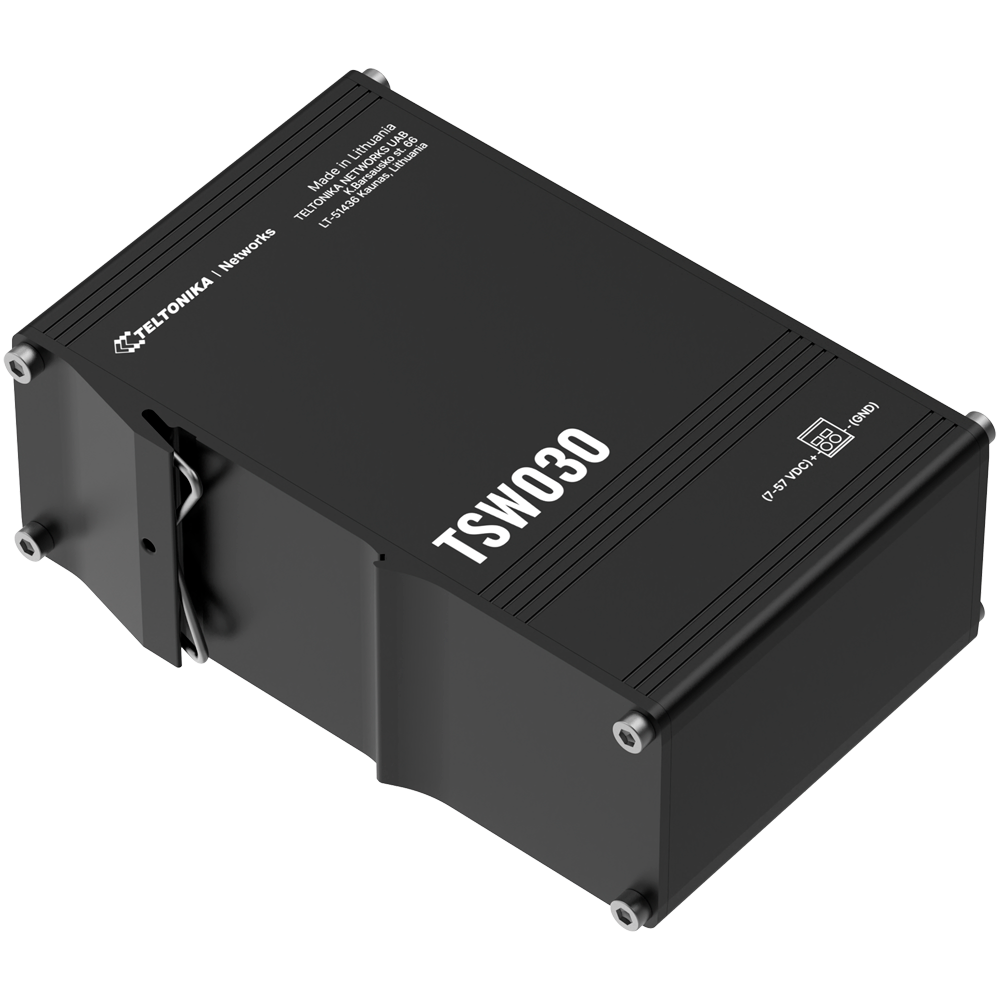

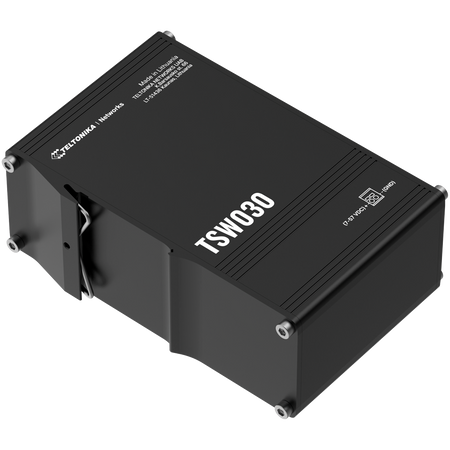

• Slim Industrial Switch• User Manual• Integrated DIN rail mount
Device Industrial Unmanaged Switch
Ethernet 8 x 10/100Mbps RJ45 Ethernet ports
In compliance with IEEE 802.3 standards 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Switching capacity (non-blocking) 20Gbps
MAC table 2K entries
Packet Buffer 128 Kb
Jumbo Frame 9216 bytes
Technology Auto MDI/MDI-X cable detection
Power supply 2-pin industrial DC connector 7 to 57V
Power consumption Stand-by: 0.5W / Max: 1.5W
Power protection Overvoltage protection: 60V max. Reverse polarity protection: 80V max. Surge protection: min. 64.4V / max. 71.2V breakdown input voltage, 93.6V max reverse voltage @ 4.3A reverse surge current.
Material Aluminum
Protection rating IP30
Operating temp. -40ºC ~ +75ºC
Operating humidity 10 ~ 90% (non-condensing)
Optional Mounting Kit (Not included) DIN Rail Mounting Kit
Dimensions 41.2 (H) x 113.1 (W) × 74.6 (D) mm
Weight 256 g
