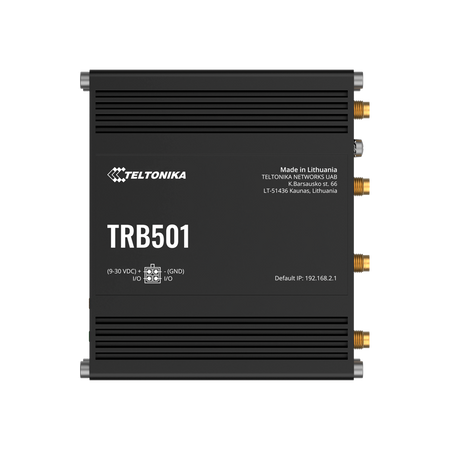

Teltonika 5G Industrial Router - High-speed 5G SA/NSA connectivity
Teltonika 5G Industrial Router - High-speed 5G SA/NSA connectivity
Regular price
€720,33
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Teltonika 5G Industrial Router - High-speed 5G SA/NSA connectivity - Ultra-fast Ethernet port up to 2.5 Gbps - Advanced VPN: IPsec, WireGuard, and ZeroTier - Compact industrial DIN rail gateway - Hardware monitoring and Modbus/IIoT protocols -
📋 SPECIFICATIONS:
• Brand: Teltonika
• Installation: DIN rail, wall, or flat surface
• CPU: Qualcomm Single-Core ARM Cortex-A7 (1.5 GHz)
• RAM: 512 MB
• Flash: 512 MB
• 5G NR bands: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n71, n75, n76, n77, n78
• 4G FDD bands: B1, B3, B5, B7, B8, B20, B28, B32, B71
• 4G TDD bands: B38, B40, B41, B42, B43
• 3G bands: B1, B3, B5, B8
• Mobile connection speed: 5G: 3.4Gbps DL / 900Mbps UL; 4G: Cat 19

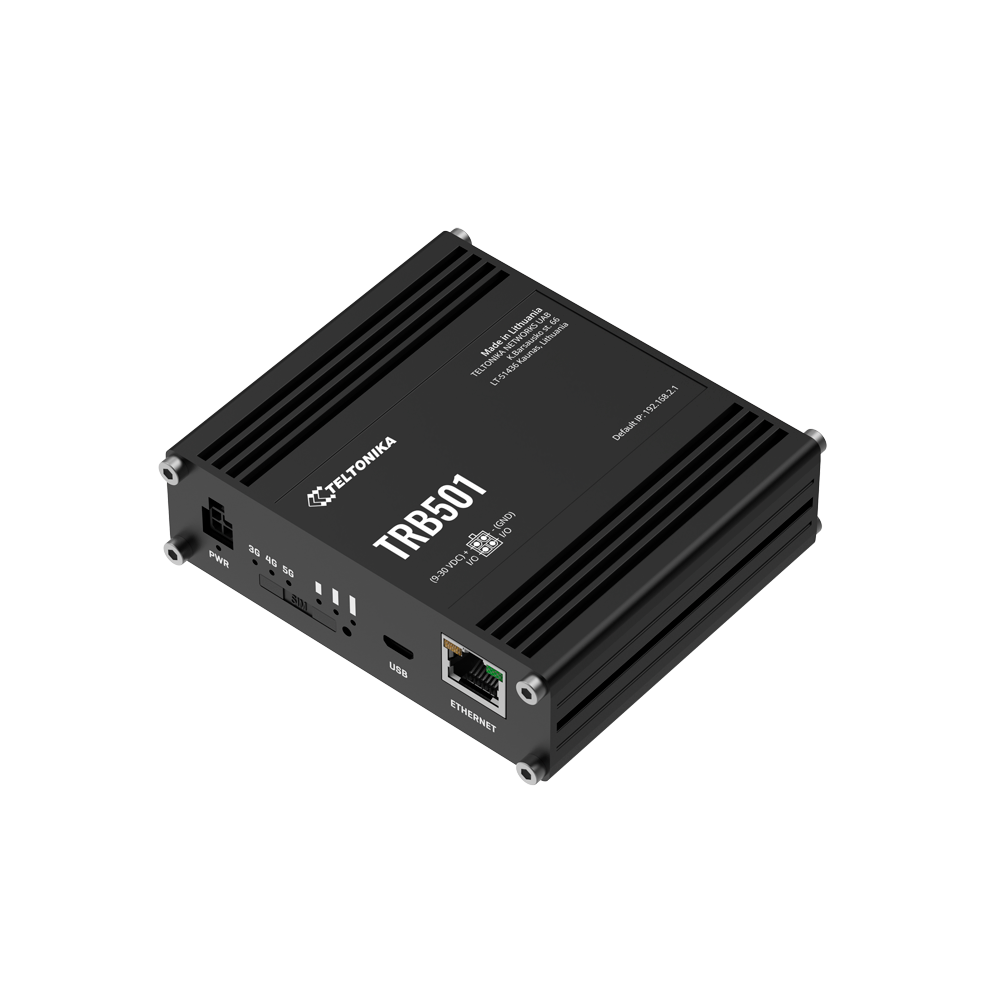

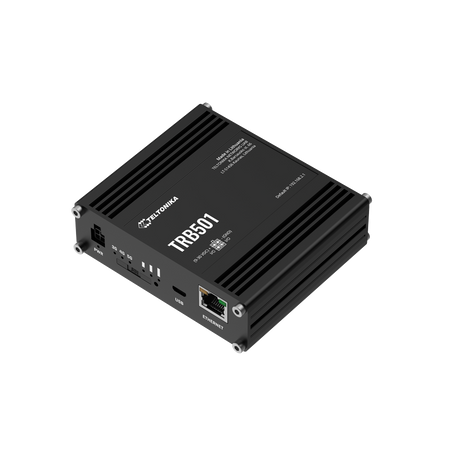

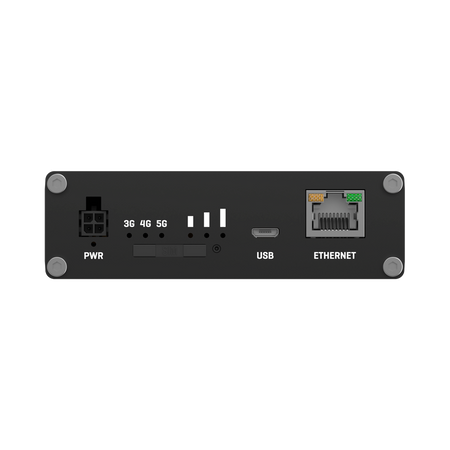

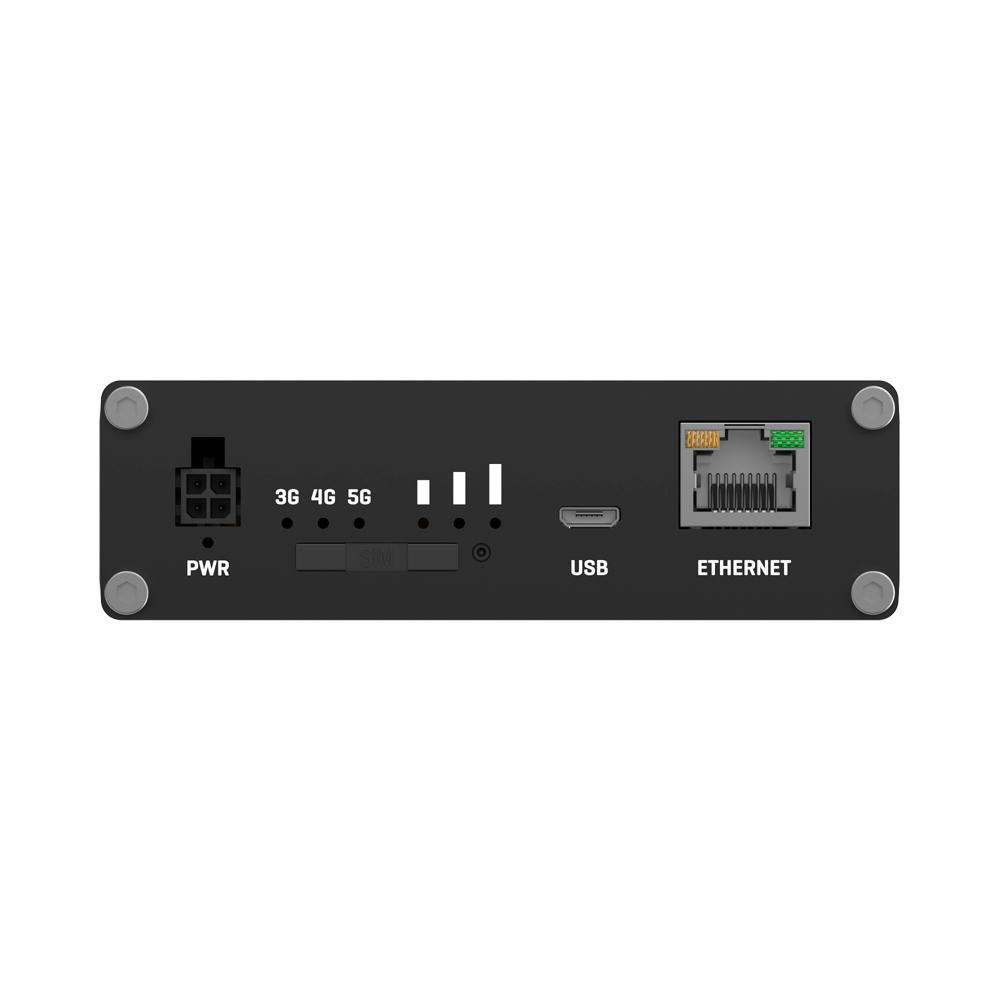

• Ethernet port: 1 x 10/100/1000/2500 Mbps (RJ45)
• SIM slot: 1 x Mini SIM slot (2FF) + 1 x eSIM
• Digital I/O: 2 x Configurable digital inputs/outputs
• USB port: 1 x Micro USB (virtual network interface)

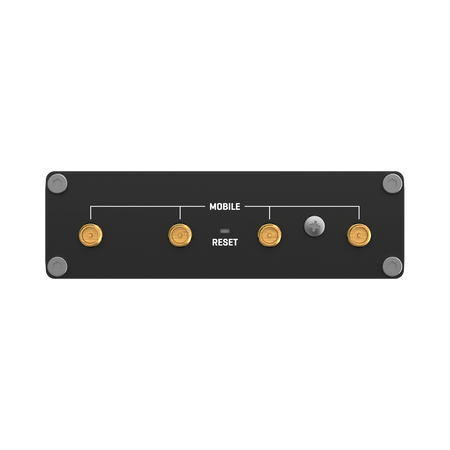

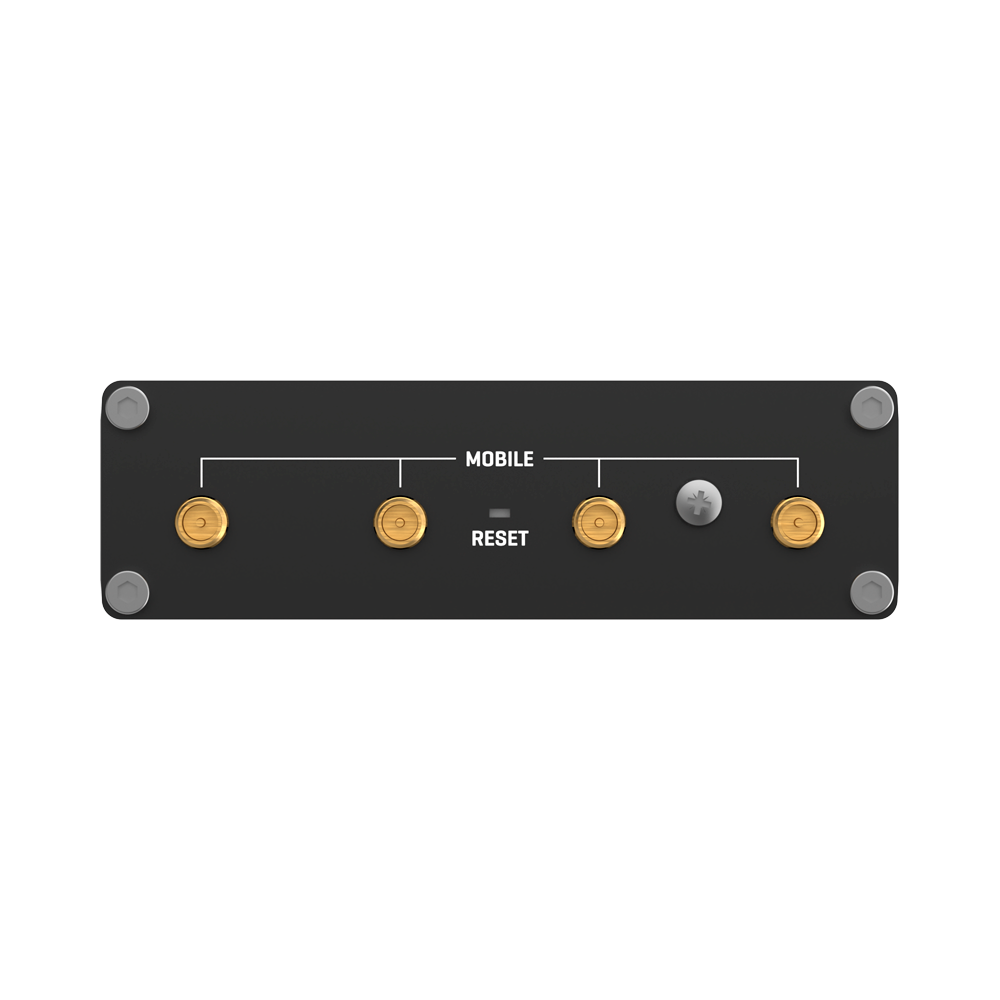

• Mobile antennas: 4 x SMA connectors [cit: 2431]
• VPN: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, ZeroTier, WireGuard
• Firewall: NAT, NAT-T, NAT64, DMZ, Custom rules, Web filter
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP/S, VRRP, MQTT
• IIoT protocols: Modbus TCP/RTU, DNP3, DLMS, OPC UA
• Management: Web UI, CLI, SMS, SSH, JSON-RPC, RMS, FOTA, TR-069, SNMP
• Operating System: RutOS (Linux-based OpenWrt)

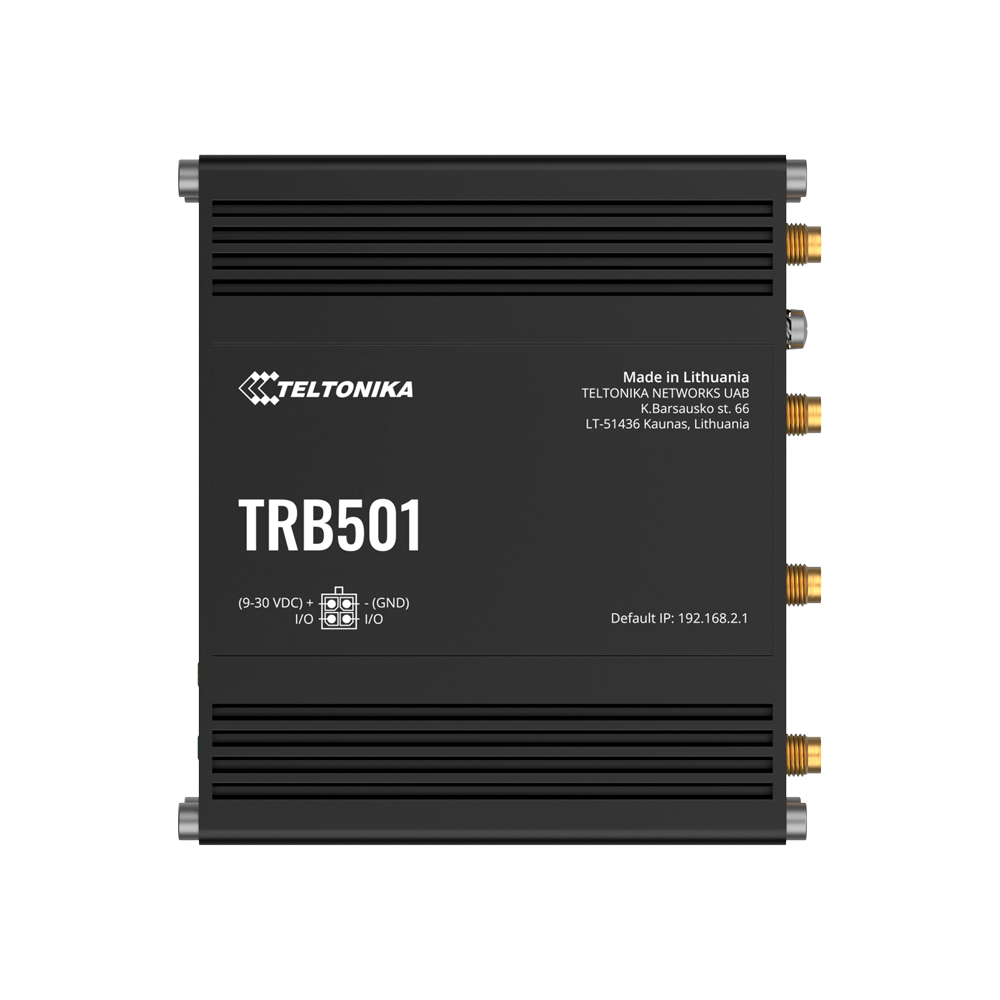

• Power supply: 9 - 30 VDC (4-pin connector)
• Power consumption: Standby: < 1.5 W; Maximum: < 5 W
• Operating temperature: -40°C to 75°C
• Operating humidity: 10% to 90% (non-condensing)
• Ingress protection: IP30
• Dimensions: 100 x 30 x 93.4 mm
• Weight: 241 g
• Color: Anodized aluminum
📦 INCLUDED:

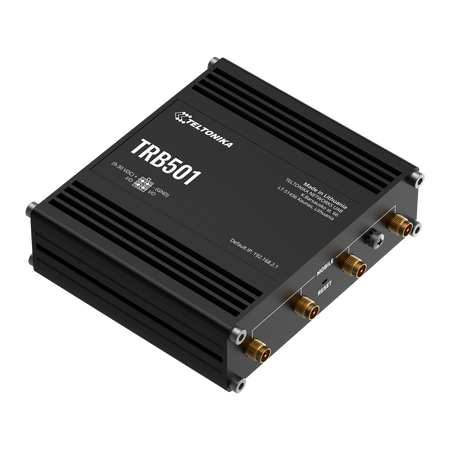

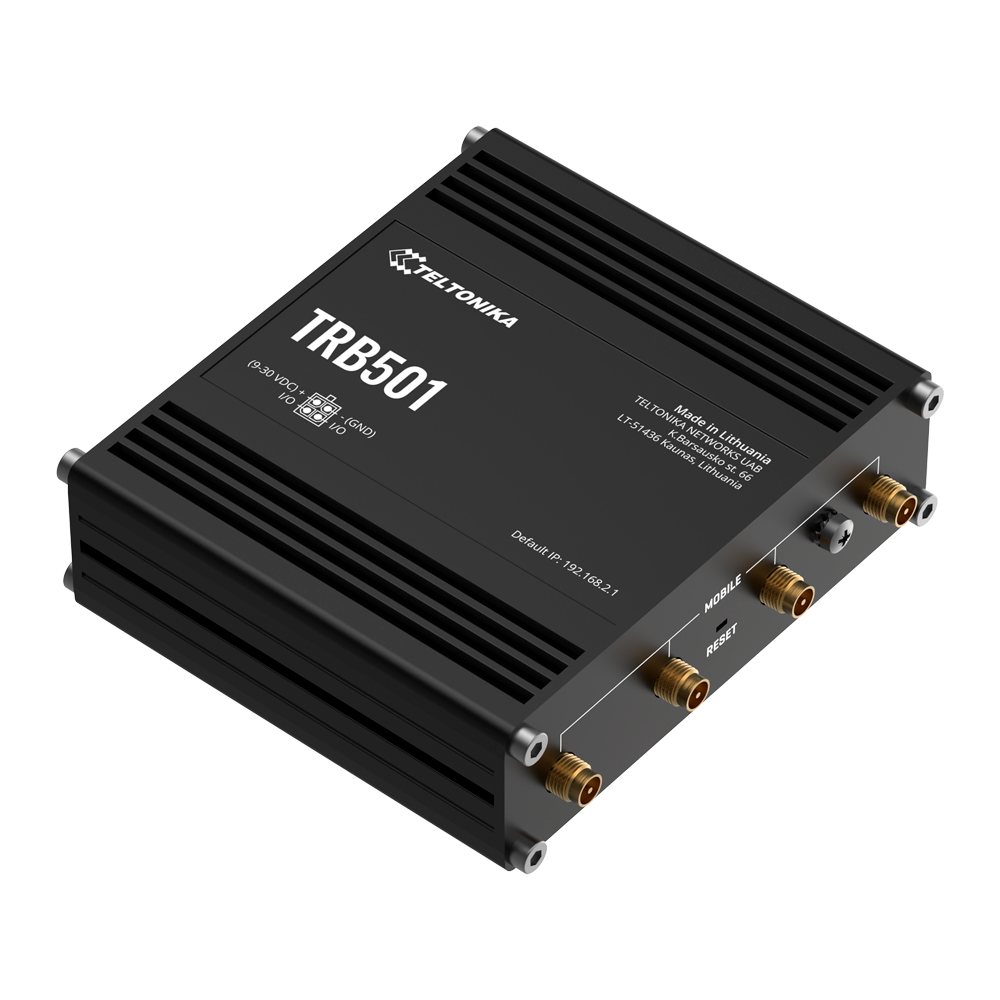

• 1x TRB501 Industrial Gateway • 1x 9W Power supply • 4x 5G SMA mobile antennas • 1x Micro-USB cable (0.8m) • 1x Ethernet cable (1.5m) • 1x SIM adapter kit • 1x Quick start guide
| Installation | DIN rail, wall, or flat surface |
|---|---|
| CPU | Qualcomm Single-Core ARM Cortex-A7 (1.5 GHz) |
| RAM | 512 MB |
| Flash | 512 MB |
| 5G NR bands | n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n71, n75, n76, n77, n78 |
| 4G FDD bands | B1, B3, B5, B7, B8, B20, B28, B32, B71 |
| 4G TDD bands | B38, B40, B41, B42, B43 |
| 3G bands | B1, B3, B5, B8 |
| Mobile connection speed | 5G: 3.4Gbps DL / 900Mbps UL; 4G: Cat 19 |
| Ethernet port | 1 x 10/100/1000/2500 Mbps (RJ45) |
| SIM slot | 1 x Mini SIM slot (2FF) + 1 x eSIM |
| Digital I/O | 2 x Configurable digital inputs/outputs |
| USB port | 1 x Micro USB (virtual network interface) |
| Mobile antennas | 4 x SMA connectors [cit: 2431] |
| VPN | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, ZeroTier, WireGuard |
| Firewall | NAT, NAT-T, NAT64, DMZ, Custom rules, Web filter |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP/S, VRRP, MQTT |
| IIoT protocols | Modbus TCP/RTU, DNP3, DLMS, OPC UA |
| Management | Web UI, CLI, SMS, SSH, JSON-RPC, RMS, FOTA, TR-069, SNMP |
| Operating System | RutOS (Linux-based OpenWrt) |
| Power supply | 9 - 30 VDC (4-pin connector) |
| Power consumption | Standby: < 1.5 W; Maximum: < 5 W |
| Operating temperature | -40°C to 75°C |
| Operating humidity | 10% to 90% (non-condensing) |
| Ingress protection | IP30 |
| Dimensions | 100 x 30 x 93.4 mm |
| Weight | 241 g |
| Color | Anodized aluminum |
