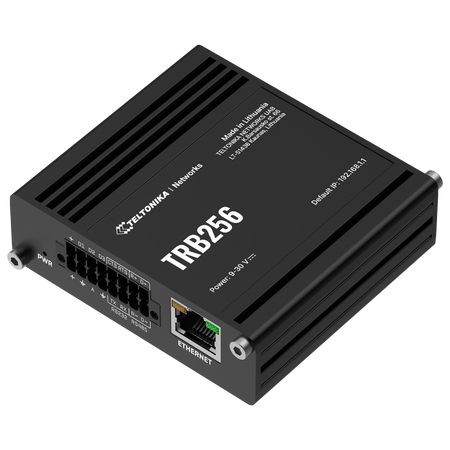

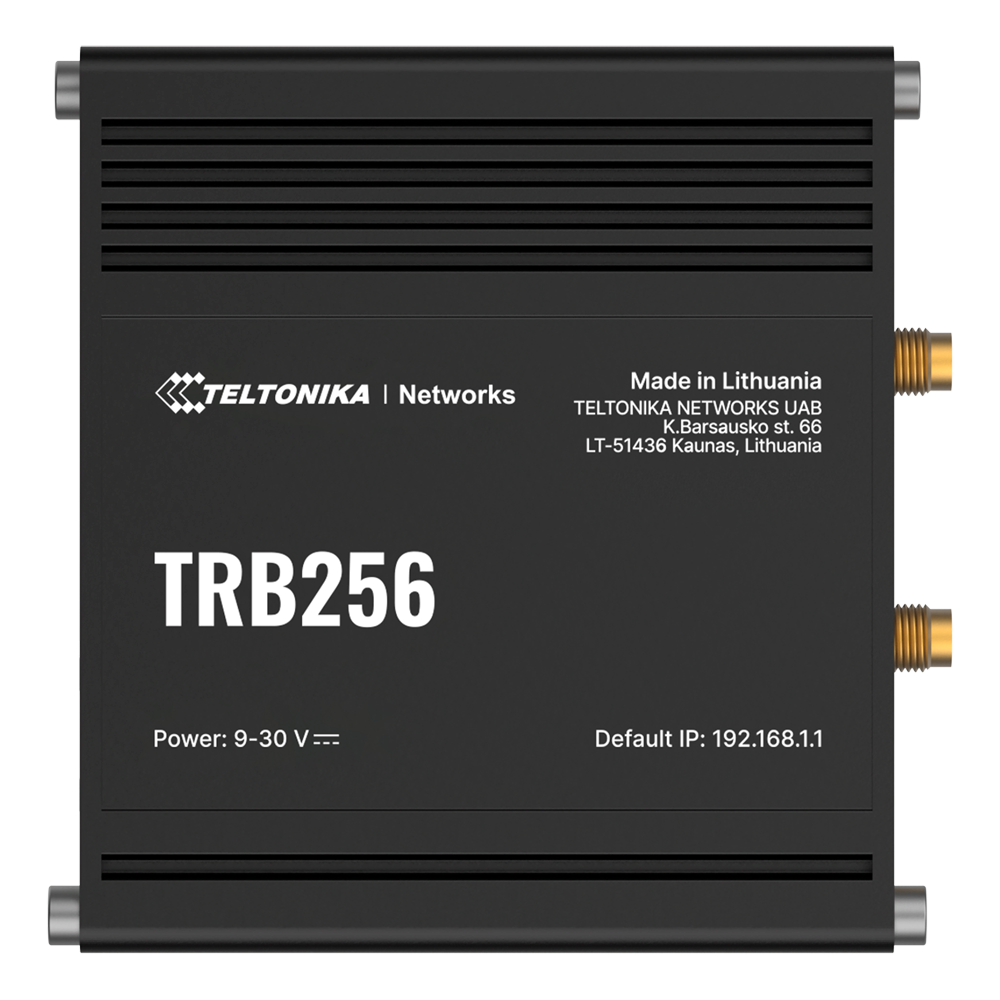

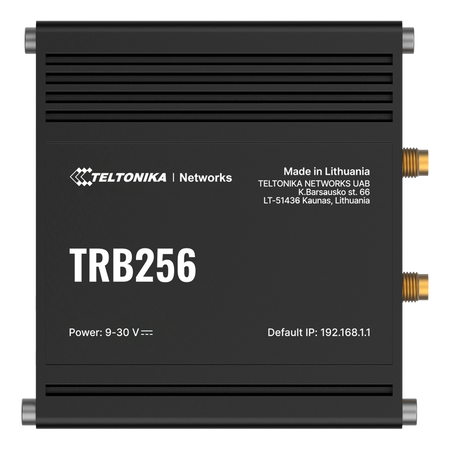

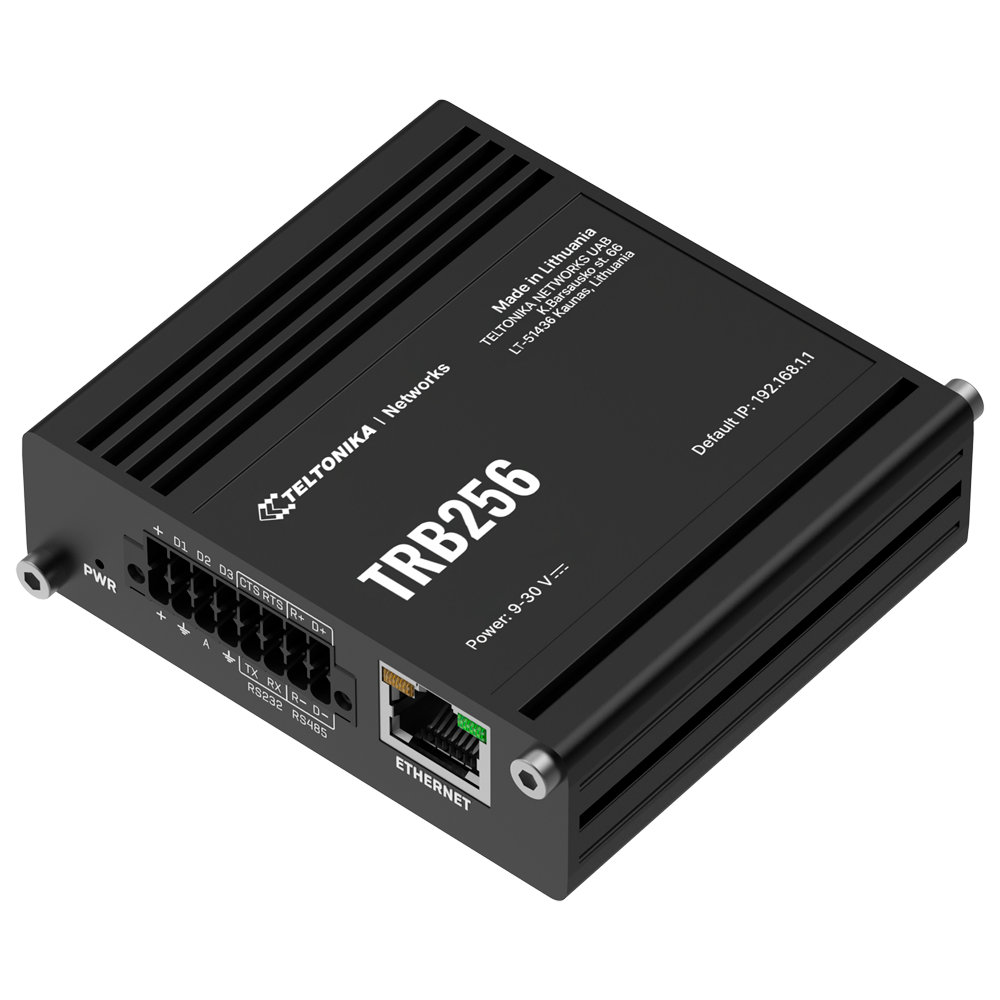

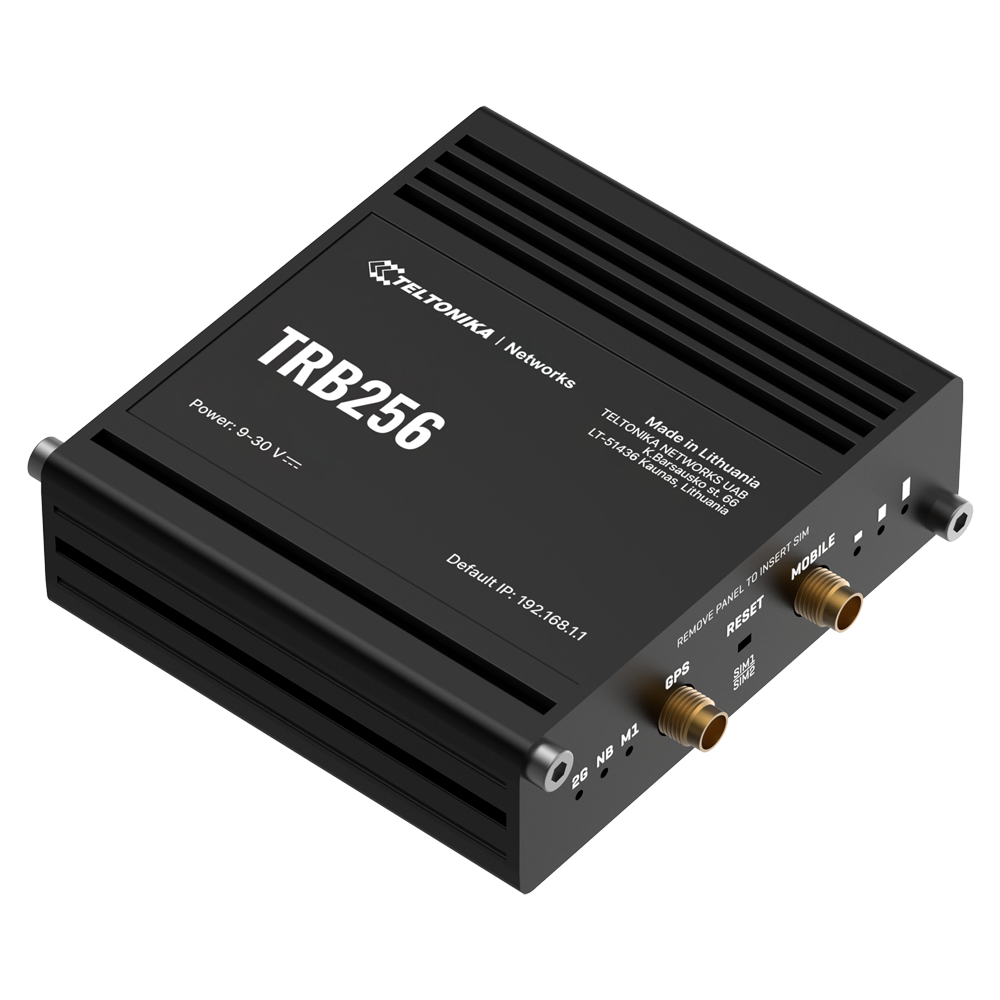

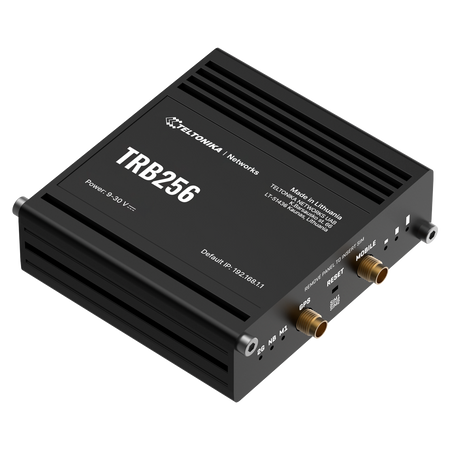

Teltonika Industrial NB-IoT/M1 Gateway
Regular price
€214,20
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Teltonika Industrial NB-IoT/M1 Gateway - Dual SIM for redundancy and failover - GNSS support for asset tracking - VPN: IPsec, OpenVPN, WireGuard and ZeroTier - RS232, RS485 and 10/100 Ethernet interfaces - Hardware Watchdog and RMS remote management
📋 SPECIFICATIONS:
• Brand: Teltonika
• Device: Industrial LTE Gateway
• CPU: Mediatek, 580 MHz, MIPS 24KEc
• RAM: 128 MB
• Flash: 16 MB
• Mobile network: NB-IoT, LTE Cat-M1, 2G
• 4G bands (M1/NB): B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B27, B28, B66
• 2G bands: B2, B3, B5, B8
• Ethernet: 1 x RJ45 10/100 Mbps
• SIM slots: 2 x Mini SIM (2FF)

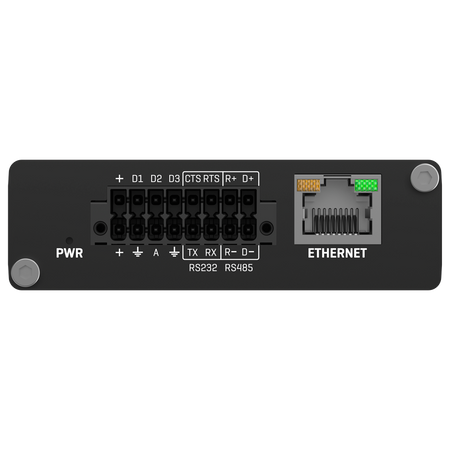

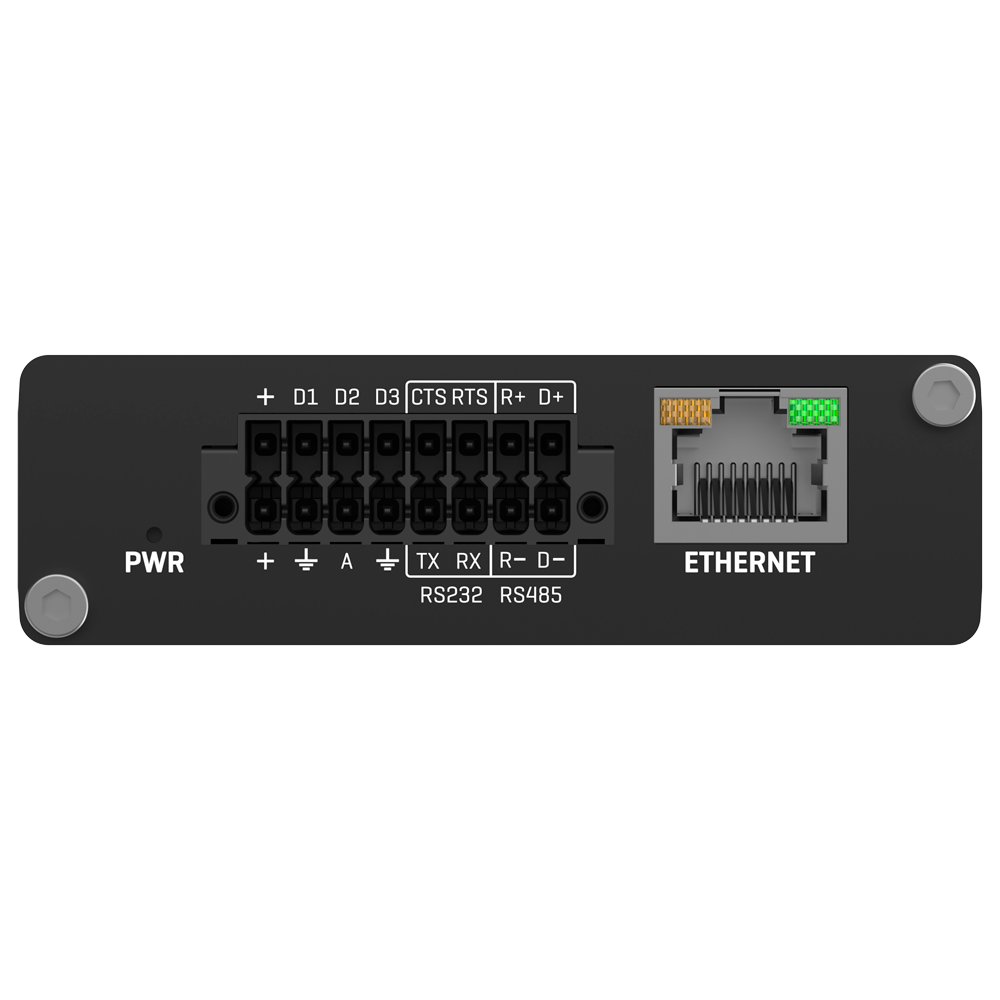

• Serial ports: RS232 (TX, RX, RTS, CTS) and RS485 (D+, D-, R+, R-)
• Serial port functions: Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client
• Digital I/O: 3 x configurable digital I/O (max. 30V, 300mA)
• Analog I/O: 1 x Analog input (0-30V)
• Positioning: GPS, GLONASS, BeiDou, Galileo, QZSS (not simultaneously with cellular)

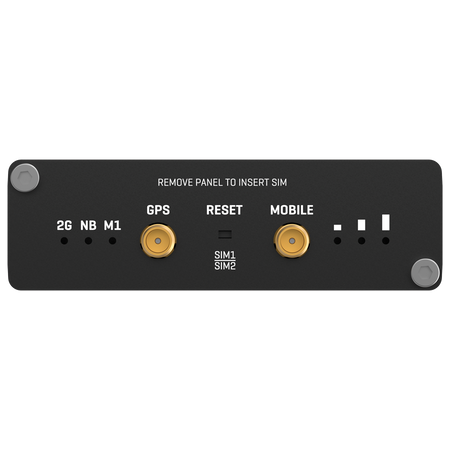

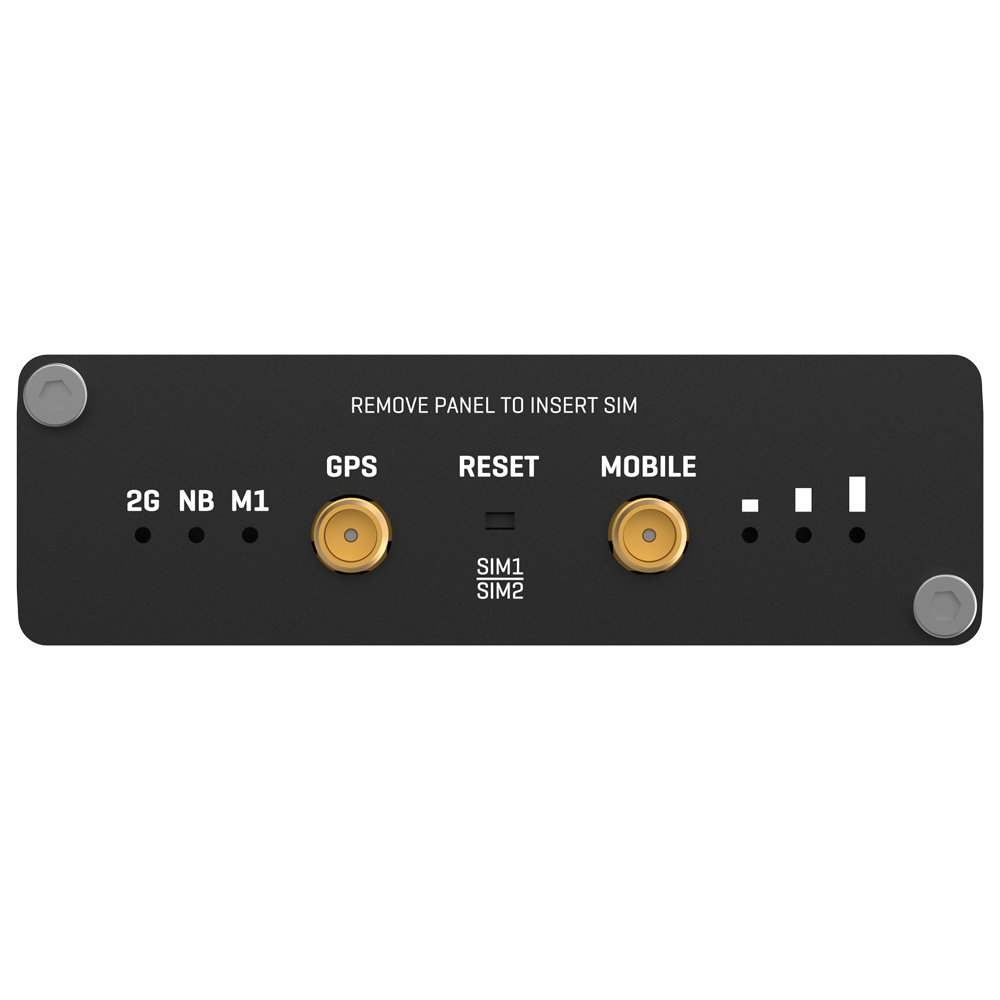

• Antennas: 1 x SMA for LTE, 1 x SMA for GNSS
• Operating System: RutOS (based on OpenWrt)
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, DDNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, SSHFS, DHCP server, DHCP Relay, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), Tag-based VLAN
• Dynamic routing: BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP (route-based)
• VPN protocols: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier, Tinc
• Security: Port forwarding, traffic rules and custom rules; DDoS prevention (SYN flood, SSH, HTTP/HTTPS), port scanning (SYN-FIN, SYN-RST, X-mas, NULL, FIN), web filter, access control
• QoS: Priority queueing by source/destination, service, protocol or port, WMM, 802.11e
• Hotspot: Captive portal, internal/external Radius, SMS, landing page, walled garden, scripts, URL parameters, user management, 9 customizable themes
• Monitoring: WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS, Kinesis, BACNET, OPC UA, MODBUS, DNP3, DLMS
• Cloud solutions: RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
• Watchdog: Integrated Hardware Watchdog
• Power supply: 16-pin industrial terminal block 9-30V (Power supply not included)
• Power consumption: Idle: < 1.2 W, Max: < 2 W
• Protection: IP30
• Material: Aluminum
• Operating temp: -40 °C to +75 °C
• Operating humidity: 10% to 90% (non-condensing)
• Mounting kit: Optional: Standard and compact DIN rail (not included)
• Dimensions: 83 x 25 x 74.2 mm
• Weight: 165 g
• Color: Black
📦 INCLUDED:
• 1x TRB256 Gateway • 1x 16-pin terminal block • 1x Hex key • 1x Quick start guide
| Device | Industrial LTE Gateway |
|---|---|
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB |
| Flash | 16 MB |
| Mobile network | NB-IoT, LTE Cat-M1, 2G |
| 4G bands (M1/NB) | B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B27, B28, B66 |
| 2G bands | B2, B3, B5, B8 |
| Ethernet | 1 x RJ45 10/100 Mbps |
| SIM slots | 2 x Mini SIM (2FF) |
| Serial ports | RS232 (TX, RX, RTS, CTS) and RS485 (D+, D-, R+, R-) |
| Serial port functions | Console, Serial over IP, Modem, MODBUS gateway, NTRIP client |
| Digital I/O | 3 x Configurable digital I/O (max. 30V, 300mA) |
| Analog I/O | 1 x Analog input (0-30V) |
| Positioning | GPS, GLONASS, BeiDou, Galileo, QZSS (not simultaneously with cellular) |
| Antennas | 1 x SMA for LTE, 1 x SMA for GNSS |
| Operating System | RutOS (based on OpenWrt) |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, DDNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, SSHFS, DHCP server, DHCP Relay, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), Tag-based VLAN |
| Dynamic routing | BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP (route-based) |
| VPN protocols | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier, Tinc |
| Security | Port forwarding, traffic rules and custom rules; DDoS prevention (SYN flood, SSH, HTTP/HTTPS), port scanning (SYN-FIN, SYN-RST, X-mas, NULL, FIN), web filtering, access control |
| QoS | Priority queues for source/destination, service, protocol or port, WMM, 802.11e |
| Hotspot | Captive portal, internal/external Radius, SMS, landing page, walled garden, scripts, URL parameters, user management, 9 customizable themes |
| Monitoring | WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS, Kinesis, BACNET, OPC UA, MODBUS, DNP3, DLMS |
| Cloud solutions | RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
| Watchdog | Built-in Hardware Watchdog |
| Power supply | 16-pin industrial terminal block 9-30V (power supply not included) |
| Power consumption | Idle: < 1.2 W, Max: < 2 W |
| Protection | IP30 |
| Material | Aluminum |
| Operating temp. | -40 °C to +75 °C |
| Operating humidity | 10% to 90% (non-condensing) |
| Mounting kit | Optional: Standard and compact DIN rail (not included) |
| Dimensions | 83 x 25 x 74.2 mm |
| Weight | 165 g |
| Color | Black |
