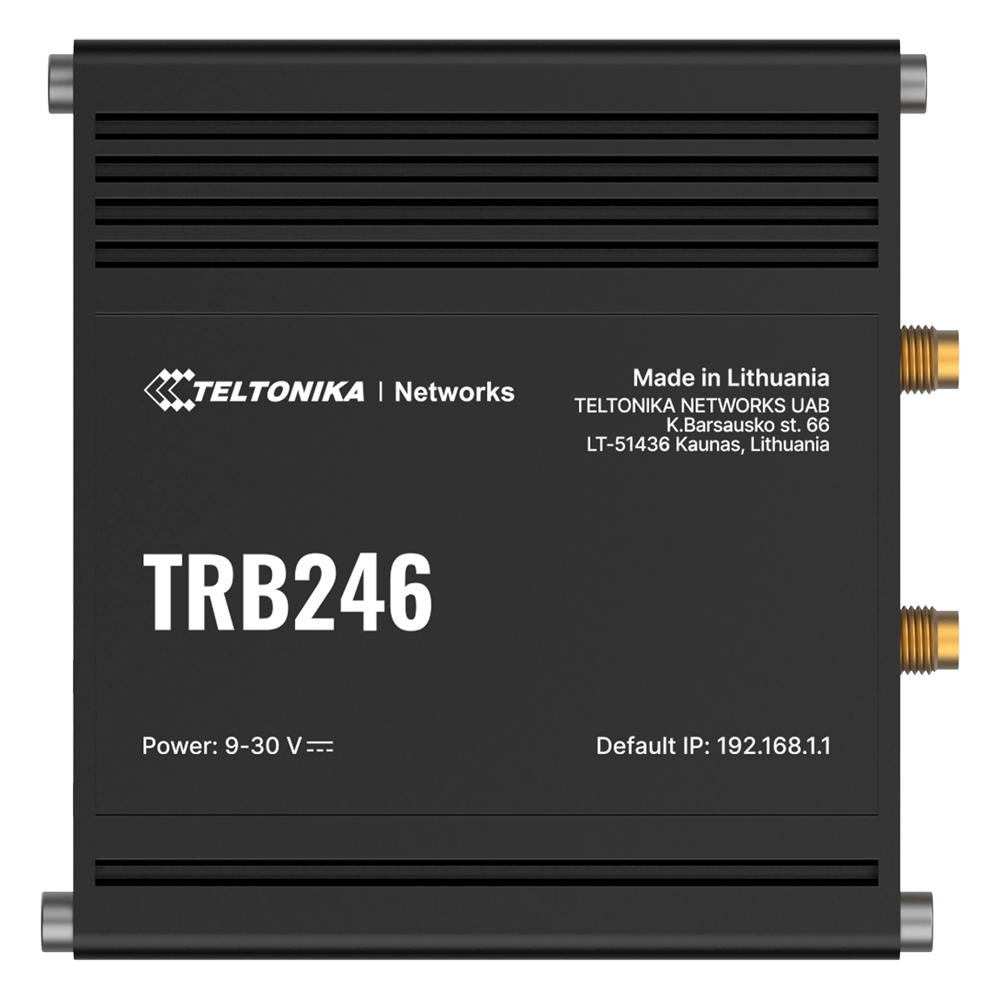

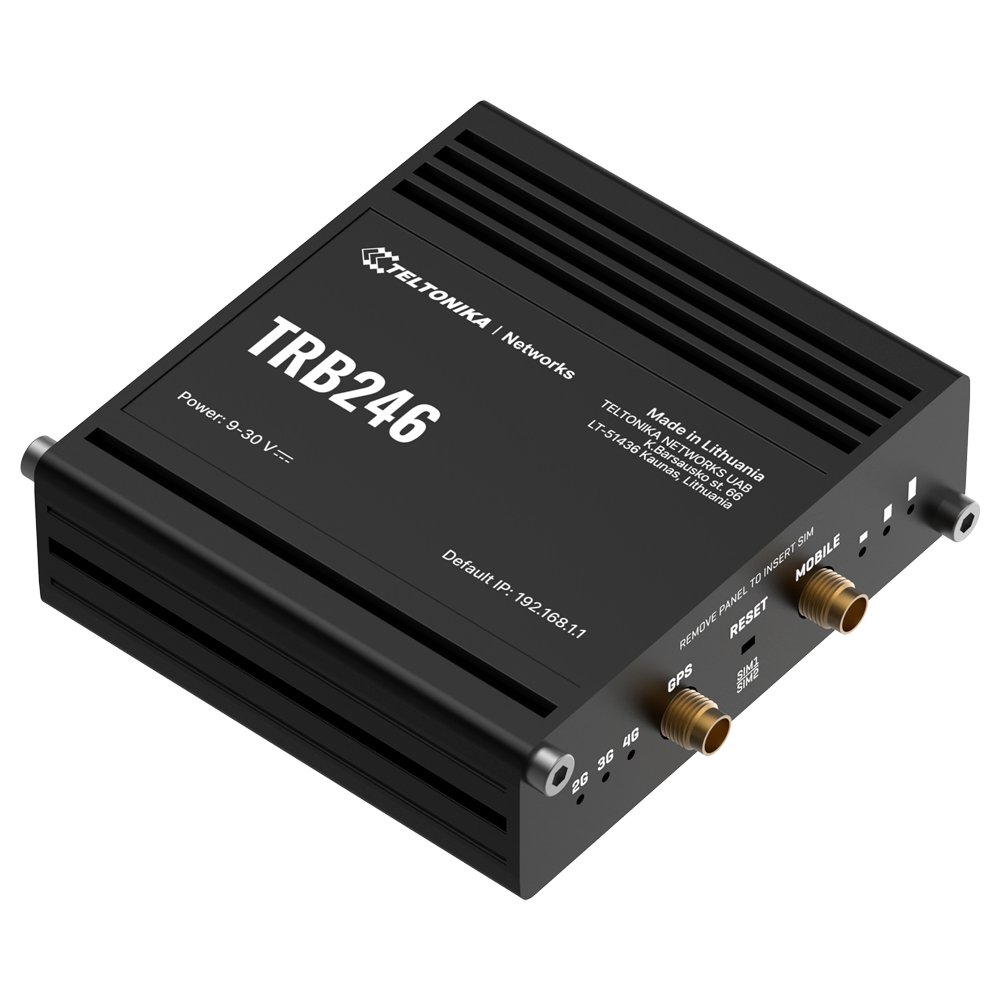

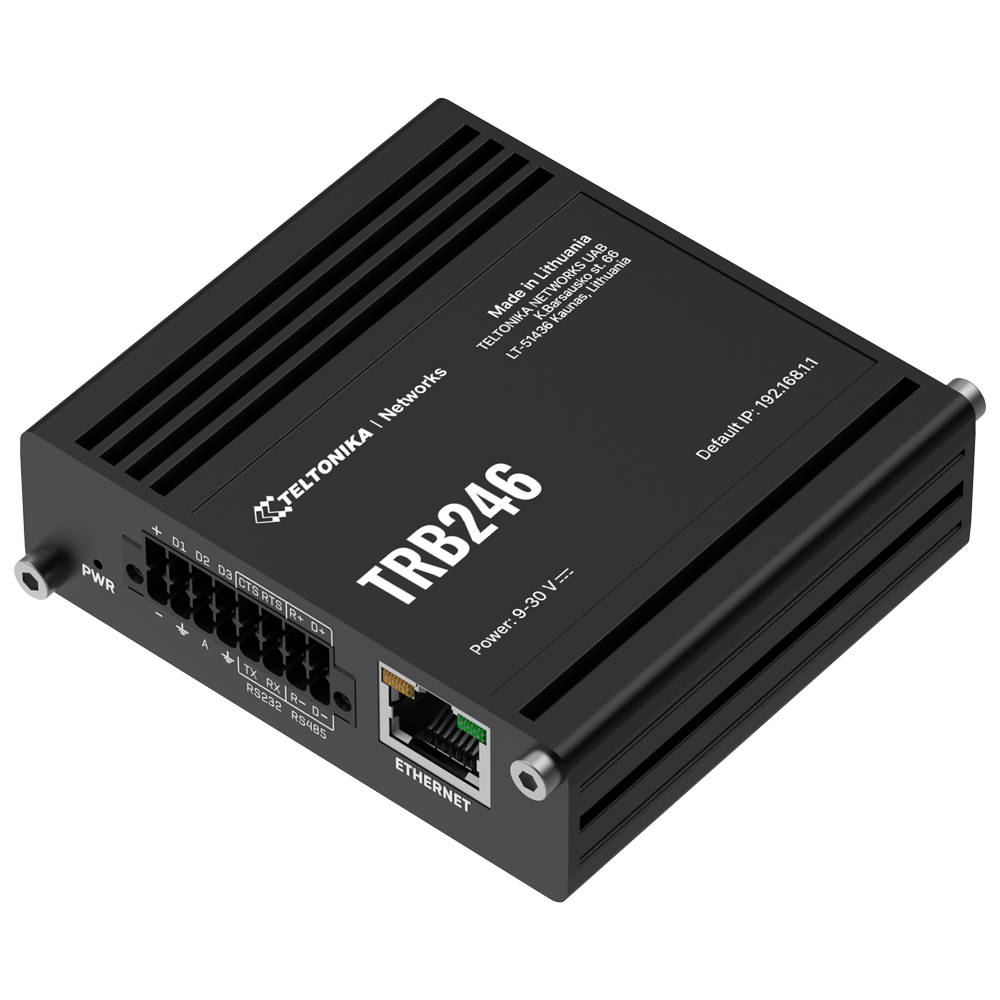

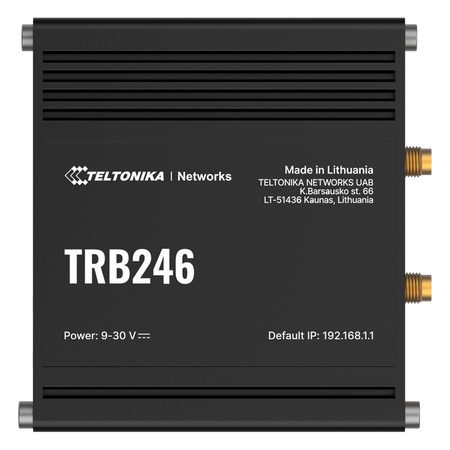

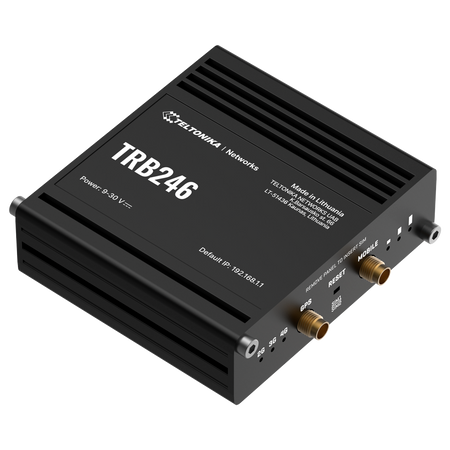

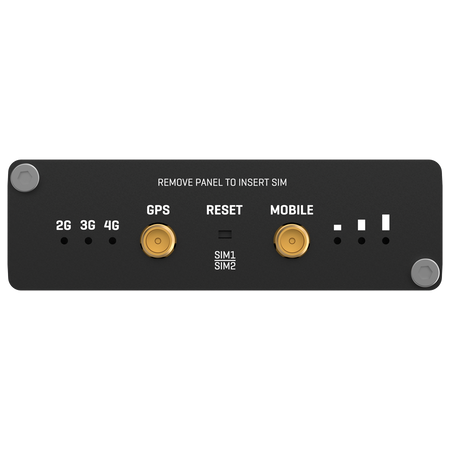

Teltonika 4G LTE Cat 4 Industrial Router - Maximum flexibility thanks to the dual SIM slot
Teltonika 4G LTE Cat 4 Industrial Router - Maximum flexibility thanks to the dual SIM slot
Regular price
€255,49
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Teltonika Industrial 4G LTE Cat 4 Router - Maximum flexibility thanks to dual SIM slots - GNSS positioning: GPS, GLONASS and more - VPN: IPsec, OpenVPN, WireGuard and ZeroTier - 10/100 Ethernet port and RS232/RS485 - Hardware Watchdog and Modbus/DNP3 protocols
📋 SPECIFICATIONS:
• Brand: Teltonika
• Device: Industrial LTE Gateway
• CPU: Mediatek, 580 MHz, MIPS 24KEC
• RAM: 128 MB
• Flash: 16 MB
• Mobile network: 4G LTE Cat 4, 3G, 2G
• Mobile speed: 150 Mbps DL / 50 Mbps UL

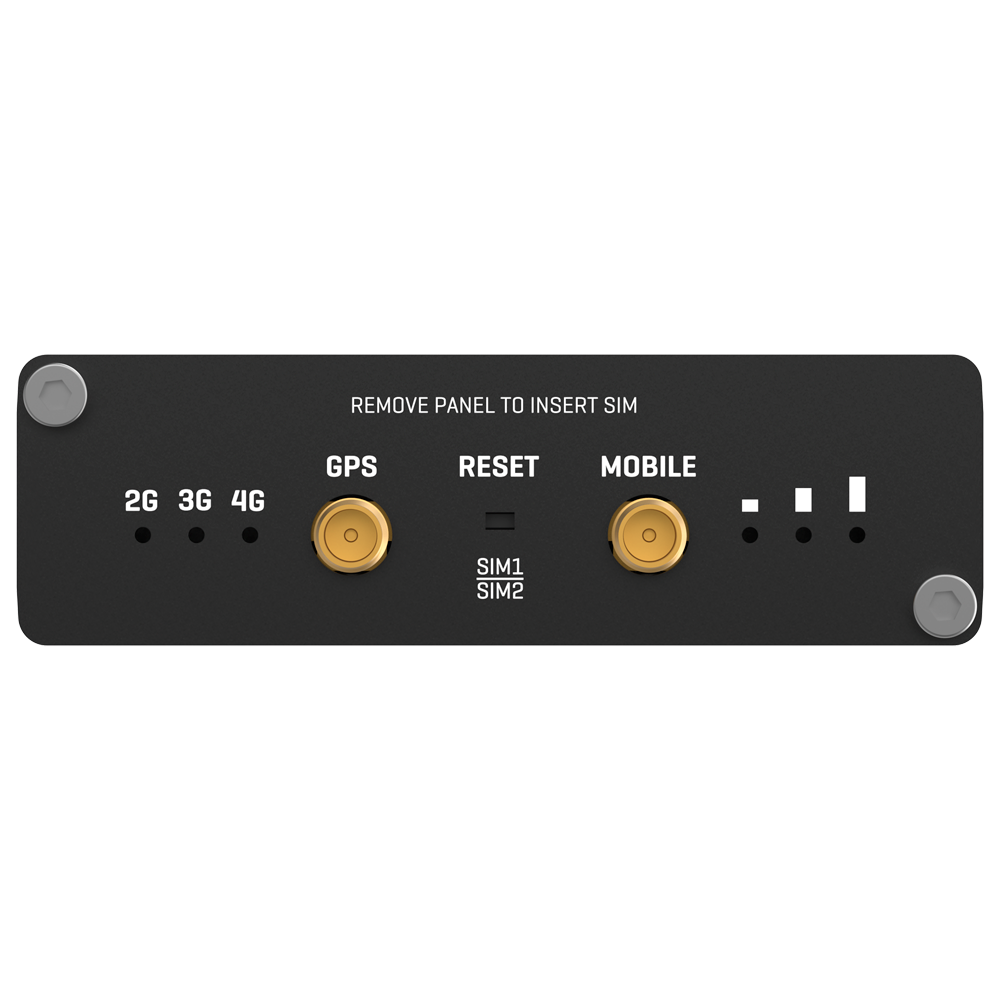

• SIM: 2 x SIM slots (Mini SIM - 2FF)
• Ethernet: 1 x RJ45 port, 10/100 Mbps

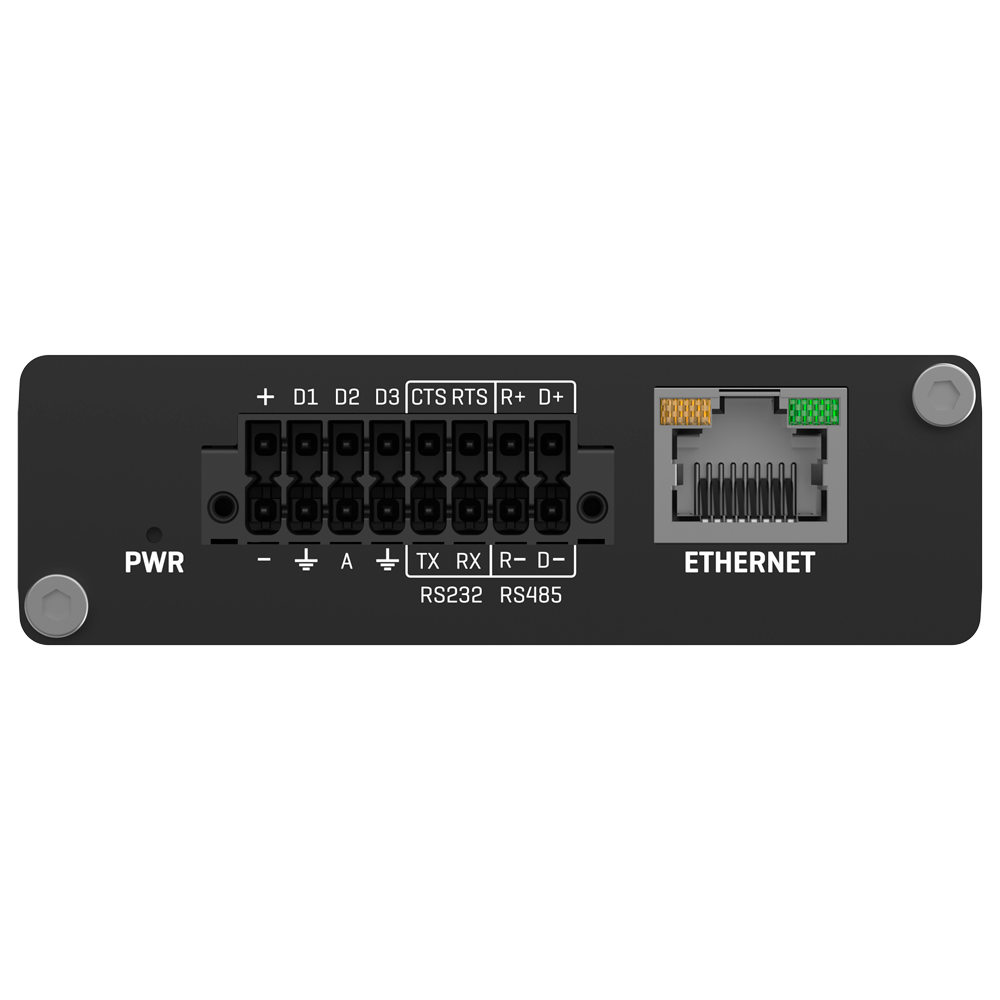

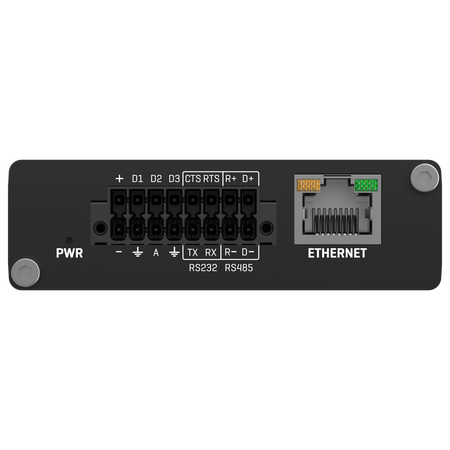

• Serial ports: RS232 (TX, RX, RTS, CTS) and RS485 (D+, D-, R+, R-)
• Serial port functions: Console, Serial over IP, Modem, MODBUS gateway, NTRIP client
• Digital I/O: 3 x Configurable Inputs/Outputs (0-30 V)
• Analog I/O: 1 x Analog input (0-30 V)
• Positioning: GPS, GLONASS, BeiDou, Galileo, and QZSS
• Operating System: RutOS (based on OpenWrt)
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, DDNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, SSHFS, DHCP server, DHCP Relay, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
• Routing: Static, BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP, Policy-based routing
• VPN protocols: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc
• Security: Firewall (Port forward, traffic rules), DDoS prevention (SYN flood, SSH, HTTP/HTTPS), Port scan, Web Filter, Access control
• QoS: Traffic priority based on origin/destination, service, protocol or port, WMM, 802.11e
• Hotspot: Captive Portal, internal/external Radius, SMS, landing page, walled garden, user scripts
• Monitoring: WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS, OPC UA, MODBUS, DNP3, DLMS, BACnet
• Cloud solutions: RMS, FOTA, ThingWorx, Cumulocity, Azure IoT Hub, AWS IoT Core
• Watchdog: Integrated hardware watchdog
• Power supply: 16-pin industrial terminal block 9-30 VDC
• Consumption: Idle: < 1.5 W, Max: < 3.5 W
• Protection: IP30
• Material: Aluminum
• Operating temp.: -40 °C to +75 °C
• Operating humidity: 10% to 90% (non-condensing)
• Mounting kit: DIN rail, wall mount, flat surface (Optional)
• Dimensions: 83 x 25 x 74.2 mm
• Weight: 165 g
• Color: Black
📦 INCLUDED:

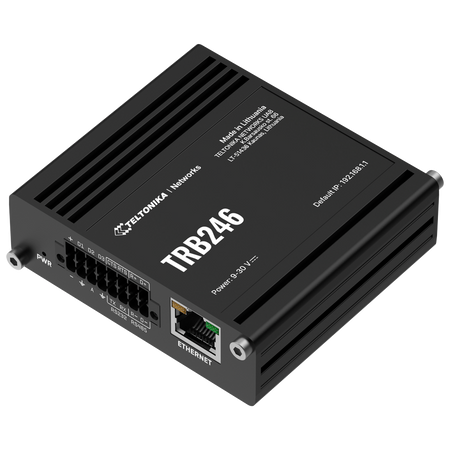

• 1x TRB246 Gateway • 1x 16-pin terminal block • 1x Hex key • 1x Quick Start Guide (QSG) • 1x Box
| Device | Industrial LTE Gateway |
|---|---|
| CPU | Mediatek, 580 MHz, MIPS 24KEC |
| RAM | 128 MB |
| Flash | 16 MB |
| Mobile network | 4G LTE Cat 4, 3G, 2G |
| Mobile speed | 150 Mbps DL / 50 Mbps UL |
| SIM | 2 x SIM slots (Mini SIM - 2FF) |
| Ethernet | 1 x RJ45 port, 10/100 Mbps |
| Serial ports | RS232 (TX, RX, RTS, CTS) and RS485 (D+, D-, R+, R-) |
| Serial port functions | Console, Serial over IP, Modem, MODBUS Gateway, NTRIP Client |
| Digital I/O | 3 x Configurable Inputs/Outputs (0-30 V) |
| Analog I/O | 1 x Analog input (0-30 V) |
| Positioning | GPS, GLONASS, BeiDou, Galileo, and QZSS |
| Operating System | RutOS (based on OpenWrt) |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, DDNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, SSHFS, DHCP server, DHCP Relay, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN |
| Routing | Static, BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP, Policy-based routing |
| VPN protocols | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc |
| Security | Firewall (Port forward, traffic rules), DDoS prevention (SYN flood, SSH, HTTP/HTTPS), Port scan, Web Filter, Access control |
| QoS | Traffic priority by source/destination, service, protocol or port, WMM, 802.11e |
| Hotspot | Captive Portal, Internal/External Radius, SMS, landing page, walled garden, user scripts |
| Monitoring | WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS, OPC UA, MODBUS, DNP3, DLMS, BACnet |
| Cloud solutions | RMS, FOTA, ThingWorx, Cumulocity, Azure IoT Hub, AWS IoT Core |
| Watchdog | Built-in hardware watchdog |
| Power supply | 16-pin industrial terminal block 9-30 VDC |
| Power consumption | Idle: < 1.5 W, Max: < 3.5 W |
| Protection | IP30 |
| Material | Aluminum |
| Operating temp. | -40 °C to +75 °C |
| Operating humidity | 10% to 90% (non-condensing) |
| Mounting kit | DIN rail, wall mount, flat surface (Optional) |
| Dimensions | 83 x 25 x 74.2 mm |
| Weight | 165 g |
| Color | Black |
