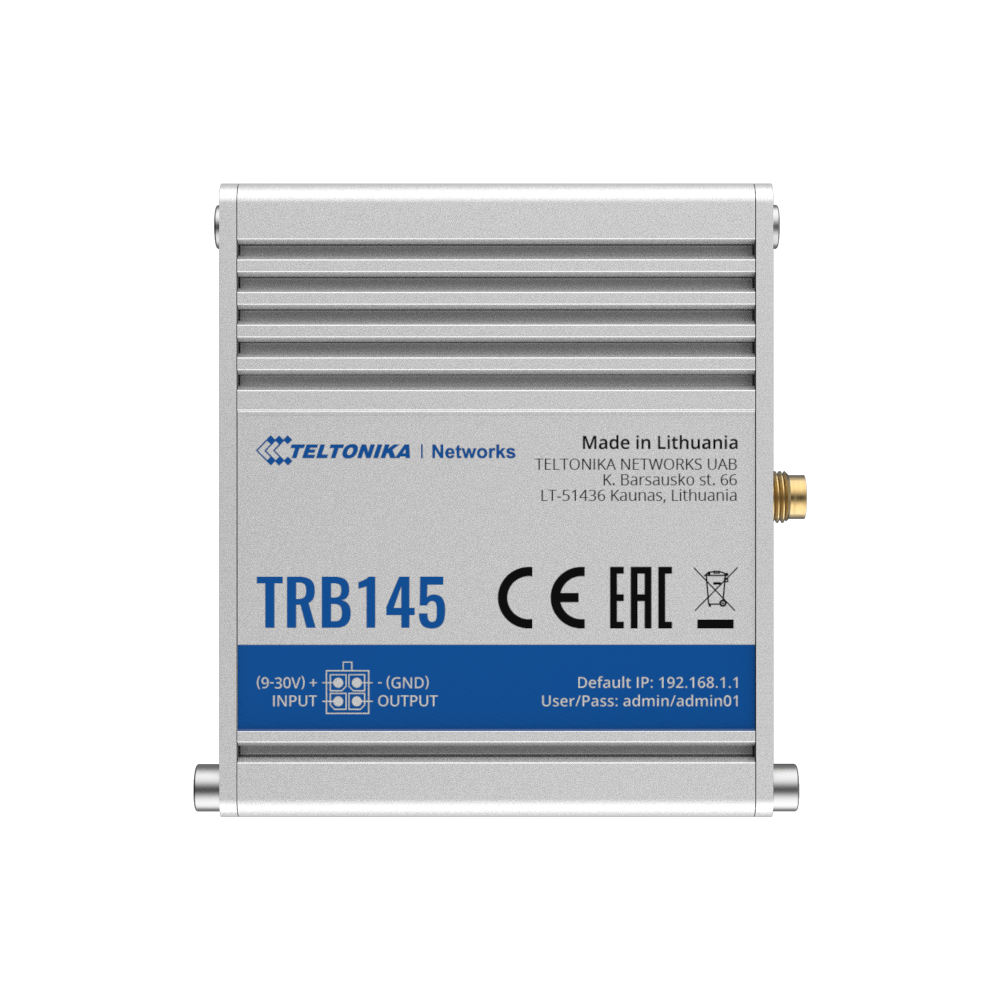

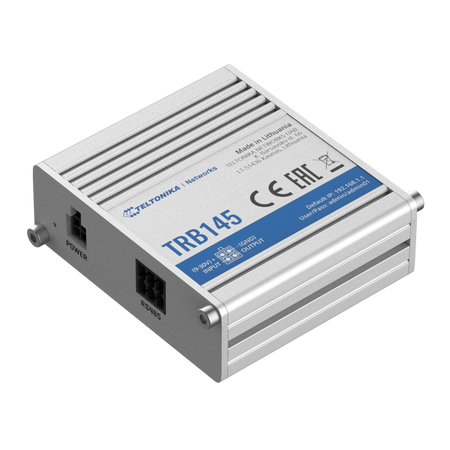

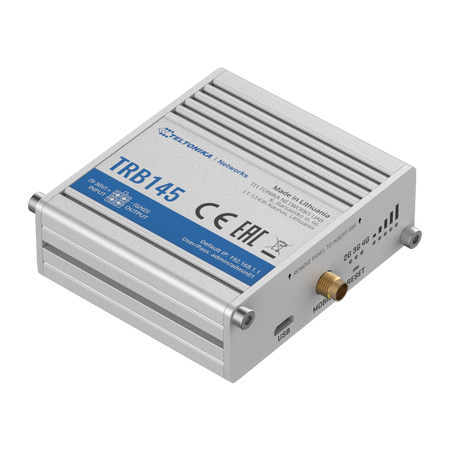

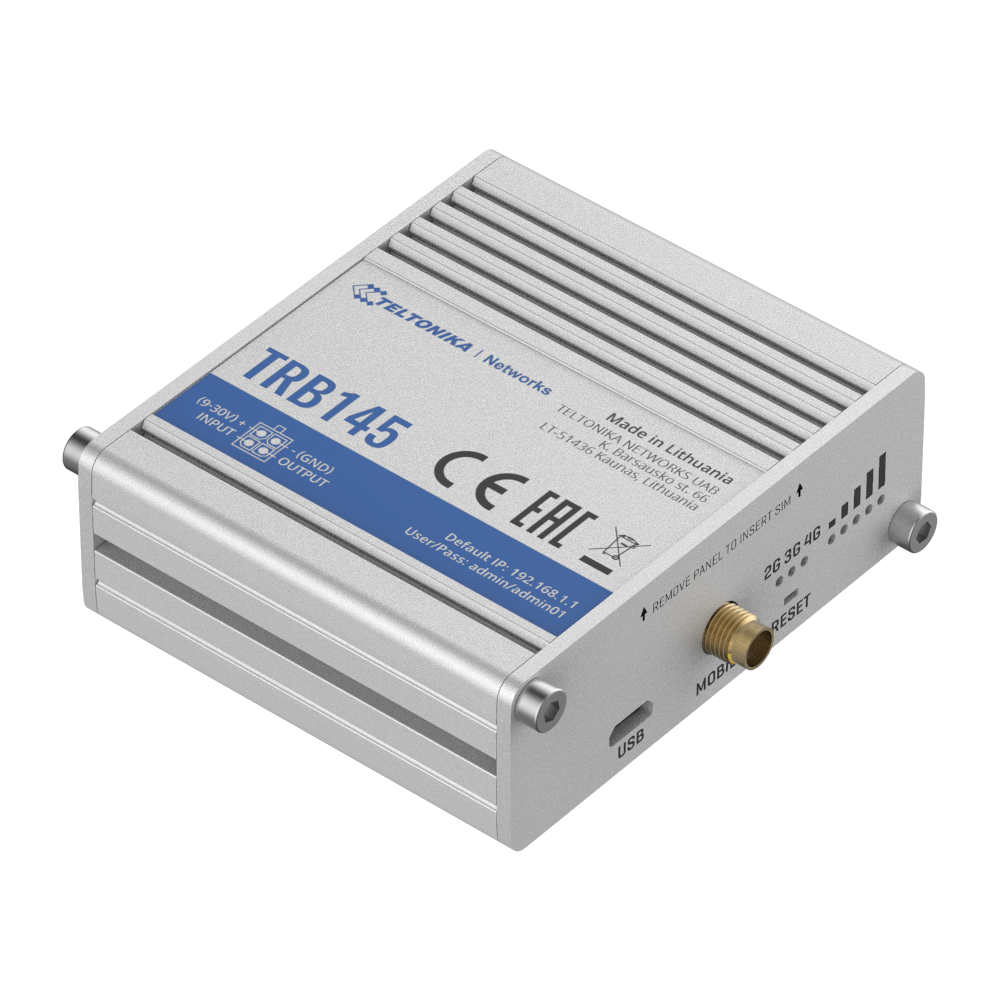

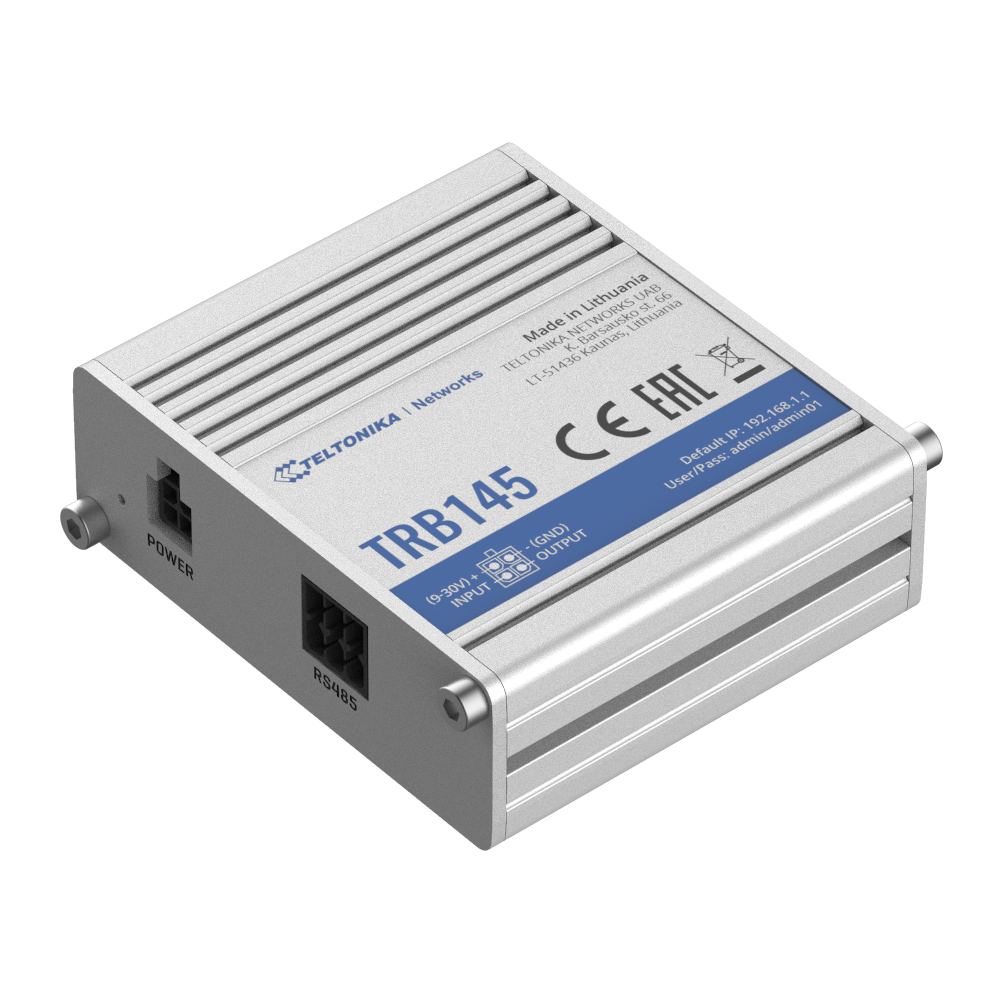

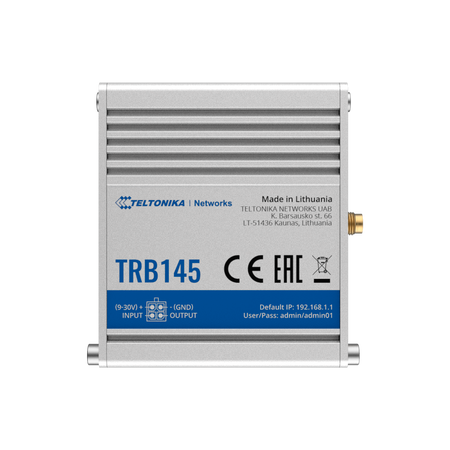

Teltonika Industrial 4G LTE Gateway
Regular price
€199,68
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Teltonika 4G LTE Industrial Gateway - Reliable connectivity with 4G LTE Cat 1 - Built-in industrial RS485 serial interface - Advanced VPN: IPsec, OpenVPN, and WireGuard - 2 configurable digital I/O ports - Hardware Watchdog and RMS remote management
📋 SPECIFICATIONS:
• Brand: Teltonika
• Device: Industrial LTE Gateway
• CPU: ARM Cortex-A7 (1.2 GHz)
• RAM: 128 MB (DDR3)
• Flash: 512 MB (SPI Flash)
• Mobile network: 4G LTE Cat 1, 3G, 2G
• Mobile speed: 10 Mbps DL / 5 Mbps UL
• 4G bands (LTE-FDD): B1, B3, B5, B7, B8, B20

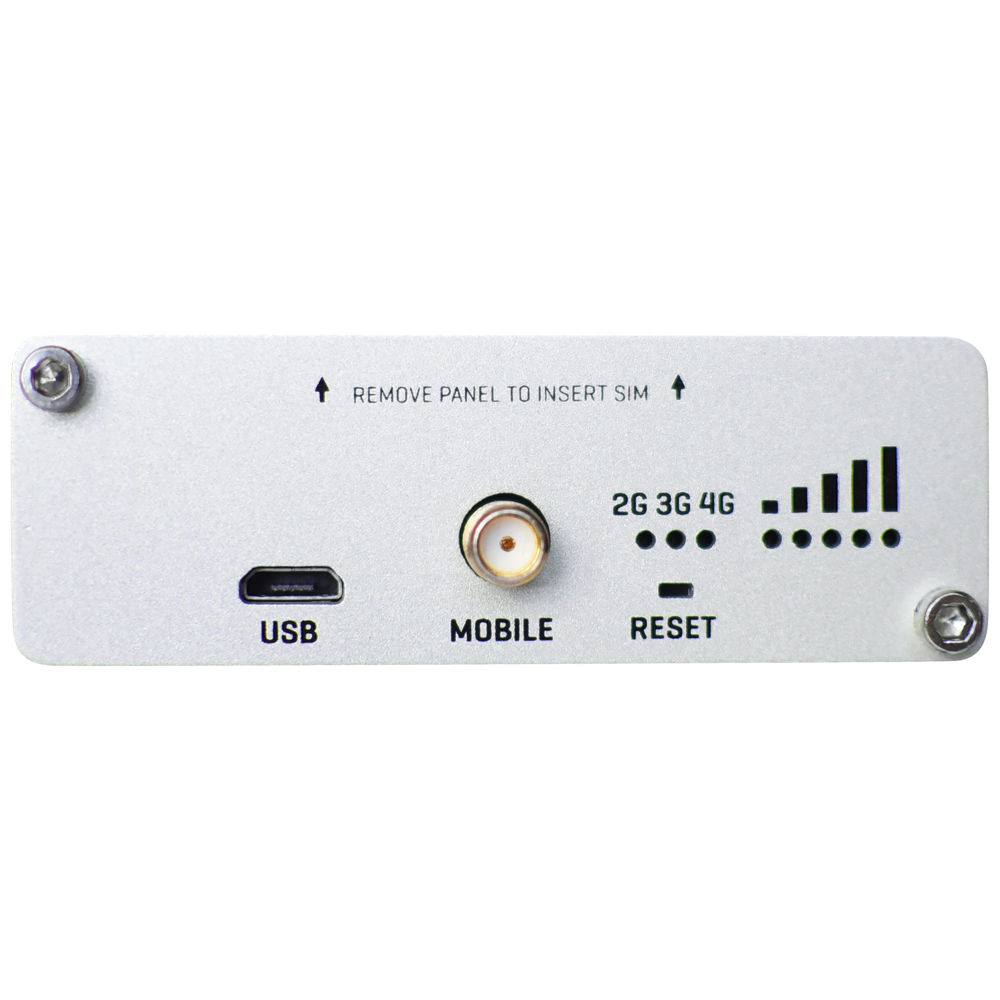

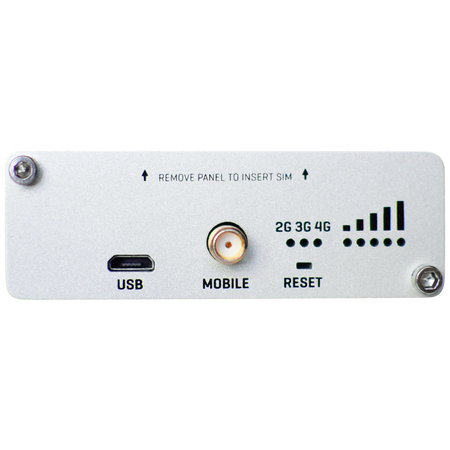

• USB port: 1 x Micro USB (Configuration and virtual network)

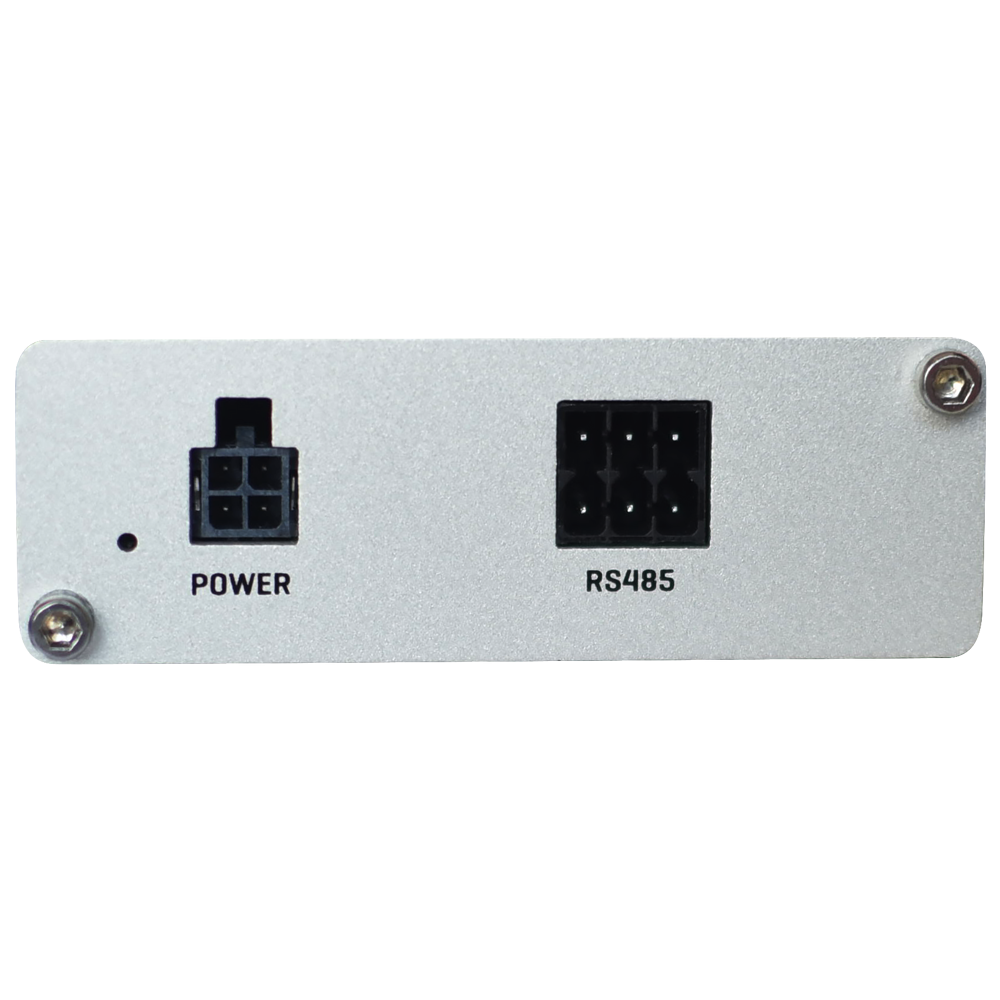

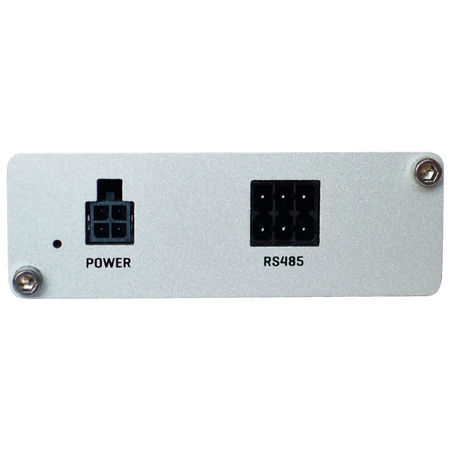

• Serial interface: 1 x RS485 (6-pin terminal block)
• Serial functions: Console, Serial over IP, Modem, Modbus gateway
• Digital I/O: 2 x Digital Inputs/Outputs (configurable)
• Antennas: 1 x SMA connector for mobile antenna
• Operating System: RutOS (based on OpenWrt)
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP/S, SSL/TLS, ARP, SSH, DHCP, SNMP, MQTT
• IIoT protocols: Modbus TCP, Modbus RTU
• VPN: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, ZeroTier, WireGuard
• Security: Firewall, DDoS protection, Port scanning, Web filter, Access control
• Watchdog: Built-in Hardware Watchdog
• Power supply: 9 - 30 VDC (4-pin connector)
• Power consumption: Standby: < 1.2 W; Maximum: < 5 W
• Material: Aluminum
• Protection: IP30
• Operating temp.: -40 °C to +75 °C
• Operating humidity: 10% to 90% (non-condensing)
• Dimensions: 74.5 x 25 x 64.4 mm
• Weight: 130 g
• Color: Metallic grey
📦 INCLUDED:
• 1x TRB145 Gateway • 1x Mobile antenna (magnetic, SMA male) • 1x Micro-USB cable (0.8 m) • 1x Hex key • 1x Quick Start Guide (QSG)
| Device | Industrial LTE Gateway |
|---|---|
| CPU | ARM Cortex-A7 (1.2 GHz) |
| RAM | 128 MB (DDR3) |
| Flash | 512 MB (SPI Flash) |
| Mobile network | 4G LTE Cat 1, 3G, 2G |
| Mobile speed | 10 Mbps DL / 5 Mbps UL |
| 4G bands (LTE-FDD) | B1, B3, B5, B7, B8, B20 |
| USB port | 1 x Micro USB (Configuration and virtual network) |
| Serial interface | 1 x RS485 (6-pin terminal block) |
| Serial functions | Console, Serial over IP, Modem, Modbus gateway |
| Digital I/O | 2 x Digital Inputs/Outputs (configurable) |
| Antennas | 1 x SMA connector for mobile antenna |
| Operating System | RutOS (based on OpenWrt) |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP/S, SSL/TLS, ARP, SSH, DHCP, SNMP, MQTT |
| IIoT protocols | Modbus TCP, Modbus RTU |
| VPN | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, ZeroTier, WireGuard |
| Security | Firewall, DDoS protection, Port scanning, Web filter, Access control |
| Watchdog | Integrated Hardware Watchdog |
| Power supply | 9 - 30 VDC (4-pin connector) |
| Power consumption | Standby: < 1.2 W; Maximum: < 5 W |
| Material | Aluminum |
| Protection | IP30 |
| Operating temp. | -40 °C to +75 °C |
| Operating humidity | 10% to 90% (non-condensing) |
| Dimensions | 74.5 x 25 x 64.4 mm |
| Weight | 130 g |
| Color | Metallic gray |
